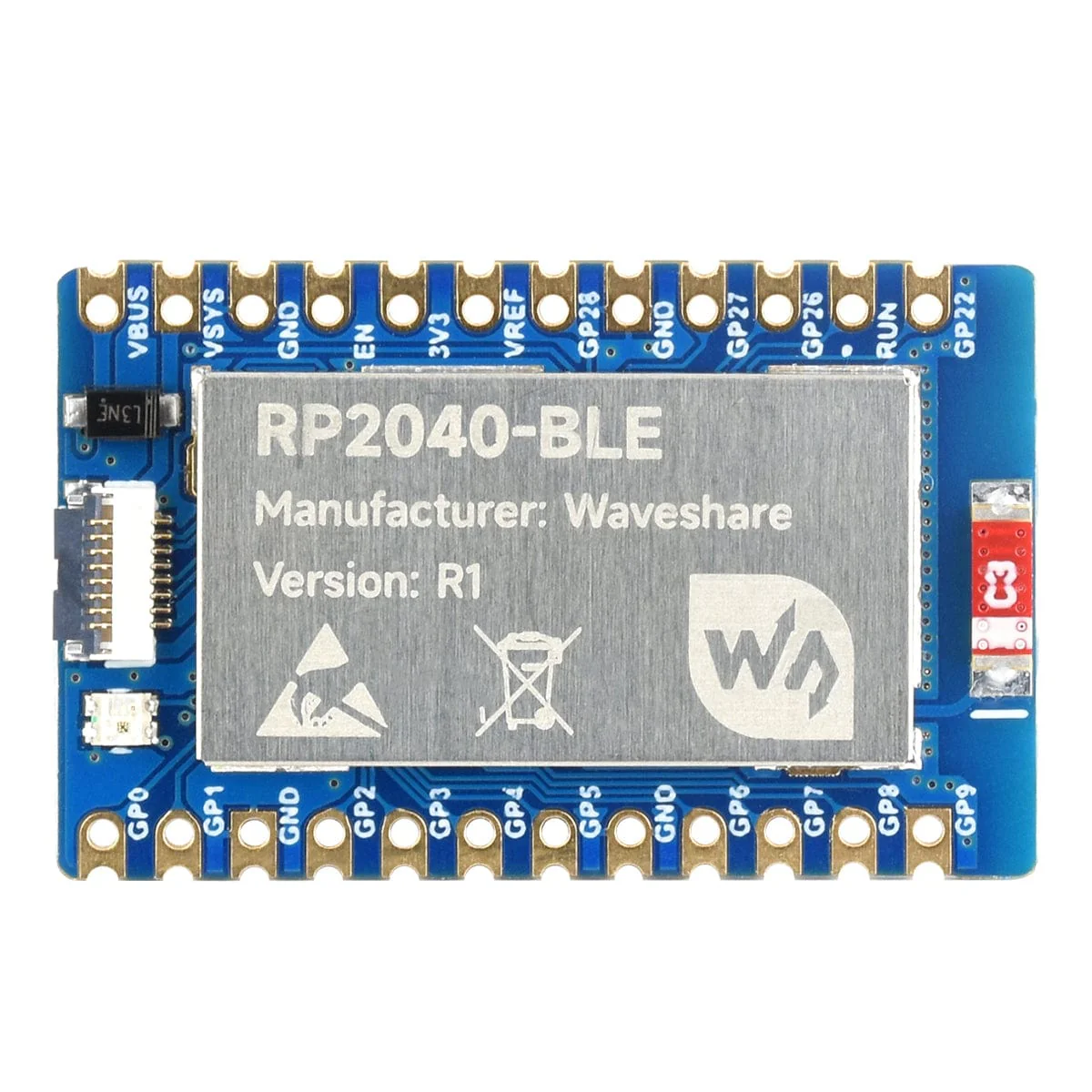

RP2040-BLE Development Board with Adapter Board

This RP2040 development board has the Raspberry Pi RP2040 microcontroller chip, a dual-core Arm Cortex M0+ processor with a flexible clock up to 133 MHz, and it includes 264KB SRAM and 2MB onboard flash memory.

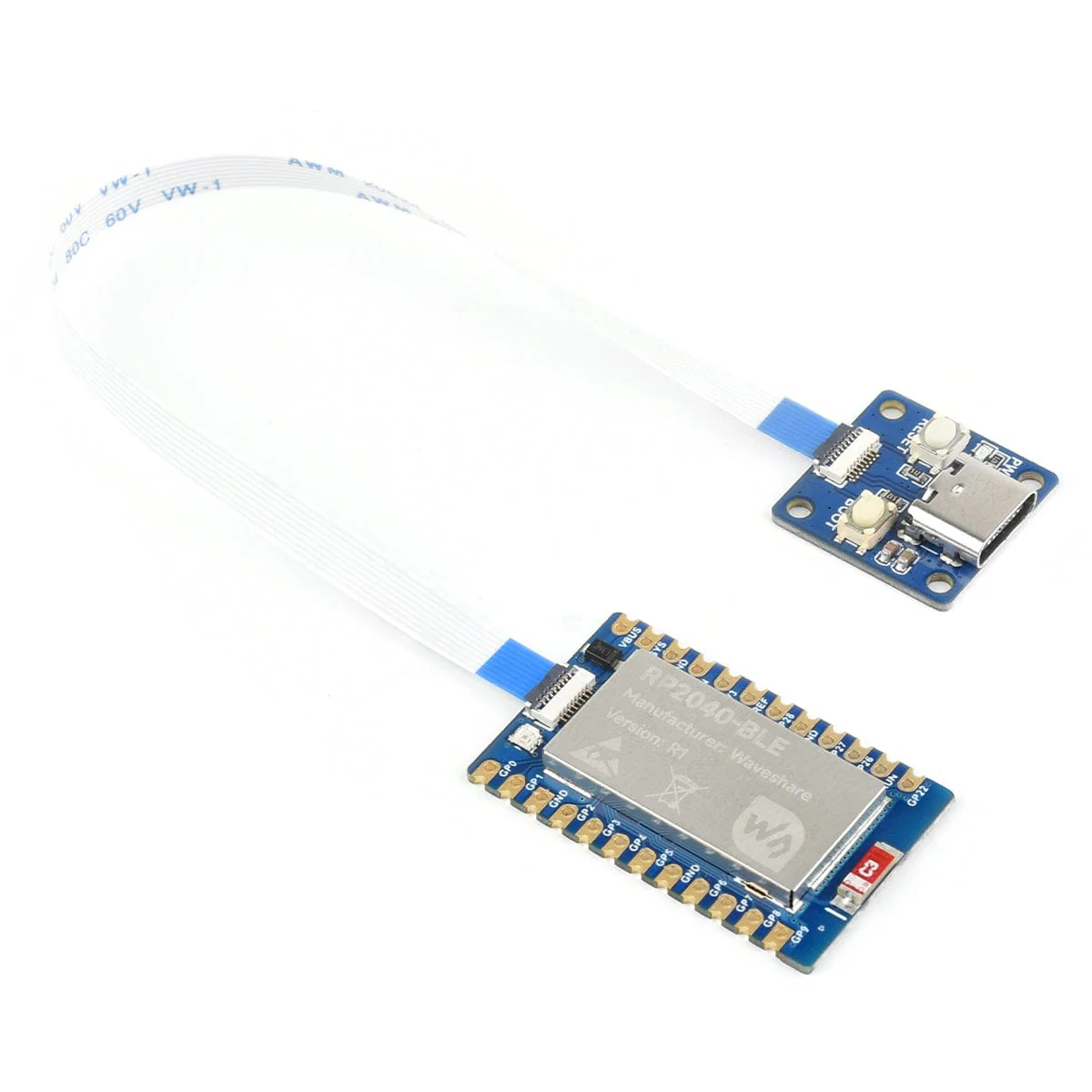

It supports Bluetooth 5.1 dual mode, making it easy to control through serial AT commands. The board also has an FPC 8-pin connector and a USB Type-C port via an included USB Port Adapter Board, making it ideal for different projects and consistent connectivity.

Note: The RP2040-BLE can not used as a host. Only slave mode is currently supported.

Features

• RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom.
• Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz.
• 264KB of SRAM, and 2MB of onboard Flash memory.
• Bluetooth 5.1 dual mode function.
• Bluetooth module, allows controlling by serial AT commands for quick start-up.
• Castellated module allows soldering directly to carrier boards.
• Drag-and-drop programming using mass storage over USB.
• 24 x pins including 14 x multi-function GPIO pins.
• 2 x SPI, 2 x I2C, 2 x UART, 3 x 12-bit ADC, 14 x controllable PWM channels.
• Temperature sensor.
• Accelerated floating-point libraries on-chip.
• 8 x Programmable I/O (PIO) state machines for custom peripheral support.

Resources

• Project Wiki
• Schematic
• User Manual

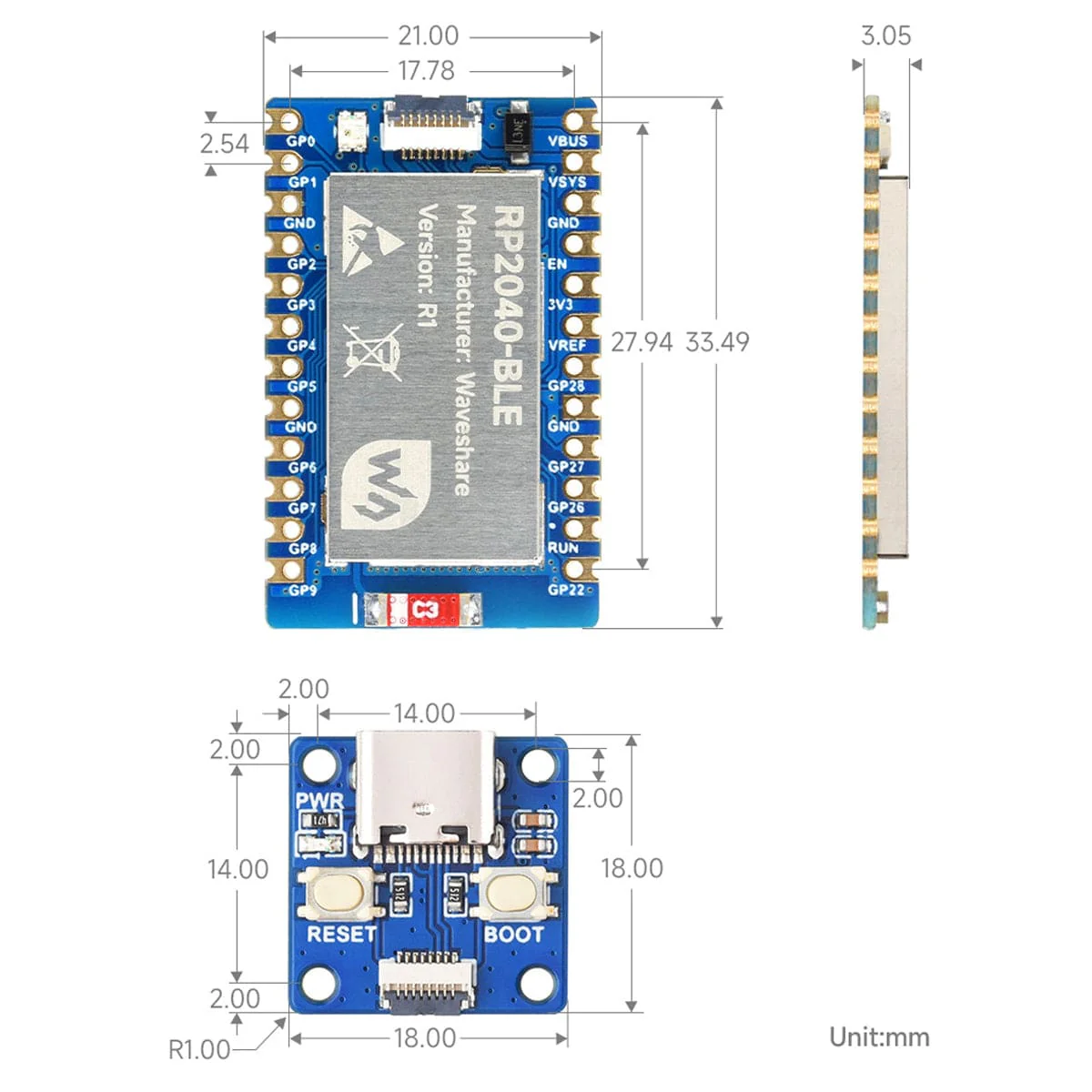

Pinout

Package Contents

• 1x RP2040-BLE Development Board
• 1x USB Type-C adapter board
• 1x 8-pin FPC cable -15cm
