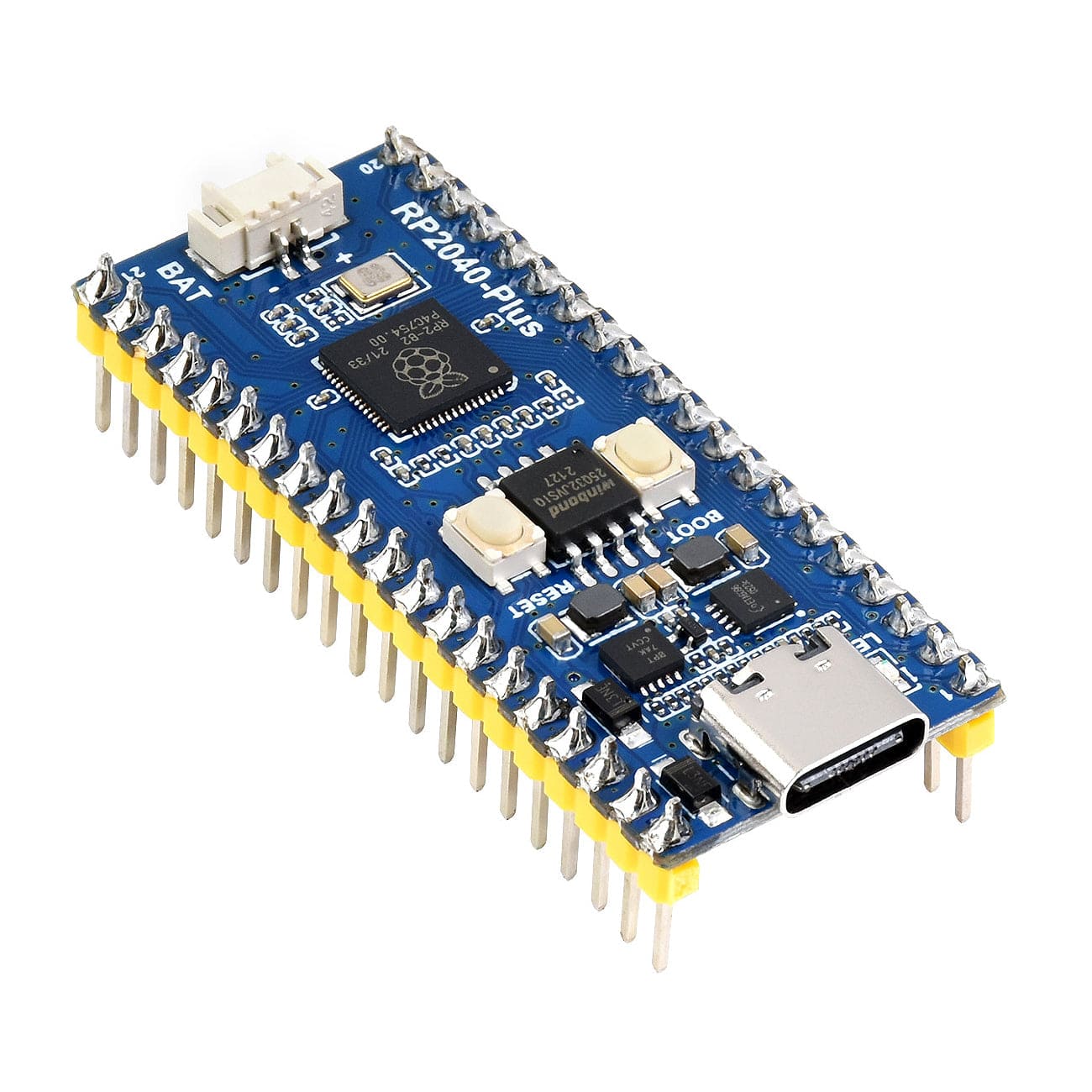

RP2040 Plus

The RP2040 Plus is a development board based on the Raspberry Pi RP2040 and inspired by the Raspberry Pi Pico.

Using the same GPIO pinout as the Raspberry Pi Pico, the same environment/SDK and a similar board shape and size, the RP2040 Plus offers users additional features in the familiar Pico format, including:

• 4MB or 16MB onboard Flash memory (select option above)
• USB-C Connector (with 1800mA regulator)
• Battery recharge circuit and header for 3.7V LiPo batteries
• Reset button

The board also includes a user-controllable LED, reset/boot buttons and flat debug pads. Your existing Raspberry Pi Pico add-on boards are pin-compatible and can be used with the same libraries and software - use it just like you would a Raspberry Pi Pico!

We are currently only stocking the pre-soldered version, removing the need to solder pin headers yourself. Don't forget to grab a USB-C cable!

Features

• RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
• Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
• 264KB of SRAM
• 4MB or 16MB of onboard Flash memory
• USB-C connector
• Lithium battery recharge/discharge header, suitable for mobile devices
• Onboard DC-DC chip TPS63000, high-efficiency DC-DC buck-boost chip, 1.8A current switch
• USB 1.1 with device and host support
• Low-power sleep and dormant modes
• Drag-and-drop programming using mass storage over USB
• 26 × multi-function GPIO pins
• 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
• Accurate clock and timer on-chip
• Temperature sensor
• Accelerated floating-point libraries on-chip
• 8 × Programmable I/O (PIO) state machines for custom peripheral support
• Dimensions: 51mm x 21mm

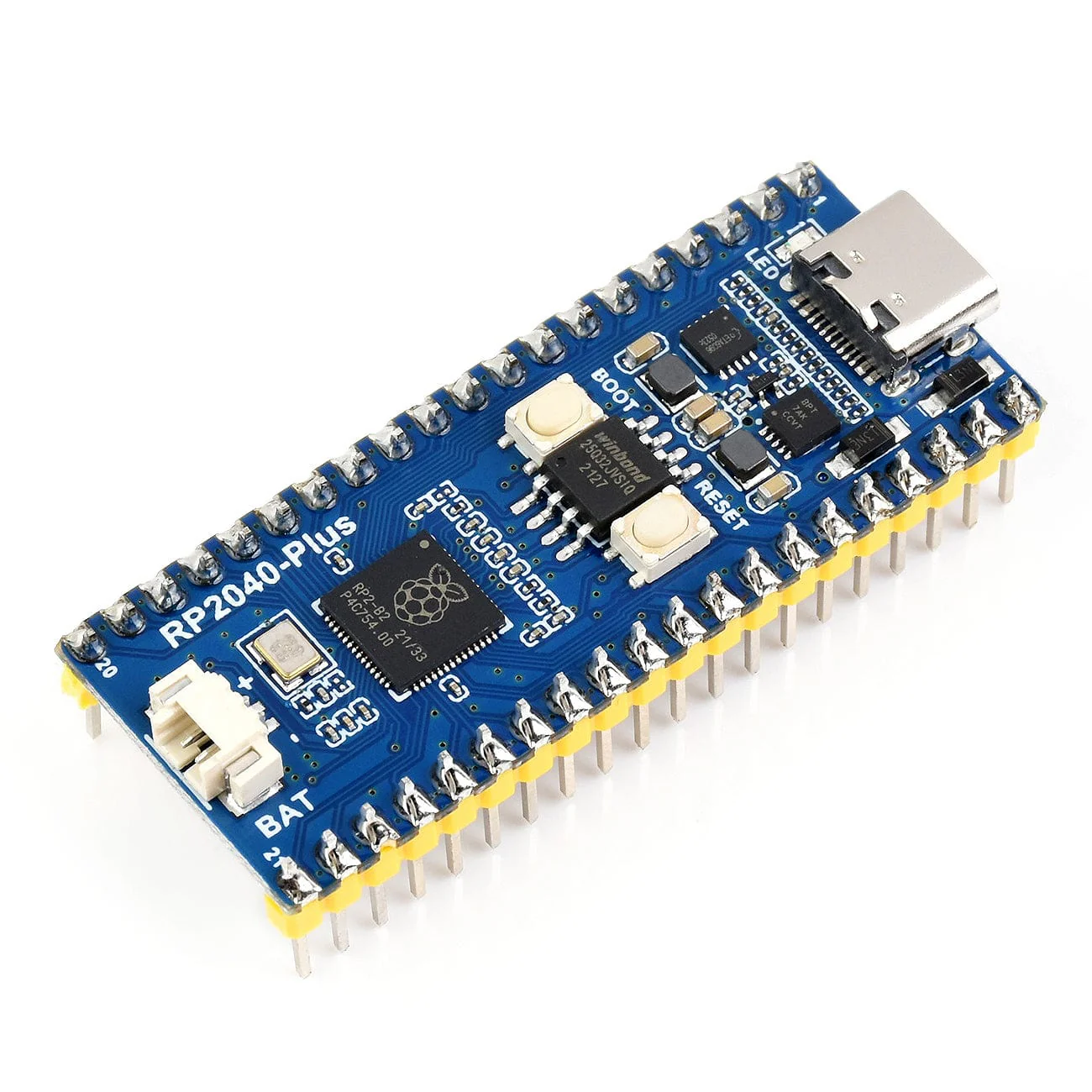

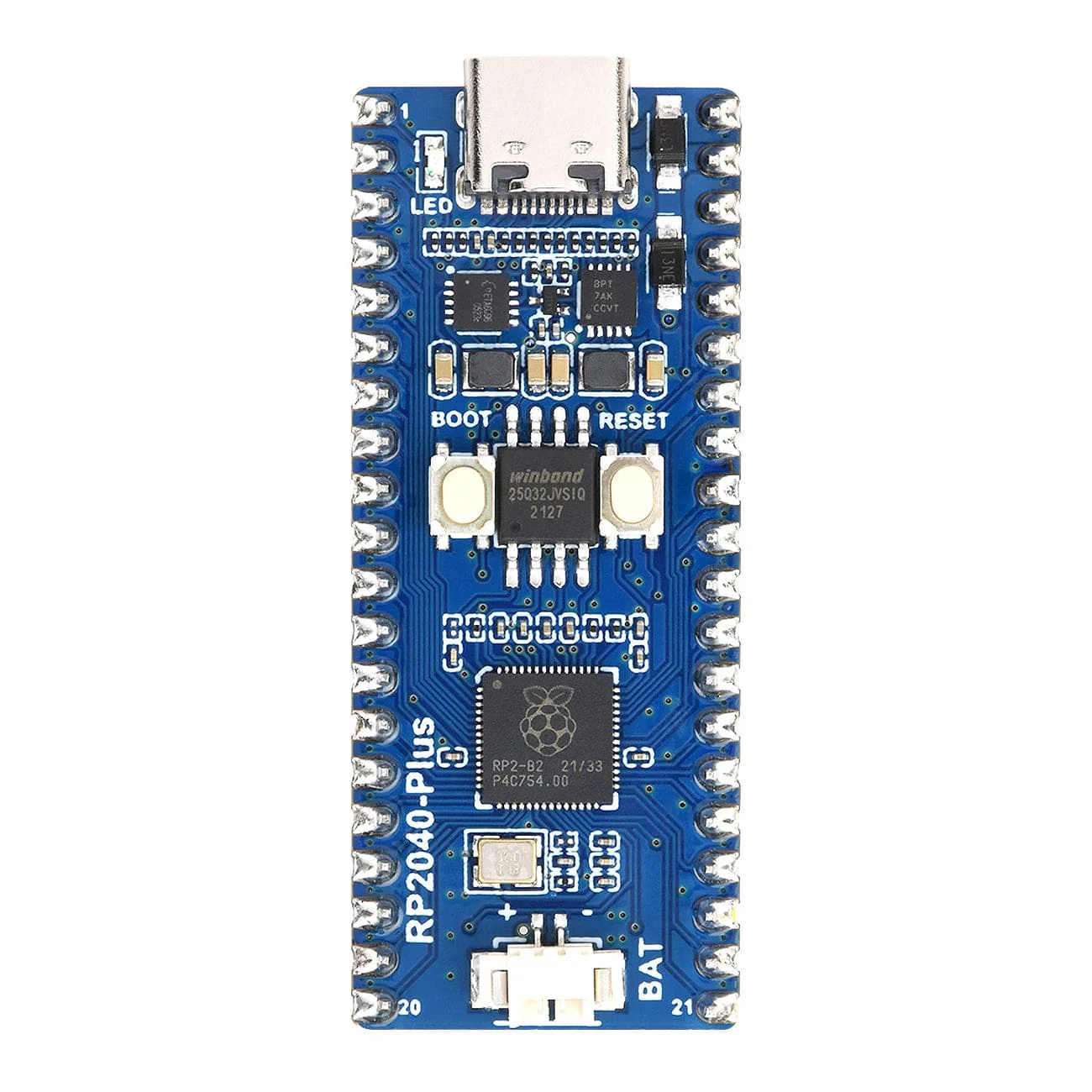

What's Onboard?

1) LED
 - User LED (not power indicator)
2) ETA6096
 - High-efficiency Lithium battery recharge manager
3) TPS63000
 - High-efficiency DC-DC buck-boost chip
4) USB Type-C connector
5) BOOT button
 - Press it when resetting to enter download mode
6) W25Q32JVSSIQ
 - 4MB or 16MB NOR-Flash
7) RESET button
8) RP2040
 - Dual-core processor, up to 133MHz operating frequency
9) Battery header
 - MX1.25 (PicoBlade) header, for 3.7V Lithium battery, allows recharging the battery and powering the board at the same time
10) Pinout
 - Compatible with Raspberry Pi Pico

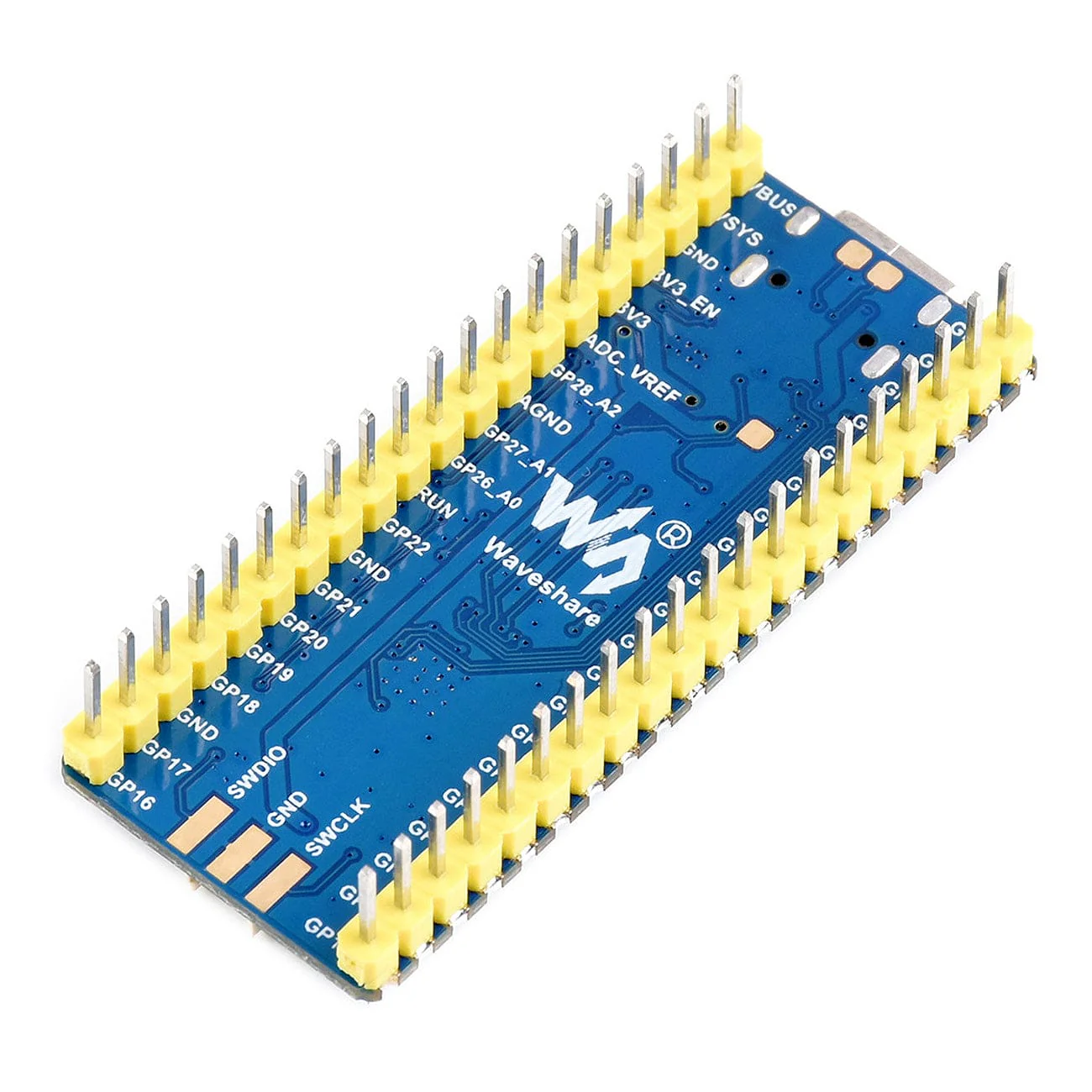

11) USB test points
 - Connecting to USB interface
12) BOOT test point
 - Connecting to BOOT button
13) DEBUG points

Package Contents

• 1x RP2040 Plus board (with soldered headers)

Resources

• Product Wiki
• Schematic

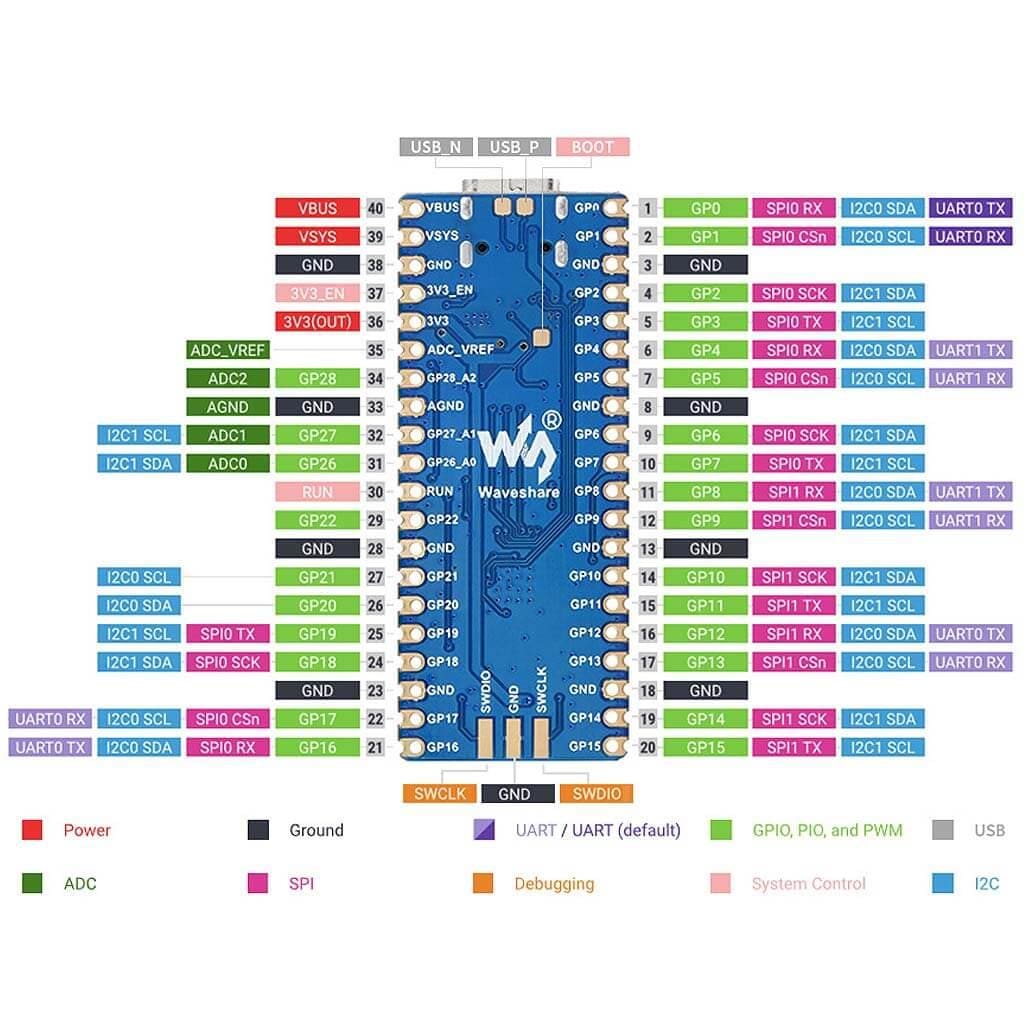

Pinout
