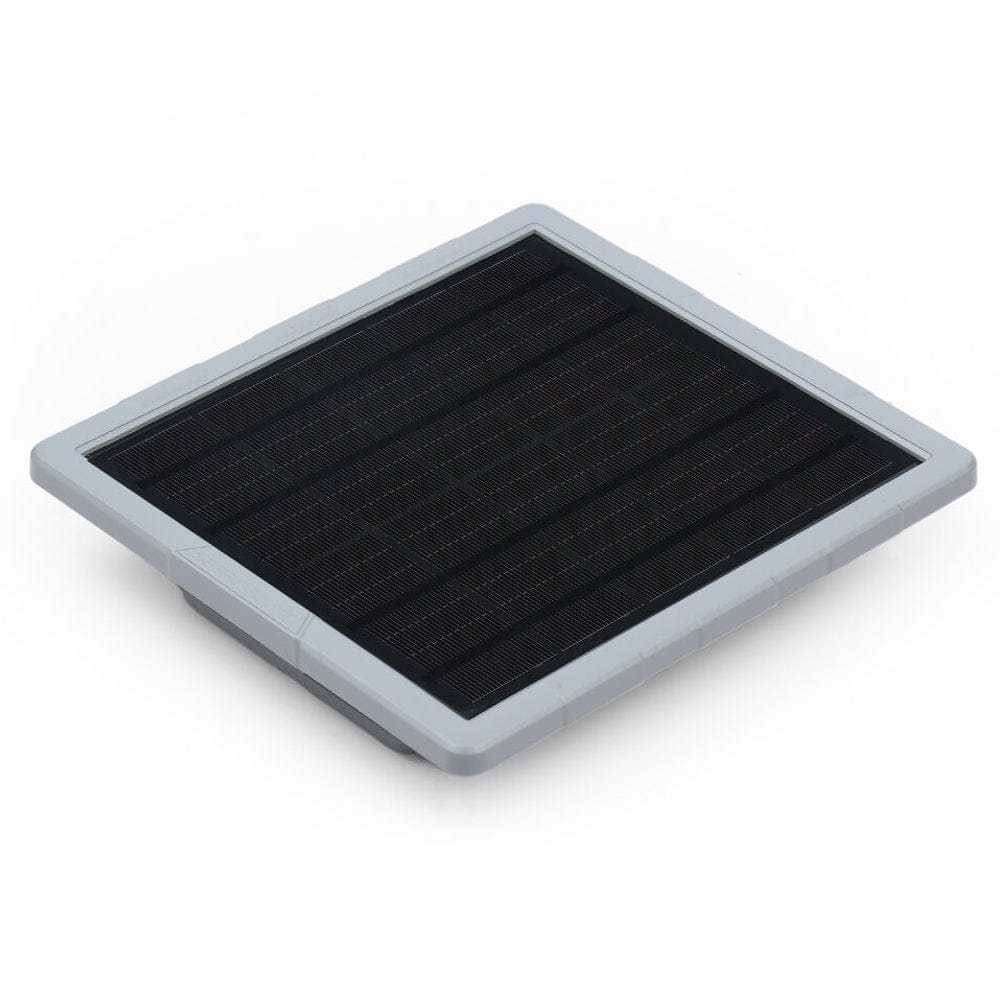

SenseCAP Solar Node P1-Pro for Meshtastic

The Seeed SenseCAP Solar Node P1-Pro is a solar-powered Meshtastic communication node with LoRa, GPS and low-power operation — perfect for long-range connectivity in outdoor, off-grid areas.

---

The Seeed SenseCAP Solar Node P1-Pro for Meshtastic is a solar-powered communication node designed for use in areas without network coverage.

It integrates the XIAO nRF52840 Plus as the main controller, the Wio-SX1262 LoRa module, and the XIAO L76K GPS module for precise positioning. With its built-in battery, the P1-Pro supports long-distance communication, GPS tracking and low-power operation, making it ideal for extending network coverage in outdoor environments.

We also sell the SenseCAP Solar Node P1 for Meshtastic which does not include the built-in GPS or the batteries.

---

Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within the United Kingdom. With this item in your cart, your shipping options will be limited and may cost more than our usual rates. Why?

---

Features

• Utilizes a 5W solar panel in combination with 4*18650 batteries with a capacity of, 3350mAh each. This setup ensures continuous operation even in the absence of sunlight, effectively solving the problem of outdoor power supply.
• The device comes pre-flashed with Meshtastic firmware at the factory.
• Features a built-in XIAO L76K GPS module, enabling high-precision real-time positioning. It supports real-time sharing of location information, providing reliable location assurance for outdoor activities.
• Equipped with a Grove Ecosystem (The list of supported sensors is provided below.), it is convenient to connect various sensors, such as temperature and humidity sensors. This meets diverse monitoring needs and enables easy functional expansion.

• It is suitable for long-term outdoor use.
• The communication range between the two devices can reach 8-9KM in open areas. It can seamlessly integrate into the Meshtastic ecosystem and be used as an outdoor node or repeater to easily expand the Mesh network, enhancing network coverage.
• Accessory Options If you need an antenna with higher gain, we recommend the 860-930MHz 3dBi fibreglass antenna and the 902-928MHz 5.8dBi fibreglass antenna.
• Plug-and-play: Comes with a standard RF cable, which can be directly inserted into the pre-drilled hole (standard D-shaped hole) on the Solar Node bracket
• Three-step installation: Align → Insert → Lock

Specifications

Main controller	XIAO nRF52840 Plus (Nordic nRF52840, ARM® Cortex®-M4 32-bit processor with FPU, 64 MHz, 256KB RAM, 1MB Flash, 2MB onboard Flash)
LoRa Module	Wio-SX1262 Module (Semtch SX1262, TXOP=22dBm@862-930MHz)
GPS Module	XIAO L76K (Support GPS/GLONASS/Galileo)
Antenna	LoRa: Type: Rod-shaped rubber antenna Frequency range: 868-915MHZ Gain: 2dbi GNSS: GPS L1 C/A: 1575.42MHz GLONASS L1: 1602MHz BeiDou B1: 1561.098MHz
Bluetooth	5.0

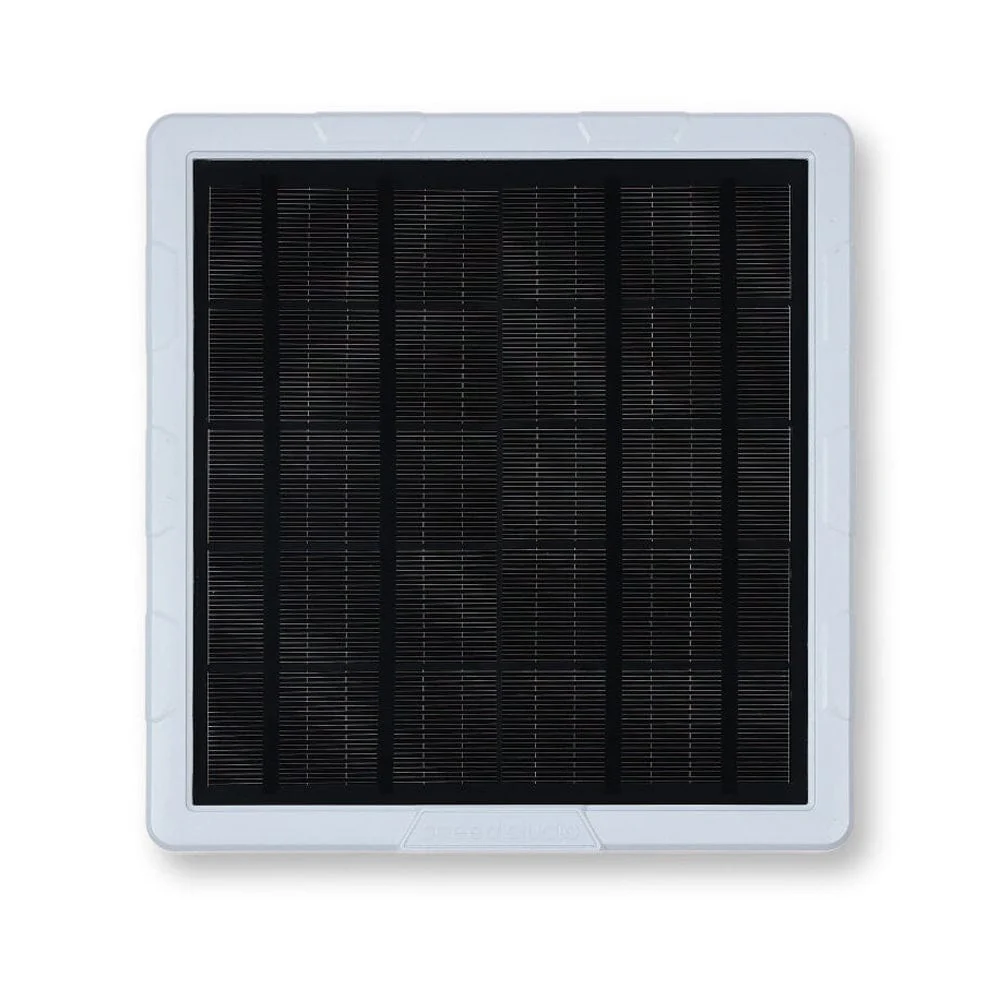

Solar Panel	5W
Interface	Grove *1: IIC/GPIO/UART USB-C debugging

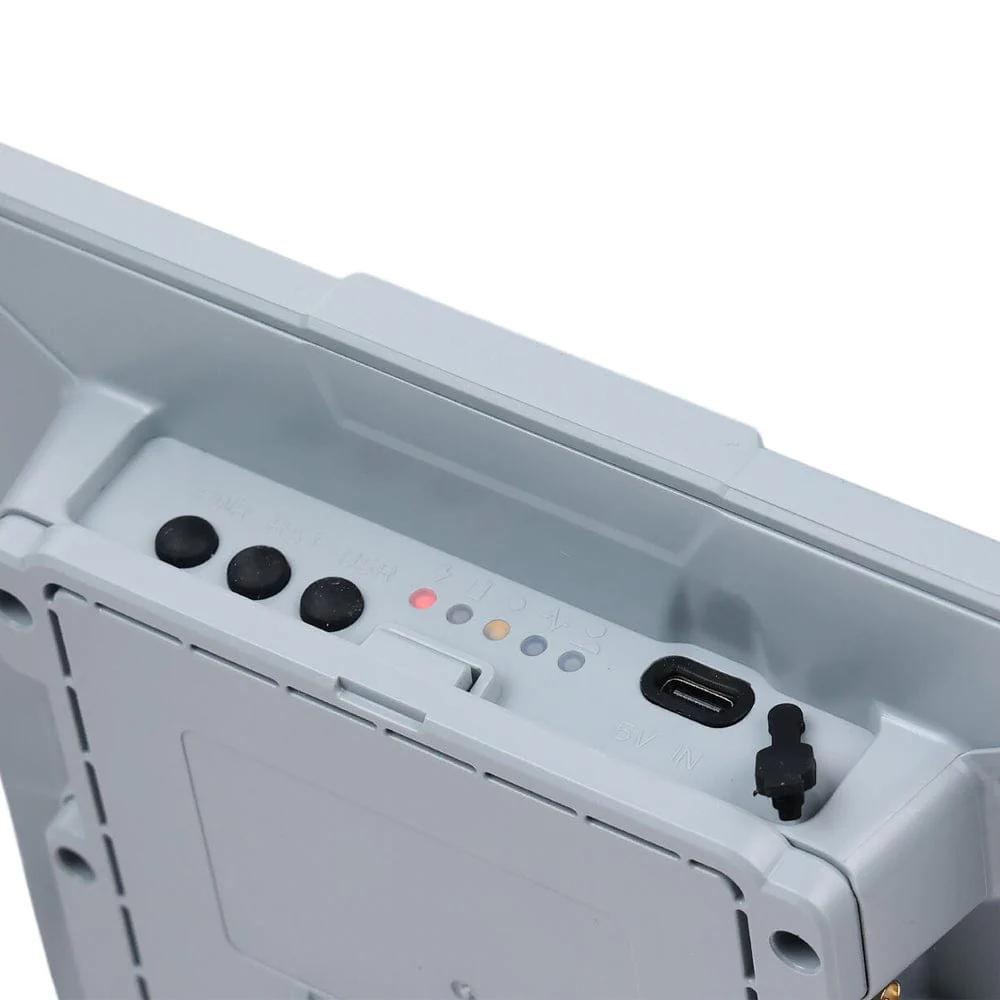

Button	Power on/off Reset User-defined
LED	Charging status indicator lights *2 Solar panel status indicator light *1 Mesh heartbeat light *1 User-defined *1
Power supply	Type-C: 5V 1A Solar power supply: 5V 1A

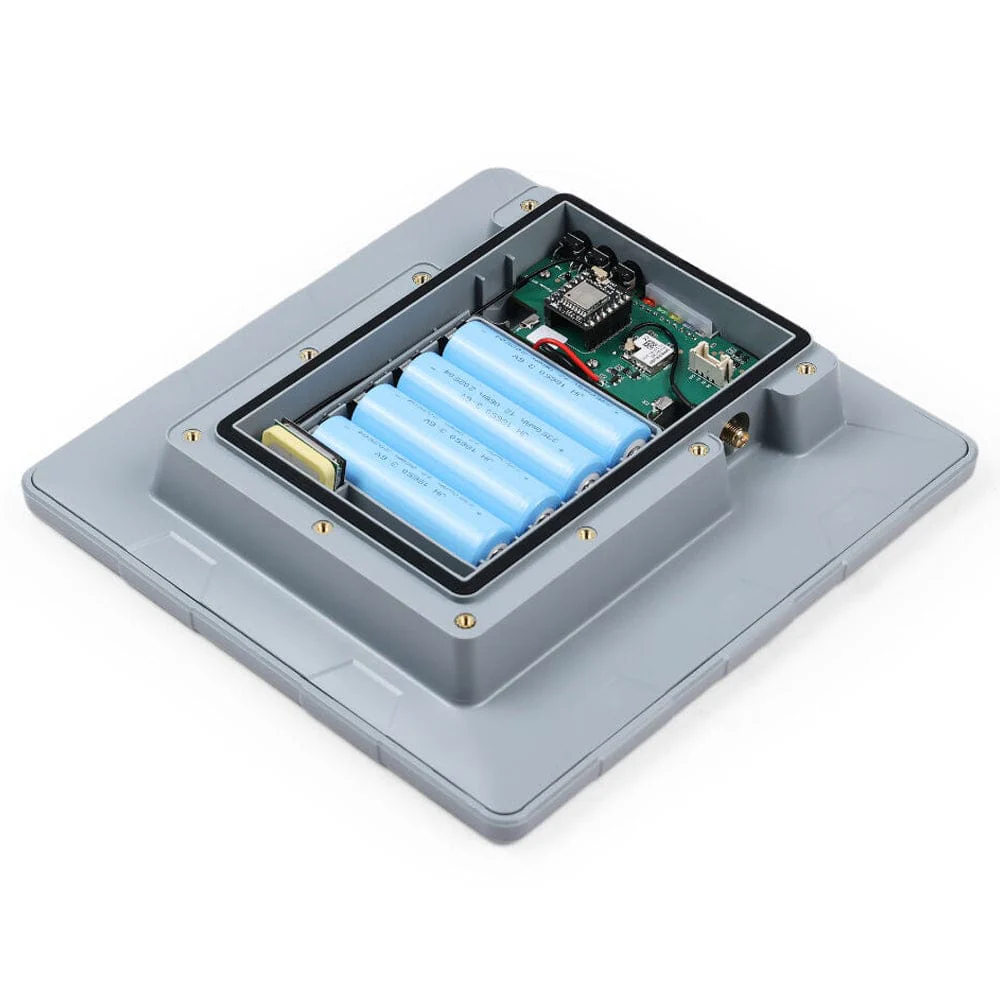

Battery	4 x 18650 lithium batteries (3350mAh each) ● Supporting Type-C and solar charging. ● Discharge environment：-40 ~ 60°C ● Charging environment: 0 ~ 50°C
Certification	FCC、CE
Dimension	191.2 x 201.2 x 42.1 mm
Supplier Code	114993633

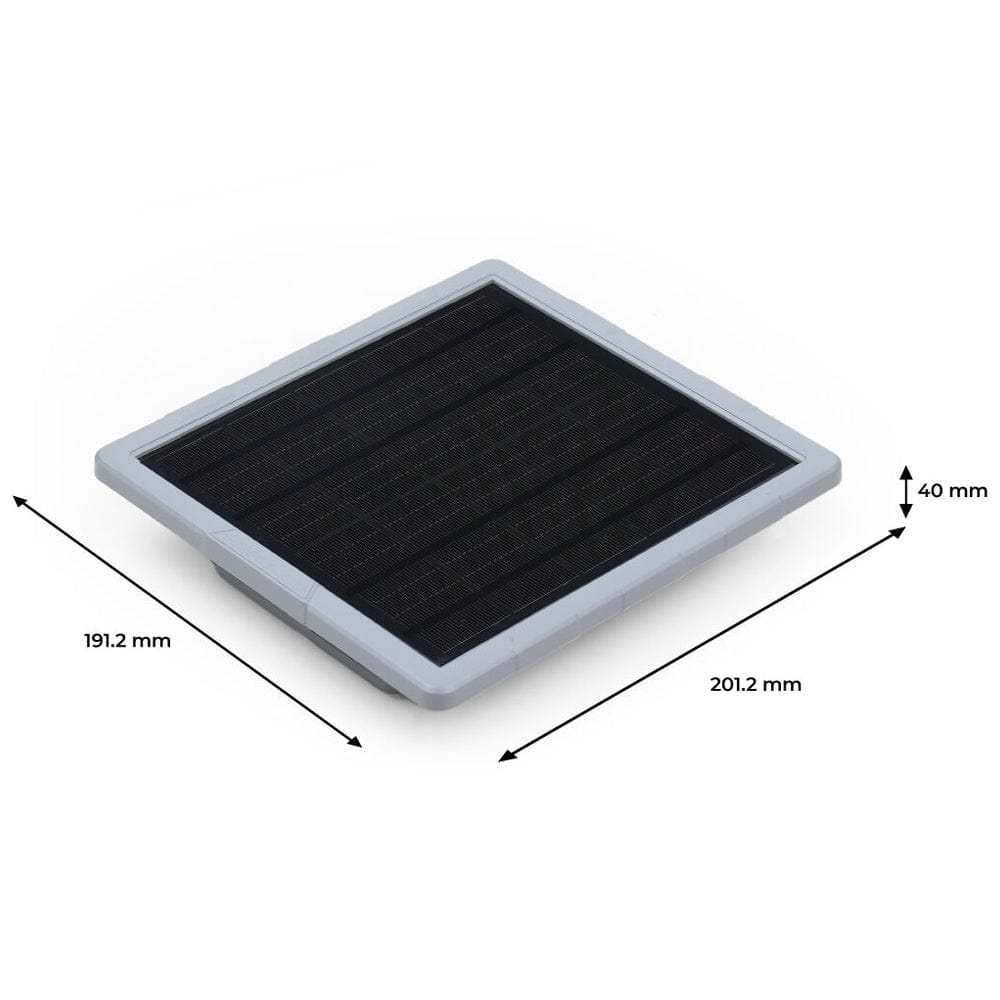

Dimensions

Resources

• Hardware Overview
• Consumption and Battery tests

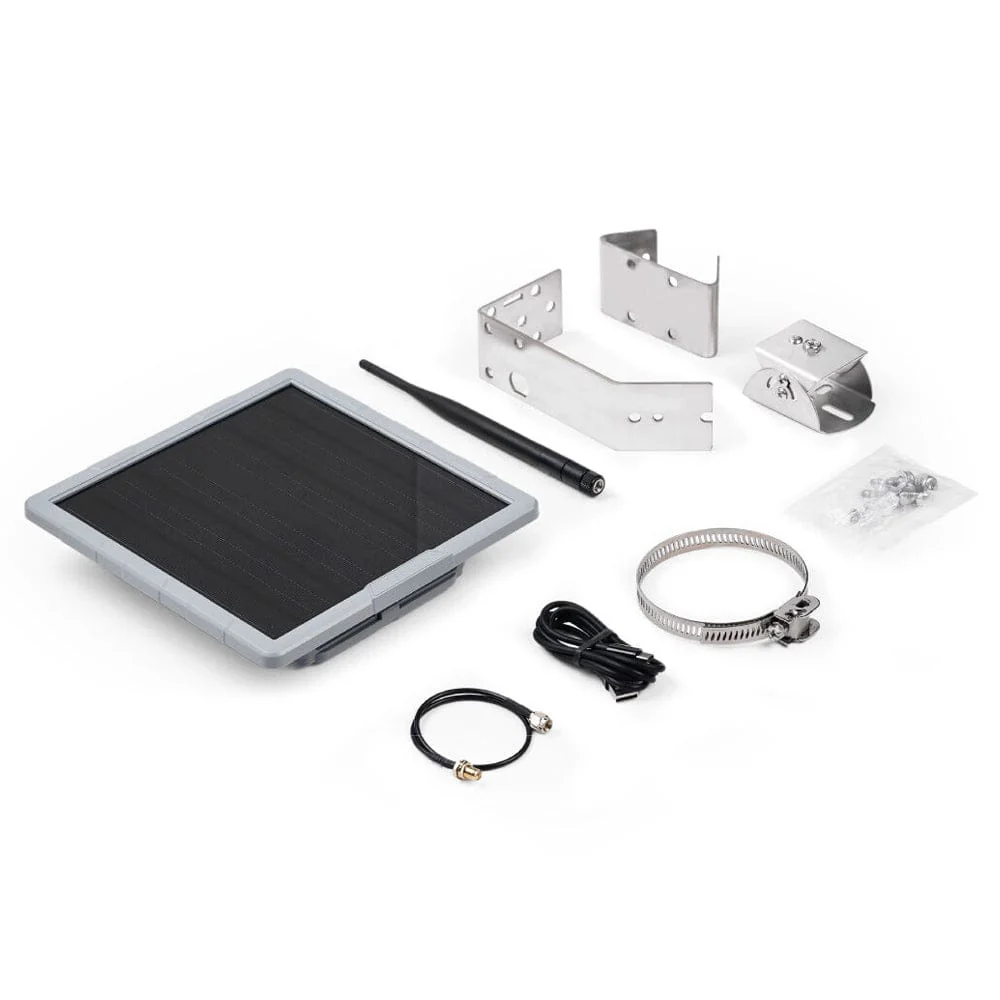

Package Contents

• 1x SenseCAP Solar Node P1-Pro (with GPS & battery)
• 1x Mounting Brackets
  • Universal Joint
  • Connector
  • Hoop Bracket
  • Hoop Ring
• 1x 2dBi 868 - 915MHz Rubber Rod Antenna
• 1x RF Cable: RP-SMA Male to RF-SMA Female-300mm
• 1x Black Type-C Cable
• 1x User Manual
