![“Shake” 8x8 LED Matrix [Discontinued]](https://img.piphonic.shop/images/product/shake-8-8-led-matrix-1.jpg)
$7.35
“Shake” 8x8 LED Matrix [Discontinued]—
$7.35
The Story
To shy to confess? A beating heart might help you out. Express it. Display it, with this tiny, portable, magic LED matrix!

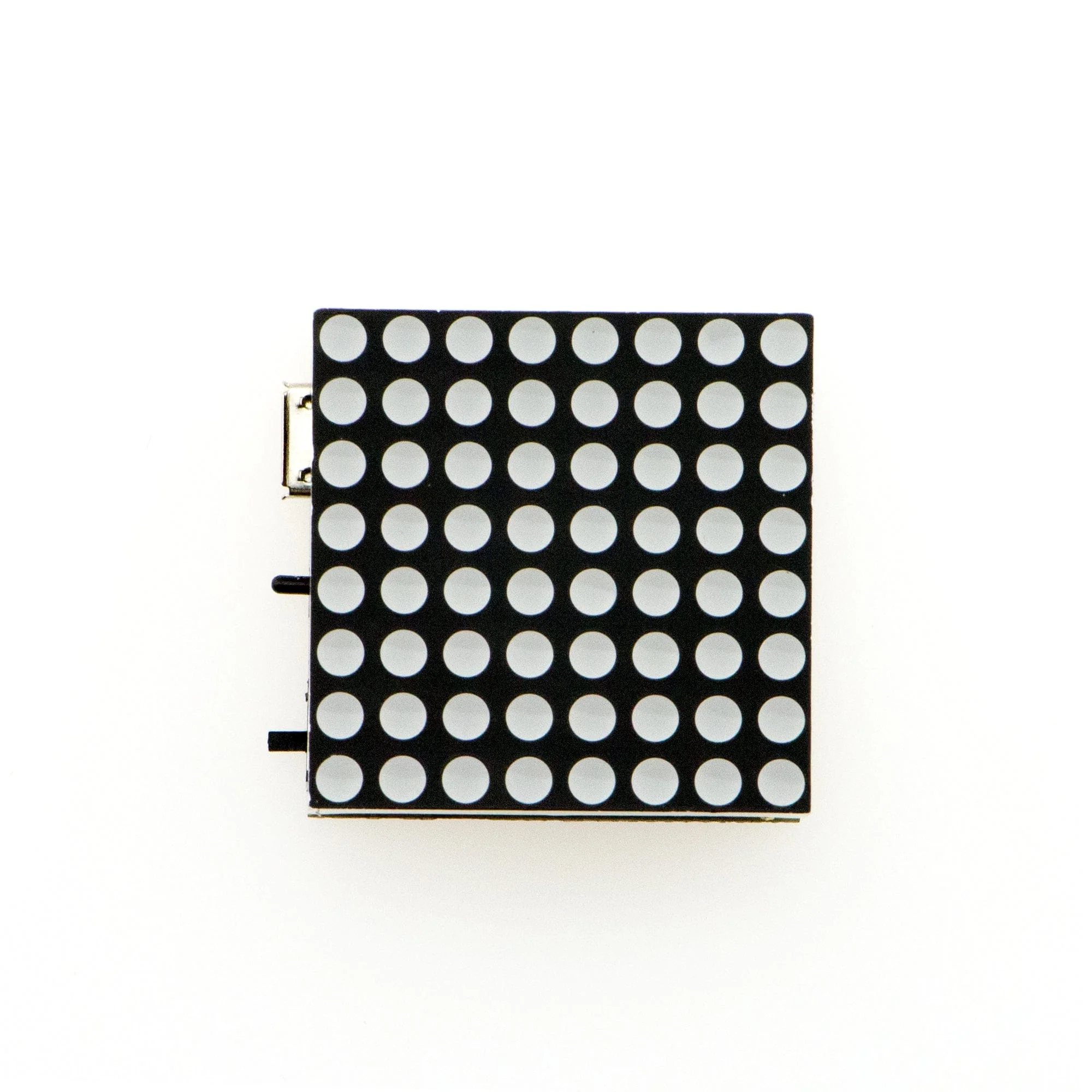

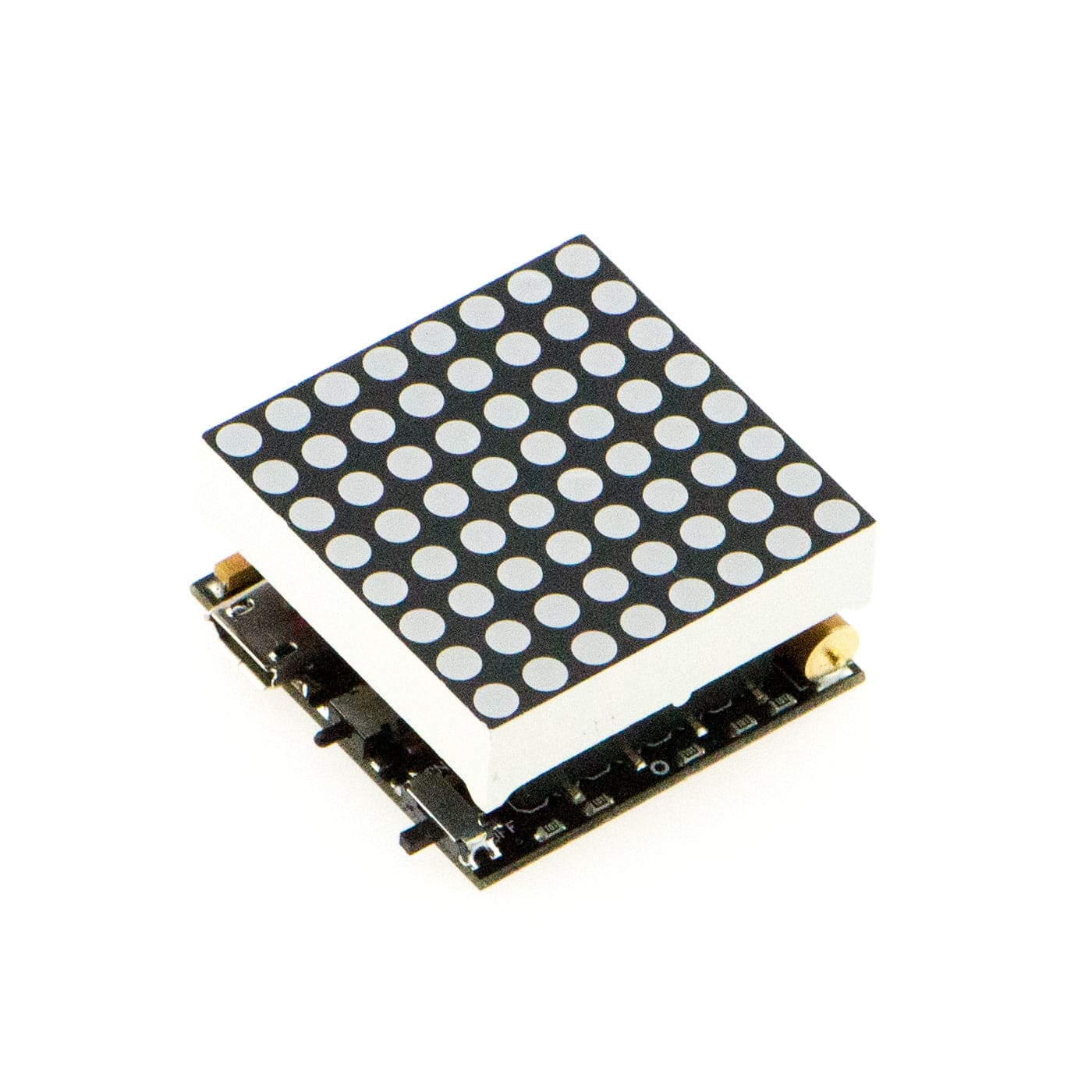

This tiny display has 64 red LEDs packed into a 8*8 dot matrix. It integrated ATmega32u4 as MCU and has built-in onboard shock sensor, with which you can display pre-programmed image when the module is shaked. It also comes with a 140mah Lipo battery which can last for 4 hours of displaying. It is great for displaying image/text or creating bizarre patterns, and is highly portable and convienient to use. Of course you can program it via IDE or via Mind+ graphically. With just a few steps, you are ready to impress others!
Applications
- Gift
- Kid toy
- Gaming
- you name it
Specification
- MCU: ATmega32U4
- Operating Voltage: 5V
- Clock Frequency: 16M
- Interface: MicroUSB
- Dot-Matrix: 8x8 monochromatic dot matrix (Common Cathode)

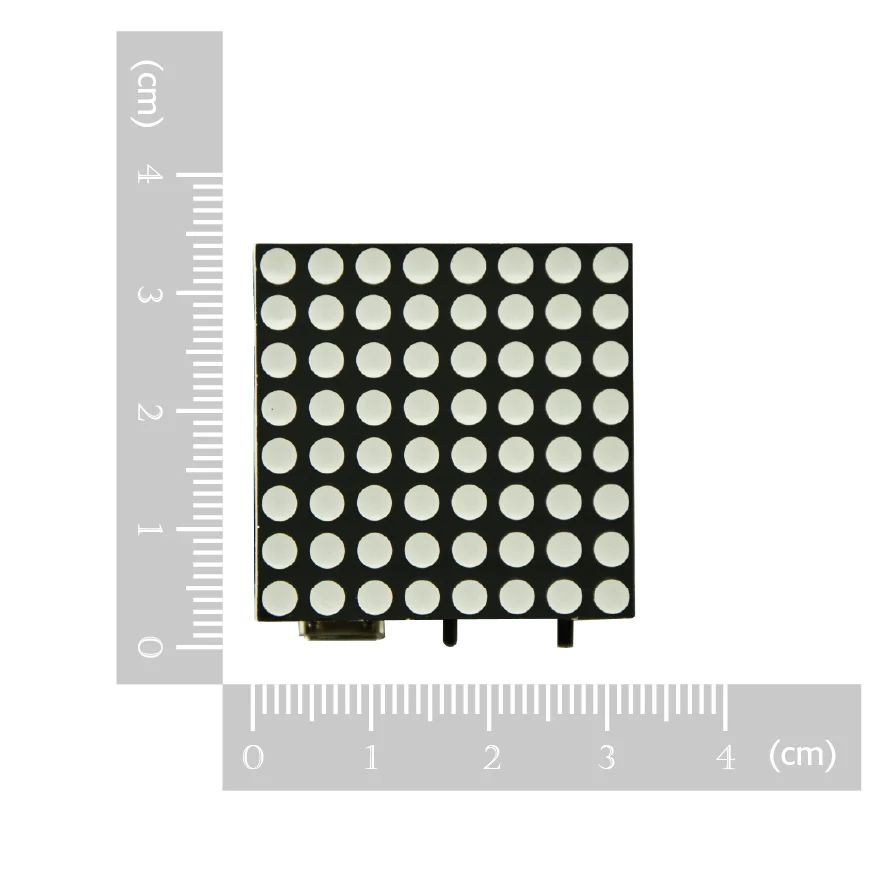

- Size: 32mm*32mm*16mm
- Power Supply: MicroUSB power supply or internal 3.7V/140mAH lithium batteries
- Interactive Devices: touch button (analog ports A1), vibration switch (analog ports A0), power switch
- Programming Environments: Mind+ or Arduino IDE
- Bootloader: Arduino Leonardo
Documents
- WiKi Doc
- Schematic
- Sample Code (beating heart)
- Sample Code (flappy bird)

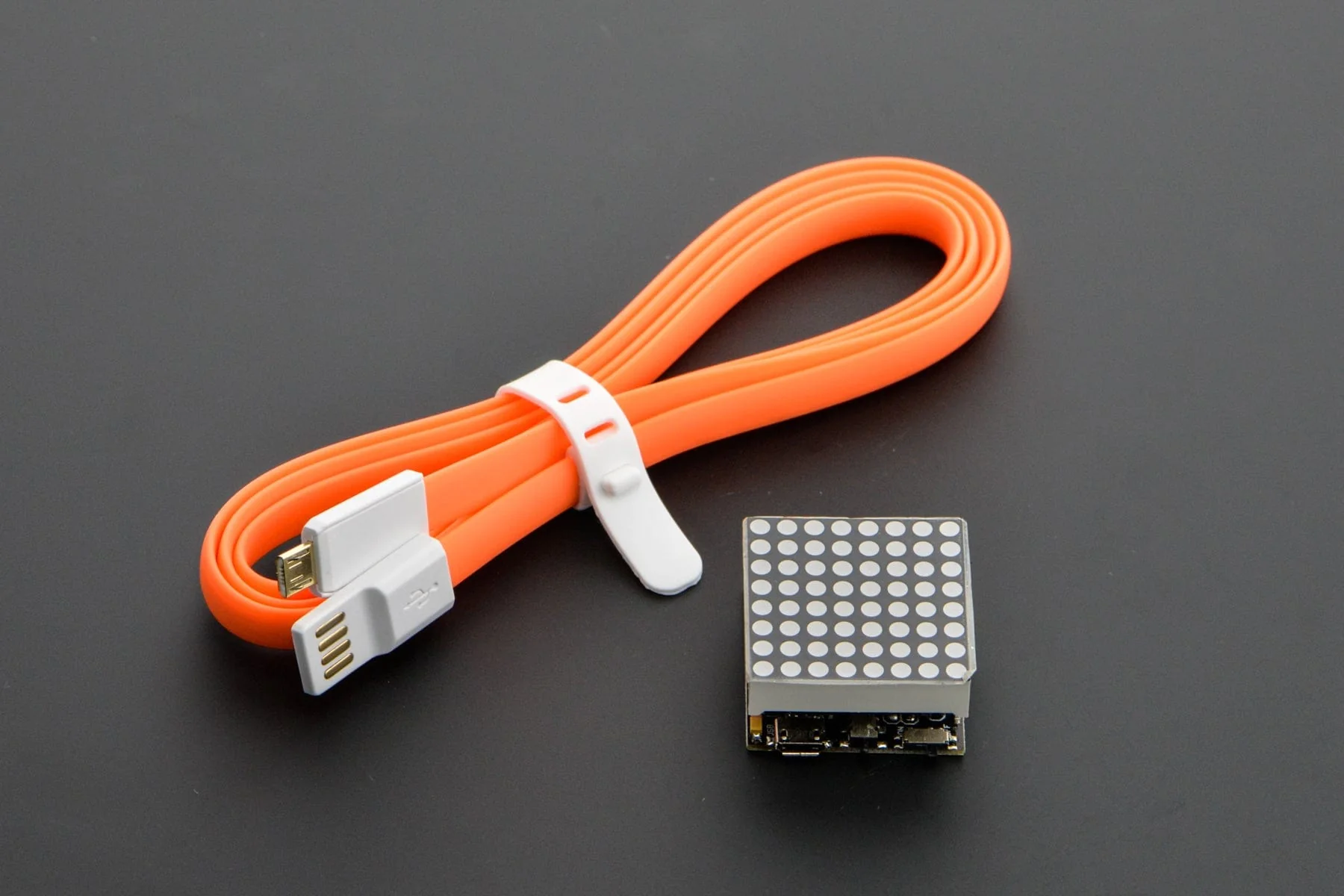

Shipping List
- “Shake” 8*8 LED Matrix ×1
- Magnet Micro USB Cable (1.2m) ×1
