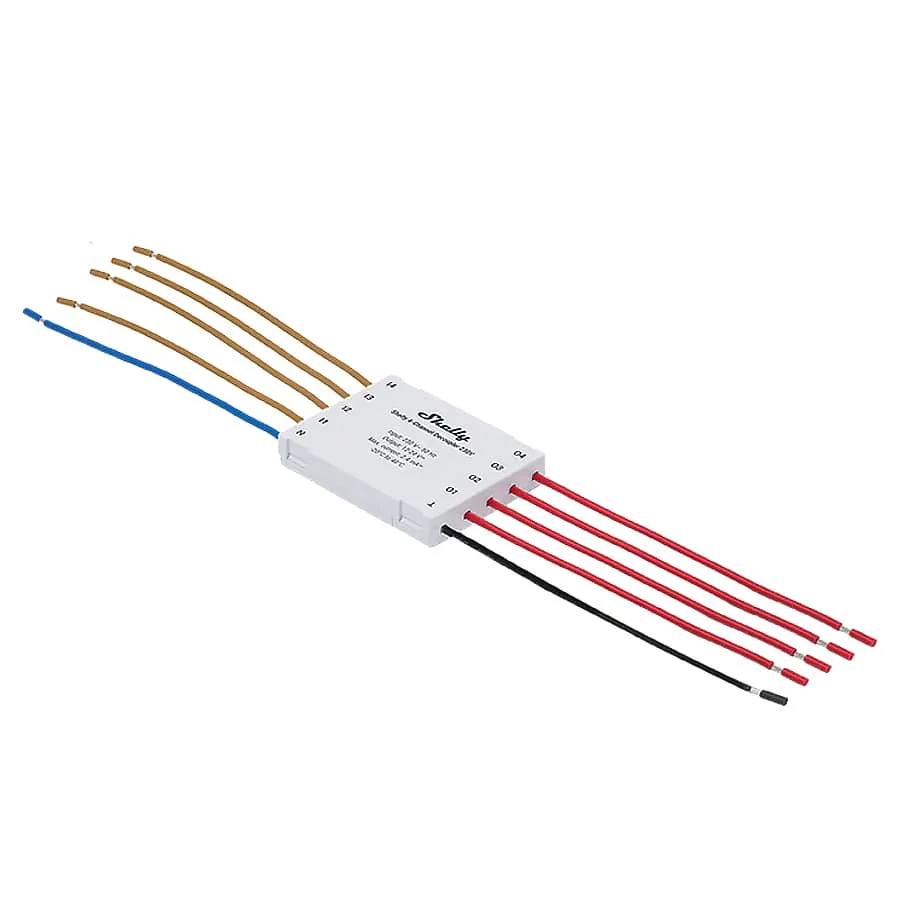

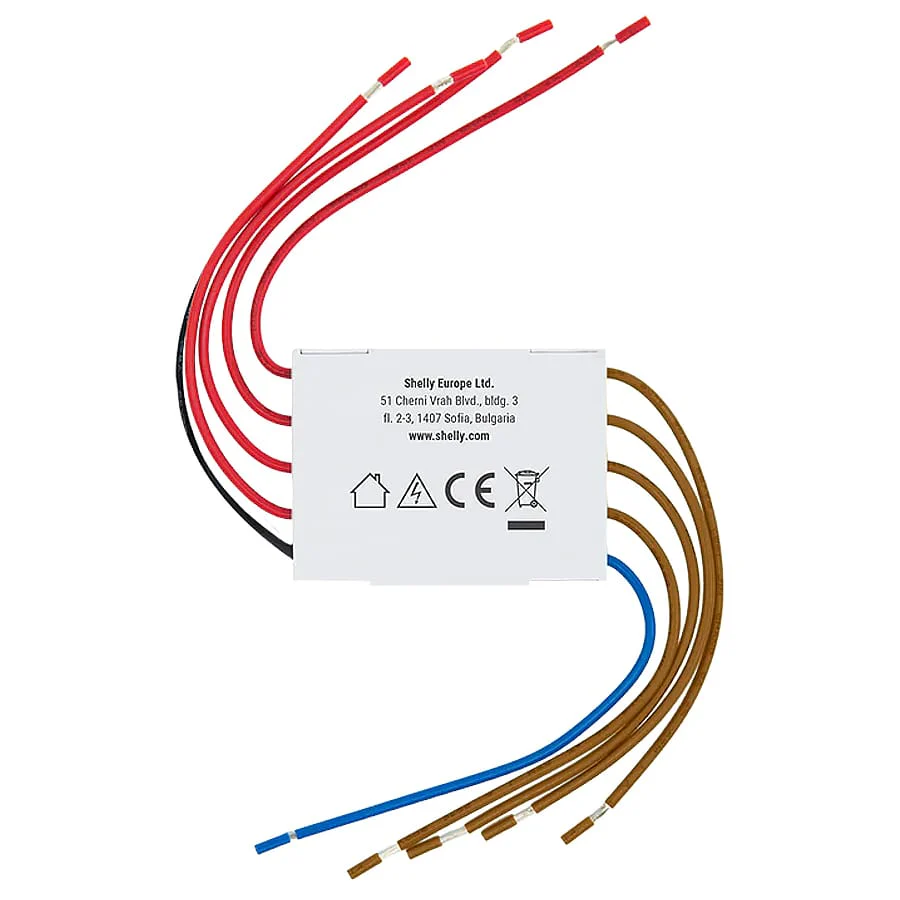

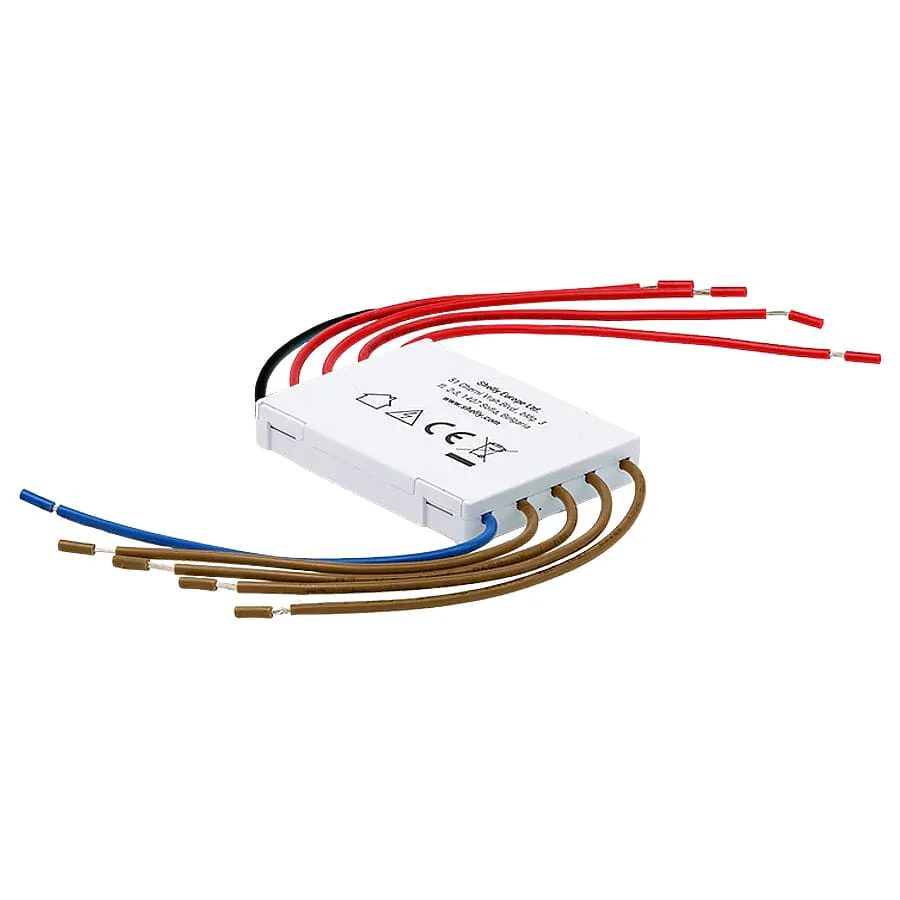

Shelly 4-Channel Decoupler - 230V

The Shelly 4-Channel Decoupler (230V) is an electronic component that interconnects four sets of two separate electrical circuits (AC to DC) by means of a light sensitive optical interface (an optocoupler).

It triggers DC inputs with an AC signal - ideal for isolating and controlling DC loads using existing AC switches - and is compatible with: Shelly Plus RGBW PM, Shelly Pro RGBWW PM, Shelly Plus Uni and the Shelly Plus Add-On.

We also stock a 1-channel version.

LED Strip & AC Switch? No Problem!

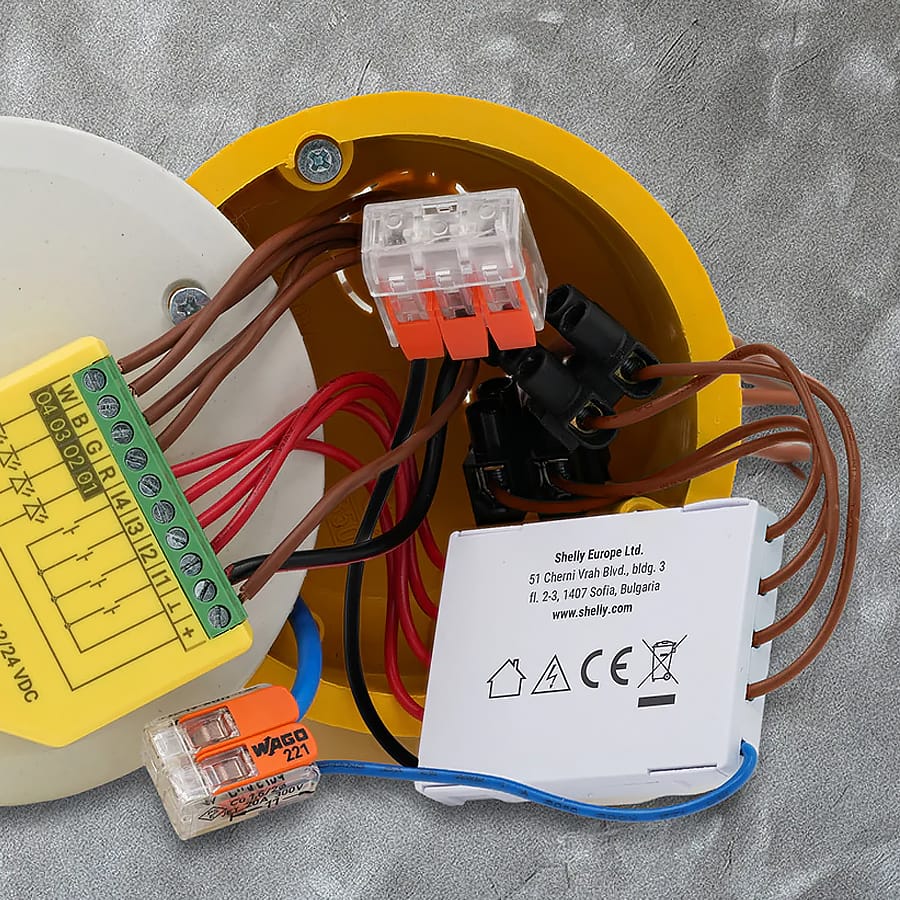

Use the Shelly Decoupler to connect a standard AC wall switch to the Shelly Plus RGBW PM. This lets the switch send control signals to the device's DC input without feeding it AC power directly, ensuring safe operation and full control of LED strips.

Safe Triggers for Smarter Automation

The Decoupler safely converts an AC signal-like one from a mechanical wall switch or relay - into a DC-level trigger input for use with the Shelly Plus Add-On in automations like irrigation or alarms.

Smart Lighting with Your Existing AC Switch

Turn your regular wall switch into a smart lighting trigger. Install Shelly Pro RGBWW PM in your breaker box to control your LED strips. Then, place a Shelly Decoupler near your existing smart device. The decoupler picks up the physical press and sends a command to Shelly Pro RGBWW PM.

This way, your old switch stays in place, but now it can change colours, adjust brightness, or trigger scenes. Clean, simple, and fully smart.

---

⚠️Caution - Read Before Buying⚠️

• Before beginning the installation, please read this guide and any other documents accompanying the device carefully and completely
• Danger of electrocution. The mounting/installation of the device should be performed by a qualified person (electrician)
• Failure to follow the installation procedures could lead to malfunction, danger to your health and life, violation of the law or refusal of legal and/or commercial guarantee (if any)
• Allterco Robotics (makers of Shelly products) and Mann Enterprises LTD are not responsible for any loss or damage in case of incorrect installation or improper operation of this device due to failure to follow the user and safety instructions in the printed guide accompanying this product (also available in the resources section below)
• Do not connect the device to appliances exceeding the given max load.
• Use the device only with a power grid and appliances which comply with all applicable regulations. Short circuit in the power grid or any appliance connected to the device may damage the device.
• Before starting, wire check that the breakers are turned off and there is no voltage on their terminals. This can be done with a phase meter or multimeter. When you are sure that there is no voltage, you can start wiring the cables.

---

Features

• AC-to-DC signal conversion: Triggers DC inputs using standard AC signals for safe and reliable operation
• Isolates and controls DC loads: Protects connected smart devices by isolating high-voltage AC from their DC inputs
• Compatible with multiple devices: Works with:
  • Shelly Plus RGBW PM
  • Shelly Pro RGBWW PM
  • Shelly Plus Uni
  • Shelly Plus Add-On
• Supports specialised switches: Designed for use with external and specialised control mechanisms like buttons, relays, and potentiometers

Specifications

Size (HxWxD)	44x34x7 mm
Weight	25g
Shell colour	White
Cable length	80 mm
Stripped length	5 mm

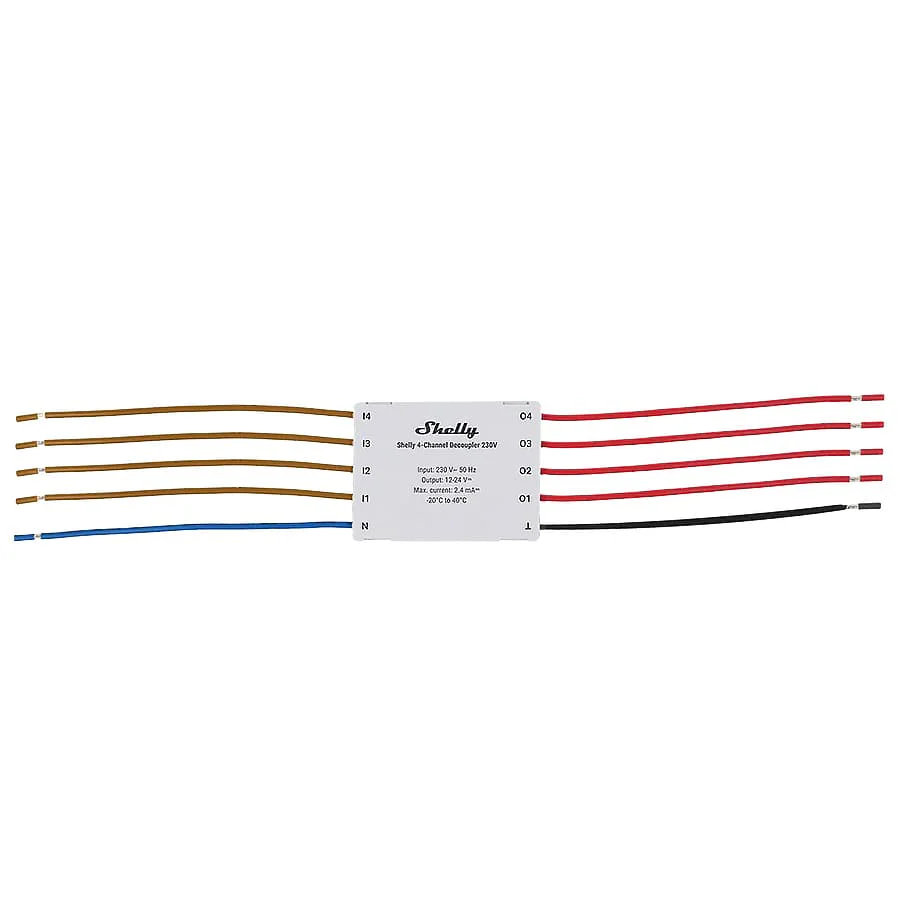

Wire colours	Brown (I1-I4), Blue (N), Red (O1-O4), Black (Ʇ)
Ambient working temperature	0 to 40°C
Storage temperature	-20 °C to 40°C
Humidity	30% to 70% RH
Max. altitude	2000m
Power consumption	< 0.6 W
Input	230V~ 50 Hz
Max. output current	2.4 mA⎓

Resources

• Shelly Product Documentation
• Printed User Guide (as found within the package)
• Declaration of Conformity
• Device Identification
  • Device name: Shelly 4-Channel Decoupler 230V
  • Device number: N/A
• EAN: 3800238072124

Handy Shelly Resources

• Shelly Cloud
• Shelly App
  • Apple App Store
  • Google Play
  • Huawei AppGallery
• Home Assistant Shelly Integration
• Shelly Community Forum
• Shelly Facebook Support Group
• Shelly Knowledgebase
• Shelly Device Finder (easy-to-use software to find Shelly devices in the local network)
• Shelly Developer API

Package Contents

• 1x Shelly 4-Channel Decoupler 230V
