The Story
The Shelly Wave Door/Window LR is a Z-Wave Long Range sensor that detects and reports opening or closing of doors/windows, measures tilt angle and features a light sensor to trigger smart home automations even over large distances.
Set-up is simple with SmartStart, so it is ready to add with a quick scan, and it supports associations, OTA firmware updates, and S2 Authenticated security with AES128 encryption. It will work with any home automation system that supports Z-Wave - including Home Assistant - although you'll need a Long Range' compatible receiver to enable LR features - such as the Home Assistant ZWA-2.

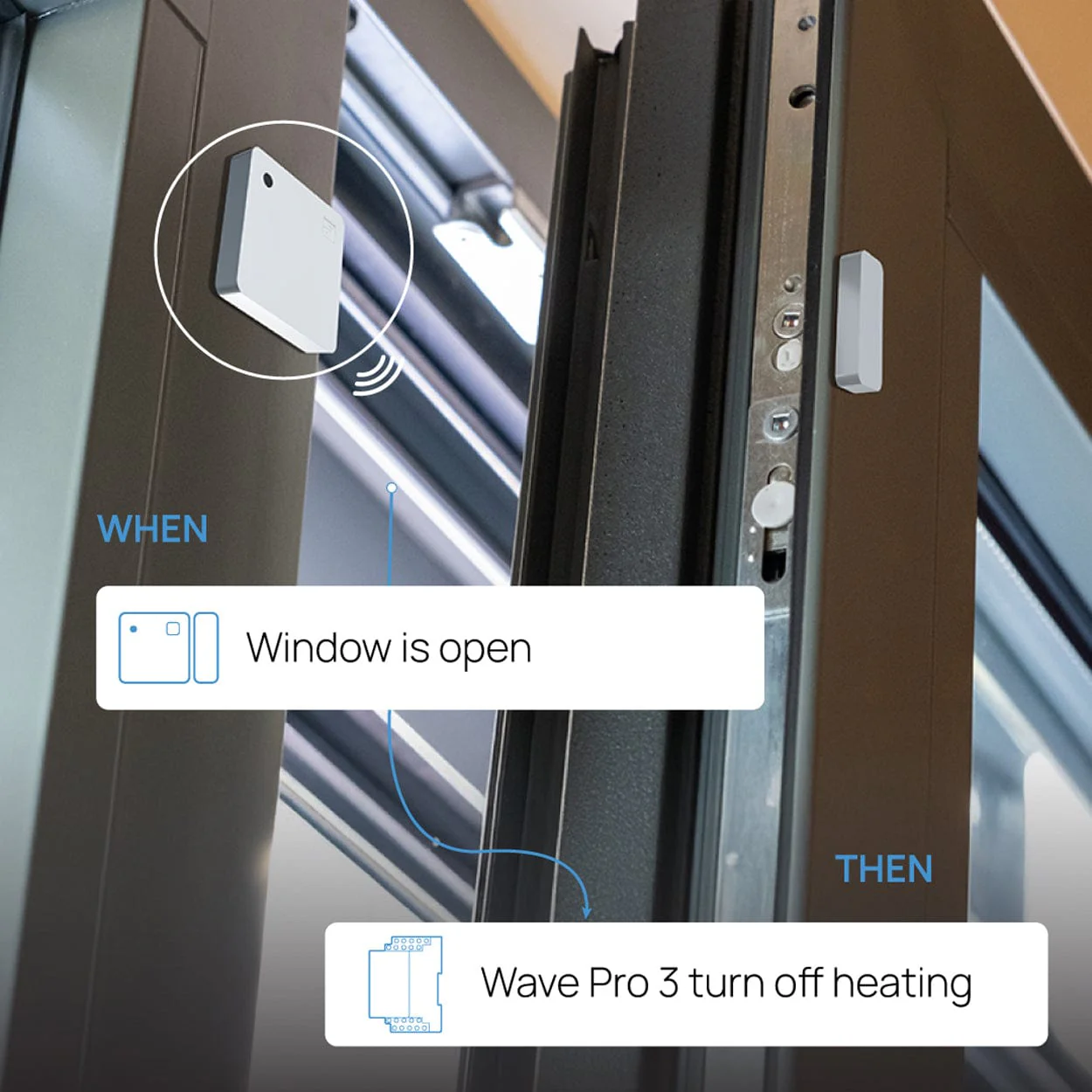

Powered via a single CR2032 battery (included) and lasting for up to 2 years thanks to the low-power Z-Wave protocol, this sensor is compact and minimal, offering a clean and subtle way to automate your home. It's a practical fit for everyday automations such as adjusting heating, ventilation and air conditioning based on whether a door or window is open. You can even mount it inside some window frames (dependant on your specific frame) for an invisible installation.
Works with all certified Z-Wave Gateways
Once installed, include it in your Z-Wave network (Z-Wave gateway is required) and control it from anywhere using your smartphone or tablet. Shelly Wave devices work with over 4000 Z-Wave-certified devices and gateways.
To take advantage of the Z-Wave Long Range feature, you will need a Long Range compatible receiver - such as the Home Assistant ZWA-2.
By using Z-Wave, smart home products can seamlessly communicate with each other, regardless of their brand or platform, thanks to a centralised smart hub! Shelly devices work on the latest Z-Wave chip generation (S800), one of the most popular standardised technologies for smart homes in the world.
Z-Wave devices have specific requirements in order to function correctly, such as the necessity to use a supported Z-Wave hub. For more information, please visit the official Z-Wave website: z-wavealliance.org
Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within the United Kingdom. With this item in your cart, your shipping options will be limited and may cost more than our usual rates. Why?
Features
- Detects and reports opening or closing of doors/windows
- Measures tilt angle and luminosity
- Battery 1xCR2032 – included
- Battery life – up to two years
- Supports Z-Wave Long Range - maintains a strong connection over distances exceeding 1 km (line of sight)
- Z-Wave frequency band: 864 MHz (ZWLR) & 868.4 MHz (Z-Wave Plus)
- Latest technology: Z-Wave 800 Series
- Easy set up with SmartStart - just scan and go
- Top level Security, S2 authenticated
- Supports OTA firmware updates
Specifications
| Power supply | 1x 3V CR2032 battery (included) |
| Battery life | Up to 2 years |
| Reed switch | Yes |
| G-sensor | Yes |
| Light sensor | Yes |
| Long range network | |
| Distance (depends on local condition) | Up to 80m indoors or up to 1000m outdoors |
| Z-Wave® repeater | No |
| Z-Wave® frequency bands | 864 MHz |
| Mesh network | |
| Distance (depends on local condition) | Up to 40m indoors |
| Z-Wave® repeater | No |
| Z-Wave® frequency bands | 868.4 MHz |
| CPU | Z-Wave® S800 |
|
Maximum radio frequency power transmitted in frequency band(s) |
< 25 mW |
| Size (H x W x D) | 35x35x7 mm ±0.5 mm (Sensor unit) 35x12x7 ±0.5 mm (Magnet) |
| Weight | 10 g ±1 g (Sensor unit with the battery) 8 g ±1 g (Magnet) |
| Shell material | Plastic |
| Ambient temperature | -20°C to 40°C |
| Humidity | 30% to 70% RH |
Resources
- Shelly Product Documentation
- Declaration of Conformity
- User guide (included in package)
- Device Identification
- Device name: Shelly Wave Door/Window (EU)
- Device number: QLDW-002CEU
- Z-Wave Product type ID: 0x0100
- Z-Wave Product ID: 0x0081
- Z-Wave Manufacturer: Shelly Europe
- Z-Wave Manufacturer ID: 0x0460
- EAN: 3800238072155
Handy Shelly Resources
- Shelly Cloud
- Shelly App
- Apple App Store
- Google Play
- Huawei AppGallery
- Home Assistant Shelly Integration
- Shelly Community Forum
- Shelly Facebook Support Group
-
Shelly Knowledgebase
- Z-Wave Gateways
- Shelly Device Finder (easy-to-use software to find Shelly devices in the local network)
- Shelly Developer API
Package Contents
- 1x Shelly Wave Door/Window LR (battery included, pre-installed)
- 1x User Guide
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The Shelly Wave Door/Window LR is a Z-Wave Long Range sensor that detects and reports opening or closing of doors/windows, measures tilt angle and features a light sensor to trigger smart home automations even over large distances.
Set-up is simple with SmartStart, so it is ready to add with a quick scan, and it supports associations, OTA firmware updates, and S2 Authenticated security with AES128 encryption. It will work with any home automation system that supports Z-Wave - including Home Assistant - although you'll need a Long Range' compatible receiver to enable LR features - such as the Home Assistant ZWA-2.
Powered via a single CR2032 battery (included) and lasting for up to 2 years thanks to the low-power Z-Wave protocol, this sensor is compact and minimal, offering a clean and subtle way to automate your home. It's a practical fit for everyday automations such as adjusting heating, ventilation and air conditioning based on whether a door or window is open. You can even mount it inside some window frames (dependant on your specific frame) for an invisible installation.
Works with all certified Z-Wave Gateways
Once installed, include it in your Z-Wave network (Z-Wave gateway is required) and control it from anywhere using your smartphone or tablet. Shelly Wave devices work with over 4000 Z-Wave-certified devices and gateways.
To take advantage of the Z-Wave Long Range feature, you will need a Long Range compatible receiver - such as the Home Assistant ZWA-2.
By using Z-Wave, smart home products can seamlessly communicate with each other, regardless of their brand or platform, thanks to a centralised smart hub! Shelly devices work on the latest Z-Wave chip generation (S800), one of the most popular standardised technologies for smart homes in the world.
Z-Wave devices have specific requirements in order to function correctly, such as the necessity to use a supported Z-Wave hub. For more information, please visit the official Z-Wave website: z-wavealliance.org
Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within the United Kingdom. With this item in your cart, your shipping options will be limited and may cost more than our usual rates. Why?
Features
- Detects and reports opening or closing of doors/windows
- Measures tilt angle and luminosity
- Battery 1xCR2032 – included
- Battery life – up to two years
- Supports Z-Wave Long Range - maintains a strong connection over distances exceeding 1 km (line of sight)
- Z-Wave frequency band: 864 MHz (ZWLR) & 868.4 MHz (Z-Wave Plus)
- Latest technology: Z-Wave 800 Series
- Easy set up with SmartStart - just scan and go
- Top level Security, S2 authenticated
- Supports OTA firmware updates
Specifications
| Power supply | 1x 3V CR2032 battery (included) |
| Battery life | Up to 2 years |
| Reed switch | Yes |
| G-sensor | Yes |
| Light sensor | Yes |
| Long range network | |
| Distance (depends on local condition) | Up to 80m indoors or up to 1000m outdoors |
| Z-Wave® repeater | No |
| Z-Wave® frequency bands | 864 MHz |
| Mesh network | |
| Distance (depends on local condition) | Up to 40m indoors |
| Z-Wave® repeater | No |
| Z-Wave® frequency bands | 868.4 MHz |
| CPU | Z-Wave® S800 |
|
Maximum radio frequency power transmitted in frequency band(s) |
< 25 mW |
| Size (H x W x D) | 35x35x7 mm ±0.5 mm (Sensor unit) 35x12x7 ±0.5 mm (Magnet) |
| Weight | 10 g ±1 g (Sensor unit with the battery) 8 g ±1 g (Magnet) |
| Shell material | Plastic |
| Ambient temperature | -20°C to 40°C |
| Humidity | 30% to 70% RH |
Resources
- Shelly Product Documentation
- Declaration of Conformity
- User guide (included in package)
- Device Identification
- Device name: Shelly Wave Door/Window (EU)
- Device number: QLDW-002CEU
- Z-Wave Product type ID: 0x0100
- Z-Wave Product ID: 0x0081
- Z-Wave Manufacturer: Shelly Europe
- Z-Wave Manufacturer ID: 0x0460
- EAN: 3800238072155
Handy Shelly Resources
- Shelly Cloud
- Shelly App
- Apple App Store
- Google Play
- Huawei AppGallery
- Home Assistant Shelly Integration
- Shelly Community Forum
- Shelly Facebook Support Group
-
Shelly Knowledgebase
- Z-Wave Gateways
- Shelly Device Finder (easy-to-use software to find Shelly devices in the local network)
- Shelly Developer API
Package Contents
- 1x Shelly Wave Door/Window LR (battery included, pre-installed)
- 1x User Guide
