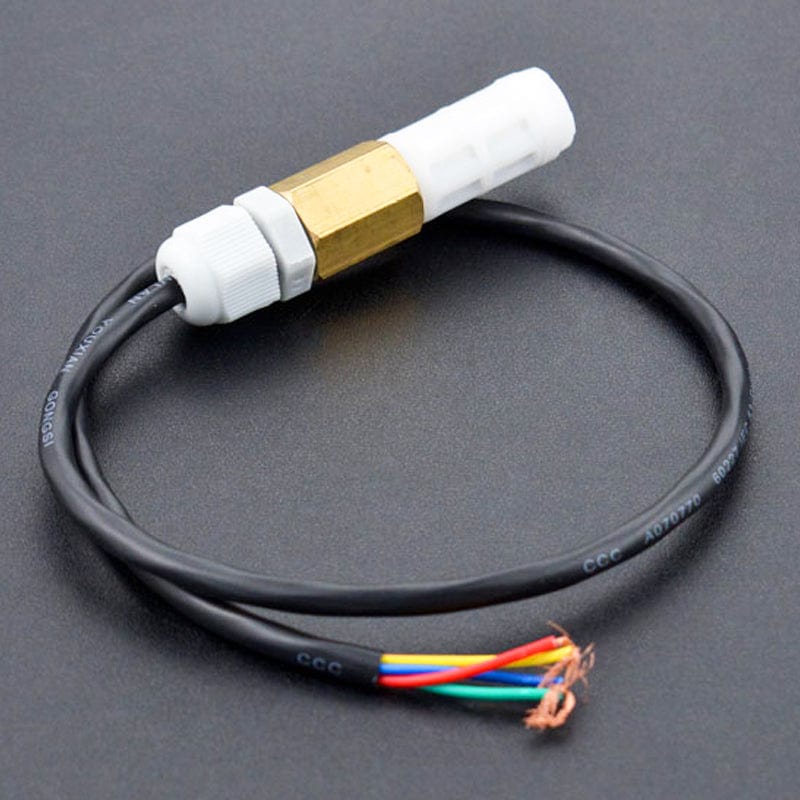

SHT20 I2C Temperature & Humidity Sensor (Waterproof Probe)

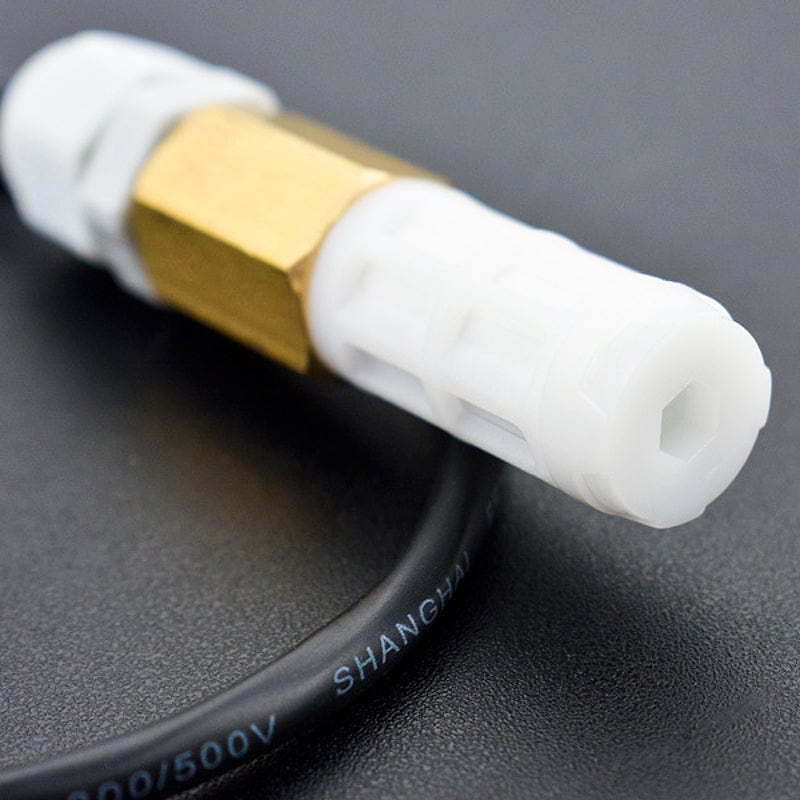

This SHT20 I2C temperature & humidity sensor is equipped with waterproof probe. It comes with the 4C CMOSens® SHT20 temperature & humidity sensor chip and the probe has gone through a dual waterproof protection test.

The SHT20 I2C temperature & humidity sensor adopts Sensirion techniques. Apart from the humidity sensor of capacitive type and the temperature sensor, the SHT20 contains an amplifier, A/D converter, OTP memory and a digital processing unit.

Compared with early SHT1x series and SHT7x series, the SHT20 shows a strong reliability and long-term stability. It can measure the surrounding environment temperature and relative air humidity precisely.

There is also a built-in 10k Pull-up resistor and 0.1uf filter capacitor. It enables the sensor to be directly used with the microcontroller such as Arduino. We recommend DFRobot Gravity 4Pin Sensor Adapter convenient.

Red VCC

Green GND

Blue (Black) SDA

Yellow (White) SCL

Operating Voltage: 3.3/5V

Communication Interface: I2C

Protection Class: waterproof anti-condensation

RH Response Time: 8s (tau63%)

Accuracy: ±3% RH / ±0.3 °C

Measuring Range: 0-100% RH / -40-125 °C

Dimension: 73mm x 17mm

Weight: 44g

• Product Wiki
• SHT20 Datasheet

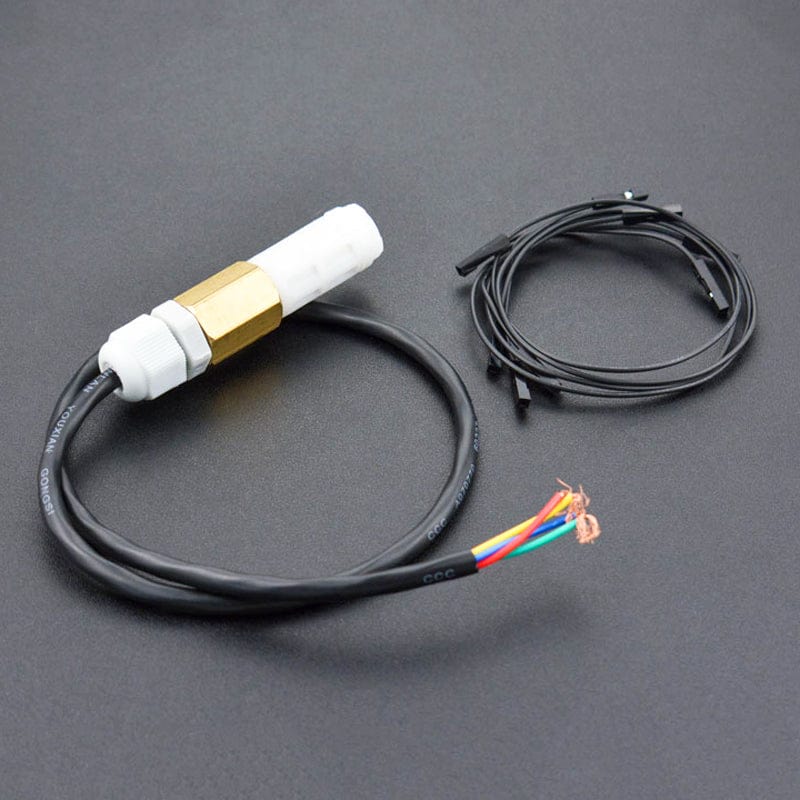

1x SHT20 I2C Temperature & Humidity Sensor (Waterproof Probe)

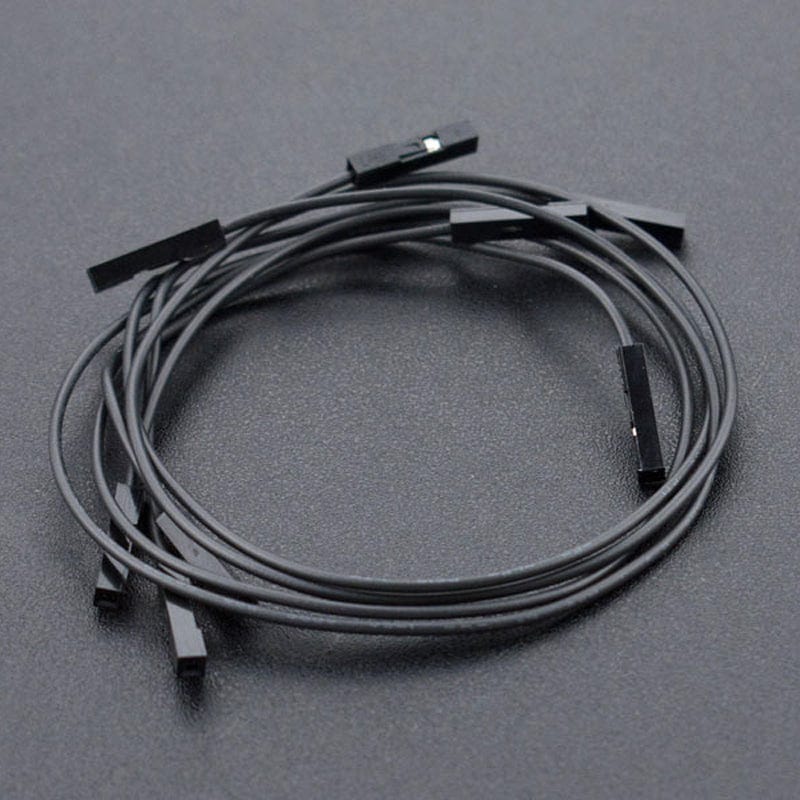

4x Jumper Wires 7.8" F/F
