Single Channel Relay for Raspberry Pi Pico [Discontinued]

The Single Channel Relay HAT for Raspberry Pi Pico is a single-channel high-quality relay allowing your Raspberry Pi Pico to switch loads of 7A/ 240 VAC and 15A / 120 VAC, with a Switching Voltage 10A / 250V (VAC) and of 10A / 30V (VDC).

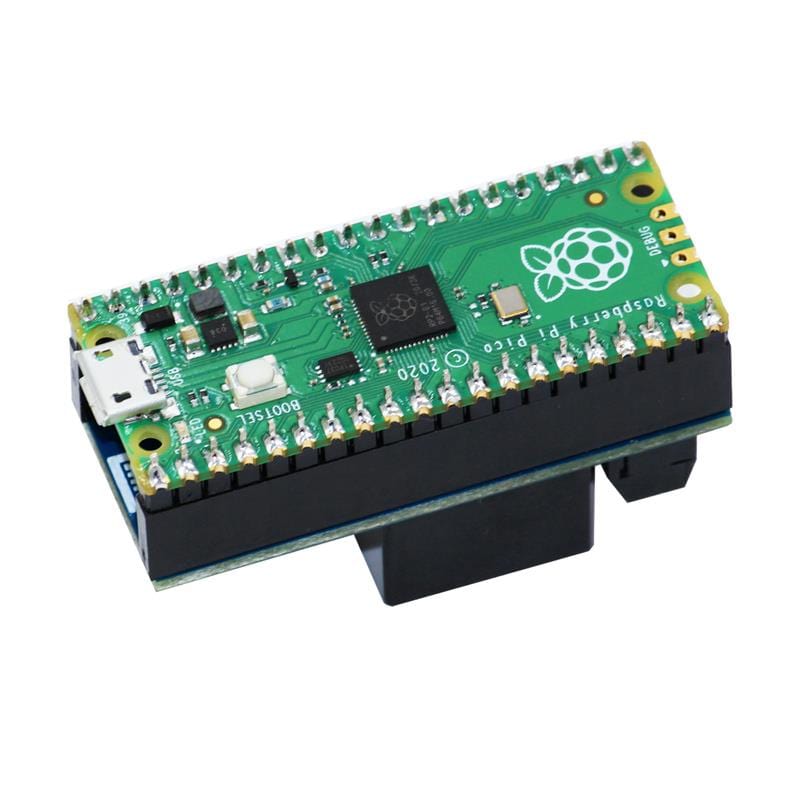

The HAT comes with female headers for fitting your Pico into the board (your Pico will need male headers). The high-quality components combined with powerful OptoIsolated output make this single channel relay a reliable and efficient solution to switching loads in your Pico projects.

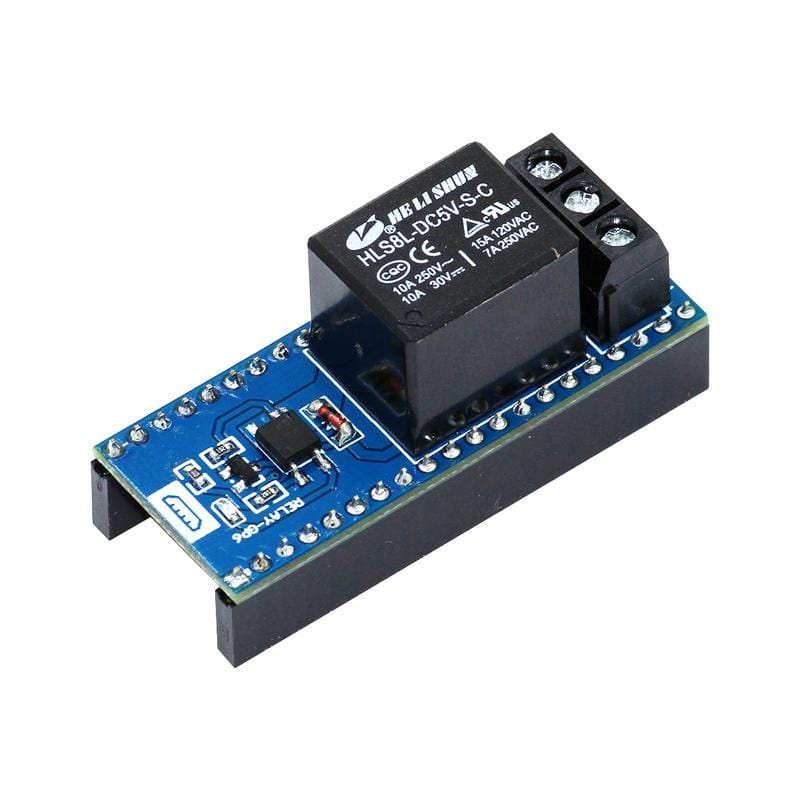

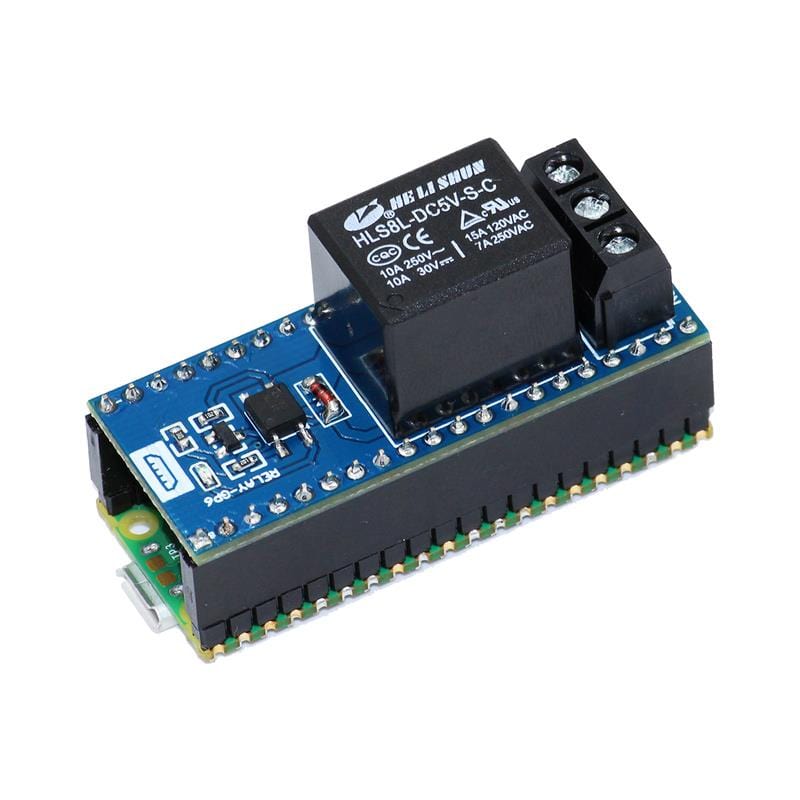

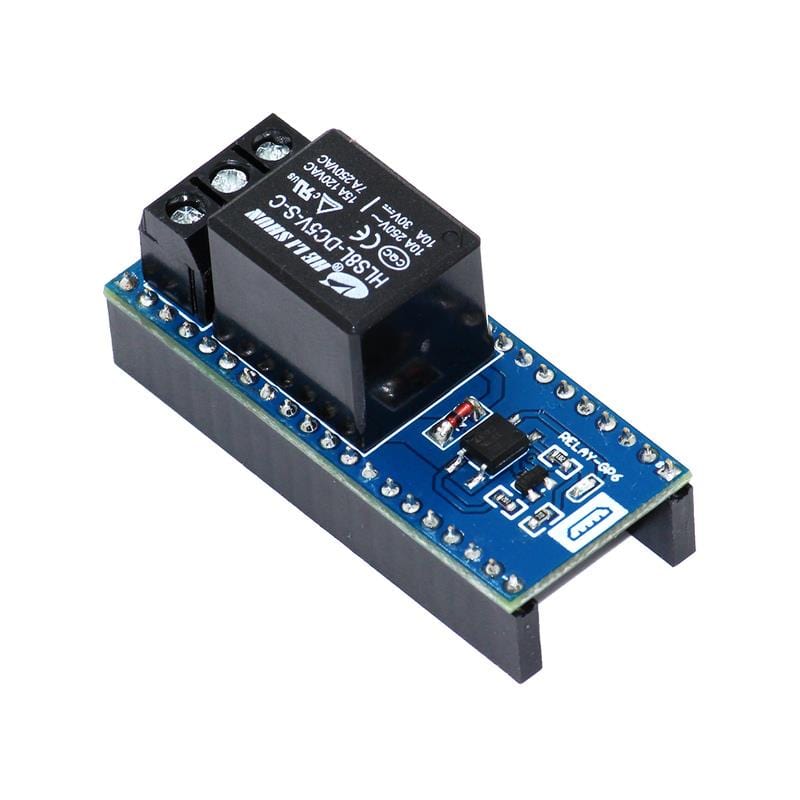

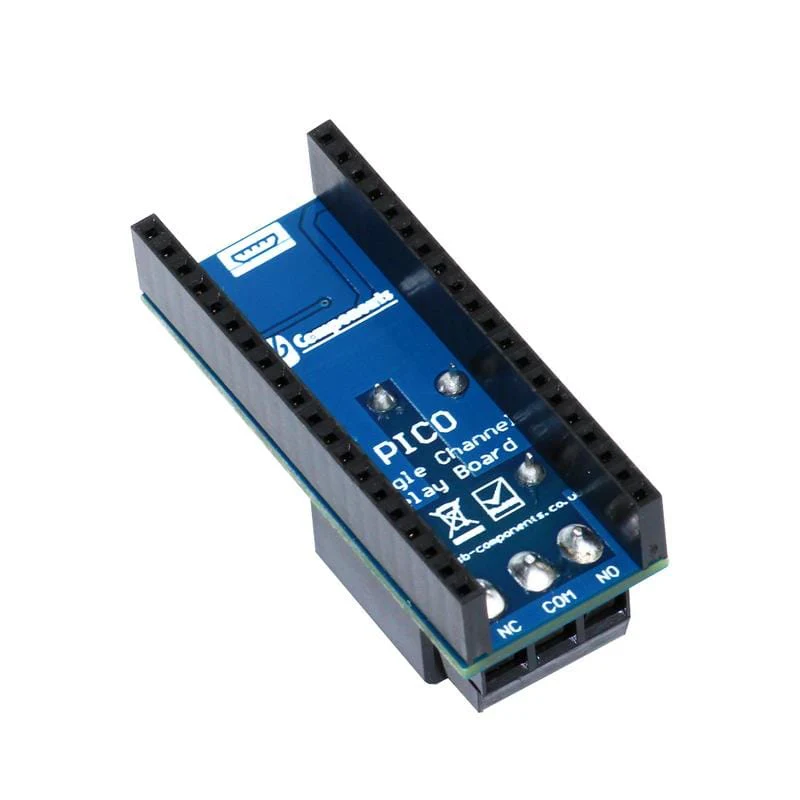

The design is compact with clear pin labelling for the relay connections. Dual relay version also available!

A Raspberry Pi Pico is not included - click here if you'd like to buy one. Your Pico will need to have male headers soldered to it with the pins pointing downwards (or grab one of our pre-soldered Picos).

Features

• One High-Quality Relay with loads of 7A 250 VAC and 15A 120 VAC
• 40-pin female header for fitting a Raspberry Pi Pico
• Compatible with Raspberry Pi Pico
• Indication LED for relay on/off status
• Opto-Isolated

Specification

• Channel: 1
• Operating Voltage: 5V
• Switching Voltage (VAC): 7A / 240V
• Switching Voltage (VDC):10A / 30V
• Dimensions: 21mm x 51mm

Pinout

Resources

• Product GitHub
• User Manual
