Small 1.2" 8x8 Ultra Bright Blue LED Matrix (KWM-30881CBB)
HomeStore

Small 1.2" 8x8 Ultra Bright Blue LED Matrix (KWM-30881CBB)

Small 1.2" 8x8 Ultra Bright Blue LED Matrix (KWM-30881CBB)

$10.48
Small 1.2" 8x8 Ultra Bright Blue LED Matrix (KWM-30881CBB)—
$10.48

The Story

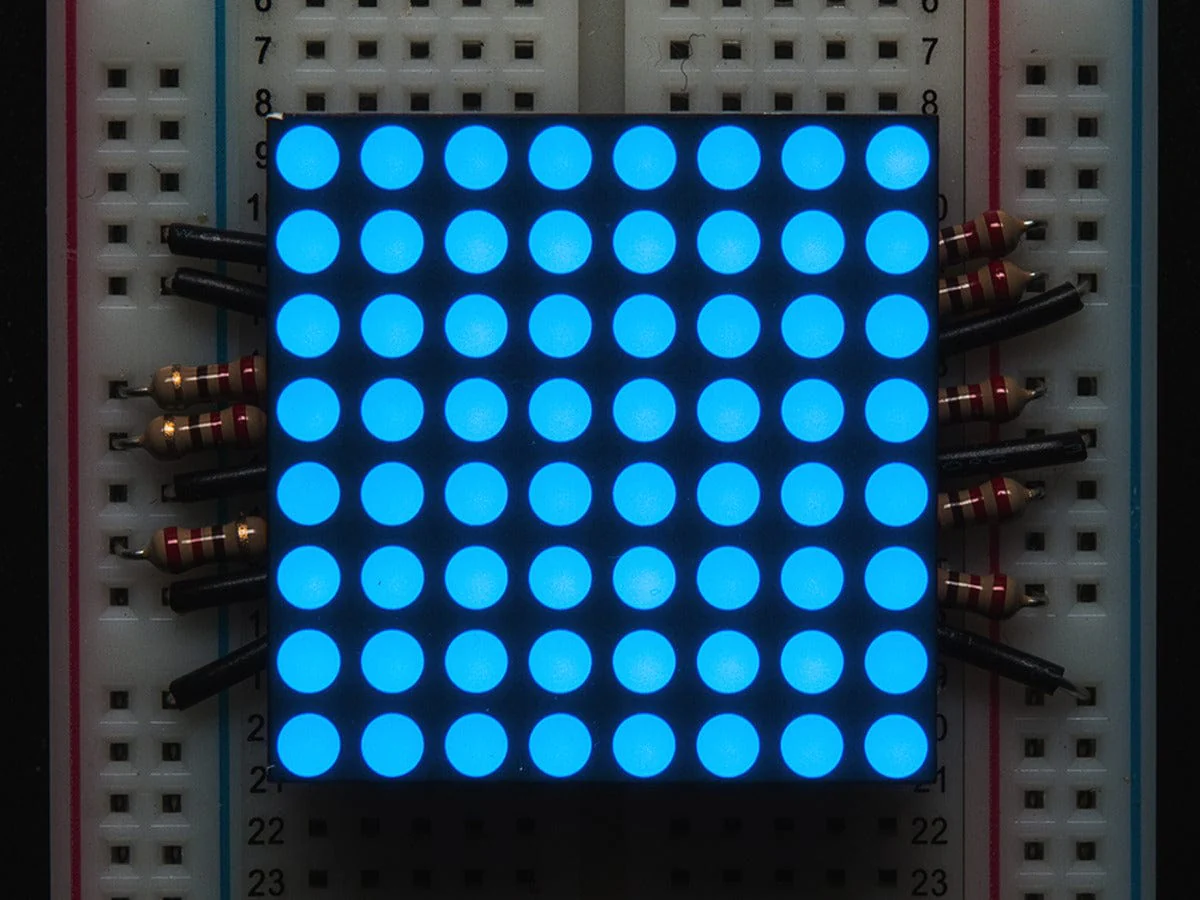

Make a scrolling sign, or a small video display with this 8x8 gridded blue LED matrix. Only 1.2" on a side, it is quite visible but not so large it wont plug into a breadboard! There are 16 pins on the side, 8 on each, with 0.1" spacing so you can easily plug it into a breadboard with one row on each side for wiring it up.

Since the display is in a grid, you'll need to 1:8 multiplex control it. We suggest either using a 74HC595 and TPIC6B595 (using the 74HC' to control the 8 anodes at once and then using the TPIC' to drive one cathode at a time) or just using a single MAX7219 which will do the multiplexing work for you.

The Arduino playground has a nice set of tutorials introducing the MAX7219 and 8x8 LED matrices

Technical Details

  • Datasheet
  • This is a Common Cathode LED Matrix
  • The Arduino playground has a nice set of tutorials introducing the MAX7219 and 8x8 LED matrices
  • Using a high power shift register to drive 8x8 matrices with a NETduino

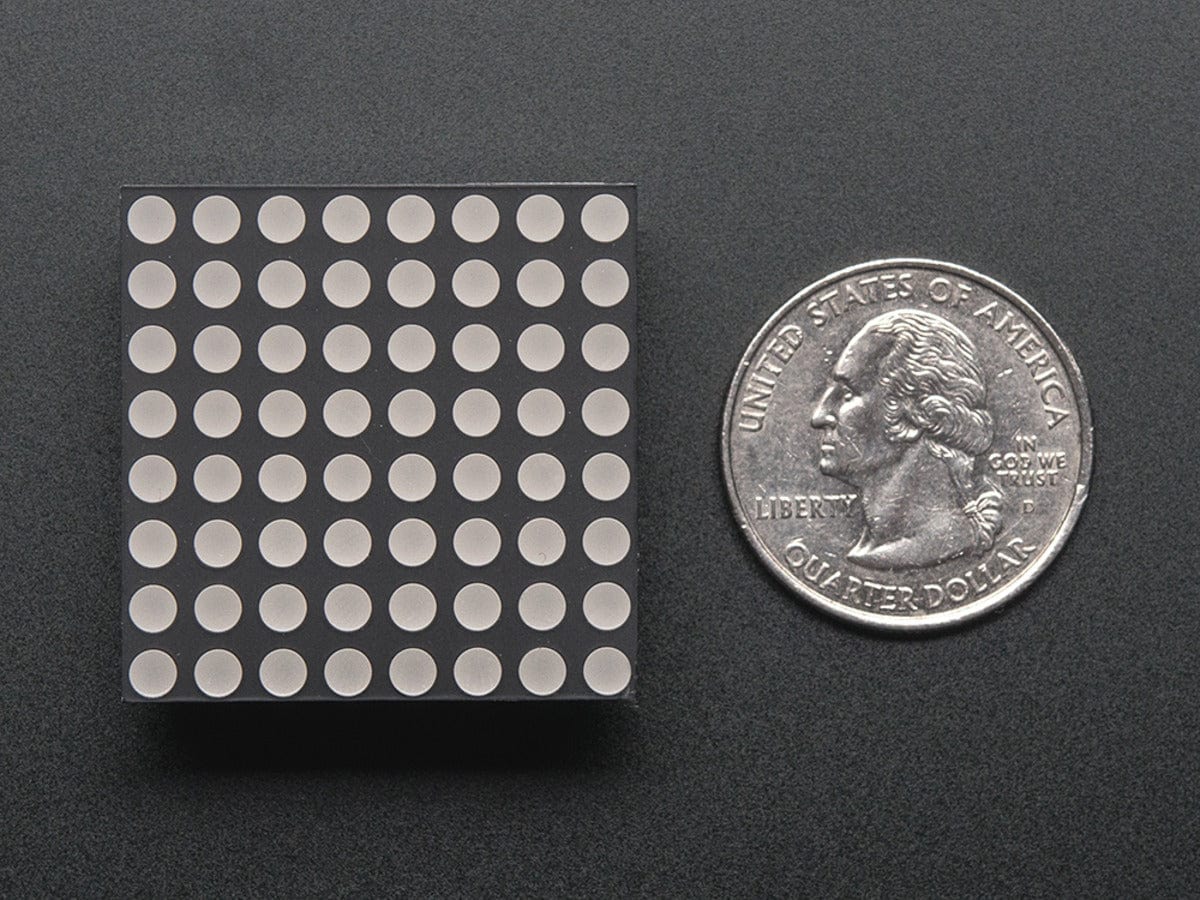

Small 1.2" 8x8 Ultra Bright Blue LED Matrix (KWM-30881CBB) - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

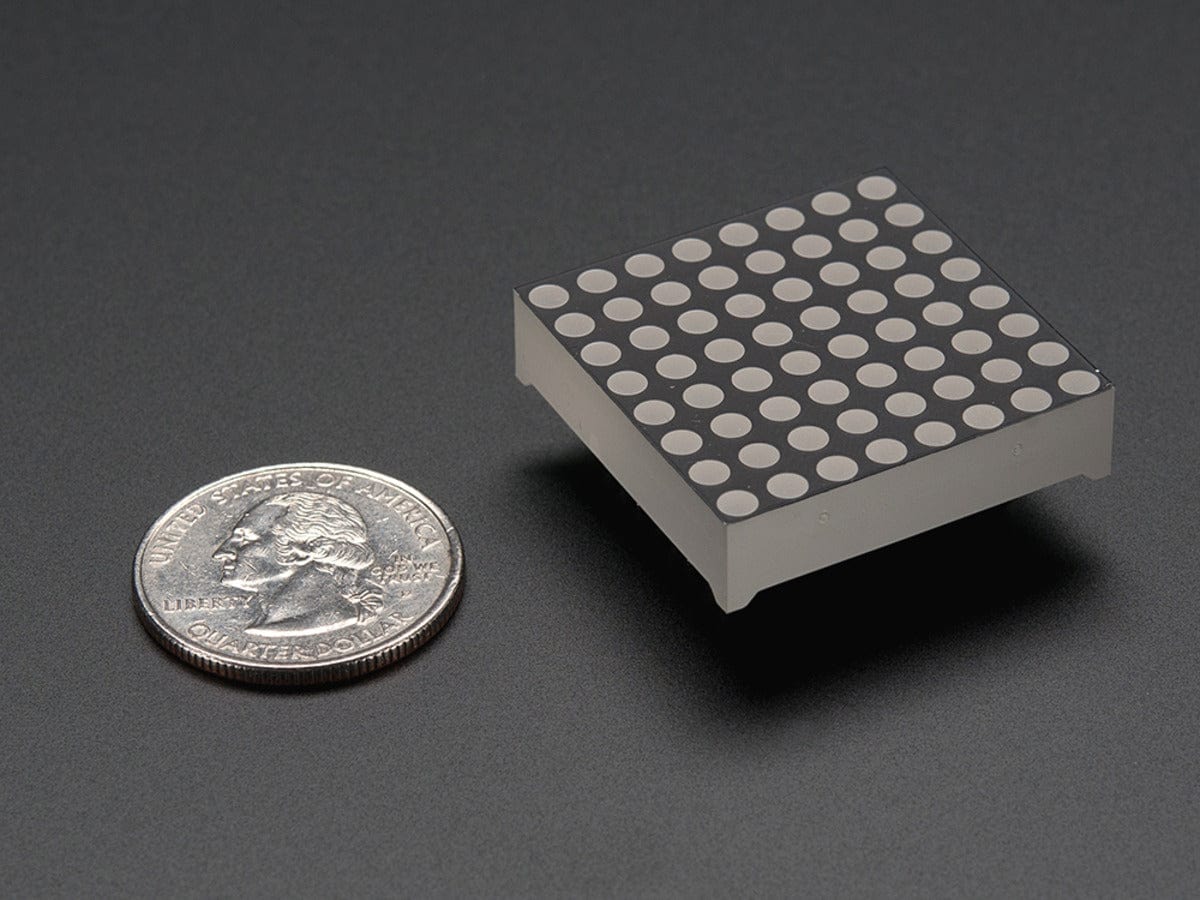

Small 1.2" 8x8 Ultra Bright Blue LED Matrix (KWM-30881CBB) - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

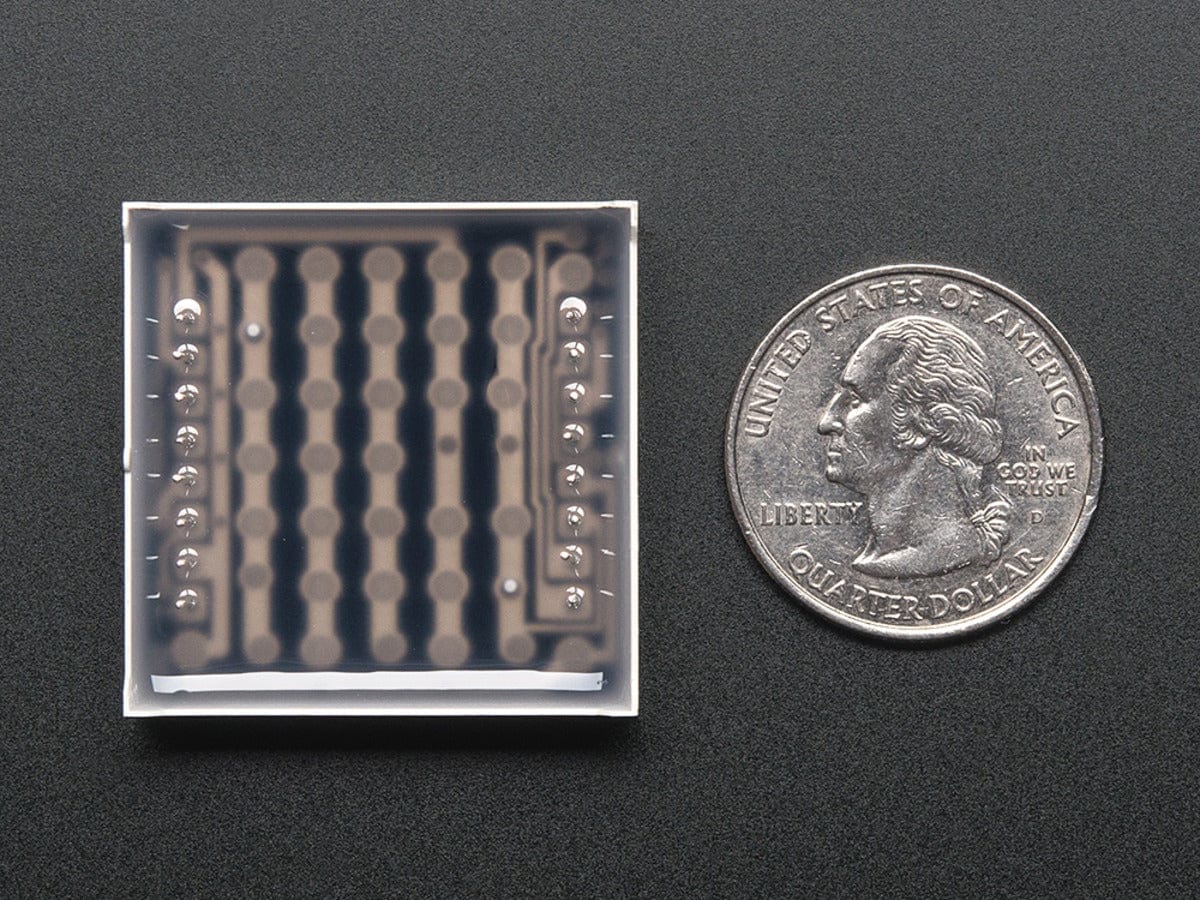

Small 1.2" 8x8 Ultra Bright Blue LED Matrix (KWM-30881CBB) - Image 4
