Snap-In Panel Mount Cable - USB Type A Socket to 4 Wires
HomeStore

Snap-In Panel Mount Cable - USB Type A Socket to 4 Wires

Snap-In Panel Mount Cable - USB Type A Socket to 4 Wires

$3.27
Snap-In Panel Mount Cable - USB Type A Socket to 4 Wiresā€”
$3.27

The Story

This panel-mount cable is great for making USB Host connections with a panel-mount setup. On the rectangular panel-mount side you get a USB Type-A connector, the other end has power, ground and D+ / D- lines. We particularly like that the panel mount part is very small and snaps in and you get a wire pigtail cable on the other end for quick integration.

What's special about this, you ask? It's aĀ Snap-In Panel Mount CableĀ - much easier than a classic panel mount cable; you don't need screws or drills for installation. Cut out a rectangular hole about 2cm by 1cm, up to 4mm thick, and then snap the panel in; it will fit snugly and cover up any burrs, so your cut doesn't have to be so precise. Perfect for adding a USB A hostĀ portĀ to your project enclosure!

The red cable is 5V, the white wire is D-, the blue cable is D+ (traditionally this is green), and the black wire is ground.

We also have a 2 wire version here

Specifications

  • Wire length: 4"

Resources

  • Datasheet

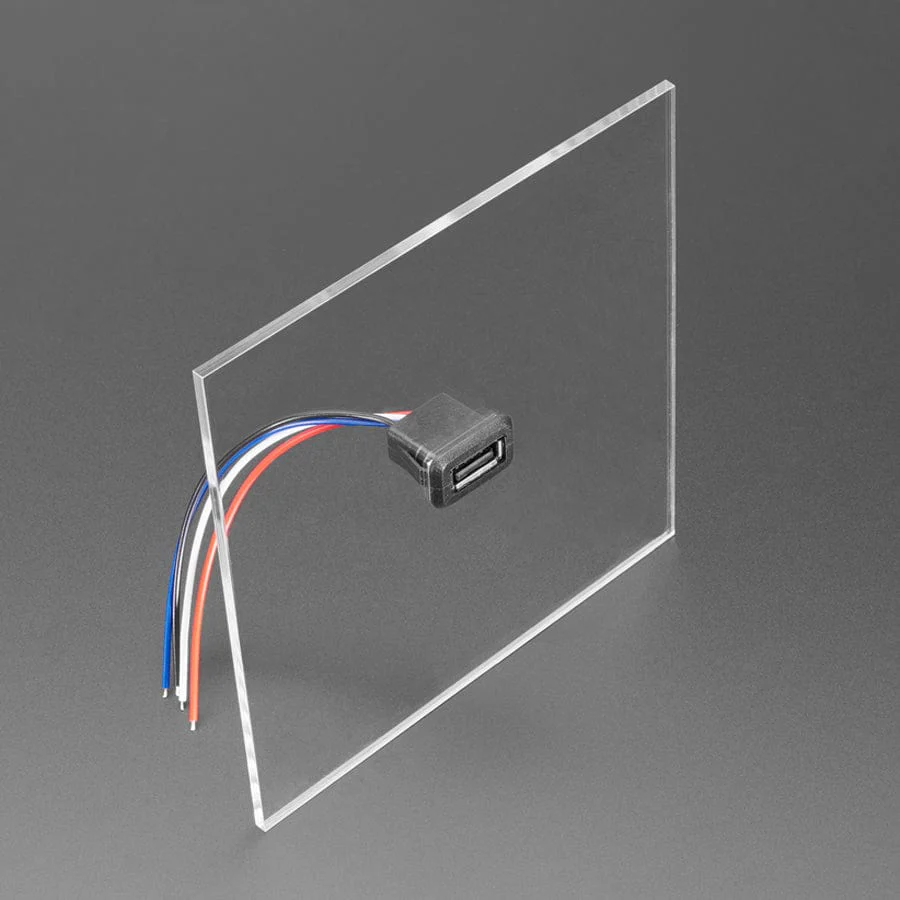

Snap-In Panel Mount Cable - USB Type A Socket to 4 Wires - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

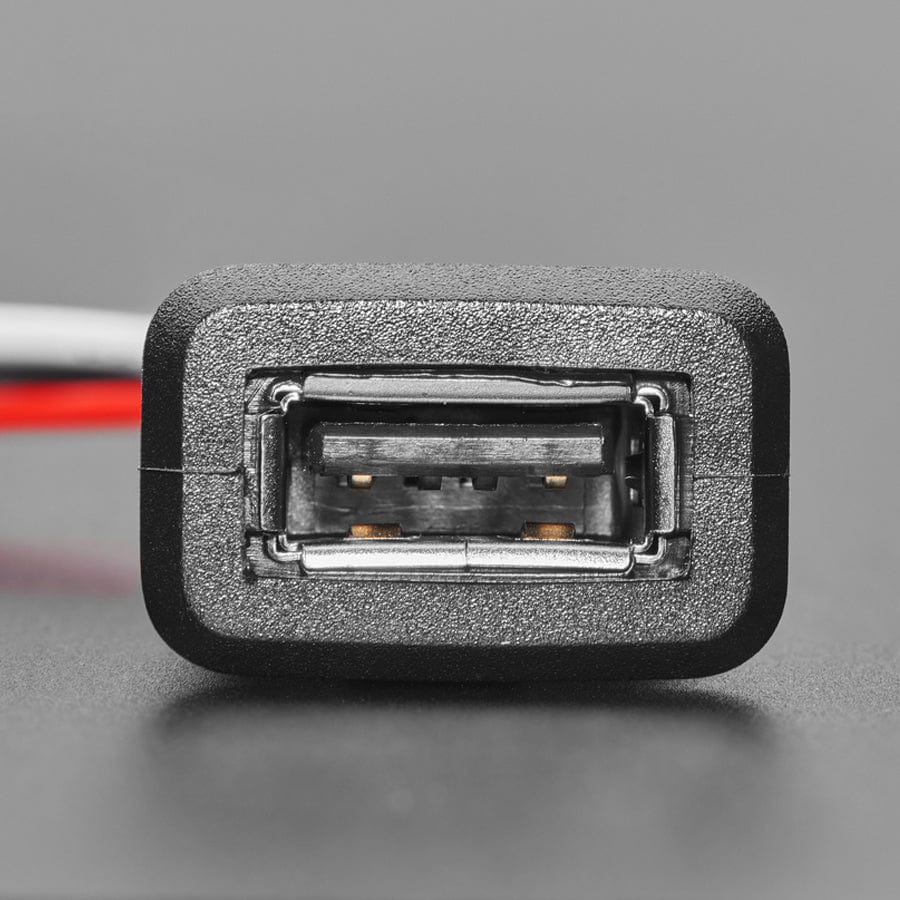

Snap-In Panel Mount Cable - USB Type A Socket to 4 Wires - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

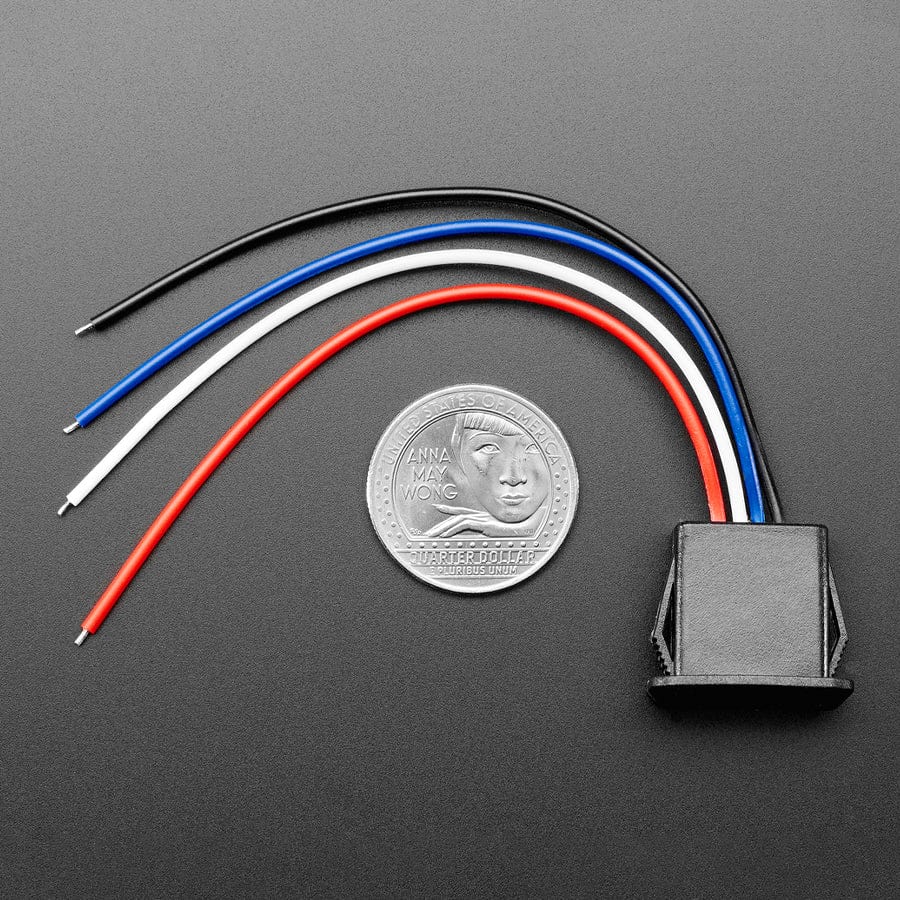

Snap-In Panel Mount Cable - USB Type A Socket to 4 Wires - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

This panel-mount cable is great for making USB Host connections with a panel-mount setup. On the rectangular panel-mount side you get a USB Type-A connector, the other end has power, ground and D+ / D- lines. We particularly like that the panel mount part is very small and snaps in and you get a wire pigtail cable on the other end for quick integration.

What's special about this, you ask? It's aĀ Snap-In Panel Mount CableĀ - much easier than a classic panel mount cable; you don't need screws or drills for installation. Cut out a rectangular hole about 2cm by 1cm, up to 4mm thick, and then snap the panel in; it will fit snugly and cover up any burrs, so your cut doesn't have to be so precise. Perfect for adding a USB A hostĀ portĀ to your project enclosure!

The red cable is 5V, the white wire is D-, the blue cable is D+ (traditionally this is green), and the black wire is ground.

We also have a 2 wire version here

Specifications

  • Wire length: 4"

Resources

  • Datasheet
