$1.96The Story
A simple HSTX to DVI conversion breakout that can connect your boards to DVI displays effortlessly.

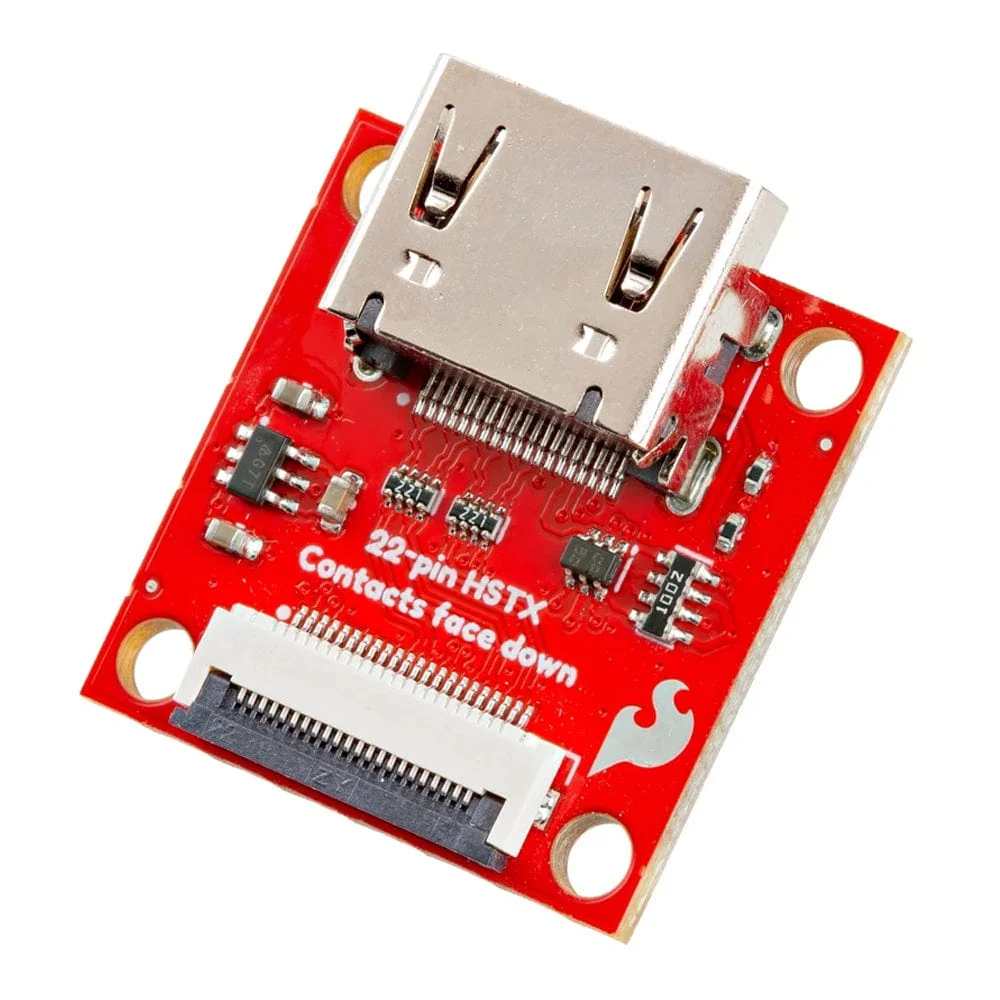

The SparkFun HSTX to DVI Breakout takes the 22-pin interface found on the HSTX connector on the RP2350 IoT RedBoard and the display connector on a Raspberry Pi 5 and translates it to an HDMI connector for DVI output.

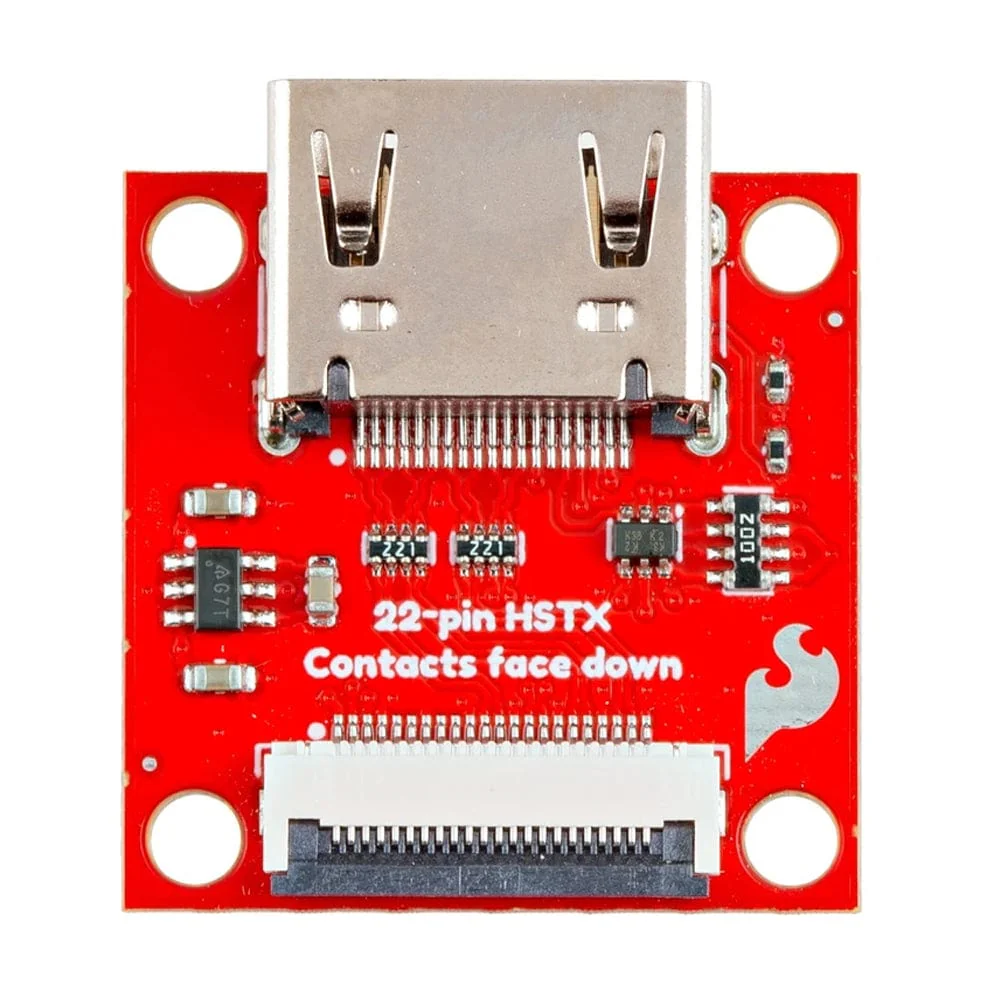

The board includes a 22-pin flex cable connector and HDMI connector, along with the required components to level shift and boost the voltage for compatibility with DVI signal requirements.
Features and Specifications
- 1x 22-pin Flex Cable Connector
- 1x HDMI Connector
Resources
- Schematic
- KiCad Files
- GitHub Hardware Repository
Package Contents
- 1x SparkFun HSTX to DVI Breakout
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
A simple HSTX to DVI conversion breakout that can connect your boards to DVI displays effortlessly.
The SparkFun HSTX to DVI Breakout takes the 22-pin interface found on the HSTX connector on the RP2350 IoT RedBoard and the display connector on a Raspberry Pi 5 and translates it to an HDMI connector for DVI output.
The board includes a 22-pin flex cable connector and HDMI connector, along with the required components to level shift and boost the voltage for compatibility with DVI signal requirements.
Features and Specifications
- 1x 22-pin Flex Cable Connector
- 1x HDMI Connector
Resources
- Schematic
- KiCad Files
- GitHub Hardware Repository
Package Contents
- 1x SparkFun HSTX to DVI Breakout
