The Story

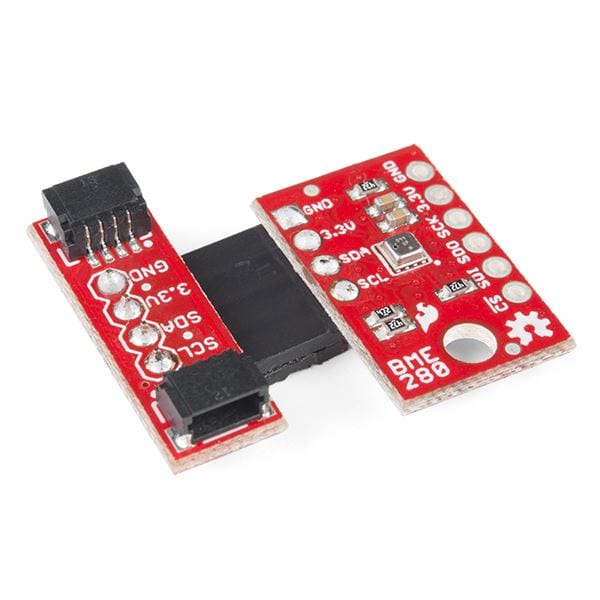

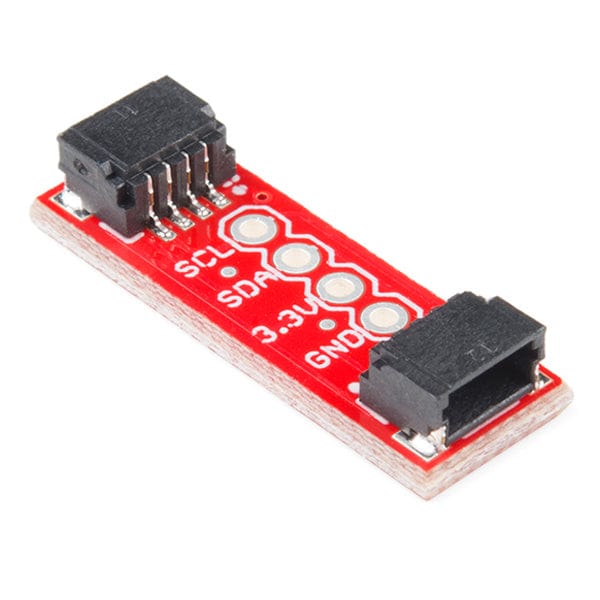

The SparkFun Qwiic Adapter provides the perfect means to make any old I2C board into a Qwiic-enabled board. This adapter breaks out the I2C pins from the Qwiic connectors to pins that you can easily solder with your favourite I2C-enabled device.

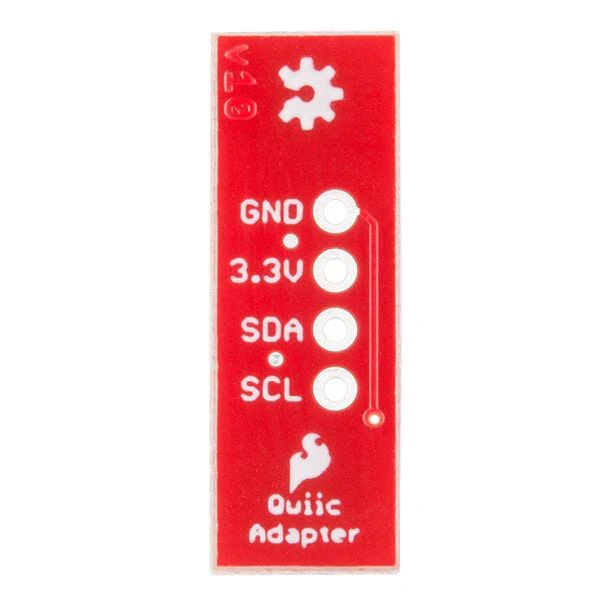

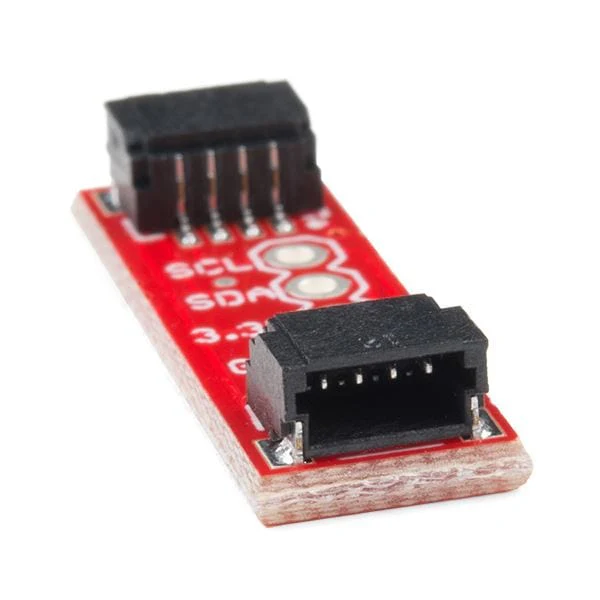

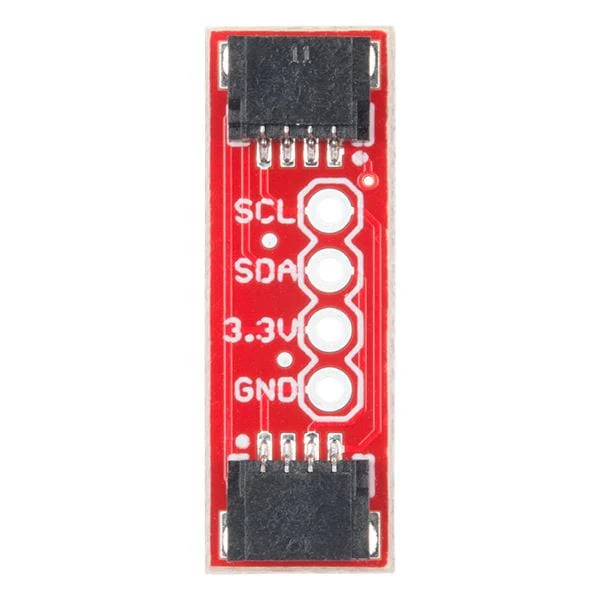

The Qwiic Adapter has two Qwiic connection ports, all on the same I2C bus. Four plated through holes are broken out for SCL, SDA, 3.3V and GND. These pins can be used to convert an old I2C-enabled device into a Qwiic-enabled board.
Get Started with the Sparkfun Qwiic Adapter Guide
Features
- 2x Qwiic Connection Ports
- Broken-out I2C Pins
Resources
- Schematic
- Eagle Files
- Hookup Guide
- GitHub
