SparkFun SSOP to DIP Adapter - 8-Pin [Discontinued]
HomeStore

SparkFun SSOP to DIP Adapter - 8-Pin [Discontinued]

SparkFun SSOP to DIP Adapter - 8-Pin [Discontinued]

$5.17
SparkFun SSOP to DIP Adapter - 8-Pin [Discontinued]—
$5.17

The Story

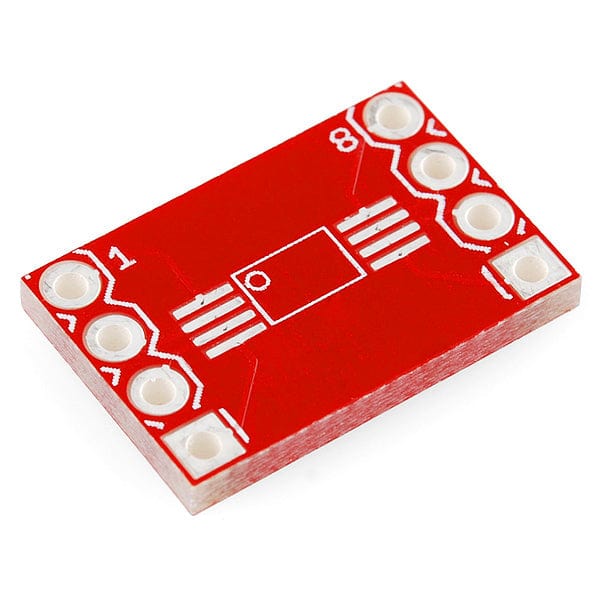

8-Pin SSOP to DIP breakout board. The footprint was rotated to accommodate different width SSOP devices and can be used with 8-pin SSOPs.

Designed to be used with 0.65mm pitch devices but can also be used with 0.025" pitch devices (comes out to ~0.635mm). We've made these 0.635mm devices fit just fine. Can be used with packages from 0.200" (5mm) up to 0.450" (11.4mm) in width.

Break-away headers are perfect for use with these custom PCBs. Machine pin headers may be a better option for IC sockets. Pad layout fits all standard SSOP .65mm and can accommodate .635mm pitch devices.

Features

  • 8-pin: 0.6 x 0.4" (15.24 x 10.16mm) 500mil DIP spacing

Resources

  • Schematic
  • Eagle Files
  • GitHub (Design Files)

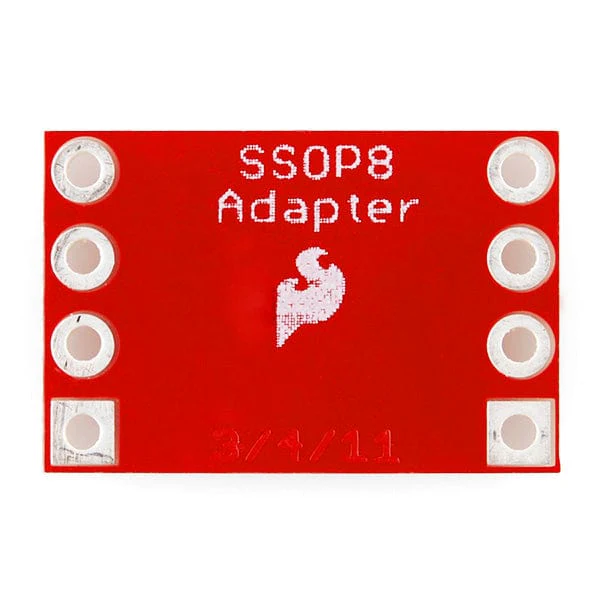

SparkFun SSOP to DIP Adapter - 8-Pin [Discontinued] - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

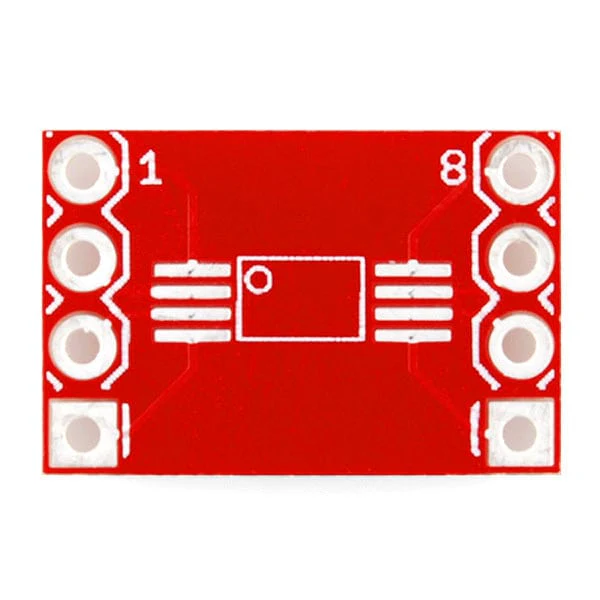

SparkFun SSOP to DIP Adapter - 8-Pin [Discontinued] - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

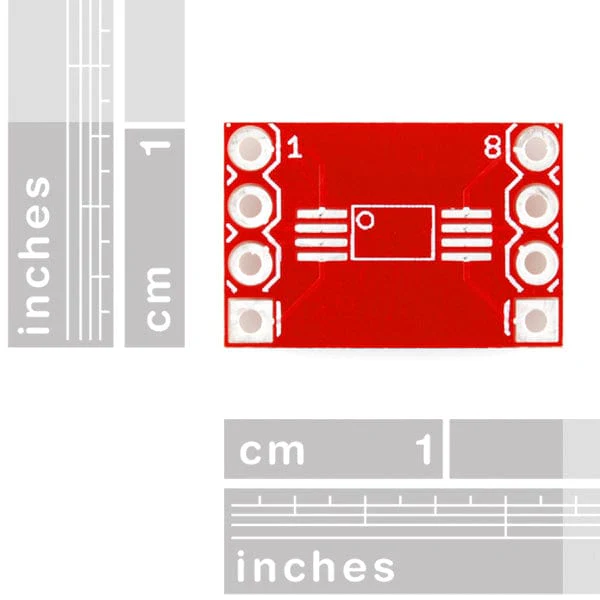

SparkFun SSOP to DIP Adapter - 8-Pin [Discontinued] - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

8-Pin SSOP to DIP breakout board. The footprint was rotated to accommodate different width SSOP devices and can be used with 8-pin SSOPs.

Designed to be used with 0.65mm pitch devices but can also be used with 0.025" pitch devices (comes out to ~0.635mm). We've made these 0.635mm devices fit just fine. Can be used with packages from 0.200" (5mm) up to 0.450" (11.4mm) in width.

Break-away headers are perfect for use with these custom PCBs. Machine pin headers may be a better option for IC sockets. Pad layout fits all standard SSOP .65mm and can accommodate .635mm pitch devices.

Features

  • 8-pin: 0.6 x 0.4" (15.24 x 10.16mm) 500mil DIP spacing

Resources

  • Schematic
  • Eagle Files
  • GitHub (Design Files)
