-70%SparkFun USB Type A Female Breakout—
$6.94
$2.08The Story

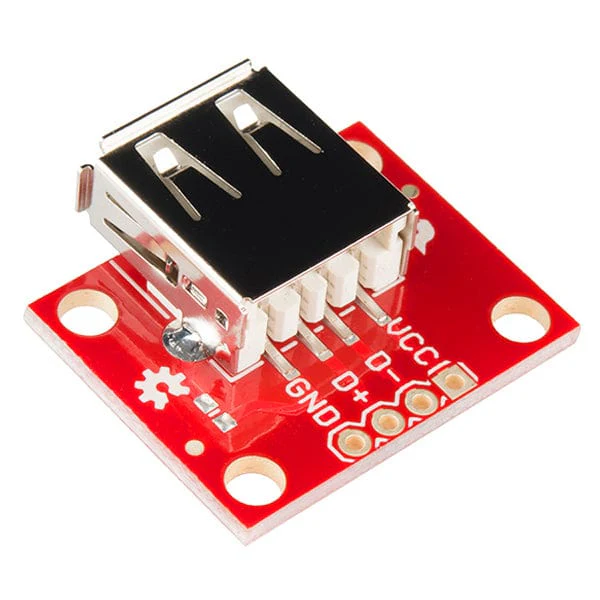

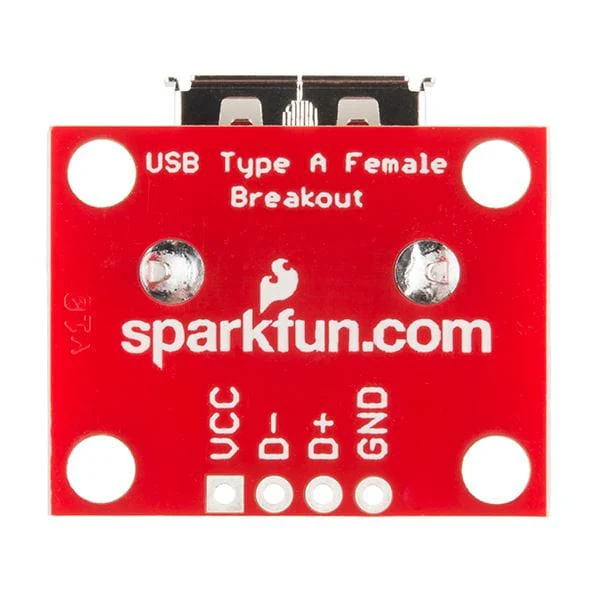

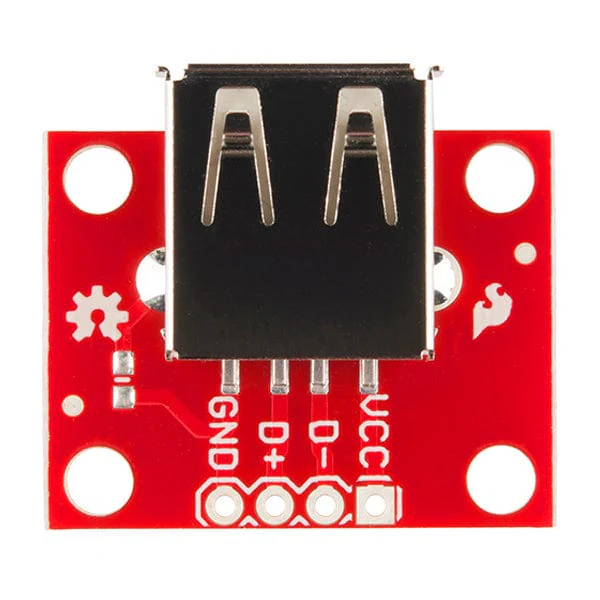

This simple board breaks out a female USB type A connector's VCC, GND, D- and D+ pins to a 0.1" pitch header.
If you want to add a USB to your project, but don't want to put up with soldering tiny connectors, this is the board for you.
Specifications

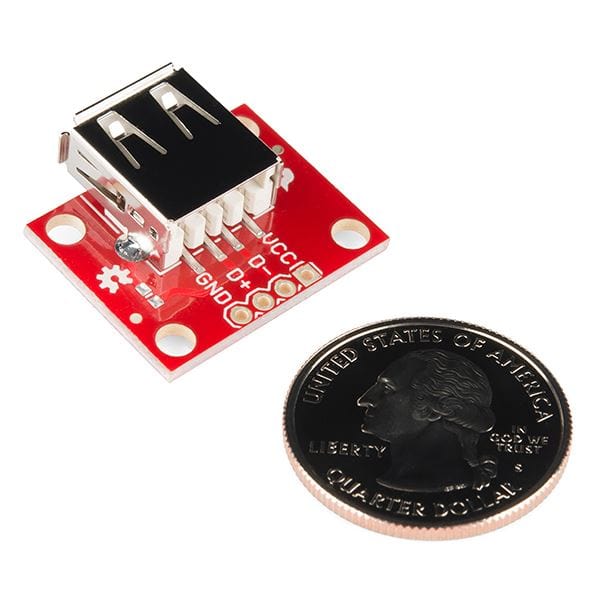

- Dimensions: 1.02 x 0.9" (26.06 x 22.93mm)
Resources
- Schematic
- Eagle Files
- Hookup Guide
- GitHub
- Board Dimensions
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
This simple board breaks out a female USB type A connector's VCC, GND, D- and D+ pins to a 0.1" pitch header.
If you want to add a USB to your project, but don't want to put up with soldering tiny connectors, this is the board for you.
Specifications
- Dimensions: 1.02 x 0.9" (26.06 x 22.93mm)
Resources
- Schematic
- Eagle Files
- Hookup Guide
- GitHub
- Board Dimensions
