-70%SPI/I2C Monochrome 60x32 0.5" OLED Displayā
$22.87
$6.86The Story
OCELL is a 0.5" micro OLED display designed for Arduino and other microcontrollers. This micro OLED display is small as the grown-up's fingernail- 0.5" only. It has 450cd/m^2 screen brightness with extremely high contrast and readability; moreover, it contains 60 x 32 independent white OLED pixels that each can be separately controlled by the driver chip. This means you can display any images and words on the screen . Except this, the spontaneous light OLED display does not require a backlight, which greatly reduces the power consumption.
The Oled screen supports SPI (Default setting ) and I2C interface. You could connect it to Ardunio micro directly without doing any PCB layout by yourself, also you could wire it to any other MCUs like STM series , 51 series and so on.Ā
The Oled screen supports SPI (Default setting ) and I2C interface. You could connect it to Ardunio micro directly without doing any PCB layout by yourself, also you could wire it to any other MCUs like STM series , 51 series and so on.Ā
Specification
- Operating Voltage: 3.3V -5V
- PCB dimension: 17.8mm x 15.5mm (0.70*0.61")
- Screen size: 0.5" inch (W*H: 15.30x10.20 mm)
- Color: Monochrome (white)
- OLED type: PM -OLEDOLED driver: LD7032
- Pixels : 60 x 32
- Contrast: 2000: 1
- Communication: SPI, I2C
Documents
- Product Wiki
- Display Specification
- LD7032 Datasheet
- User Guide

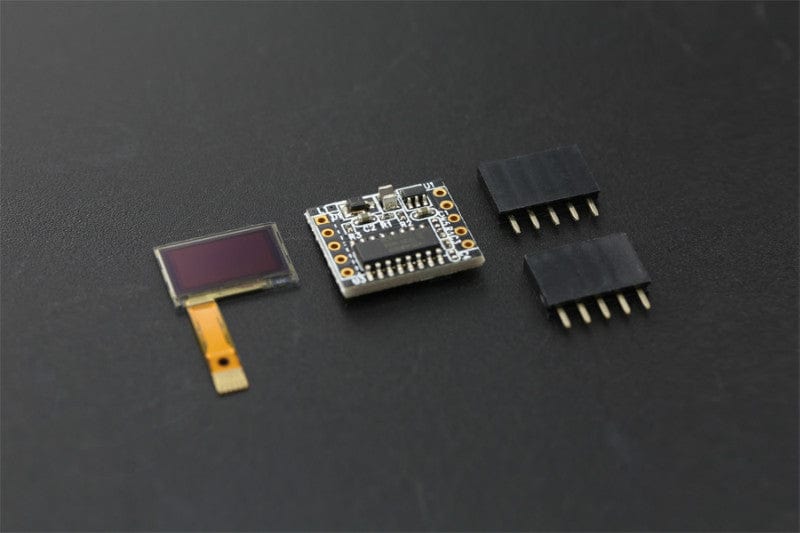

Shipping List

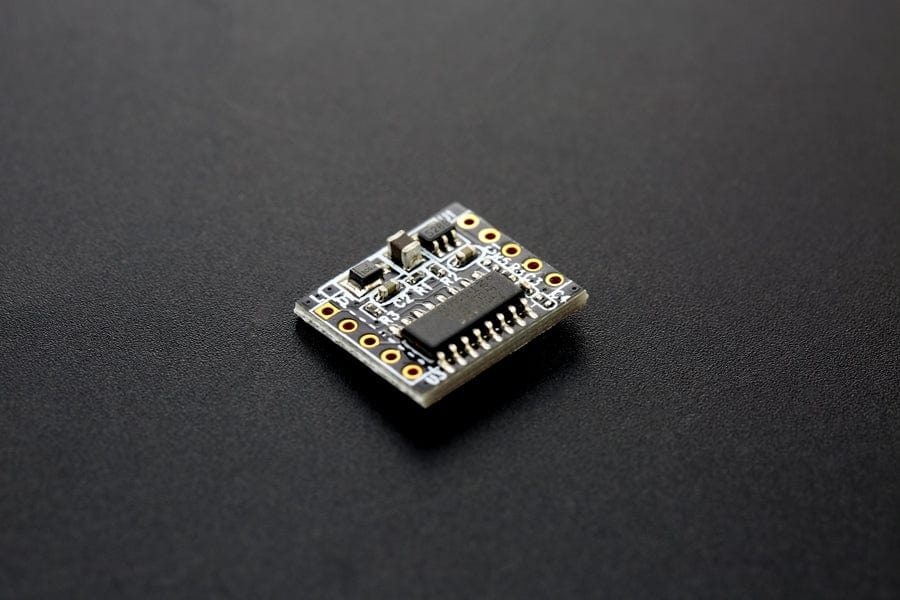

- Micro Oled driver board x1
- 0.5ā Oled Display x1
- 5 Pin header x2
