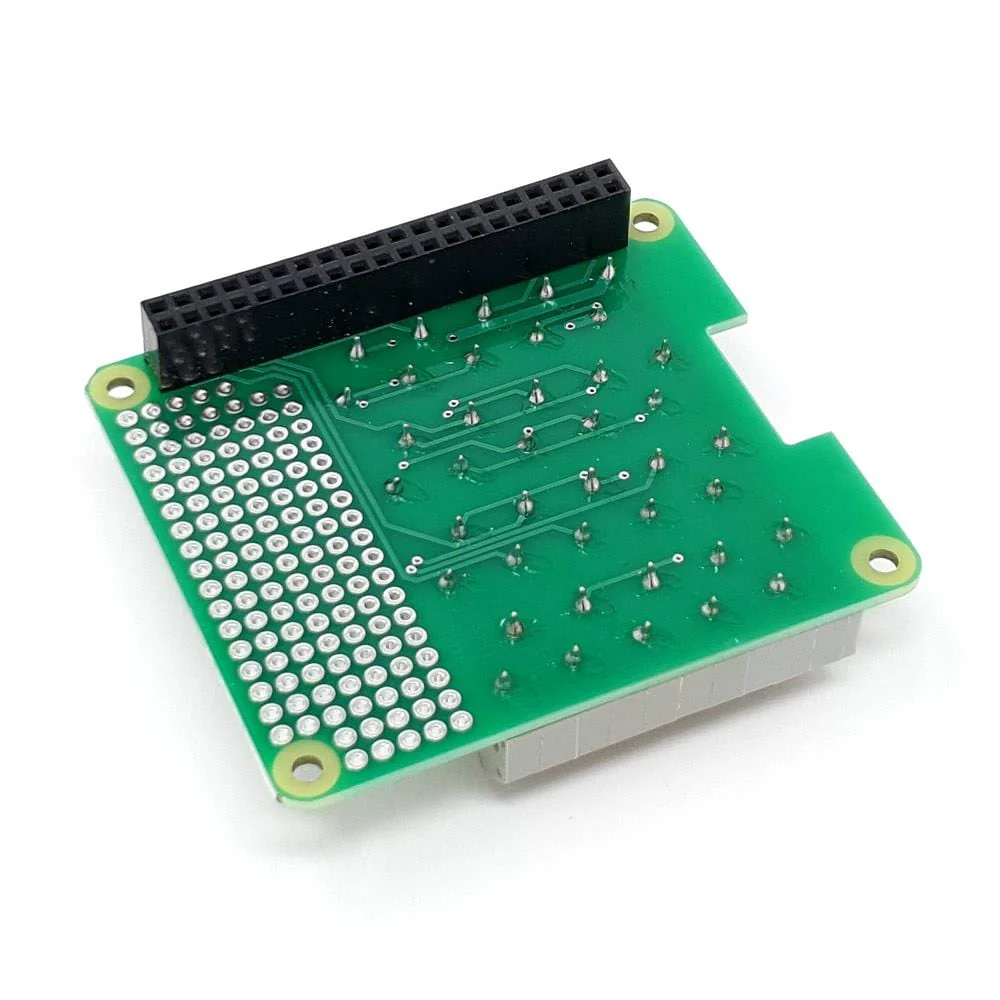

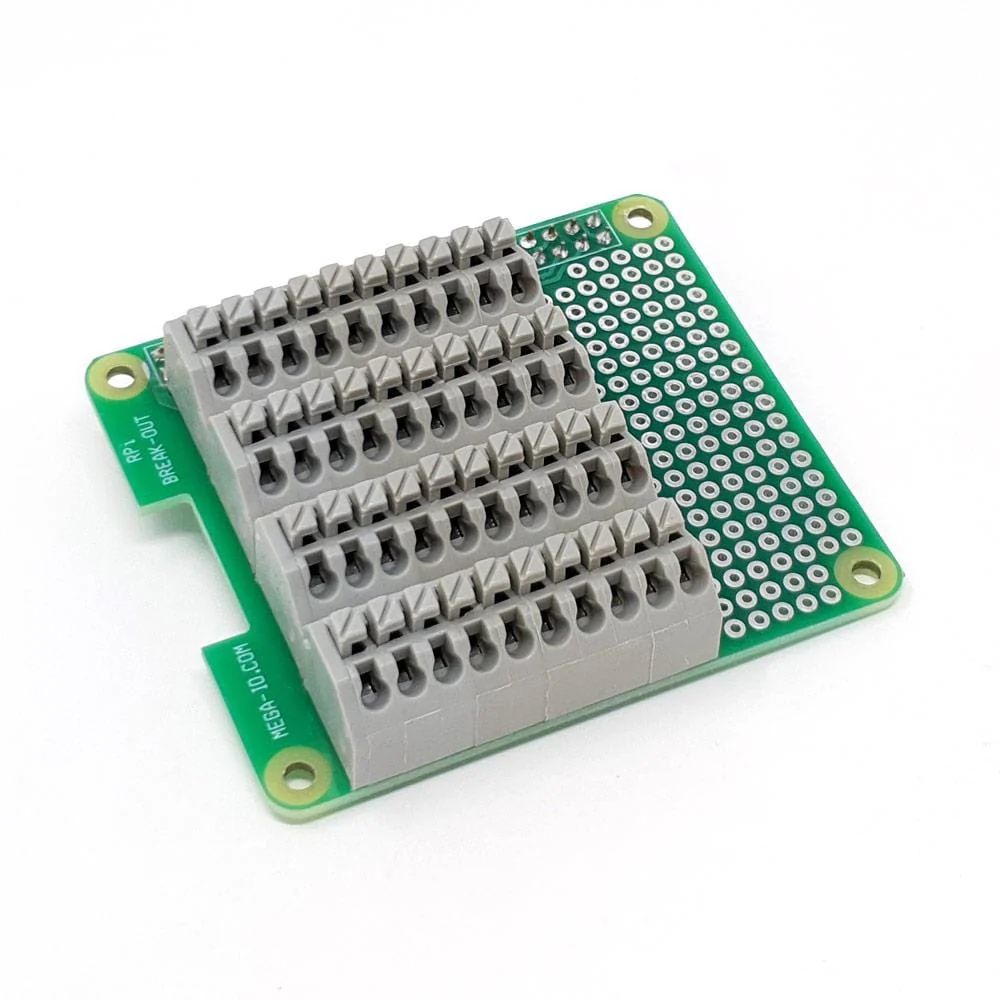

This card plugs into the Raspberry Pi 40-pin GPIO socket and brings all GPIO pins out to spring-loaded terminal blocks.

Spring-loaded terminal blocks allow for rapid, convenient and tool-free connection to GPIO pins. The prototype area can also be used to test your own hardware.

A connection map reference card is included in the package below can also be printed below.

Compatible with all 40-pin Raspberry Pis.

For any technical questions about this product please email [email protected]

Features & Specs

3.5mm pitch PCB spring-loaded terminal block connectors
Stainless steel wire guard
Phosphor bronze, tin-plated pin header
Rated Voltage: 300V
Rated Current: 7A
Contact Resistance: 20 mOhms
Insulation Resistance: 5000 MOhms/DC 1000V
Withstanding Voltage: 2000 VAC minimum/1Min
Wire Range: 22-18 AWG
Strip Length: 8-9 mm

Terminal block connections

The four connectors of 10 pins each are wired as follows:

GPIO

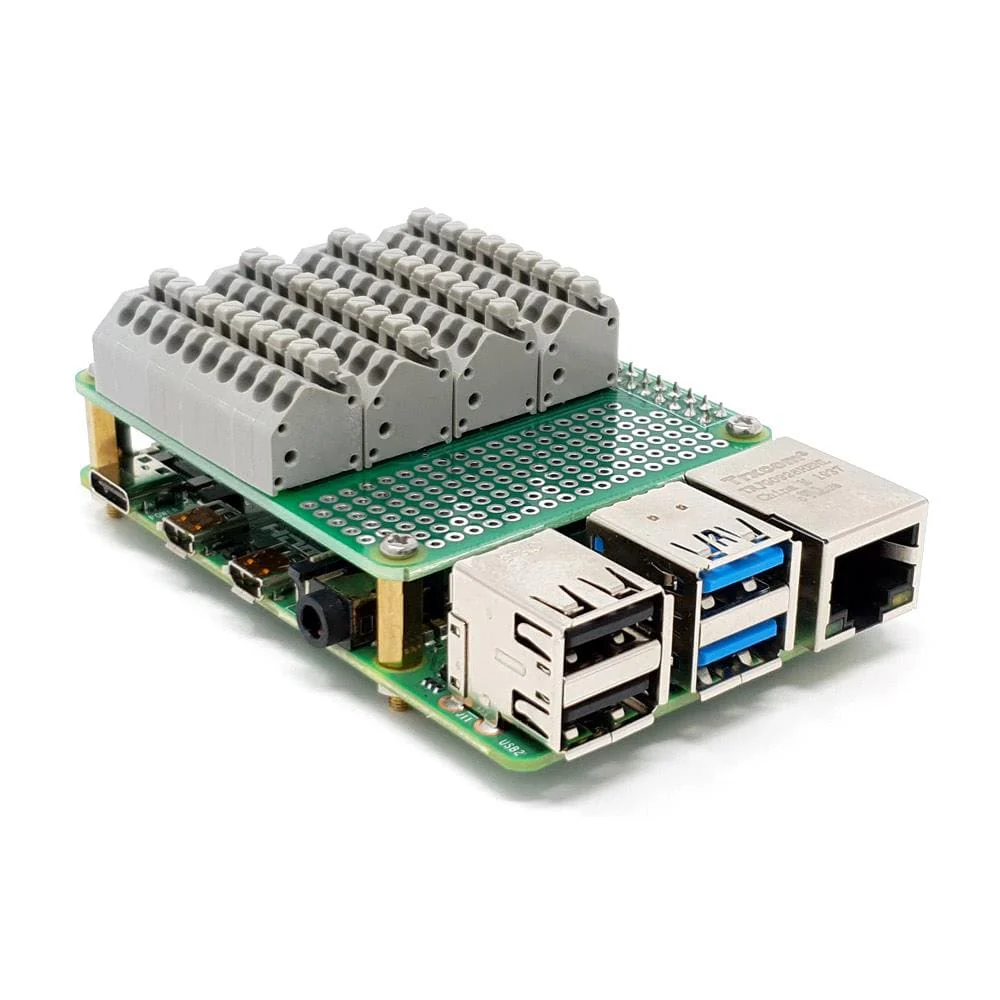

Spring-Loaded Terminal Breakout Board for Raspberry Pi [Discontinued] - Image 2
