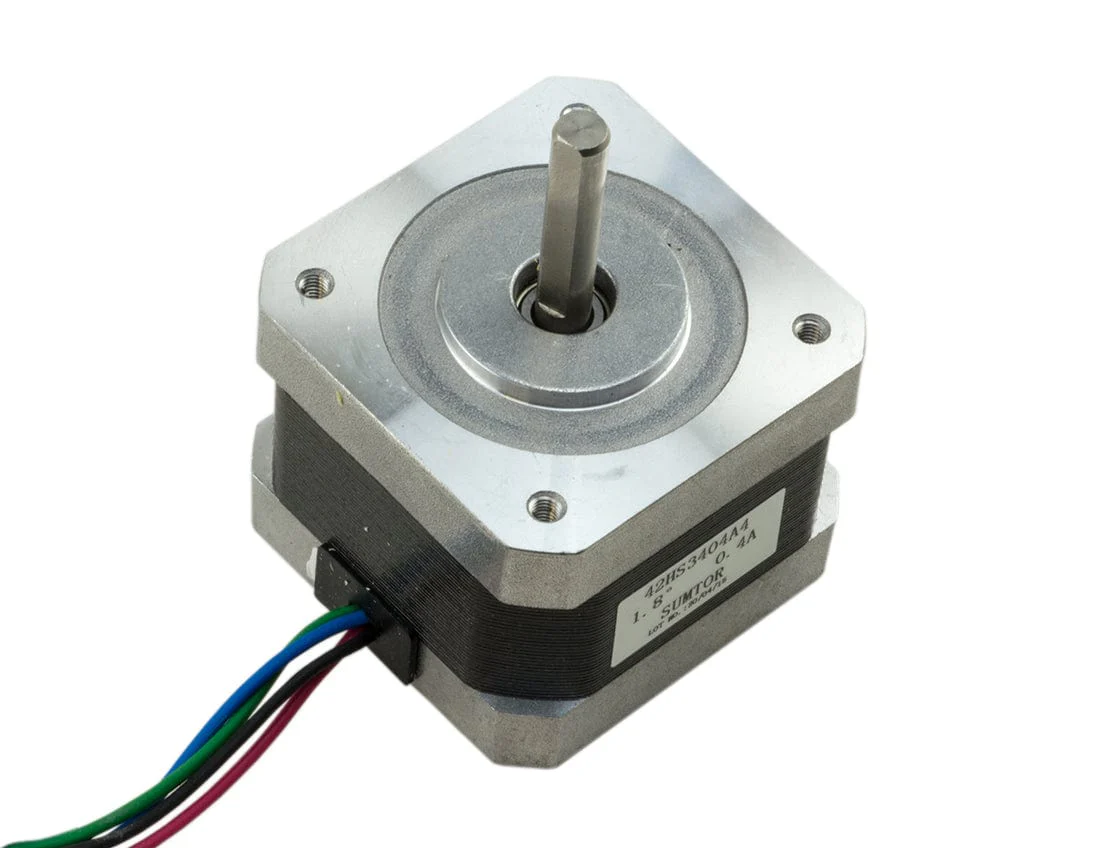

Stepper Motor - 4-wire 200 steps/rev, 12V 400mA [Discontinued]

A stepper motor to satisfy all your robotics needs! This 4-wire bipolar stepper has 1.8° per step for smooth motion and a nice holding torque. The motor was specified to have a max current of 400mA so that it could be driven easily with an Adafruit motor shield for Arduino (or other motor driver) and a wall adapter or lead-acid battery. A perfect first stepper motor, and works well with our ThunderBorg motor controller

If you are using a ThunderBorg motor controller, wire the board as follows:

M1+	Stepper Black
M1-	Stepper Green
M2+	Stepper Red
M2-	Stepper Blue
V+	Power supply positive
GND	Power supply ground

Some nice details include a ready-to-go cable and a 5mm machined drive shaft (so you can easily attach stuff using a 5mm hub).

Stepper Motor Features:

• Model No: 42BYGHW208
• Bipolar stepper
• 200 Steps Per Revolution
• 4-wire, 300mm leads
• 12V DC Suggested Operation at 400mA max current
• Weight: 200 g
• 250 RPM
• Dimensions: 42.3mm square body, 34mm tall not including 24mm shaft with 5mm diameter
• Holding Torque: 2800 g*cm
• Wiring:
  • Black and green are a pair.
  • Red and blue are a pair.

Technical data:

42BYGHW208 datasheet
