SupTronics X1009 5-Port SATA Add-on for Raspberry Pi 5

The SupTronics X1009 5-Port SATA Add-on for Raspberry Pi 5 connects up to five SATA drives via PCIe at 5Gbps. Powered through a 12V DC jack with onboard converters, it powers both the Pi and drives from one source.

---

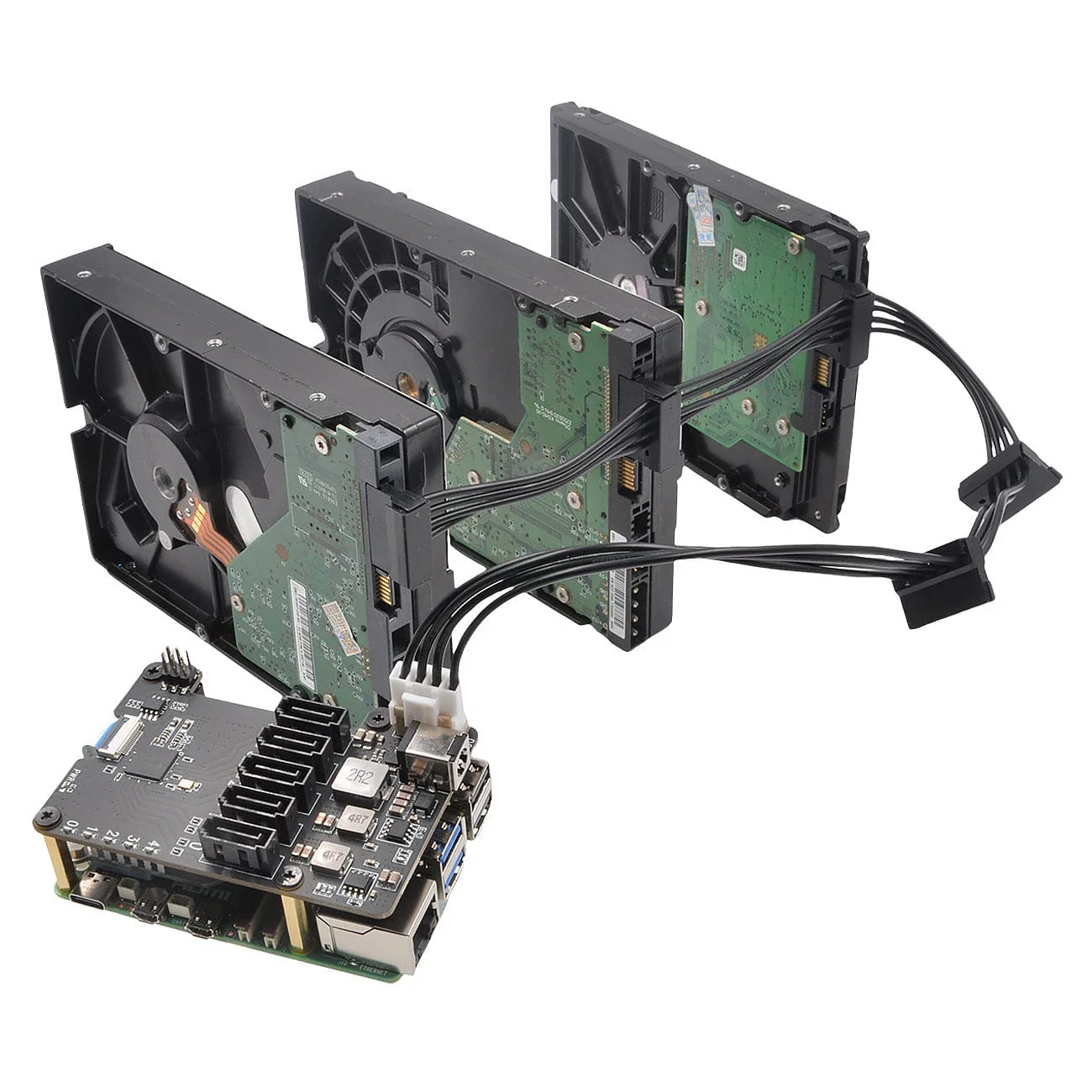

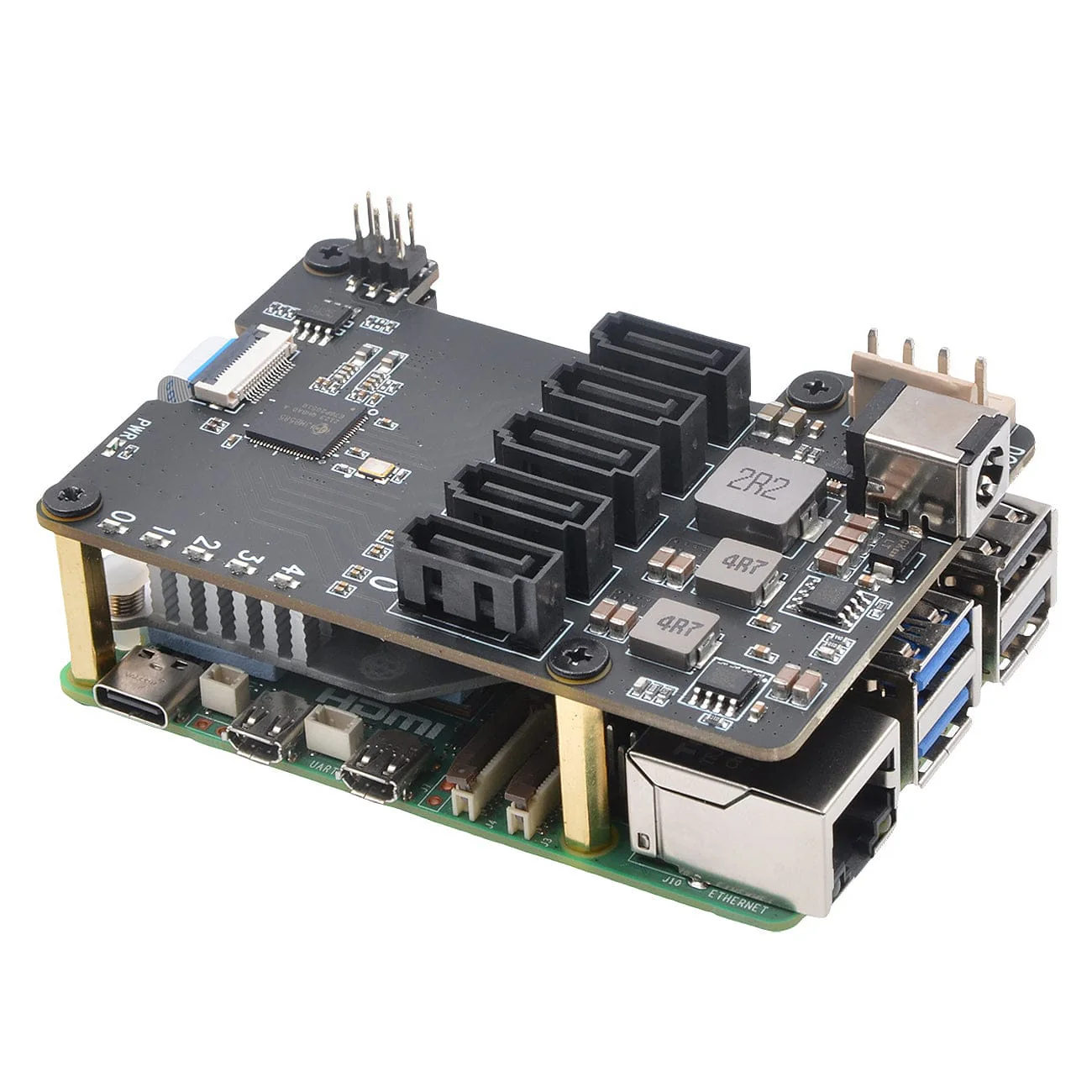

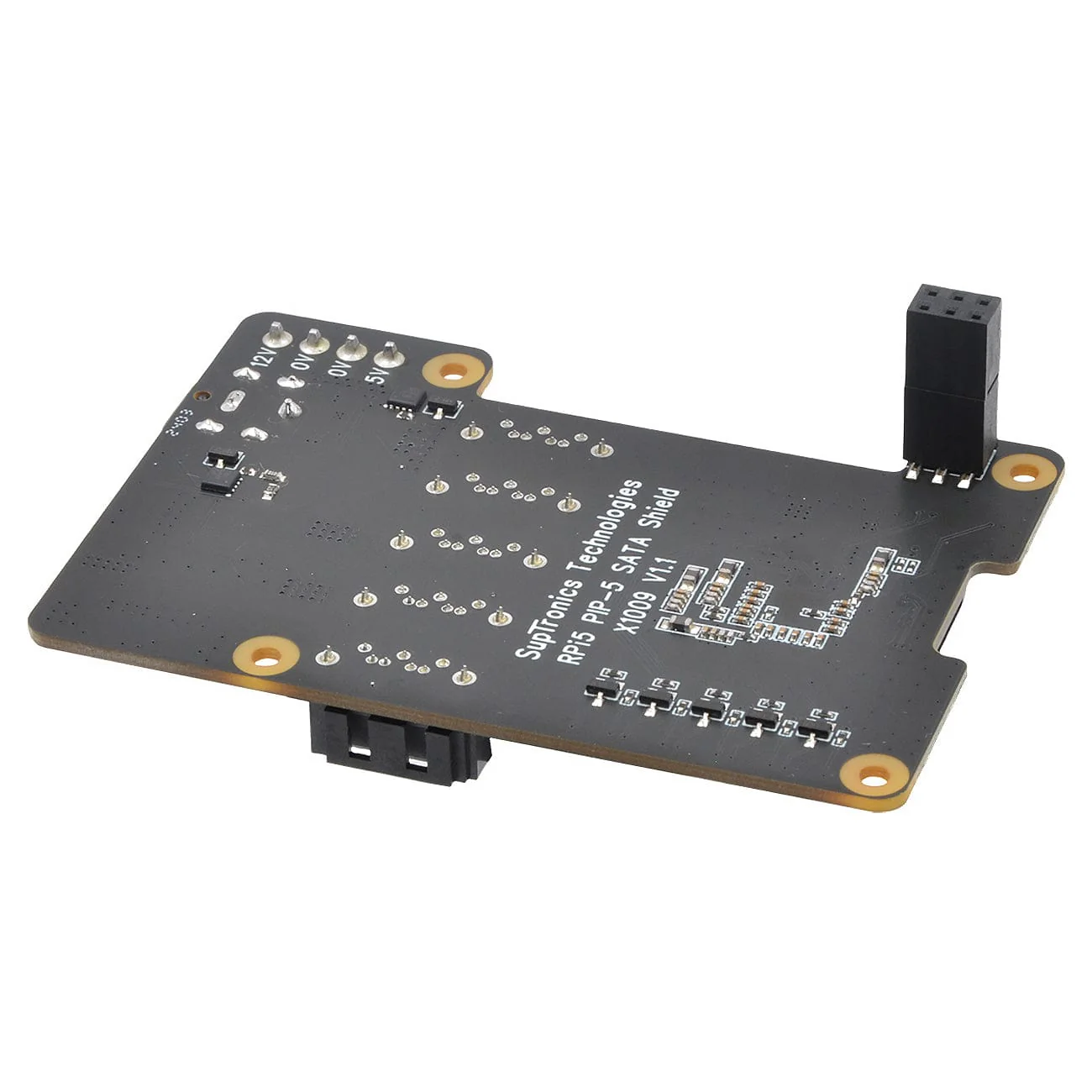

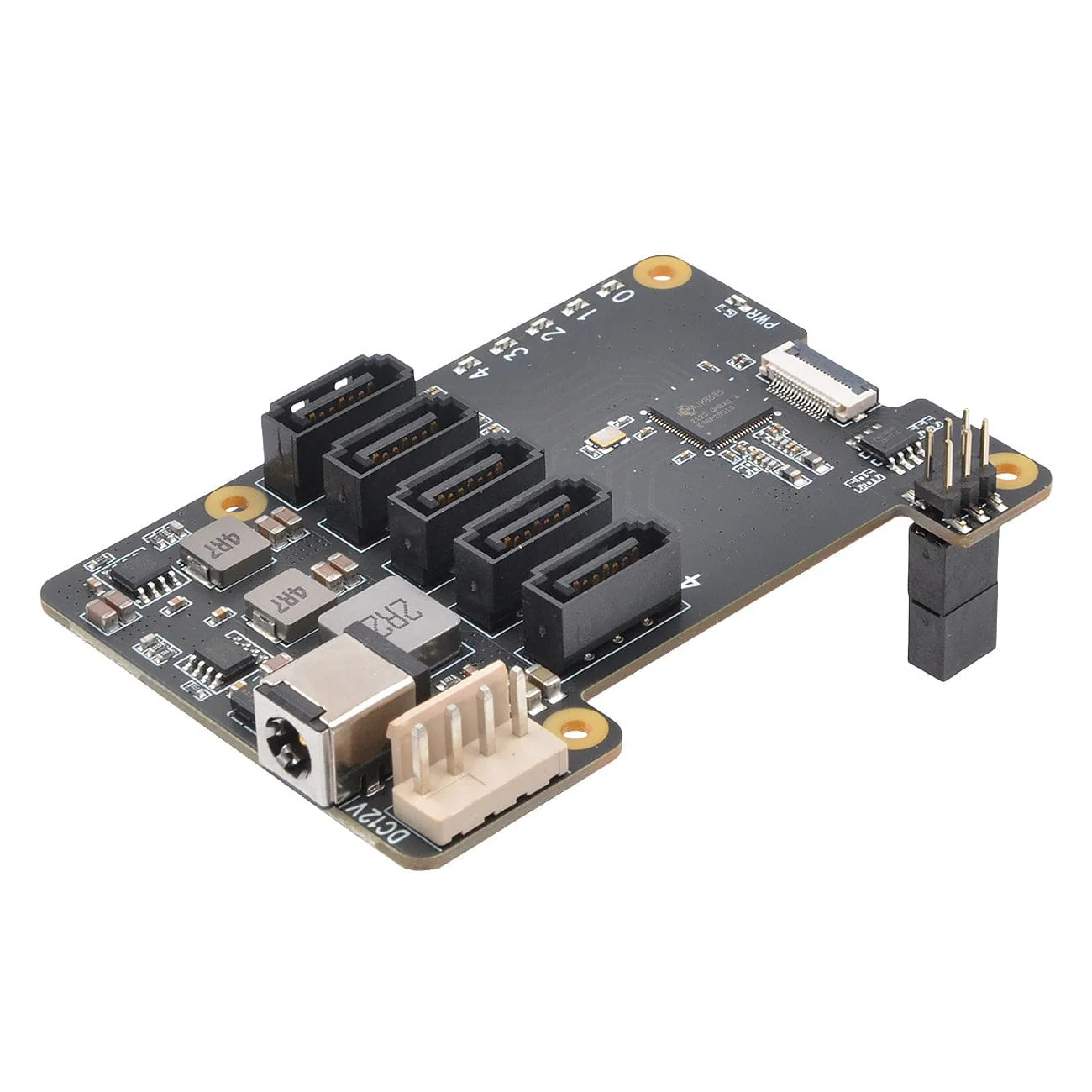

The SupTronics X1009 5-Port SATA Add-on is designed to offer a high-capacity and high-speed storage solution for your Raspberry Pi 5. This board supports the simultaneous connection of 5 large-capacity SATA storage devices, with the SATA 3.0 interface reaching speeds of up to 5Gbps via PCIe.

The X1009 features a 12V input via a standard DC jack (power supply not included) and is equipped with high-efficiency DC/DC step-down converters to power both your Raspberry Pi 5 and PCIe devices concurrently, simplifying the power supply to a single source. Do not power your Pi 5 via USB-C at the same time as the barrel jack!

Ideal for creating a home media centre or setting up a network-attached storage (NAS) system.

Please read the specifications - you're going to need a beefy 12V PSU to power five drives at once (up to 11A!).

HDDs, Raspberry Pi, Active Cooler and power supply not included.

Features

• Compatible with Raspberry Pi 5B
• Supports the connection of five SATA 3.0 devices to your Raspberry Pi 5 simultaneously
• Compliant with the Serial ATA 3.0 specification, with backward compatibility to SATA 2.0 and SATA 1.0
• Adheres to the PCI-Express v2.0 specification and is backward compatible with PCI-Express v1.0
• Supports communication speeds of 5.0 Gbit/s, 3.0 Gbit/s, and 1.5 Gbit/s
• Compatible with SATA 6G, 3G, and 1.5G hard drives
• Blue LED indicators display power and drive status
• High-efficiency DC/DC step-down converter to power both your Raspberry Pi 5 and SATA devices simultaneously
• Efficient power delivery to the Raspberry Pi 5 via a pin header, consolidating power sources
• Compatible with the Raspberry Pi Active Cooler
• Supports the HAT+ STANDBY power state, automatically turning off SATA devices when the Pi 5 is powered down
• Includes a power SATA splitter cable for connecting up to 5 Serial ATA devices

The X1009 is designed for data storage purposes and does not currently support booting from HDD/SSD with the existing firmware.

Do not power the X1009 via the DC power jack and the Raspberry Pi 5 via USB-C at the same time.

Specifications

Power supply	12Vdc ±5% ≥3A for one 3.5" HDD or one 2.5" HDD
	≥5A for two 3.5" HDDs, ≥7A for three, ≥9A for four, ≥11A for five 3.5" HDDs
	≥4A for two 2.5" HDDs, ≥5A for three, ≥6A for four, ≥7A for five 2.5" HDDs
	Your SATA drives can also be powered from a separate PSU.

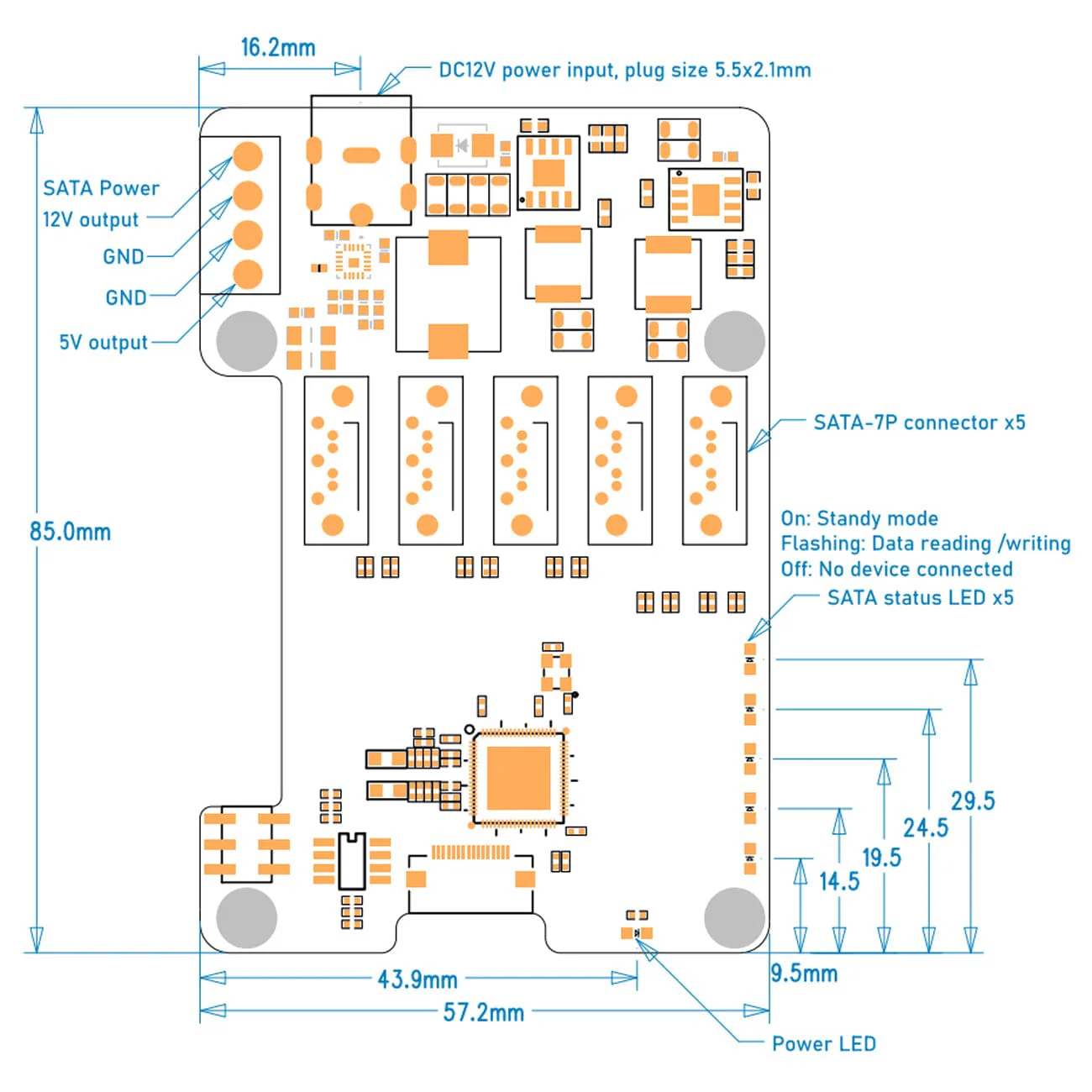

Ports & connectors	DC power jack ×1 – 5.5×2.1mm
	PCIe connector ×1 – 16-pin pitch 0.5mm
	SATA connectors ×5 – 7P
PCIe cable length	37mm
PCB size	85mm × 57.2mm

Resources

• Software setup/tutorials
• Hardware information and assembly

Package Contents

• 1x SupTronics X1009 5-Port SATA Add-on for Raspberry Pi 5

• 1x SATA power splitter cable
• 1x 30mm PCIe cable
• 1x Screw pack
