The Story
Create your very own Arduino-controlled 3-axis CNC machine with the Shield!

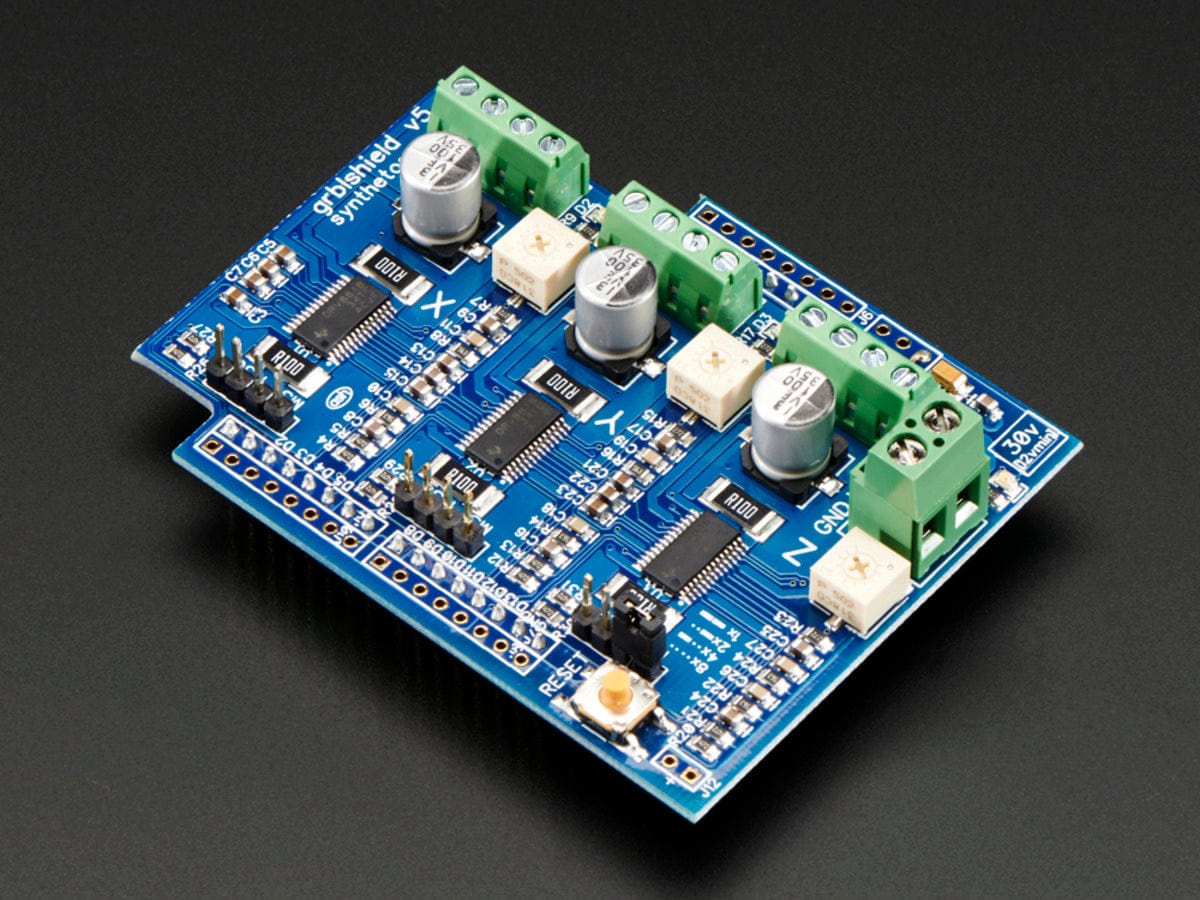

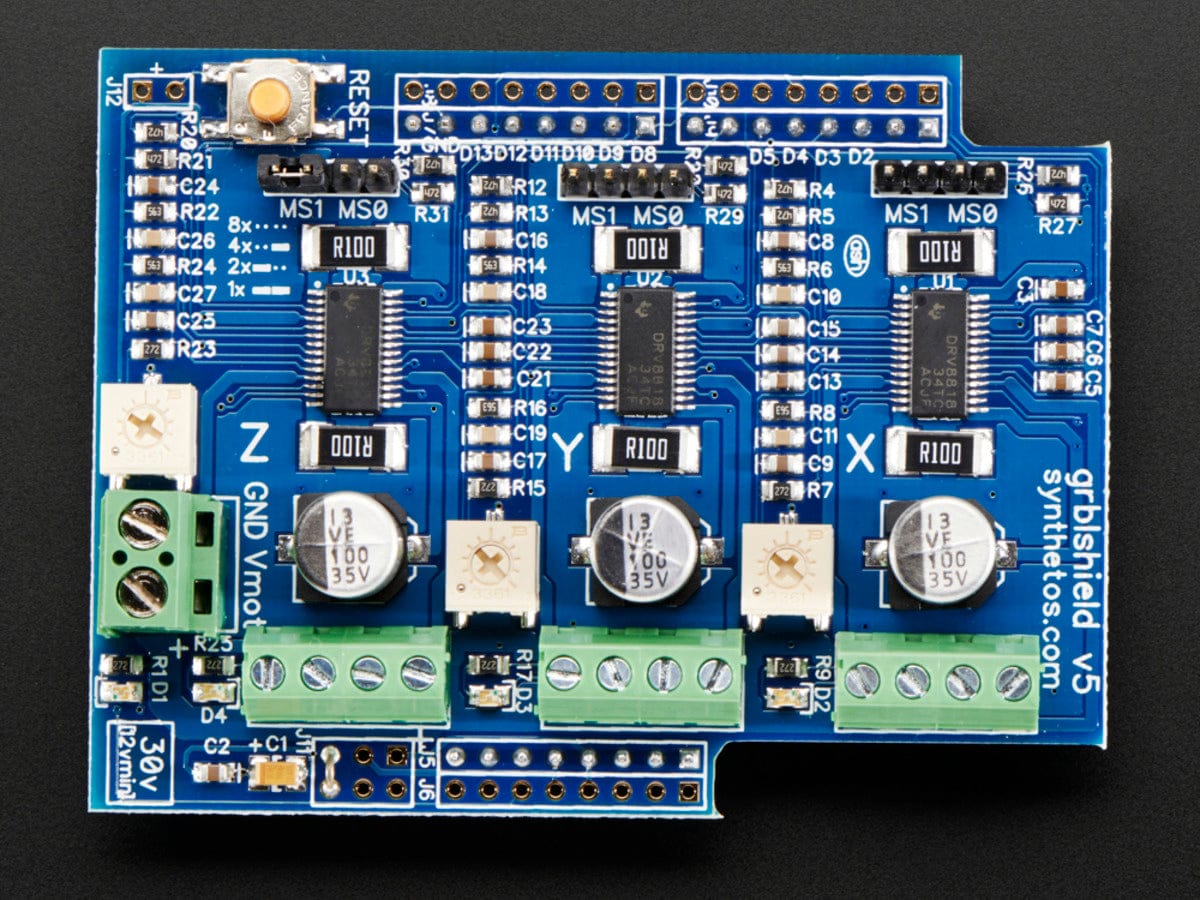

The gShield for Arduino (formerly known as grblShield) is a complete hardware solution for Dank’s CNC motion control system called grbl. The gShield is compatible with the Uno and other 328p versions of the Arduino development platform.
Version 5 is now compatible with running TinyG on the Arduino Due. The v5 power jumper simply allows the gShield to be run as a native 3.3v device from the Due, instead of a 5v device.
Features
- 2.5 Amps per winding
- 12-30 Input Voltage
- Open Pin Pass Through
- 8x Microstepping
- Screw Down Terminal Voltage Input
- Hardware 3x Axis (x,y,z)
- 3x Robust TI DRV8818 Stepper Drivers
Technical Details
- GShield Schematic
- Dimensions: 58mm x 78mm / 2.3" x 3.1"
- Board Thickness: 2mm / .08"
- Weight: 31g
For questions and more information on the GShield, check out the Synthetos Forums!
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Create your very own Arduino-controlled 3-axis CNC machine with the Shield!
The gShield for Arduino (formerly known as grblShield) is a complete hardware solution for Dank’s CNC motion control system called grbl. The gShield is compatible with the Uno and other 328p versions of the Arduino development platform.
Version 5 is now compatible with running TinyG on the Arduino Due. The v5 power jumper simply allows the gShield to be run as a native 3.3v device from the Due, instead of a 5v device.
Features
- 2.5 Amps per winding
- 12-30 Input Voltage
- Open Pin Pass Through
- 8x Microstepping
- Screw Down Terminal Voltage Input
- Hardware 3x Axis (x,y,z)
- 3x Robust TI DRV8818 Stepper Drivers
Technical Details
- GShield Schematic
- Dimensions: 58mm x 78mm / 2.3" x 3.1"
- Board Thickness: 2mm / .08"
- Weight: 31g
For questions and more information on the GShield, check out the Synthetos Forums!
