The Story

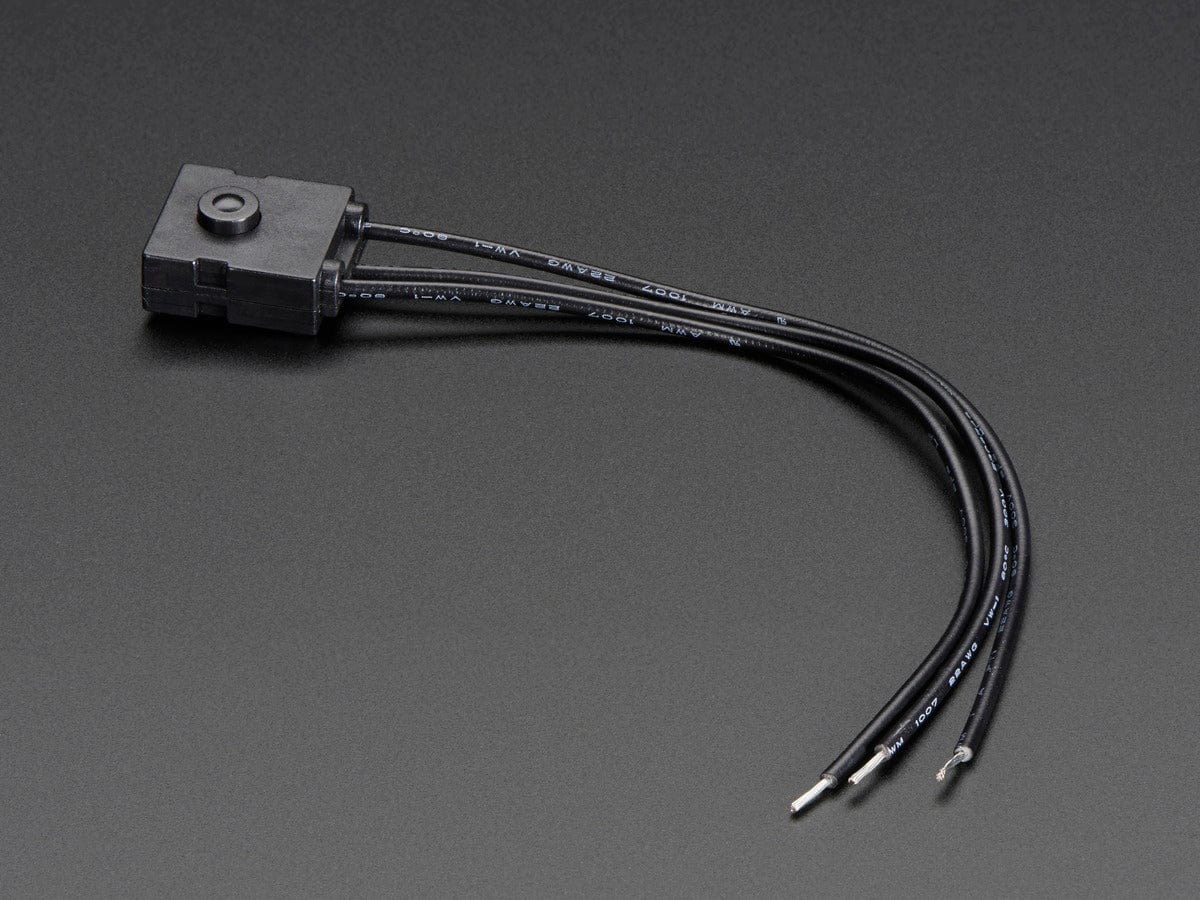

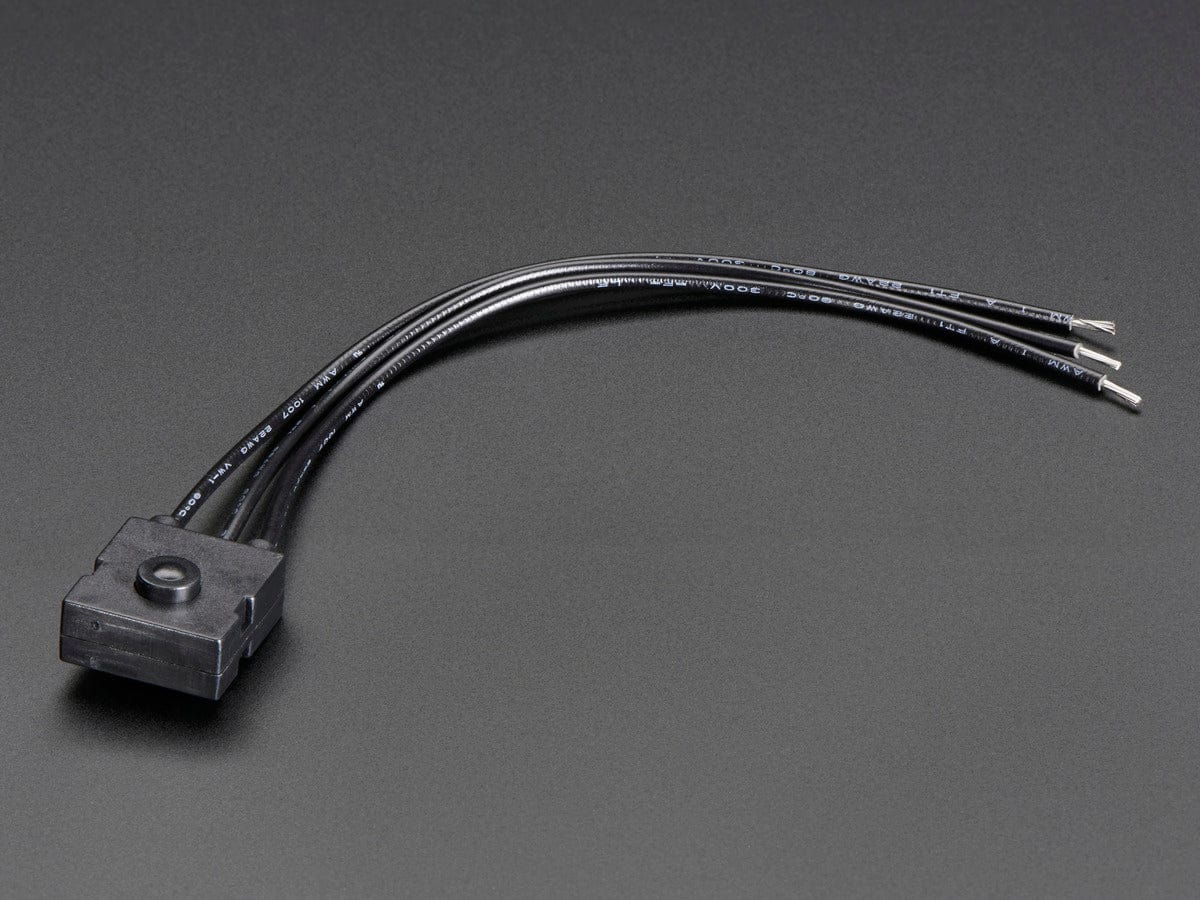

Push once to turn one side on, push again to turn the other side on! It's basically a push-button toggle switch that connects and disconnects the middle pin from either of the two side switches with every click.
This clicky switch makes a great power switch or mode toggler. We like this switch because it's easy to embed in a seam for easily powering up/off multi-wire wearable and fabric projects. Can reliably handle up to 3A and up to 120VDC. This is a really satisfying switch.
Technical Details
- Ambient temperature: -25 ā ~ +70 ā
- Rated load: AC250V 1.5-2A; 125V 3-5A
- Contact resistance: ā¤ 50mĪ©
- Insulation resistance: DC500V 100MĪ©
- Withstand voltage: AC 500V (50Hz) / min
- Operating force: 5N ~ 12N

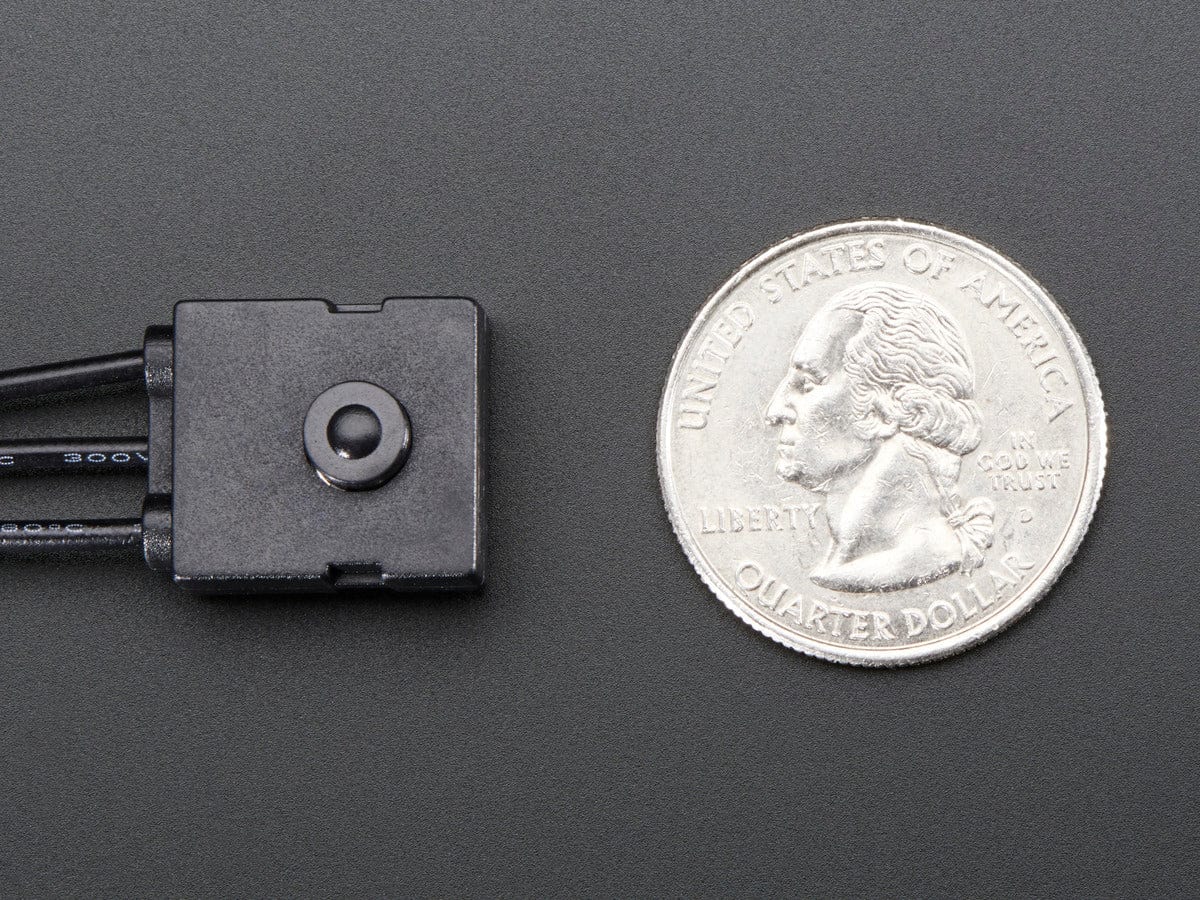

Dimensions:
- Total unit is 137mm / 5.4" long
- Wires are 119mm / 4.7" long
- Weight: 3.7g
- Wires are 22AWG.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Push once to turn one side on, push again to turn the other side on! It's basically a push-button toggle switch that connects and disconnects the middle pin from either of the two side switches with every click.
This clicky switch makes a great power switch or mode toggler. We like this switch because it's easy to embed in a seam for easily powering up/off multi-wire wearable and fabric projects. Can reliably handle up to 3A and up to 120VDC. This is a really satisfying switch.
Technical Details
- Ambient temperature: -25 ā ~ +70 ā
- Rated load: AC250V 1.5-2A; 125V 3-5A
- Contact resistance: ā¤ 50mĪ©
- Insulation resistance: DC500V 100MĪ©
- Withstand voltage: AC 500V (50Hz) / min
- Operating force: 5N ~ 12N
Dimensions:
- Total unit is 137mm / 5.4" long
- Wires are 119mm / 4.7" long
- Weight: 3.7g
- Wires are 22AWG.
