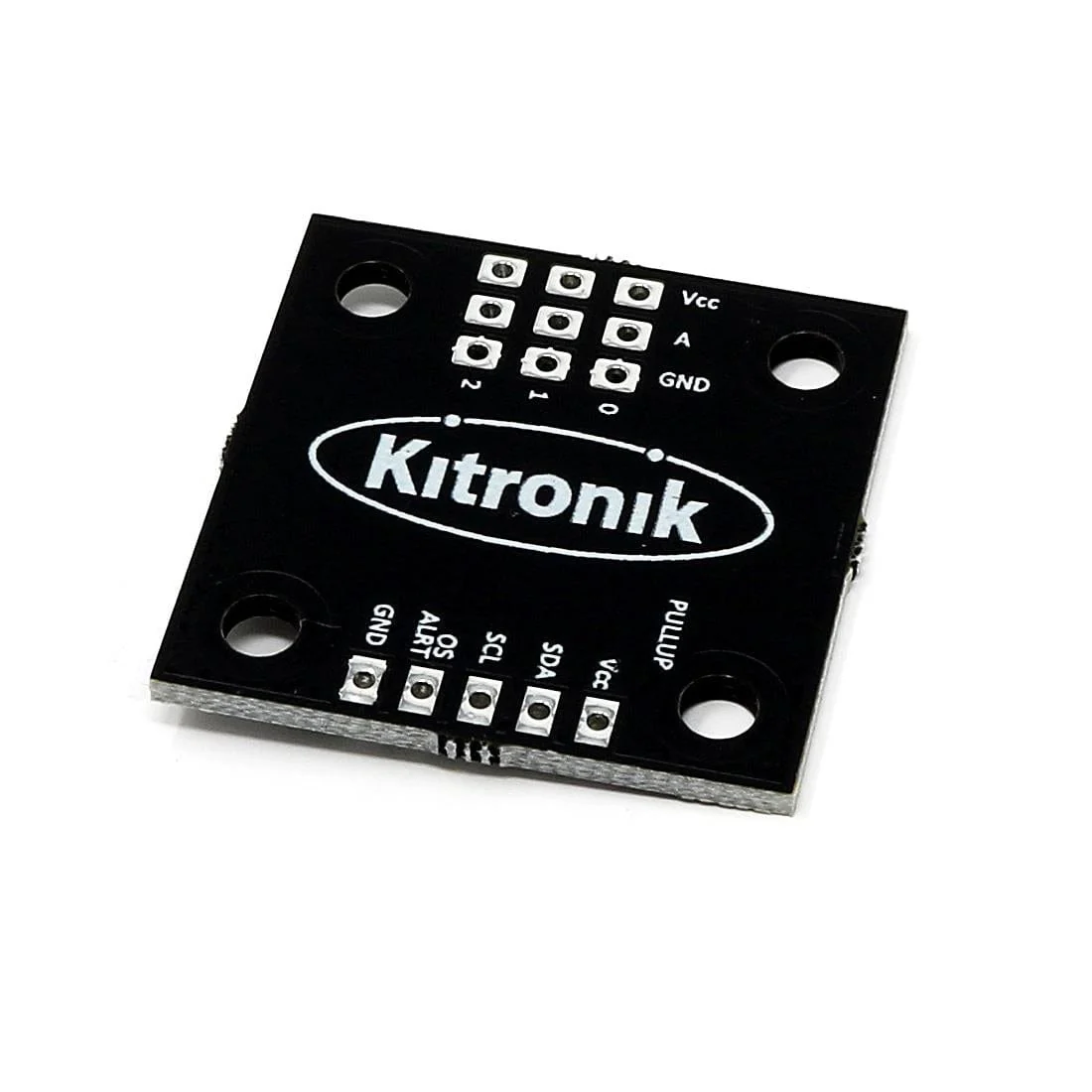

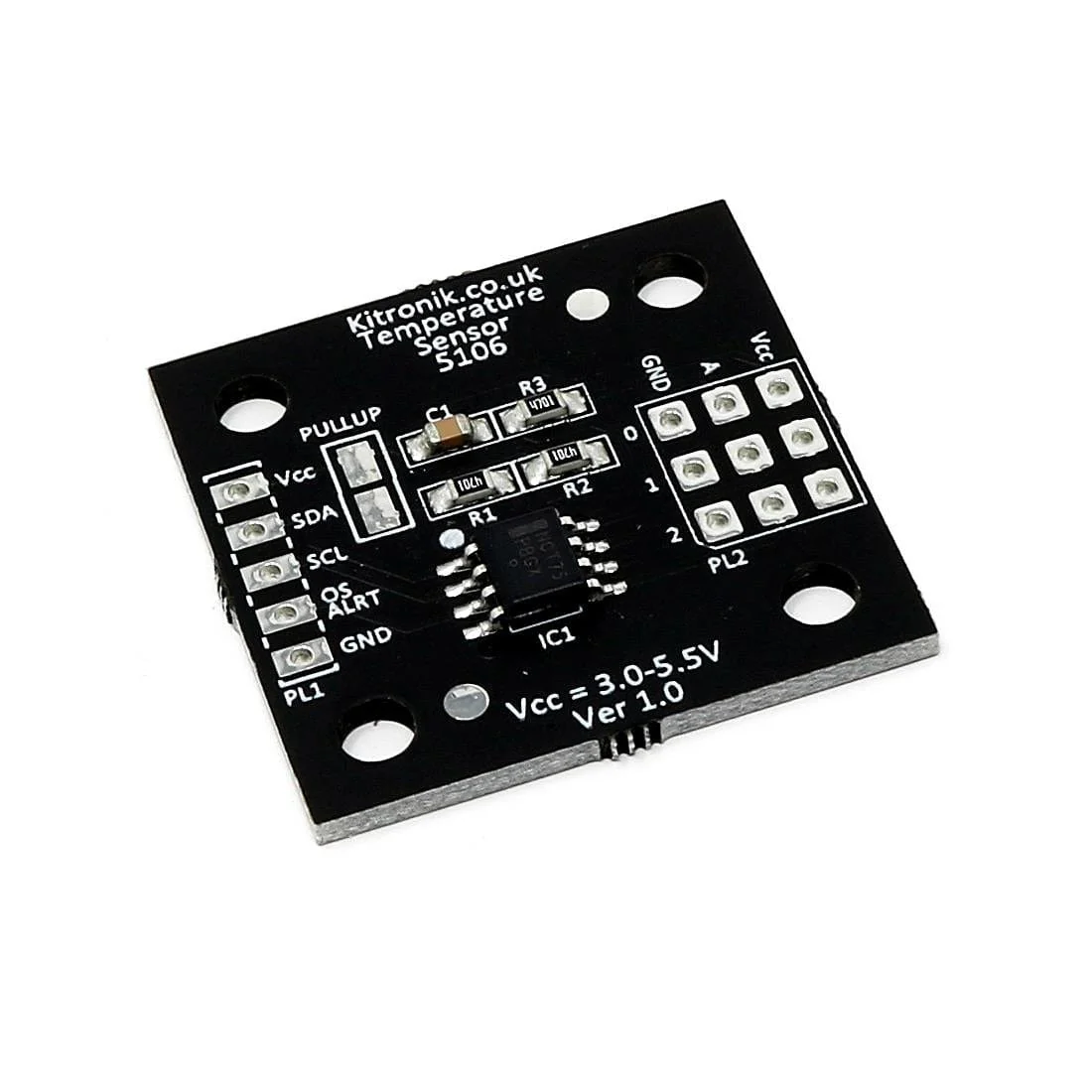

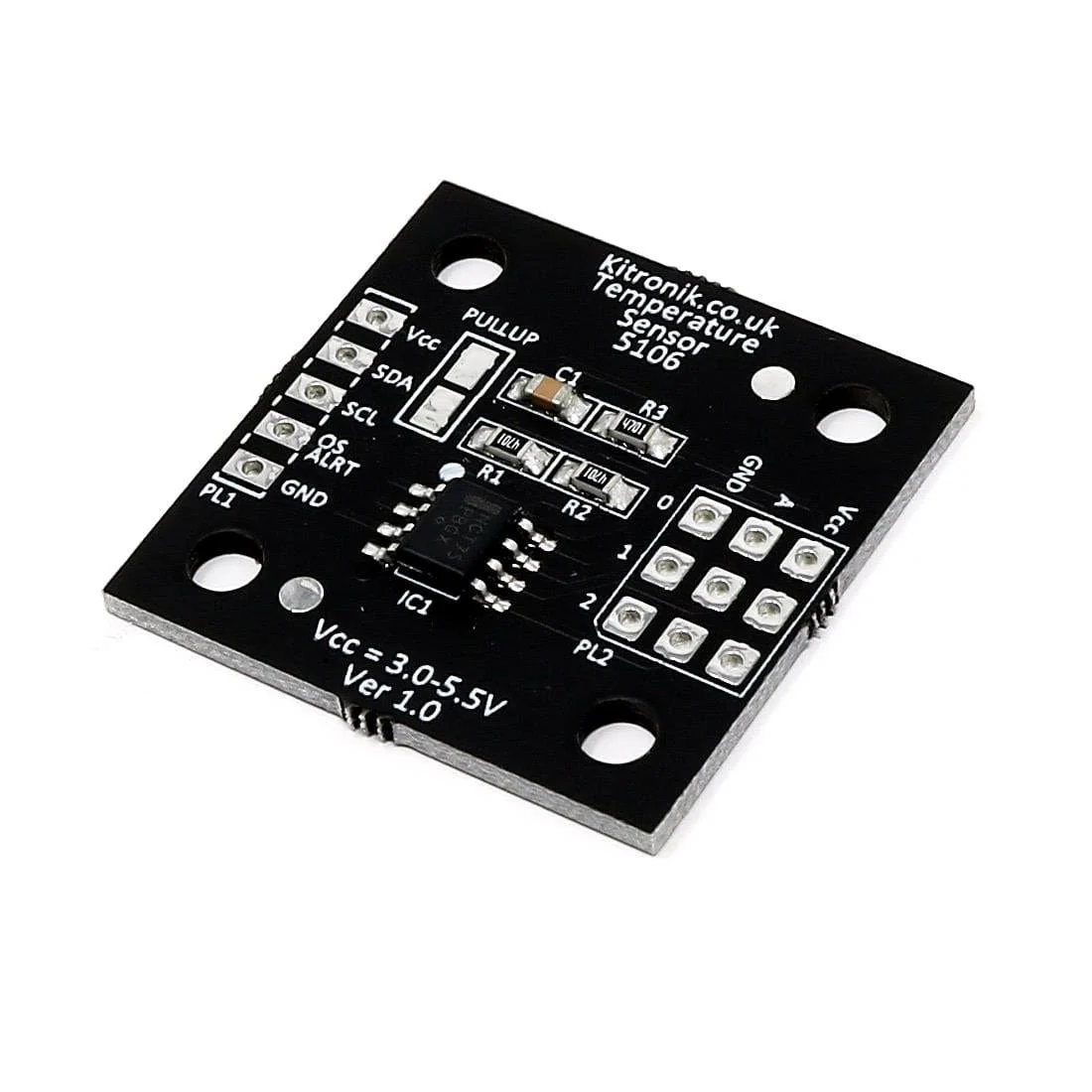

Temperature Sensor Breakout Board [Discontinued]

This board uses the NCT75-D temperature sensor which has a temperature accuracy of up to 1°C and temperature resolution of 0.0625°C.

The device also features an over-temperature alert pin which is highly configurable. The temperature is read via an I2C bus. Since the device has 3 address pins it is possible to connect 8 devices on the same bus, a useful feature for comparing temperatures at several locations at once.

The device can operate on either a 3V or 5V supply.

Features

• Accurate digital sensing
• Configurable over temperature alarm
• Up to eight devices can be used on the same bus

Package Contents

• 1 x Digital Temperature Sensing Breakout Board

Connections

• Vcc: Supply Voltage
• A0: Address Pin 1
• A1: Address Pin 2
• A2: Address Pin 3
• SDA: I2C Data
• SCL: I2C Clock
• OS/ALRT: Configurable over-temperature alarm
• GND: Ground

Resources

• Temperature sensing breakout guide (PDF)
• Temperature example code (Zip file)
• Dimensions:
  • Length: 28mm
  • Width: 28mm
  • Height: 3mm
