Tiny GamePi15 for the Raspberry Pi Zero [Discontinued]

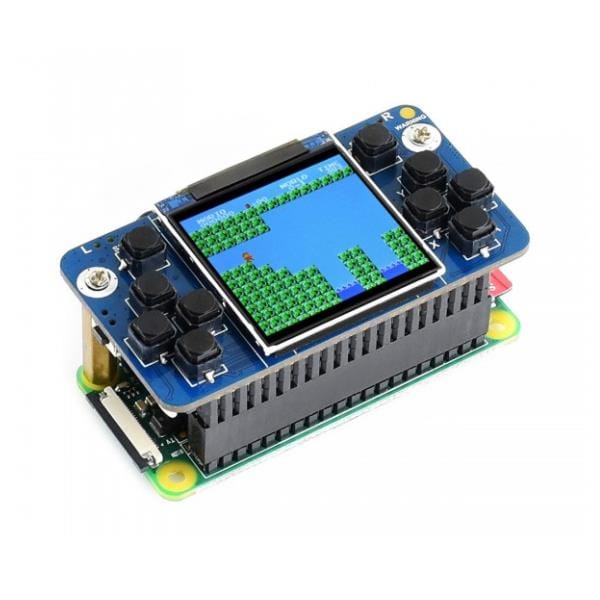

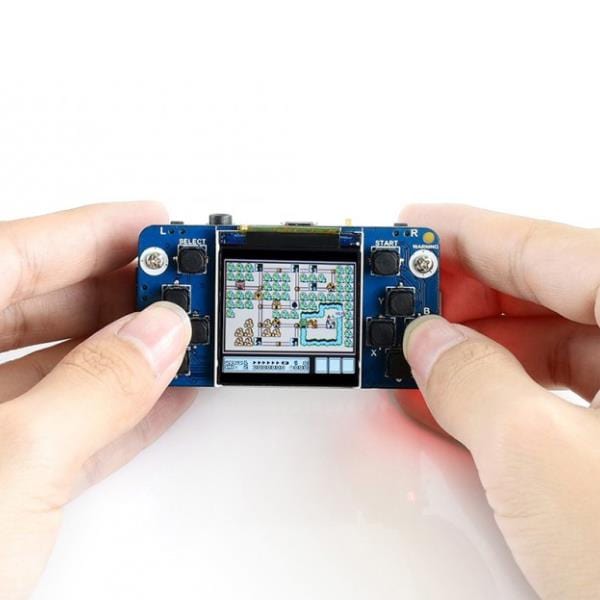

The GamePi15 will turn your Raspberry Pi Zero into a tiny retro game console!

It's a fully-functional game console expansion in teeny-tiny size, tailored for the Raspberry Pi Zero/Zero W/Zero WH. Simply combine it with the Zero and have fun anywhere, anytime.

Features

• 1.54inch screen, 240×240 resolution
• Compatible with Raspberry Pi Zero/Zero W/Zero WH/B+/2B/3B/3B+/4B
• Integrated battery charge circuitry, powered from a 14500 lithium battery (NOT included)
• Battery capacity indicator
• Onboard speaker and headphone jack
• Onboard volume knob

Resources

• www.waveshare.com/wiki/GamePi15

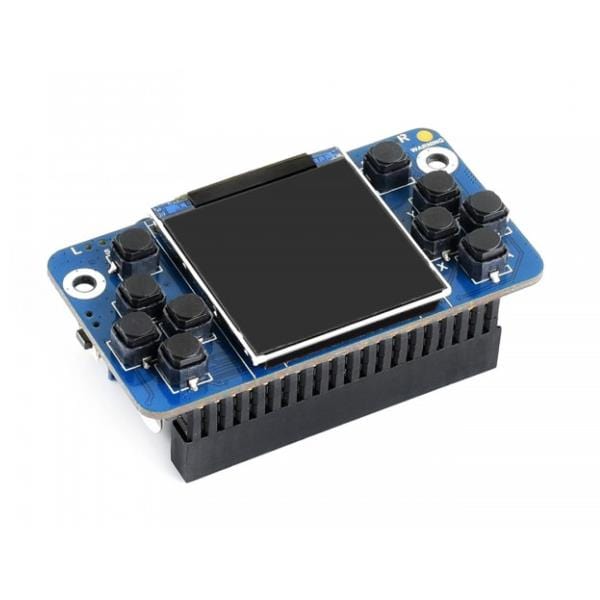

Button/Display Layout

• Raspberry Pi GPIO connector
• 8205 reverse protection chip
• XB8777A over charge/discharge protection chip
• 14500 battery (not included)
• Volume adjustment knob
• Earphone jack
• Speaker
• USB charge port: charge the battery by connecting the 5V power adapter
• Power switch
• Game function keys
• Battery reverse warning indicator: light up when the battery is reversed
• Battery capacity indicators: 4x LEDs for indicating the remaining battery life or charge status

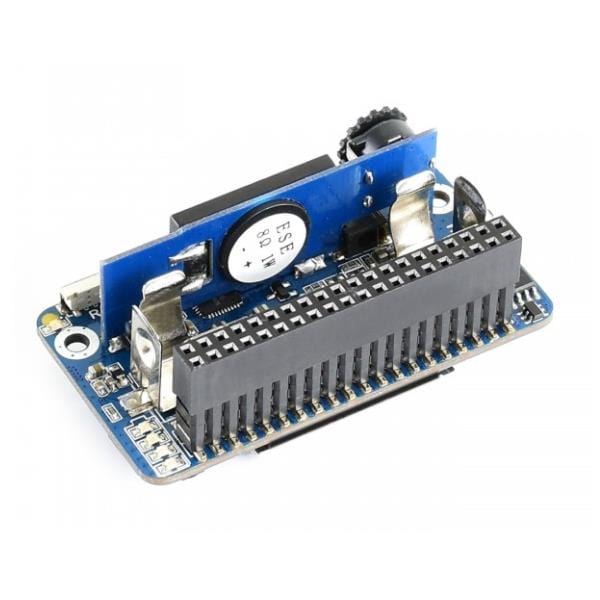

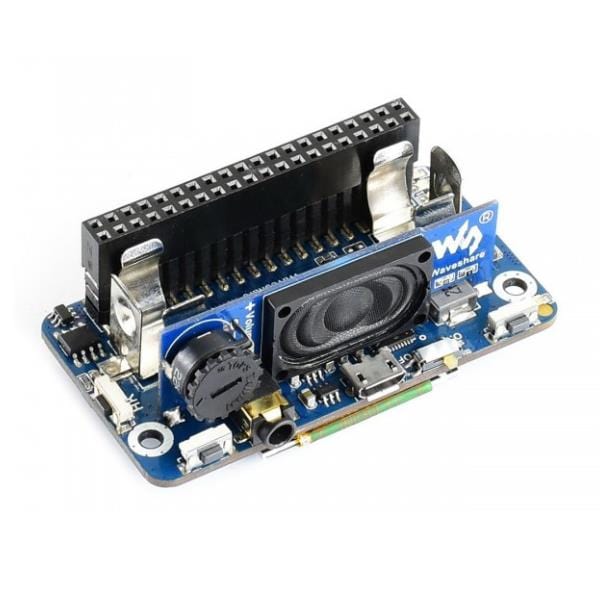

Board Layout

• Raspberry Pi GPIO connector
• 8205 reverse protection chip
• XB8777A over charge/discharge protection chip
• 14500 battery
• Volume adjustment knob
• Earphone jack
• Speaker
• USB charge port: charge the battery by connecting the 5V power adapter
• Power switch
• Game function keys
• Battery reverse warning indicator: light up when the battery is reversed
• Battery capacity indicators: 4x LEDs for indicating the remaining battery life or charge status
