The Story
This TinyShield features the high-performance and low-power HoneywelL HMC5883L 3-axis compass. The HMC5883L includes state-of-the-art, high-resolution HMC118X series magneto-resistive sensors plus an ASIC containing amplification, automatic degaussing strap drivers, offset cancellation, and a 12-bit ADC that enables 1° to 2° compass heading accuracy.
The Compass TinyShield incorporates level shifters and a local power supply to ensure proper and safe operation over the entire TinyDuino operating voltage range between 3 – 5V.

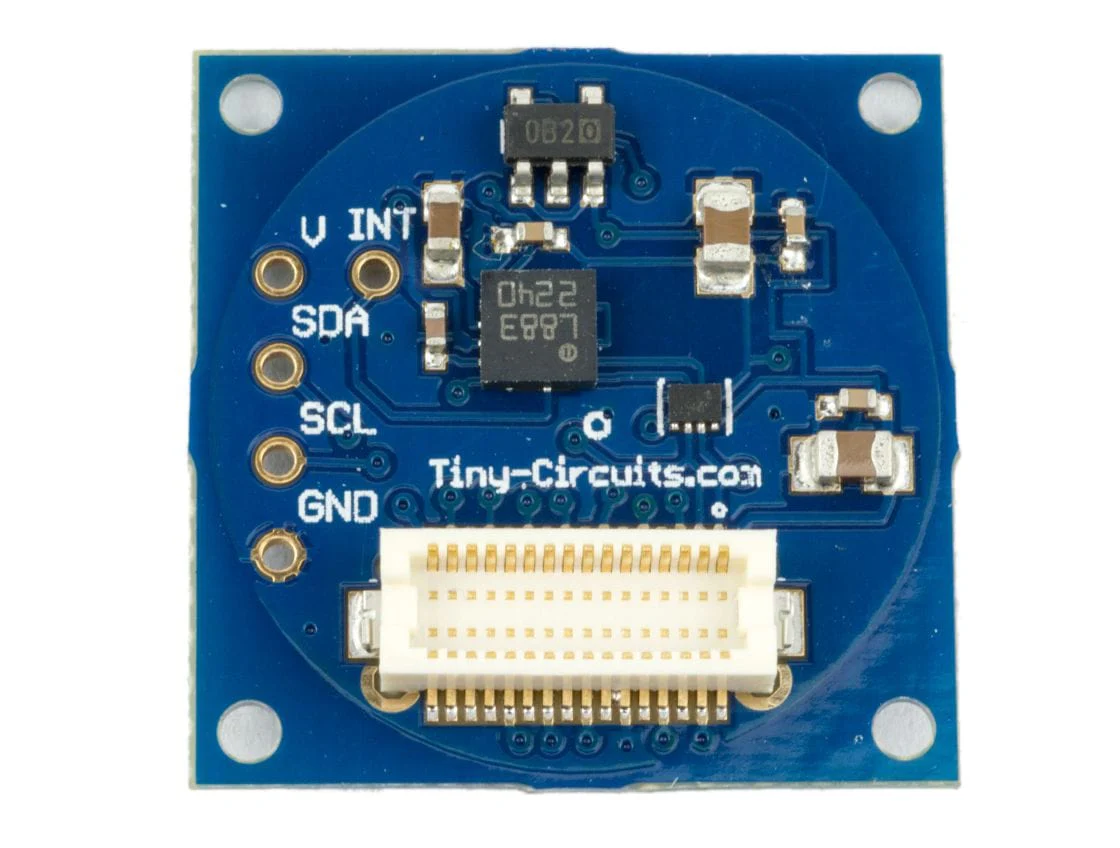

You can also use this shield without the TinyDuino – there are 0.1" spaced holes for power, ground, and the two I2C signals along the side of the TinyShield to allow you to connect a different system.
To learn more about the TinyDuino Platform, click here.

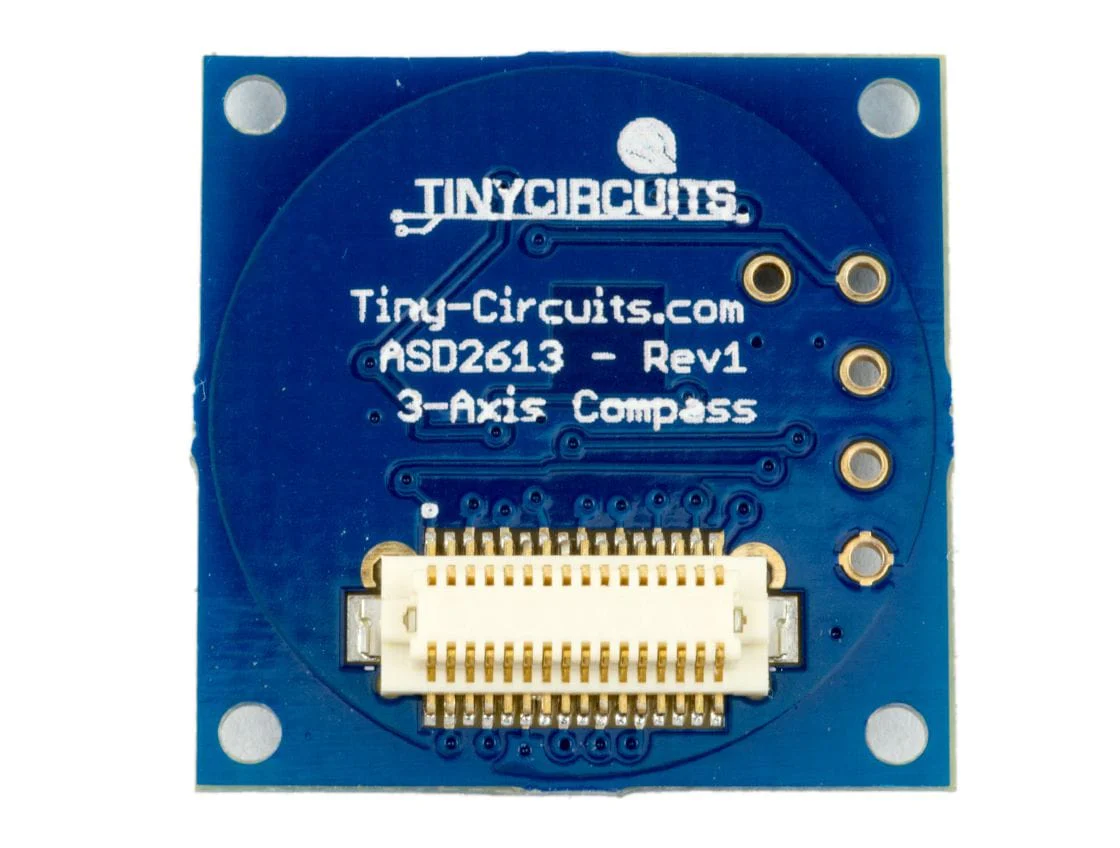

![TinyShield Compass Board [Discontinued] - Image 2](https://img.piphonic.shop/images/product/tinyshield-compass-board-2.jpg)
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
This TinyShield features the high-performance and low-power HoneywelL HMC5883L 3-axis compass. The HMC5883L includes state-of-the-art, high-resolution HMC118X series magneto-resistive sensors plus an ASIC containing amplification, automatic degaussing strap drivers, offset cancellation, and a 12-bit ADC that enables 1° to 2° compass heading accuracy.
The Compass TinyShield incorporates level shifters and a local power supply to ensure proper and safe operation over the entire TinyDuino operating voltage range between 3 – 5V.
You can also use this shield without the TinyDuino – there are 0.1" spaced holes for power, ground, and the two I2C signals along the side of the TinyShield to allow you to connect a different system.
To learn more about the TinyDuino Platform, click here.
