The Story

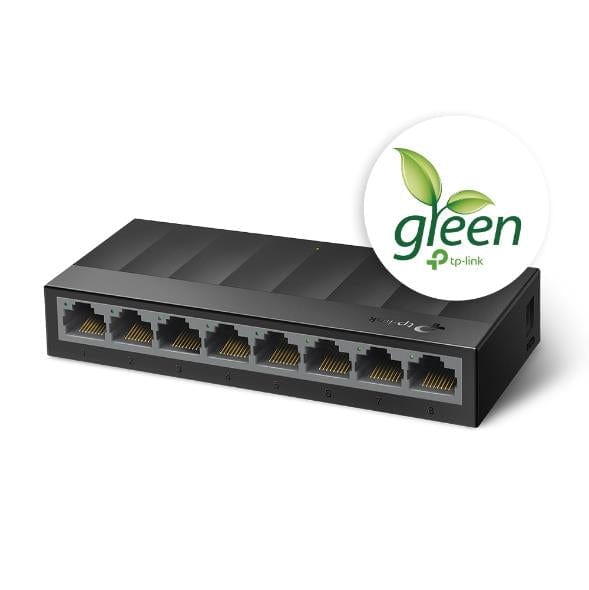

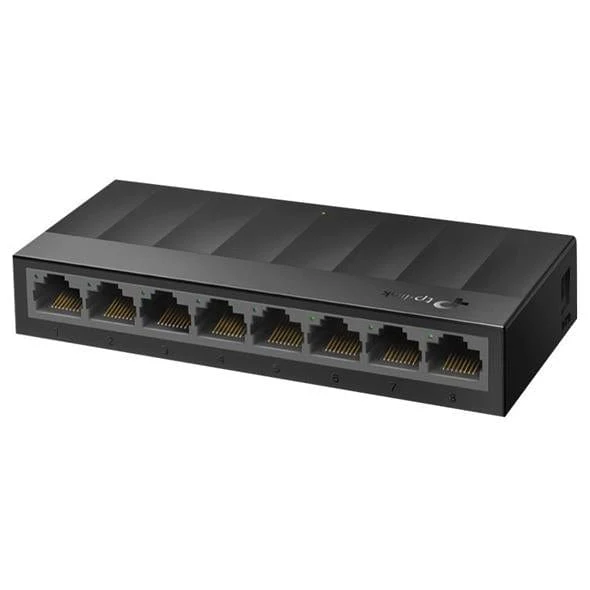

Take advantage of the Raspberry Pi 5's Gigabit Ethernet connection with this compact 8-port Gigabit plug n' play desktop switch!
It's great for increasing the number of Ethernet ports offered by your home router - something you will likely need to consider when building a Raspberry Pi Cluster! We also offer a smaller 5-port version.
The switch is completely unmanaged - just connect one port to your network router and the other ports to your Raspberry Pi/other devices - no configuration or software required. A UK power supply is included.
Note: This is a Gigabit switch. It's a faster version than our more affordable 5-port 10/100 network switch, for those wanting the best possible Ethernet connection speeds.
Features

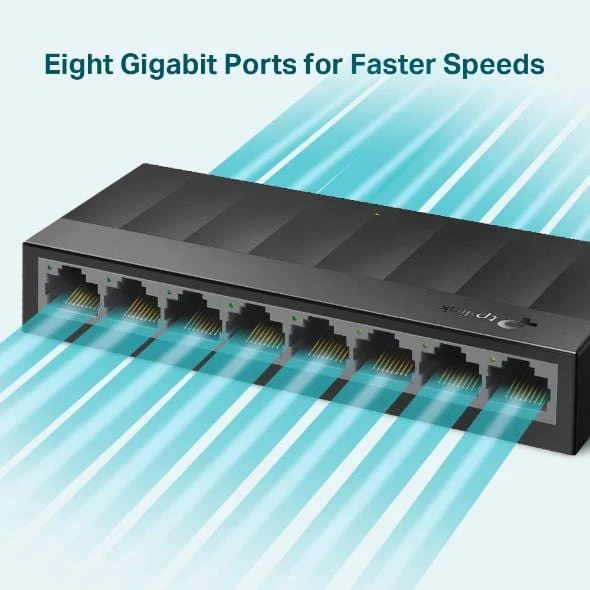

- 8x Gigabit Auto-Negotiation RJ45 ports, supporting Auto-MDI/MDIX
- Green Ethernet technology saves power
- IEEE 802.3X flow control provides reliable data transfer
- Plastic casing, desktop or wall-mounting design
- Plug and play, no configuration needed

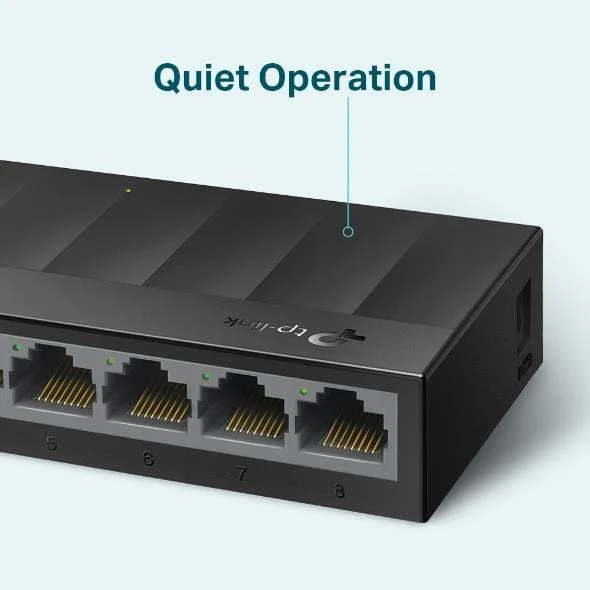

- Fanless design ensures quiet operation
- Auto-negotiation guarantees the highest speed for each port
Package Contents
- 8-Port 10/100/1000Mbps Desktop Switch
- UK Power Adapter
- Installation Guide
Tech Specs
- Standards and Protocols: IEEE 802.3i/802.3u/ 802.3ab/802.3x
- Interface: 8x 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
- Fan Quantity: Fanless
- External Power Supply: External Power Adapter (Output: 9VDC/0.6A)
- Dimensions: (W x D x H) (127 × 66.5 × 23 mm)
- Max Power Consumption: 3.9W
- Max Heat Dissipation: 13.3 BTU/h
- Switching Capacity: 16 Gbps
- Packet Forwarding Rate: 11.9 Mpps
- MAC Address Table: 4K
- Packet Buffer Memory: 1.5 Mb
- Jumbo Frame: 16 KB
- Advanced Features
- Green Technology
- 802.3X Flow Control
- Back Pressure
- Transfer Method: Store and Forward
- Certification: CE, FCC, RoHS
- Environment
- Operating Temperature: 0°C~40°C (32°F~104°F)
- Storage Temperature: -40°C~60°C (-40°F~158°F)
- Operating Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5%~90% non-condensing
- Product number: TP-Link LS1008G
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Take advantage of the Raspberry Pi 5's Gigabit Ethernet connection with this compact 8-port Gigabit plug n' play desktop switch!
It's great for increasing the number of Ethernet ports offered by your home router - something you will likely need to consider when building a Raspberry Pi Cluster! We also offer a smaller 5-port version.
The switch is completely unmanaged - just connect one port to your network router and the other ports to your Raspberry Pi/other devices - no configuration or software required. A UK power supply is included.
Note: This is a Gigabit switch. It's a faster version than our more affordable 5-port 10/100 network switch, for those wanting the best possible Ethernet connection speeds.
Features
- 8x Gigabit Auto-Negotiation RJ45 ports, supporting Auto-MDI/MDIX
- Green Ethernet technology saves power
- IEEE 802.3X flow control provides reliable data transfer
- Plastic casing, desktop or wall-mounting design
- Plug and play, no configuration needed
- Fanless design ensures quiet operation
- Auto-negotiation guarantees the highest speed for each port
Package Contents
- 8-Port 10/100/1000Mbps Desktop Switch
- UK Power Adapter
- Installation Guide
Tech Specs
- Standards and Protocols: IEEE 802.3i/802.3u/ 802.3ab/802.3x
- Interface: 8x 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
- Fan Quantity: Fanless
- External Power Supply: External Power Adapter (Output: 9VDC/0.6A)
- Dimensions: (W x D x H) (127 × 66.5 × 23 mm)
- Max Power Consumption: 3.9W
- Max Heat Dissipation: 13.3 BTU/h
- Switching Capacity: 16 Gbps
- Packet Forwarding Rate: 11.9 Mpps
- MAC Address Table: 4K
- Packet Buffer Memory: 1.5 Mb
- Jumbo Frame: 16 KB
- Advanced Features
- Green Technology
- 802.3X Flow Control
- Back Pressure
- Transfer Method: Store and Forward
- Certification: CE, FCC, RoHS
- Environment
- Operating Temperature: 0°C~40°C (32°F~104°F)
- Storage Temperature: -40°C~60°C (-40°F~158°F)
- Operating Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5%~90% non-condensing
- Product number: TP-Link LS1008G
