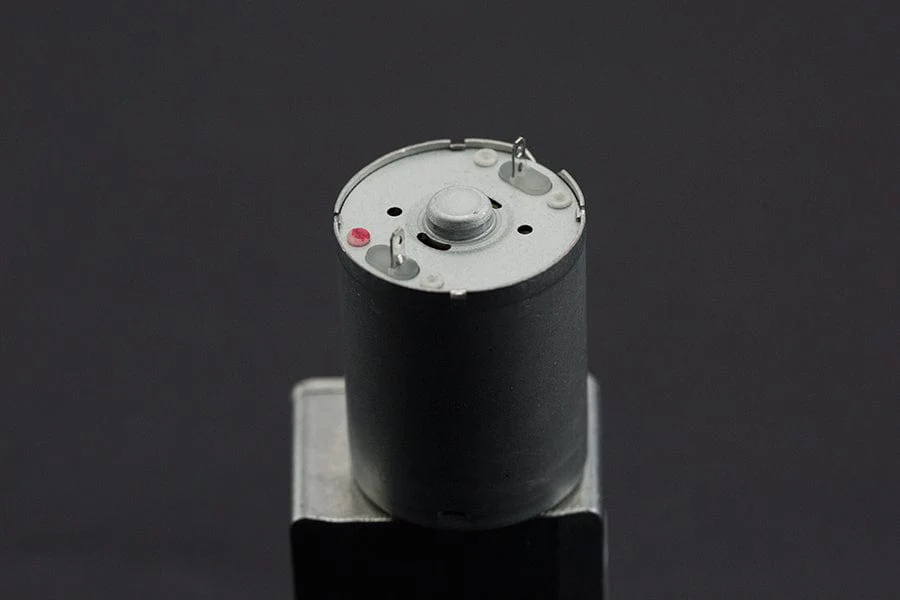

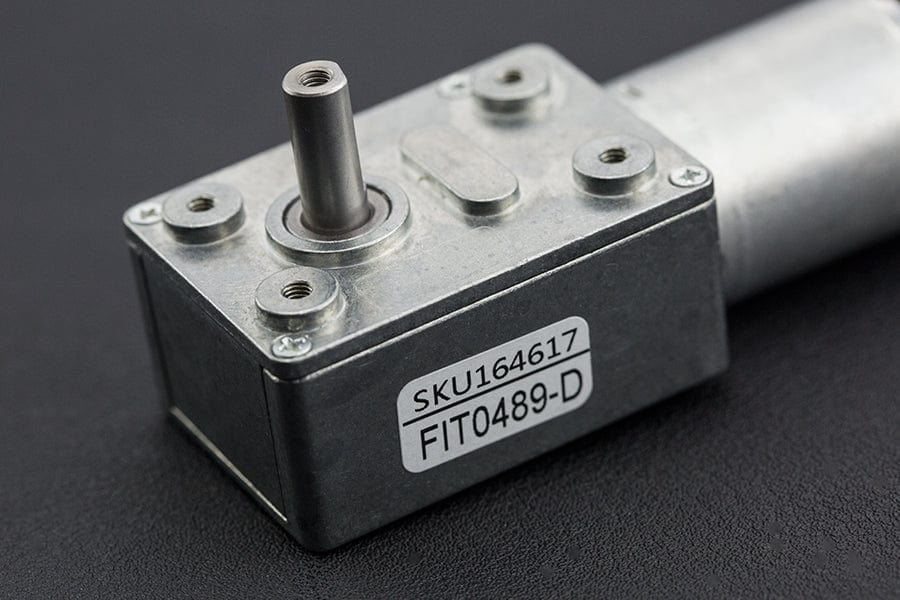

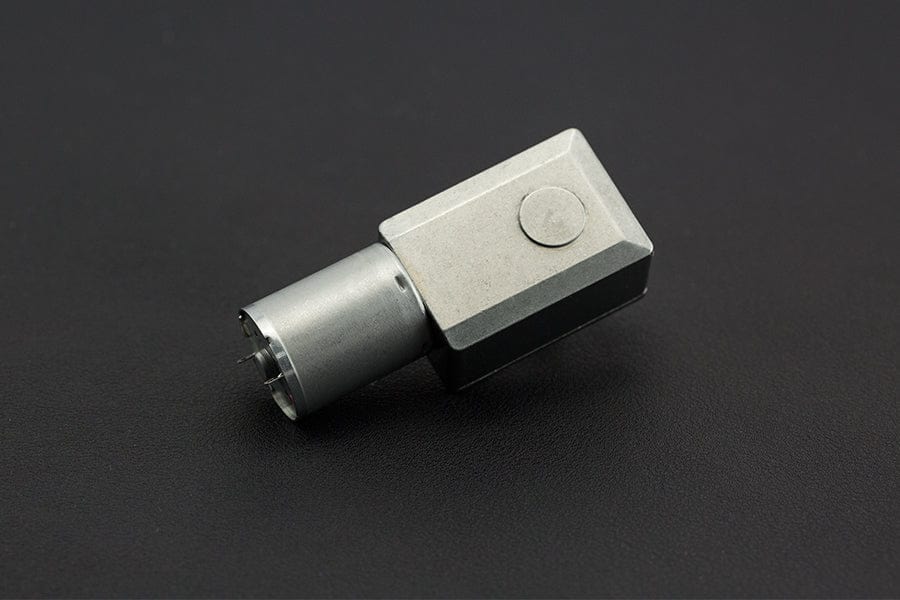

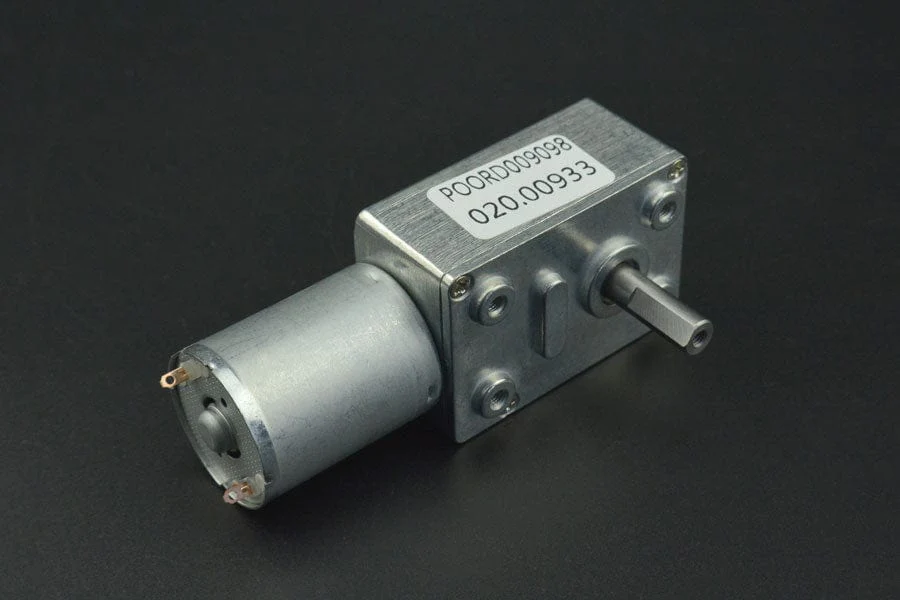

Turbo Metal Gear Worm Motor (12V 40RPM 8kg.cm)—
$24.78
The Story
The turbo metal gear worm motor uses a metal gear box for durability and a high torque output. Due to the special mechanical structure of the worm drive the motor output shaft is self locking and can not be rotated.
Specification
Shipping List
Warning: Do not stall motor for extended periods of time to avoid damage to the gearbox.
Specification
- Operating Voltage: 6 - 15 V
- Rated Voltage: 12V
- No-load Speed: 40 RPM
- No-load Current: 35 mA
- Rated Torque: 32 RPM
- Rated Current: 180 mA
- Rated Torque: 2.2 kg.cm
- Rated Power: 1.1 W
- Stall Torque: 8 kg/cm
- Stall Current: 1 A
- Reduction Ratio: 1:150
- Weight: 167 g
Shipping List
- Metal Turbo Worm Gear Motor (12V 160RPM 2.2kg.cm) x1
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The turbo metal gear worm motor uses a metal gear box for durability and a high torque output. Due to the special mechanical structure of the worm drive the motor output shaft is self locking and can not be rotated.
Specification
Shipping List
Warning: Do not stall motor for extended periods of time to avoid damage to the gearbox.
Specification
- Operating Voltage: 6 - 15 V
- Rated Voltage: 12V
- No-load Speed: 40 RPM
- No-load Current: 35 mA
- Rated Torque: 32 RPM
- Rated Current: 180 mA
- Rated Torque: 2.2 kg.cm
- Rated Power: 1.1 W
- Stall Torque: 8 kg/cm
- Stall Current: 1 A
- Reduction Ratio: 1:150
- Weight: 167 g
Shipping List
- Metal Turbo Worm Gear Motor (12V 160RPM 2.2kg.cm) x1
