Uctronics Pi Rack - 1U PoE Rackmount for Raspberry 4 [discontinued]

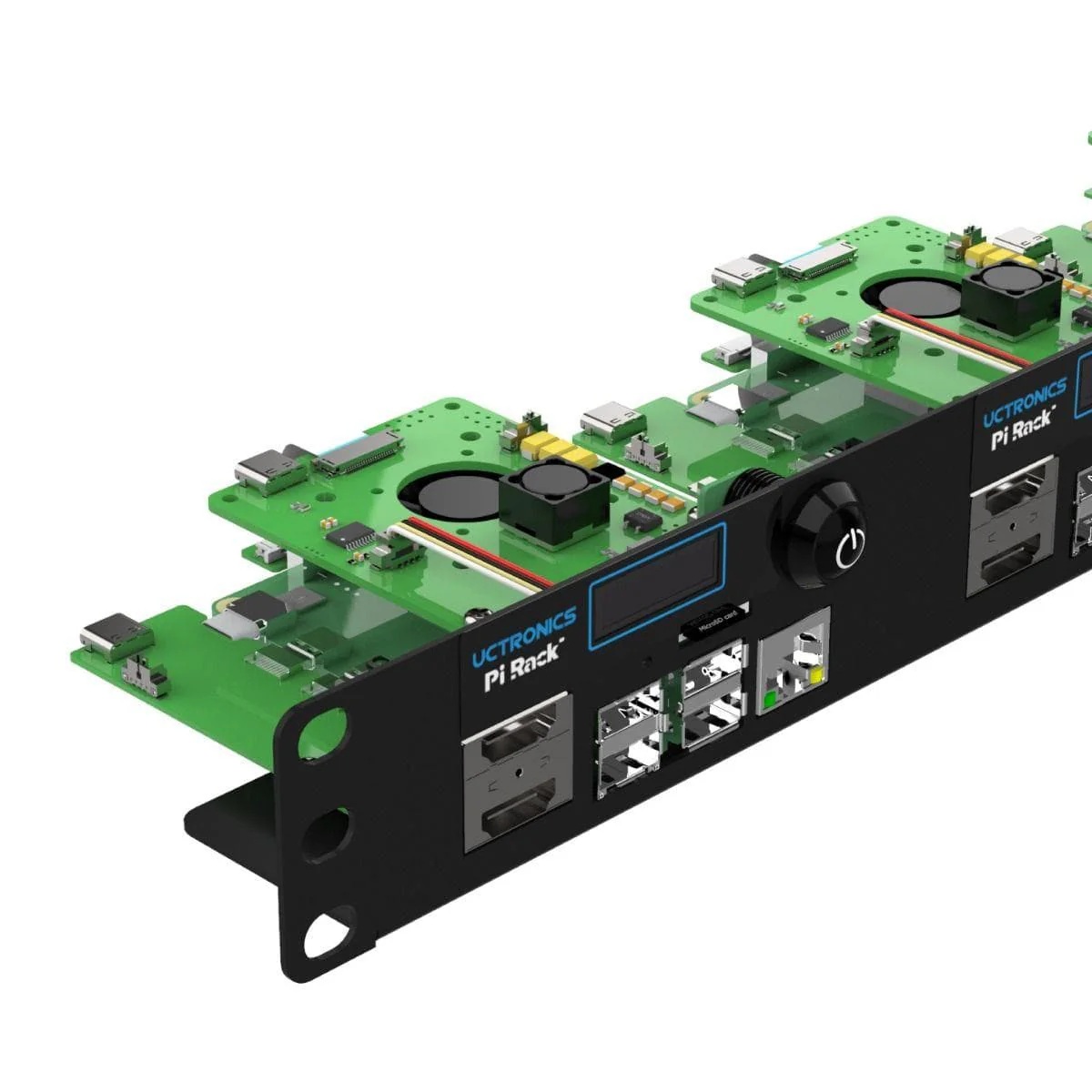

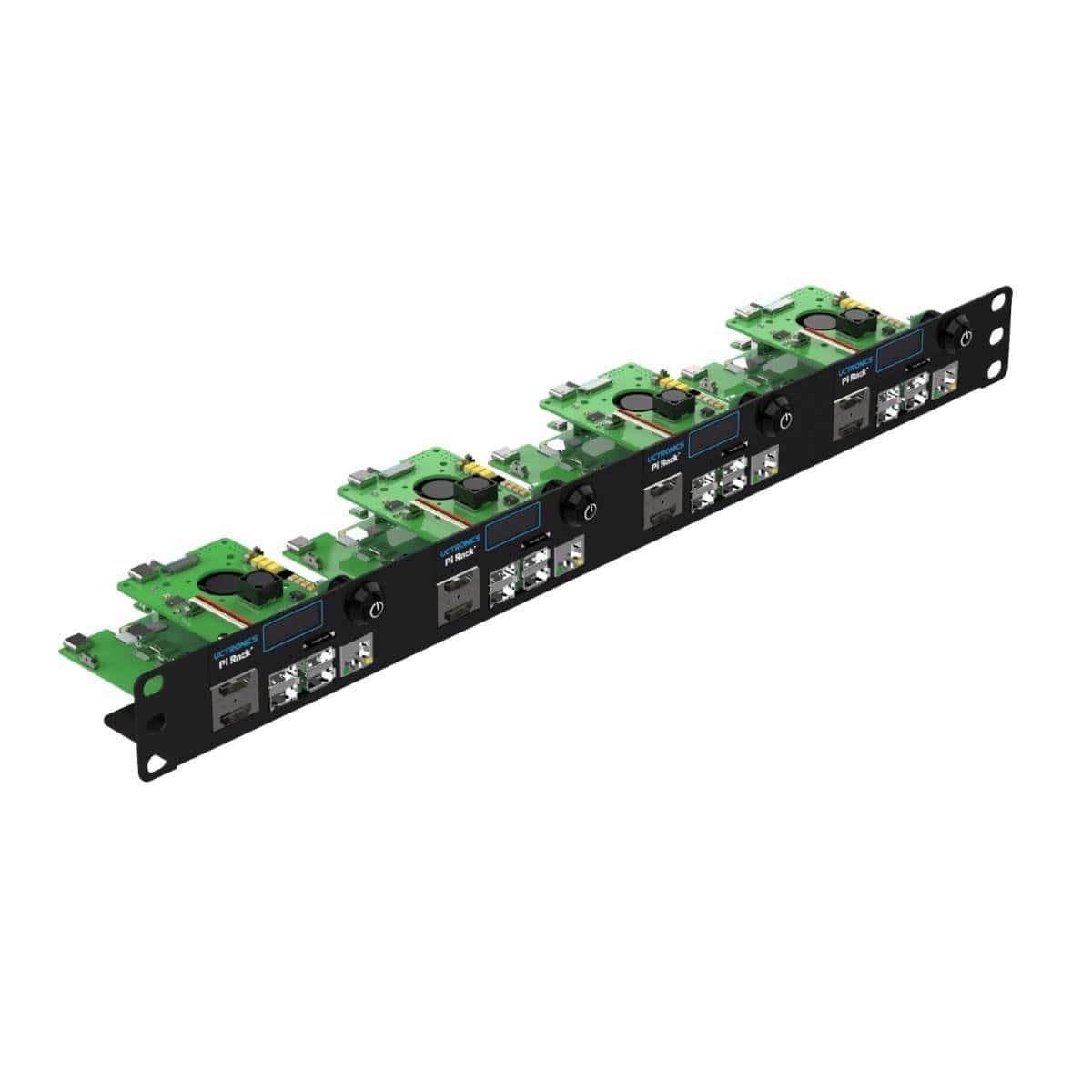

The Uctronics Pi Rack ("Ultimate Rack") is a 1U 19" feature-packed Raspberry Pi rackmount solution with PoE, OLED displays, LED power switches, cooling fans and full frontal port rerouting!

The kit includes everything you need to run 4 Raspberry Pis in the rack, including the rack itself along with 4x PoE HATs, 4x OLEDs, 4x LED power pushbuttons and 4x HDMI rerouting boards.

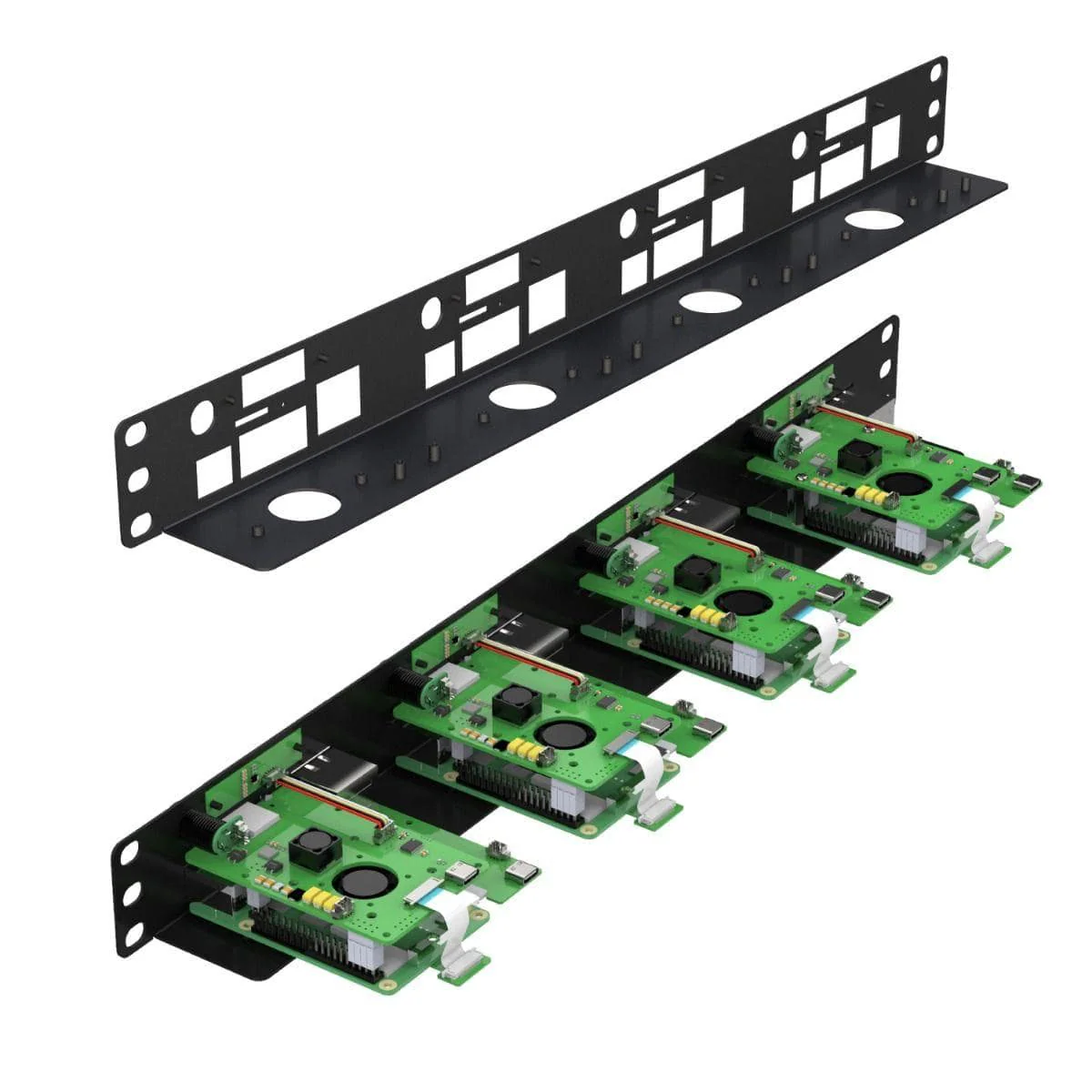

The Pi Rack comes as a kit of parts and will require assembly (please see the user manual for details).

Note: Raspberry Pi and SD card not included

Important: Do not use shielded/Cat7 cables with this rack, as there are compatibility issues with higher category shielded cables.

Features

• PoE Functionality: Custom Uctronics PoE HATs are included in the kit allowing you to power your Raspberry Pis with your PoE switch/router

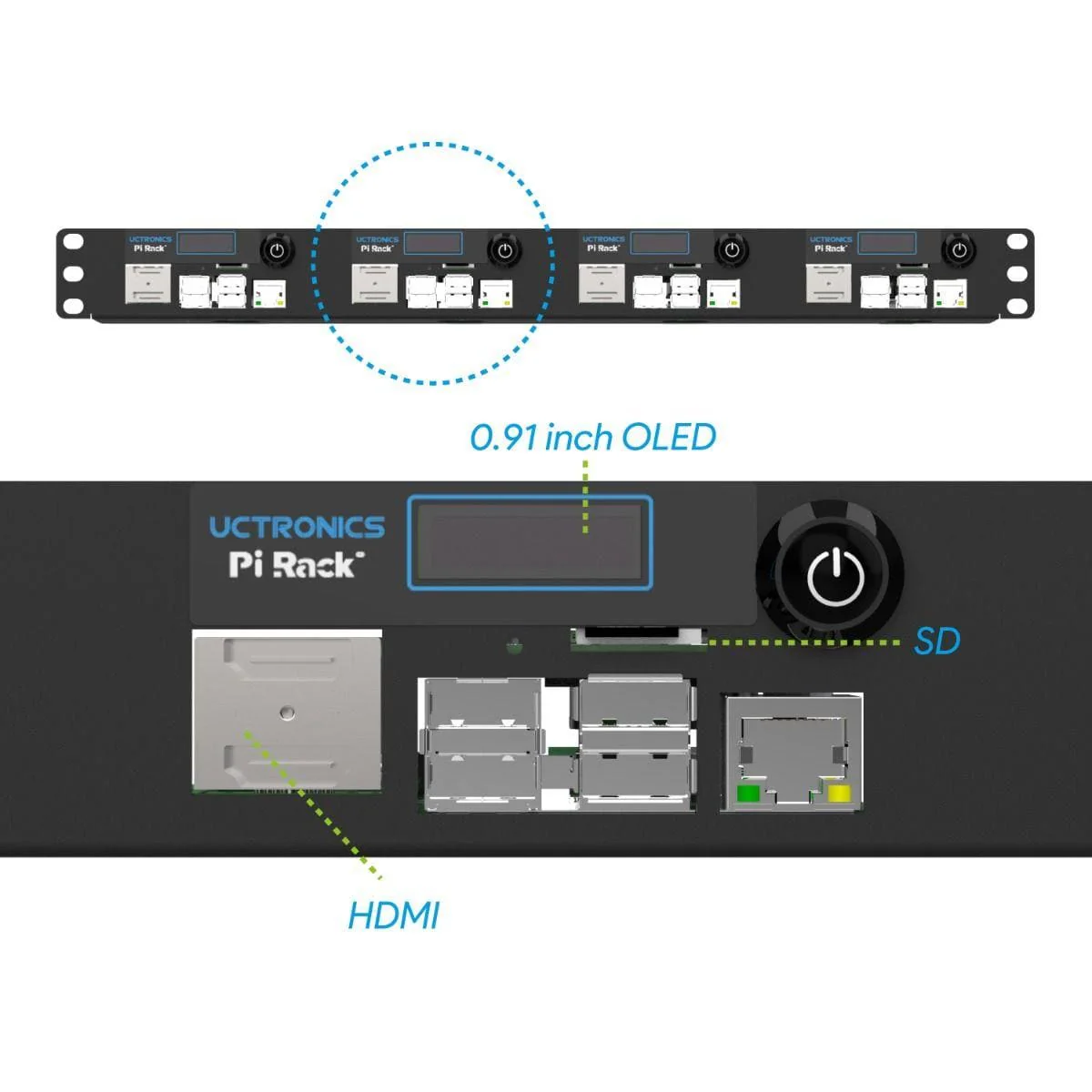

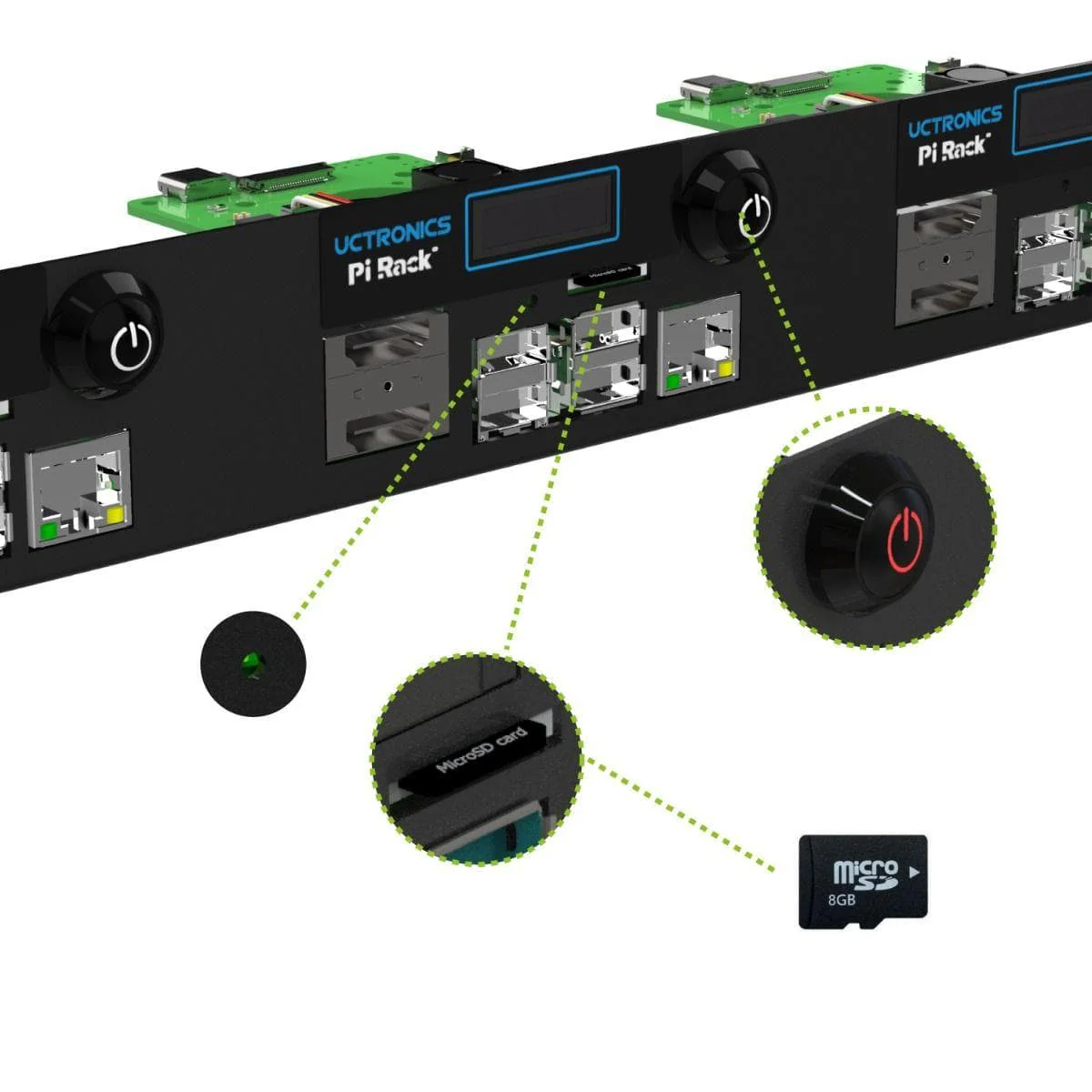

• Port Re-routing: All of your Raspberry Pi'#s ports are re-routed to the front of the rack, including full-size dual HDMI, 4x USB, Ethernet, MicroSD. The power pushbutton and included 0.91" OLED are also located at the front of the unit. Power/indicator LEDs are also at the front of the rack unit.
• Power Control: The included LED push-button switch allows you to perform a shutdown without having to run commands from the OS or unplugging power cables.

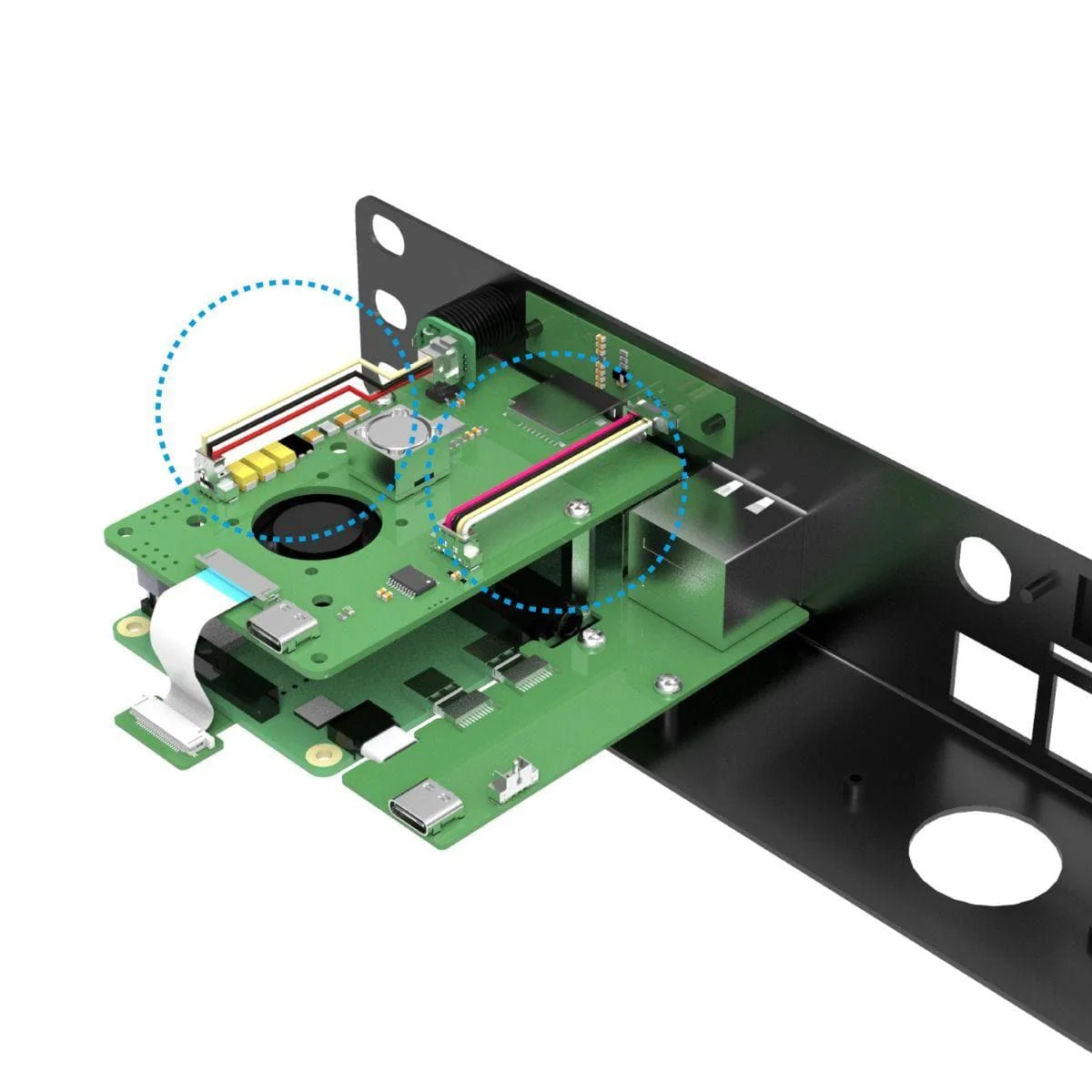

• Effective Cooling: The rerouting boards are assembled with a cooling fan, which provides powerful heat dissipation to keep the Raspberry Pi from overheating
• High-Quality Materials: The rack is constructed of sturdy carbon steel with a matte black powder-coated finish. All edges are smooth.
• Standard Rack Mount sizing: Compatible with all 1U/19" rack mount solutions

Package Contents

• 1 x 19” rack mount
• 4 x 0.91 display modules
• 4 x HDMI adapter boards
• 4 x PoE HATs
• 4 x Push button switches

Note: Raspberry Pi and SD card not included

Resources

• User Manual
• OLED GitHub

OLED Setup

To use the 0.91" OLED display, please add the following boot-up script to read your Raspberry Pi stats (CPU/Memory load, IP address, temperature etc):

Open the rc.local file:

sudo nano /etc/rc.local

Add command to the rc.local file:

cd /home/pi/U6143_ssd1306/C
sudo make clean
sudo make
sudo ./display &

Reboot your system:

sudo reboot

Raspberry Pi Cluster Ideas

• Learn and experiment on Kubernetes, Docker Swarm, Serverless, Microservices and Orchestration on bare metal
• Build a testing environment for your cloud-native apps
• Build a home server for web applications and databases
• Build your own NAS or media centre
• Create a home automation system
• Learn distributed computing and deployment from the ground up
• Build private servers for numerous games

Product information

• Package Dimensions: 19.69" x 4.72" x 2.36"
• Item Weight: 1.42 pounds
