-70%Gravity: Ultrasonic Scanner Kit (180°)—
$35.40
$10.62The Story
An Ultrasonic sensor with scan capability is a must have feature for most robot application. This Ultrasonic scanner kit provides a cost effective way to have such feature for your robot application. This kit is able to scan upto 120 degree area with 10-400 cm detecting range.
Specifications
- Operating voltage:5V(Ultrasonic sensor) 4.8-6V(Servo)
- Sensor interface: PWM,TTL
- Ultrasonic Range: 10-400 cm
- Scan Degree: 120 degrees
- Scan Speed: 0.17 seconds / 60 degrees (4.8V); 0.4 sec / 60 degrees (6.0V)

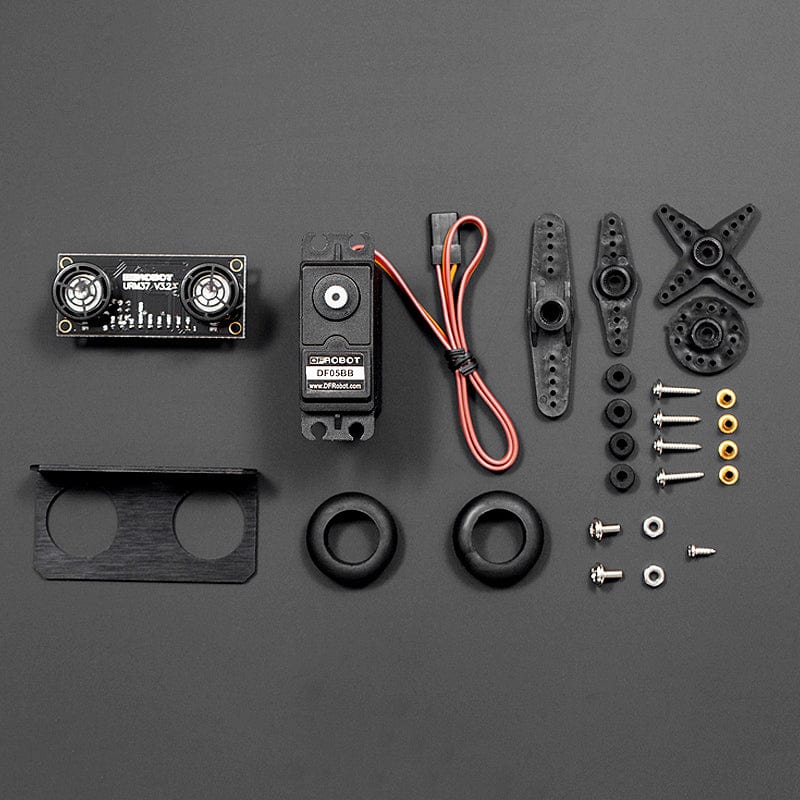

Package Contents

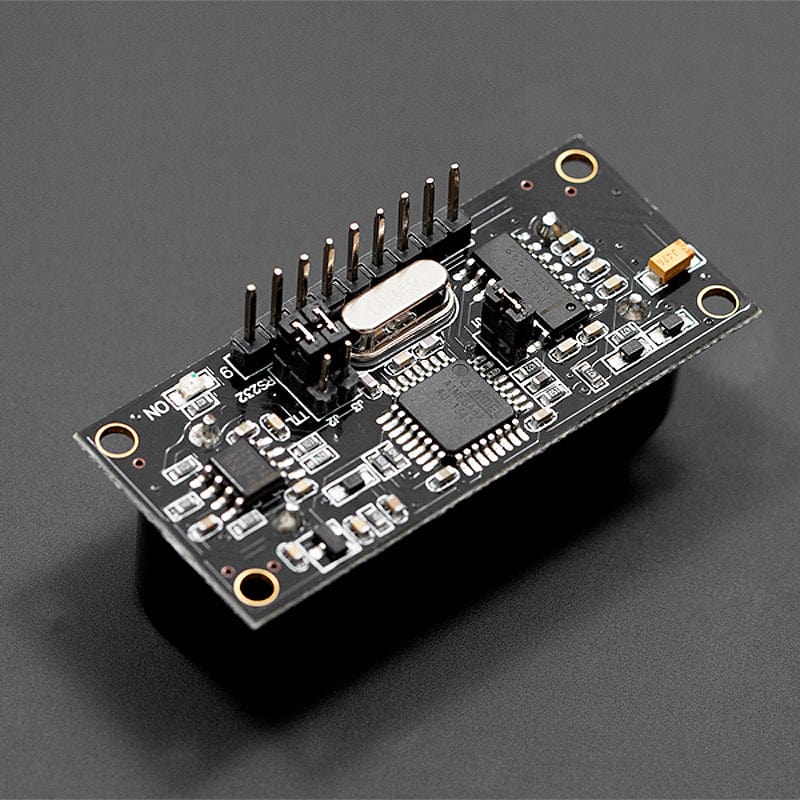

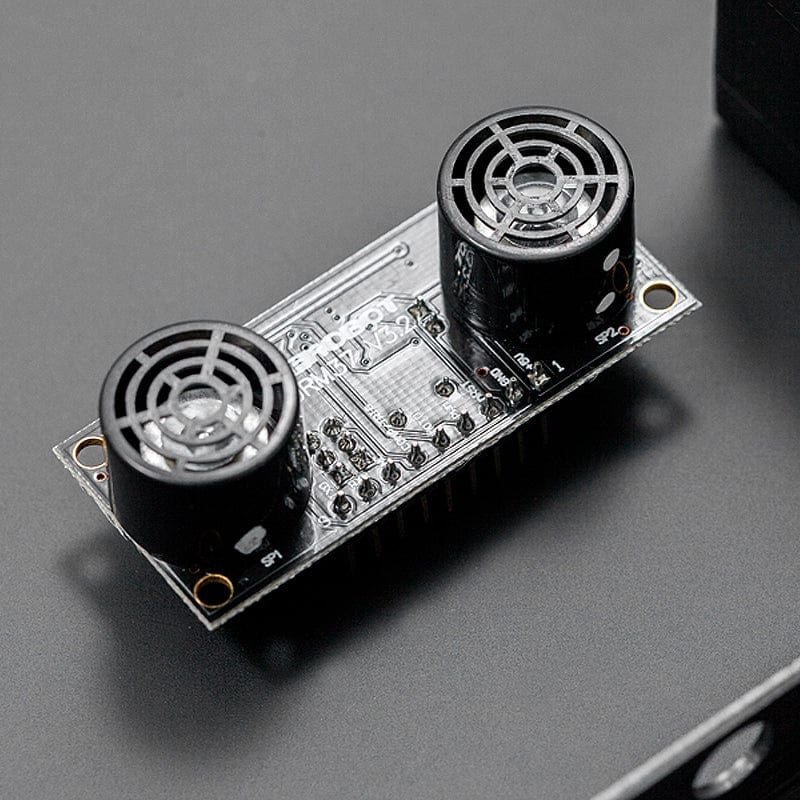

- 1x URM 4.0 Ultrasonic sensor (10-400cm)
- 1x URM Ultrasonic sensor mounting bracket

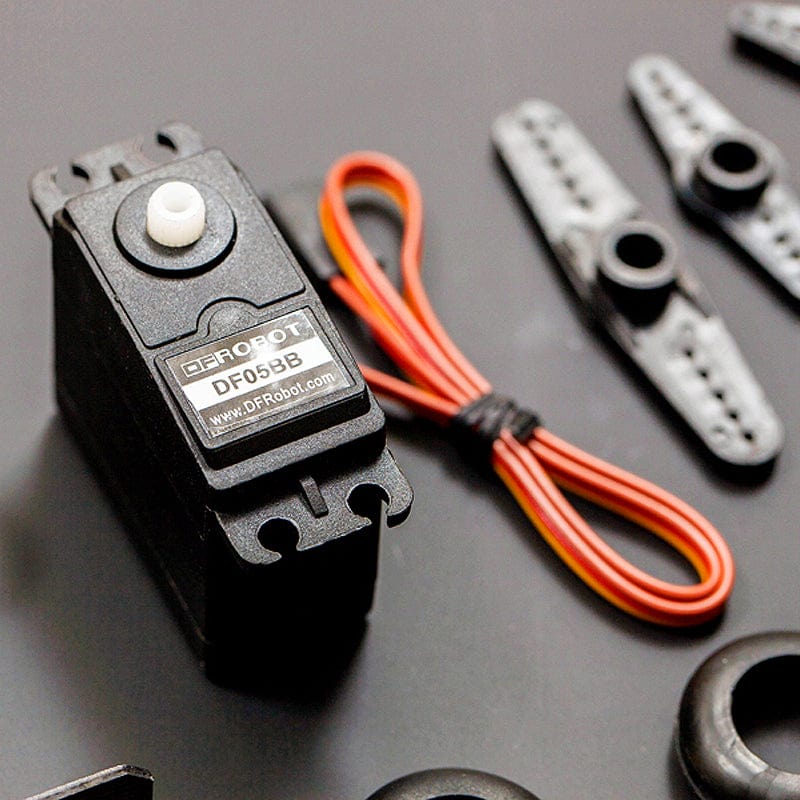

- 1x DF05BB Standard Servo (5kg)
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
An Ultrasonic sensor with scan capability is a must have feature for most robot application. This Ultrasonic scanner kit provides a cost effective way to have such feature for your robot application. This kit is able to scan upto 120 degree area with 10-400 cm detecting range.
Specifications
- Operating voltage:5V(Ultrasonic sensor) 4.8-6V(Servo)
- Sensor interface: PWM,TTL
- Ultrasonic Range: 10-400 cm
- Scan Degree: 120 degrees
- Scan Speed: 0.17 seconds / 60 degrees (4.8V); 0.4 sec / 60 degrees (6.0V)
Package Contents
- 1x URM 4.0 Ultrasonic sensor (10-400cm)
- 1x URM Ultrasonic sensor mounting bracket
- 1x DF05BB Standard Servo (5kg)
