M5Stack Unit PoE with ESP32-P4

The M5Stack Unit PoE-P4 ESP32-P4 Controller combines Ethernet, PoE power, and rich I/O with MIPI display and camera support, built for edge computing and connected applications.

---

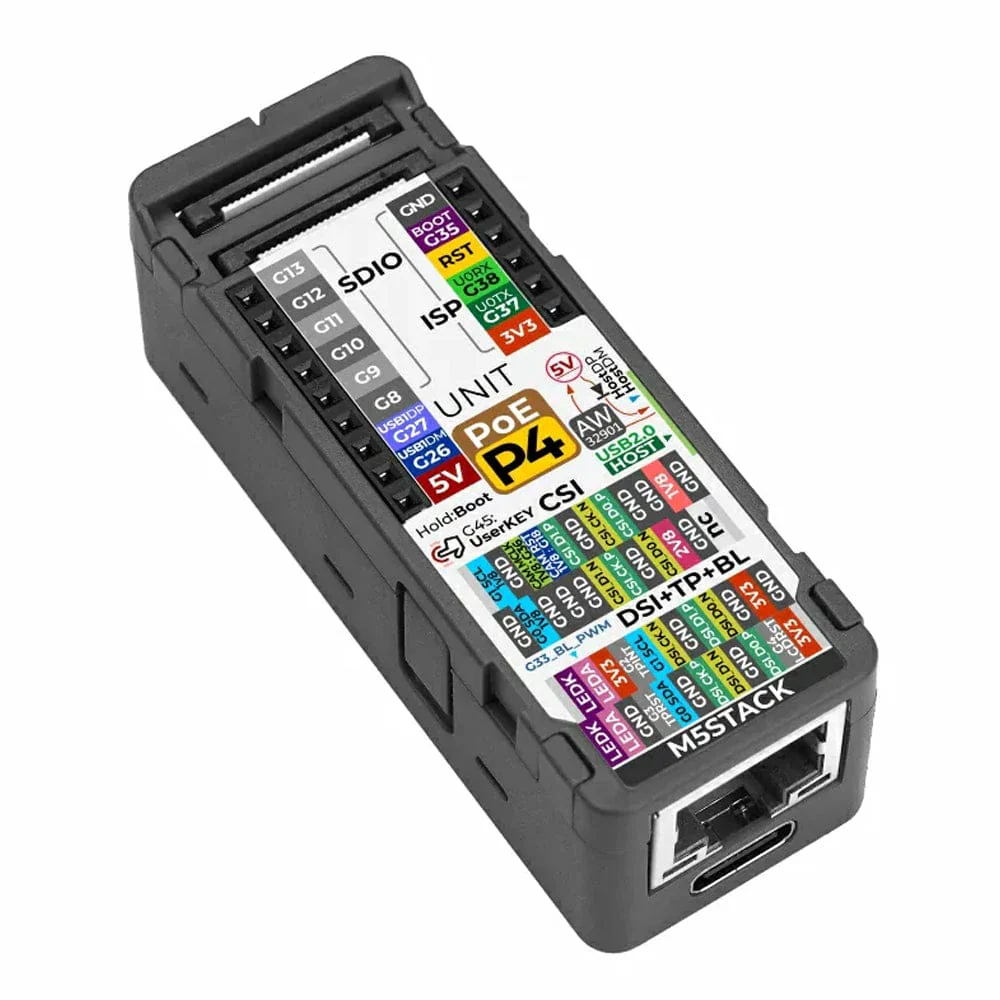

The M5Stack Unit PoE-P4 ESP32-P4 Embedded Controller is a feature-rich Ethernet and PoE-enabled development platform designed for edge computing, HMI, and connected device applications.

At its core is the ESP32-P4 SoC, featuring a dual-core 32-bit RISC-V processor running at up to 360MHz alongside a low-power core at 40MHz. It includes 16MB of Flash and 32MB of PSRAM, providing ample memory for complex applications. Networking is handled by a built-in IP101GRI Ethernet PHY, supporting reliable 10/100 Mbps communication, while onboard PoE support can deliver up to 6W of power, simplifying deployment by combining power and data over a single cable. A built-in DC-DC converter manages system power efficiently.

For multimedia and advanced interfaces, the board includes a 24-pin FPC connector for displays (supporting MIPI DSI, touch, and backlight) and another 24-pin FPC connector for cameras via MIPI CSI, enabling high-resolution display output and image capture.

Expansion options are extensive. There’s a USB Type-C host port (USB 2.0) for peripherals such as storage devices or HID inputs, alongside a second USB Type-C port supporting OTG and firmware download for development and debugging. Additional connectivity includes a Hat expansion interface, SDIO and ISP IO expansion, and a Grove connector for easy integration with sensors and modules.

The board also features practical onboard extras including an RGB status LED, an infrared transmitter circuit, and a user button for interaction and control. These features make it well suited to applications such as industrial HMI systems, PoE-powered smart terminals, vision nodes, smart home controllers, and edge AI or IoT devices.

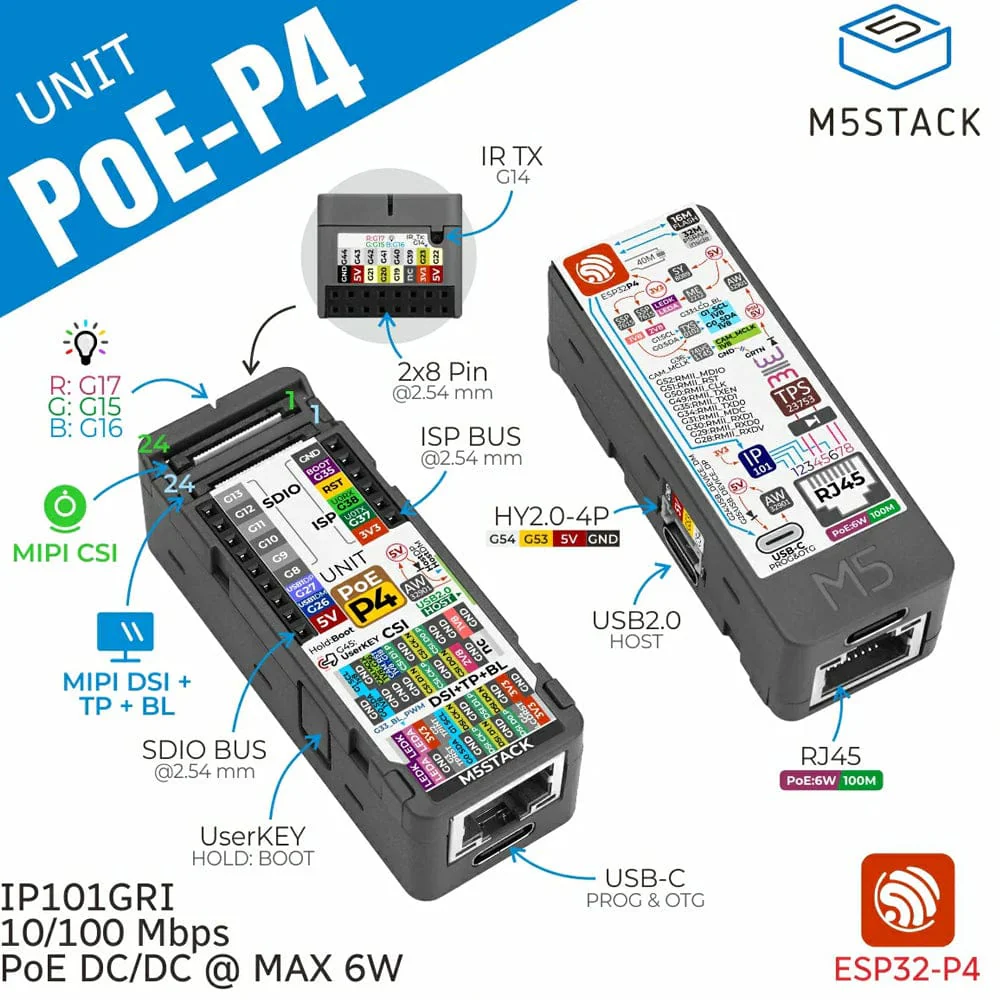

Features

• ESP32-P4 main controller:
  • 16MB Flash + 32MB PSRAM

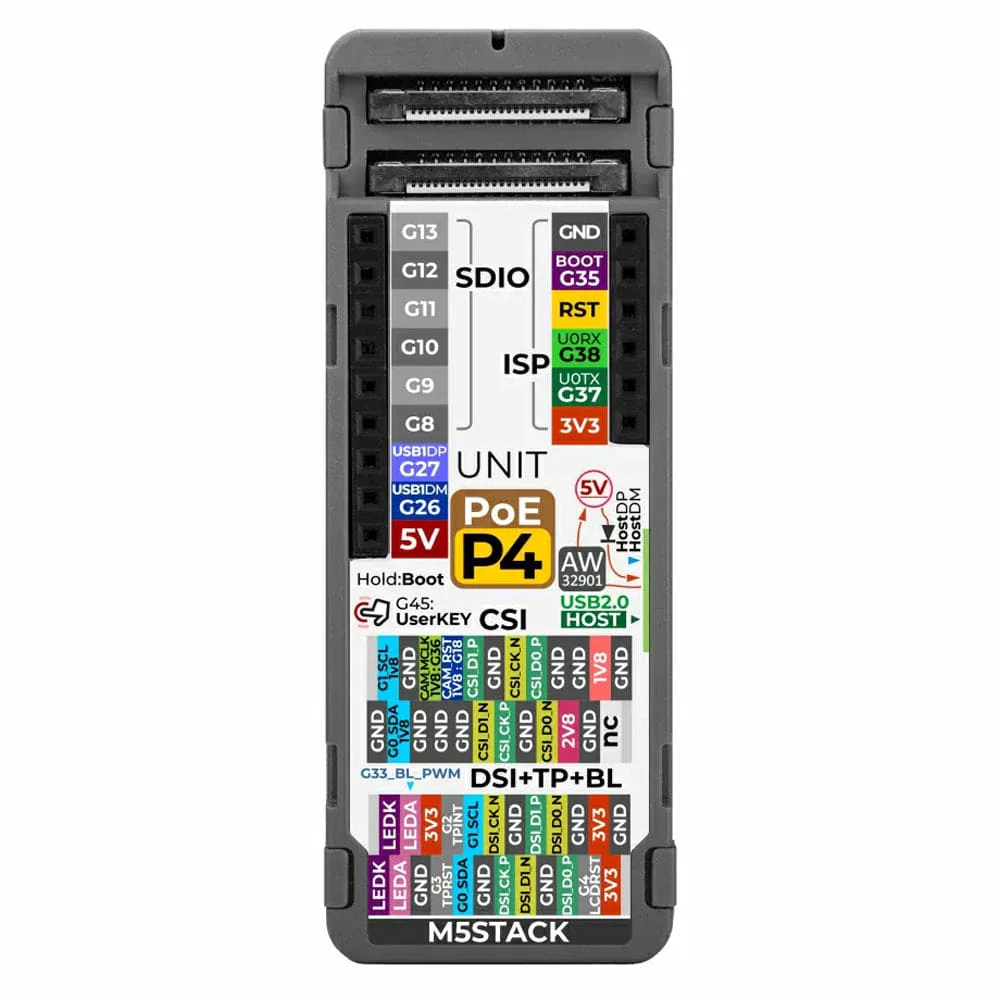

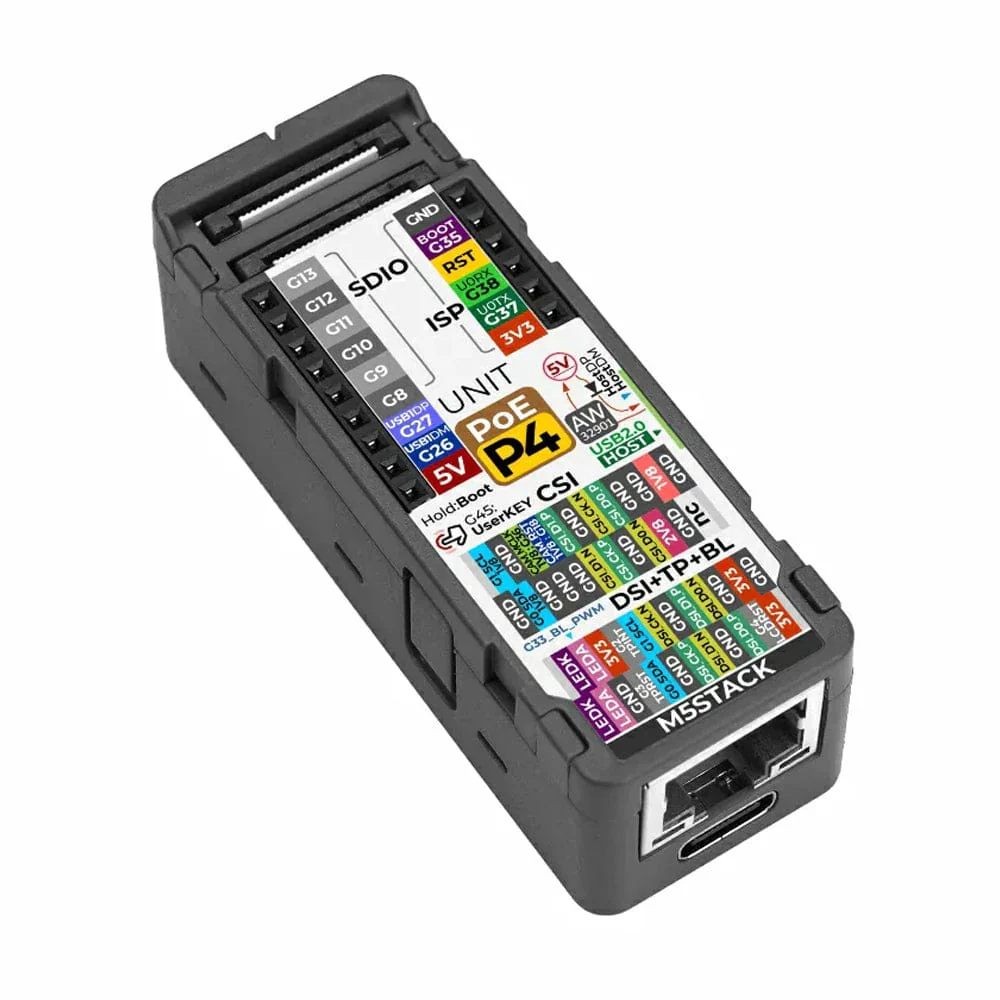

• Peripheral interfaces:

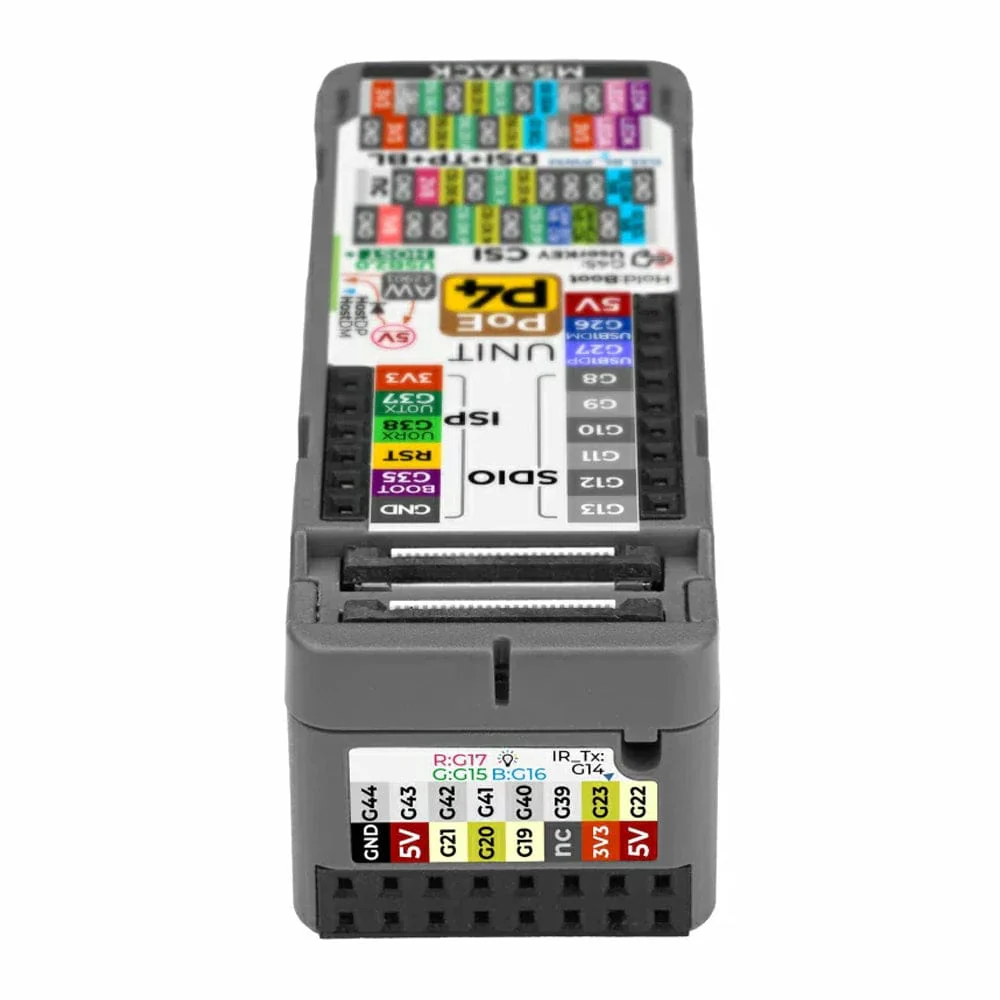

  • 1x 24P FPC camera interface: MIPI CSI 2‑Lane
  • 1x 24P FPC display expansion interface: MIPI DSI 2‑Lane + TP + BL
  • 1x USB Type‑C Host interface (USB 2.0)
  • 1x USB Type‑C firmware download / OTG interface (USB 2.0)

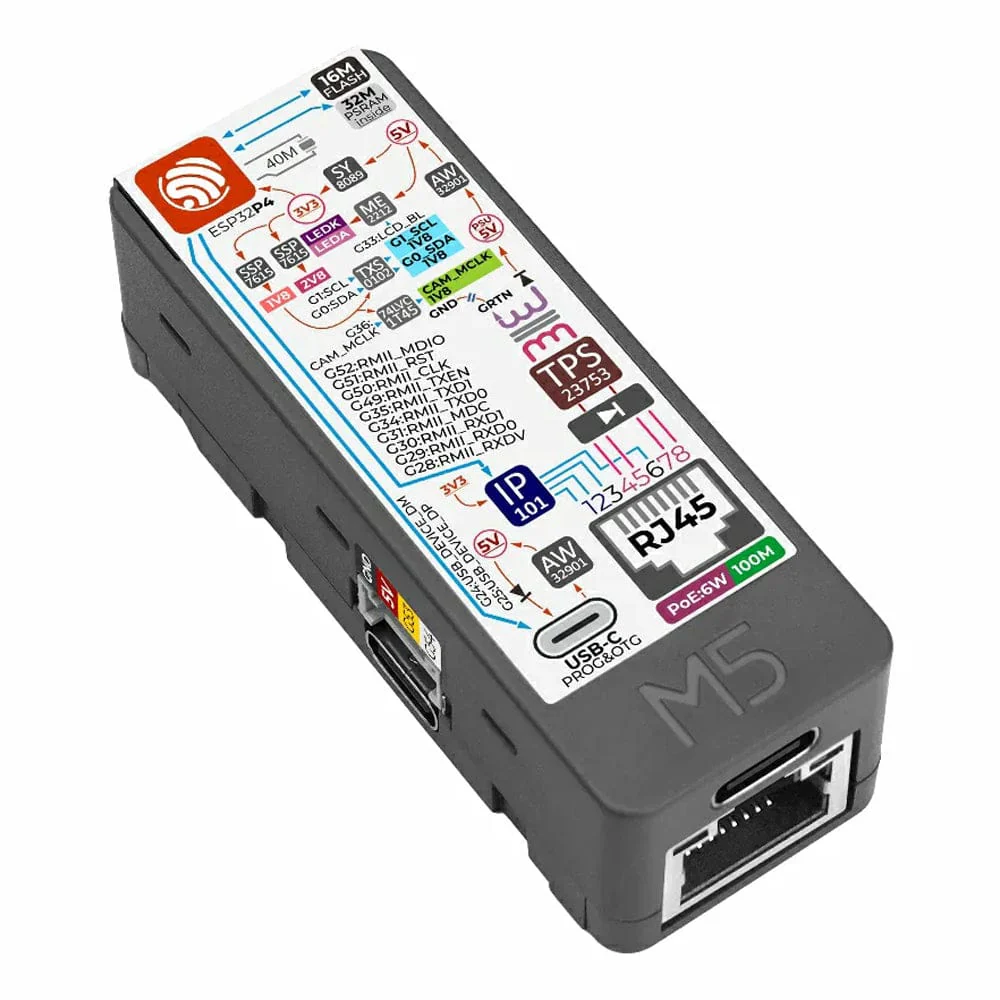

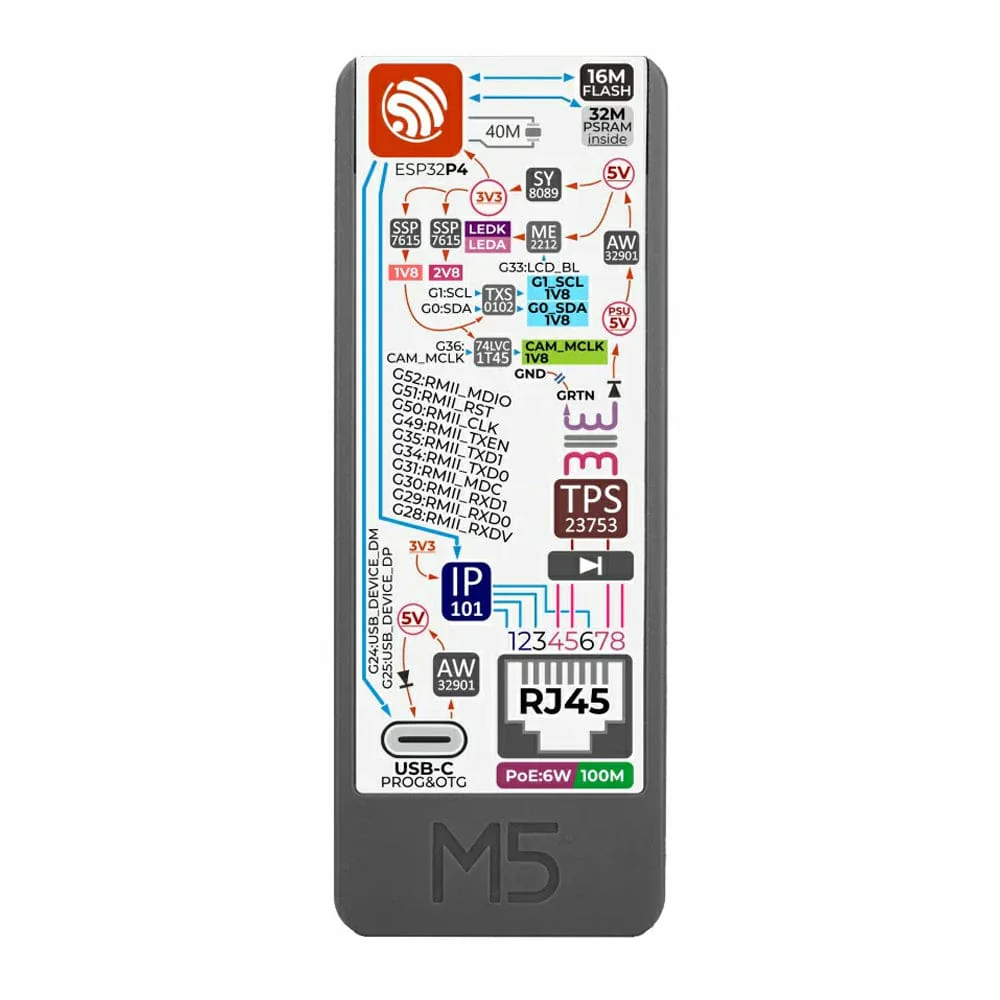

• Ethernet:
  • Integrated IP101 10/100M Ethernet PHY chip
  • Supports PoE (active Ethernet) power supply, enabling data transmission and power delivery over a single Ethernet cable
• Human‑machine interaction:
  • 1x RGB LED indicator
  • 1x user button
  • 1x infrared transmitter
• Expansion interfaces:

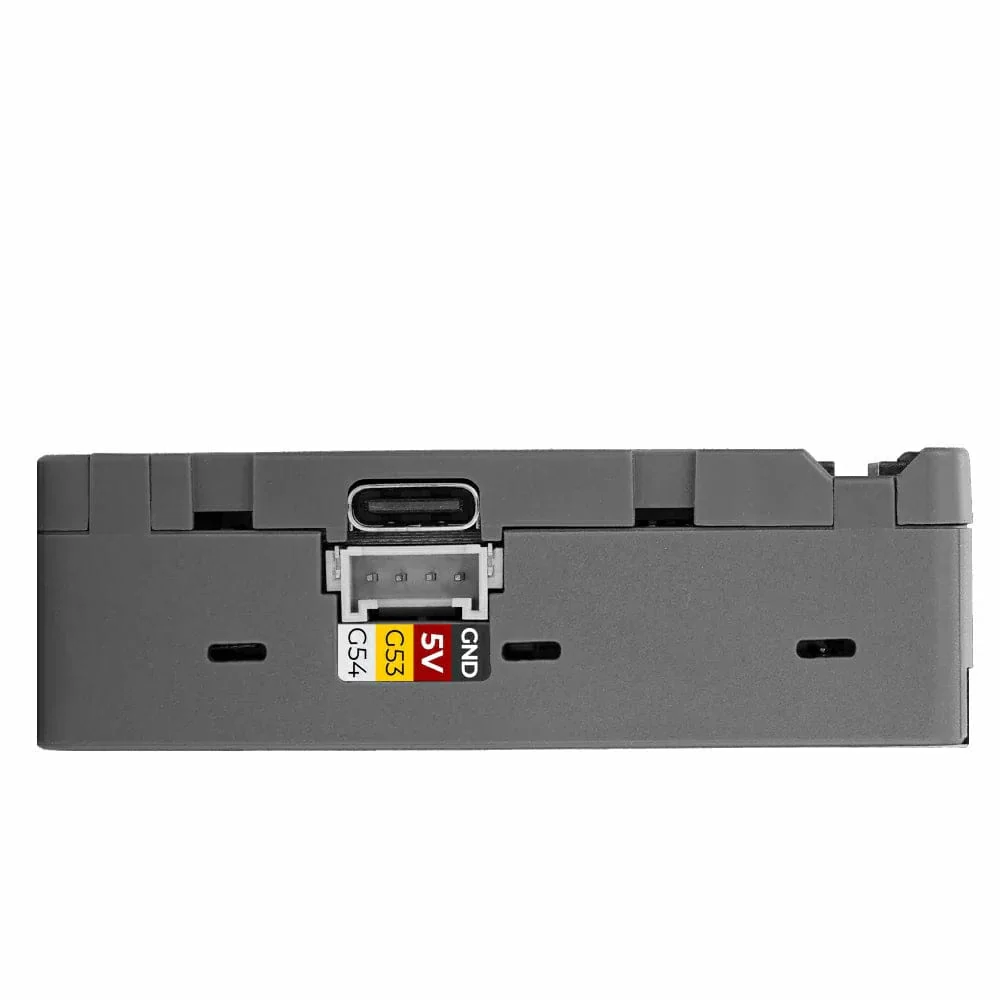

  • HY2.0-4P expansion interface

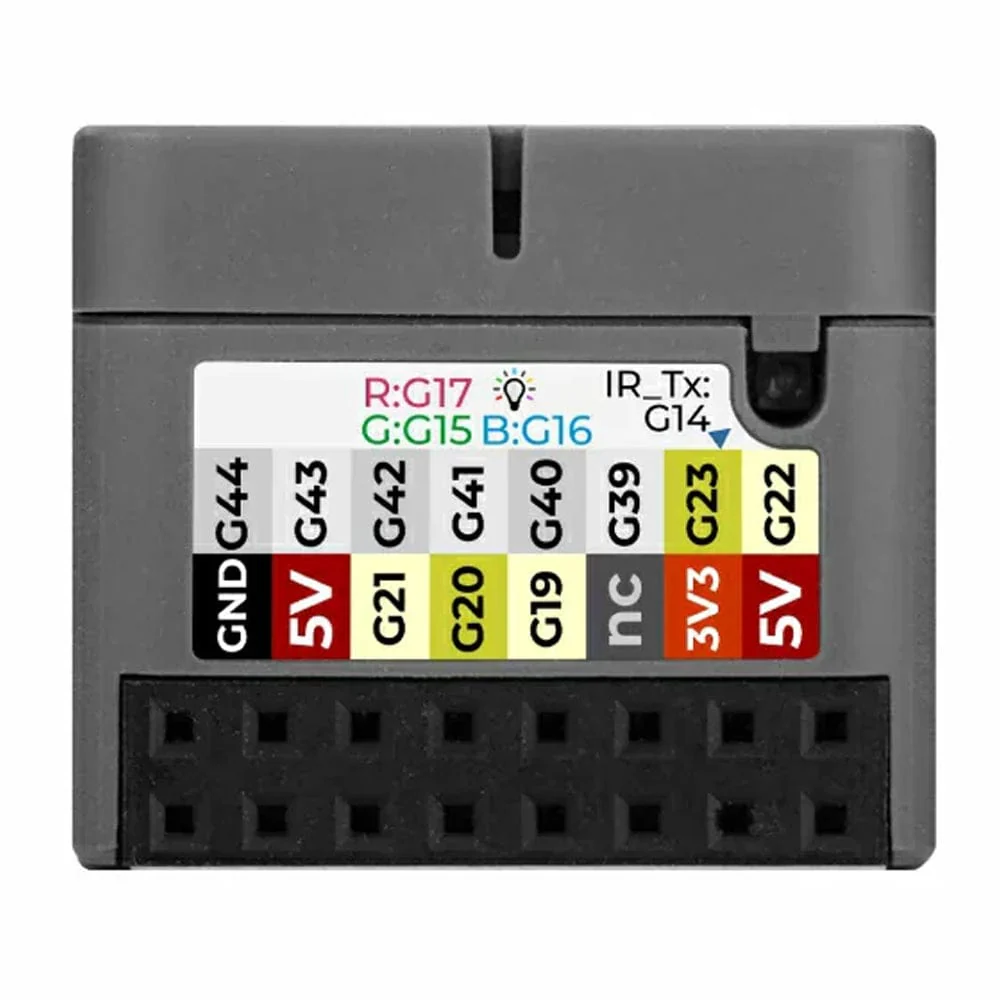

  • Hat2-Bus 2.54-16P
  • SDIO-Bus 2.56-9P
  • ISP-Bus 2.56-6P

Specifications

SoC	ESP32-P4NRW32 (RISC-V 32-bit high-performance dual-core processor @ 360 MHz + RISC-V 32-bit low-power single-core coprocessor @ 40 MHz)
Flash	16MB
PSRAM	32MB
Power Input	DC 5V (USB Type-C) / PoE
Ethernet Controller	IP101GRI
Ethernet Speed	10/100M adaptive

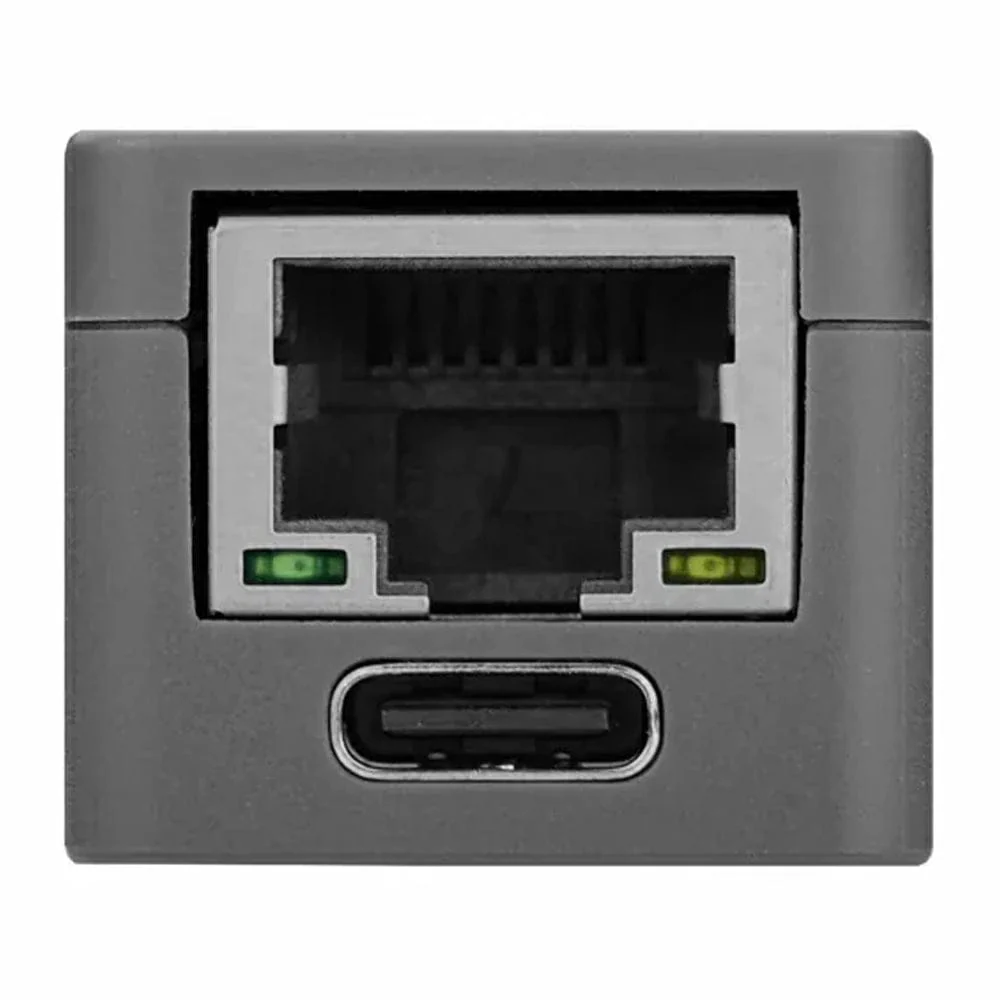

Ethernet Interface	RJ45
PoE Standard	Compliant with IEEE 802.3at
PoE Power	Maximum power 6W
Display Interface	24P FPC MIPI DSI 2-Lane + TP + BL
Display Resolution	MIPI DSI display supports up to 1920×1080 (limited by lane count and frame rate)
Camera Interface	24P FPC MIPI CSI 2-Lane
USB Type-C	1x USB Type-C Host interface (USB 2.0) 1x USB Type-C firmware download / OTG interface (USB 2.0)
Power Consumption	Operating current: 5V @ 73.82mA Infrared transmission: 3.3V @ 23.57mA (instantaneous) RGB: 5V @ 75.32mA Full load (display, camera, IR, RGB, etc.): 277.10mA Deep sleep: 5V @ 19.85mA
RGB LED	1 x NH-B2020RGBA-HF
Infrared Transmitter	1 x MHS153IRCT
Operating Temperature	0 ~ 40°C
Product Size	64.0 x 24.0 x 20.2mm
Product Weight	28.2g

Resources

• Documents

Package Contents

• 1 x Unit PoE-P4
• 1 x HY2.0-4P Grove Cable (20cm)
