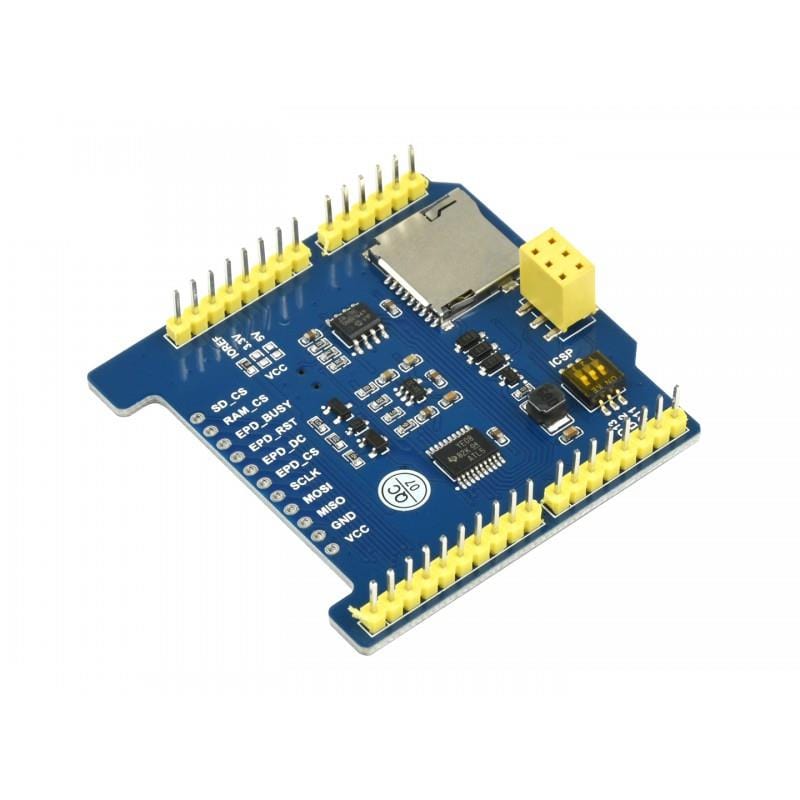

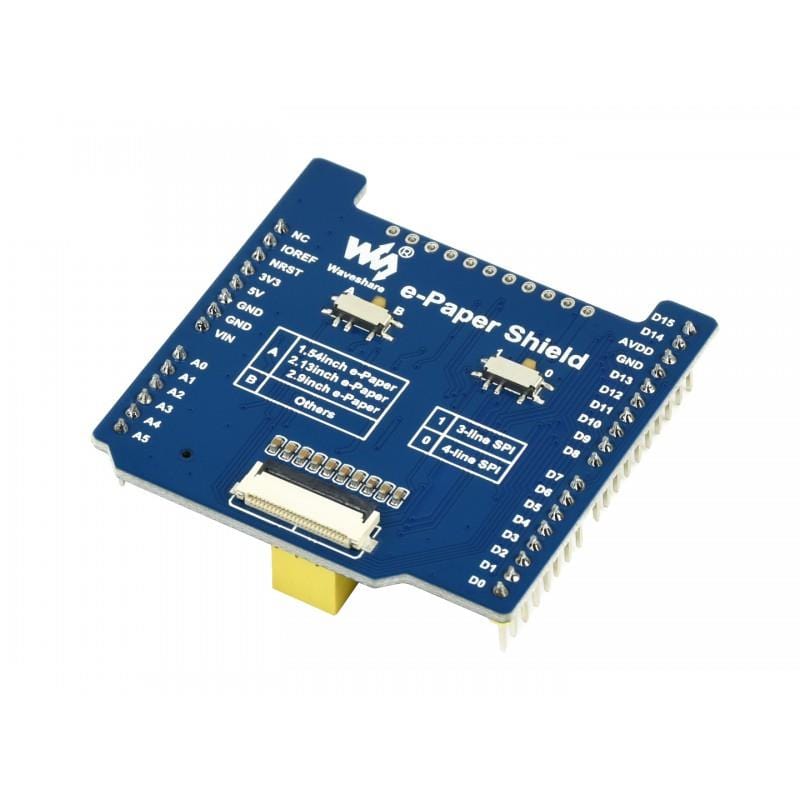

Universal ePaper Driver Shield for Arduino [Discontinued]

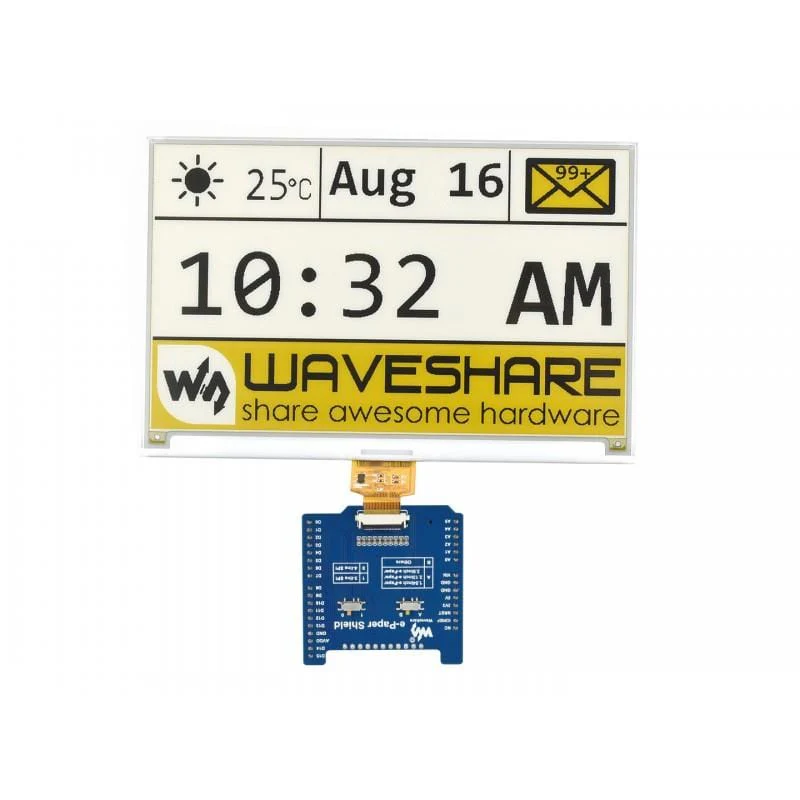

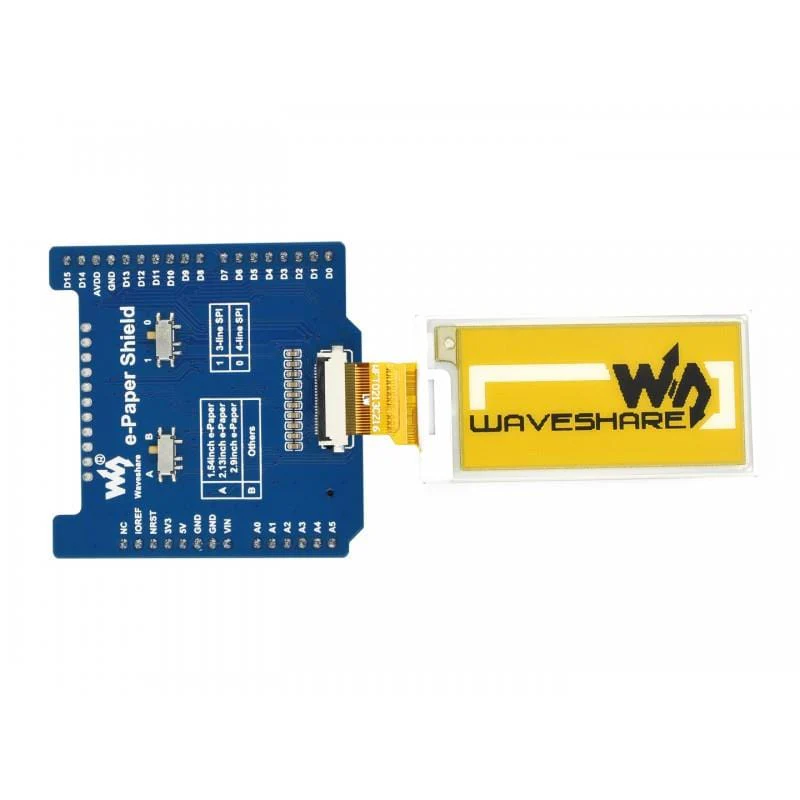

This is a universal driver board for connecting an Arduino and e-Paper raw panels, can be used to drive various SPI interface e-Paper from Waveshare.

Note: e-paper display and Arduino board not included

Features

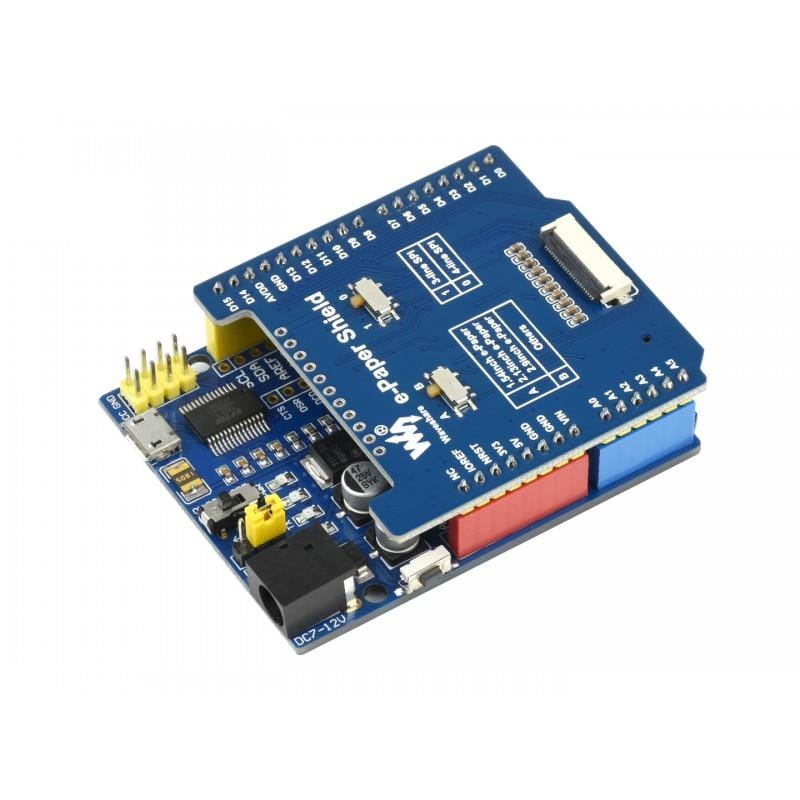

• Standard Arduino connectivity, compatible with host boards such as the Arduino UNO and Leonardo
• Onboard voltage translator compatible with 3.3V/5V MCUs
• Onboard external RAM, more available space
• Micro SD slot, images can be stored on TF card
• Reserved control interface for connecting with other control boards
• Comes with development resources and manual (examples for Arduino/STM32)

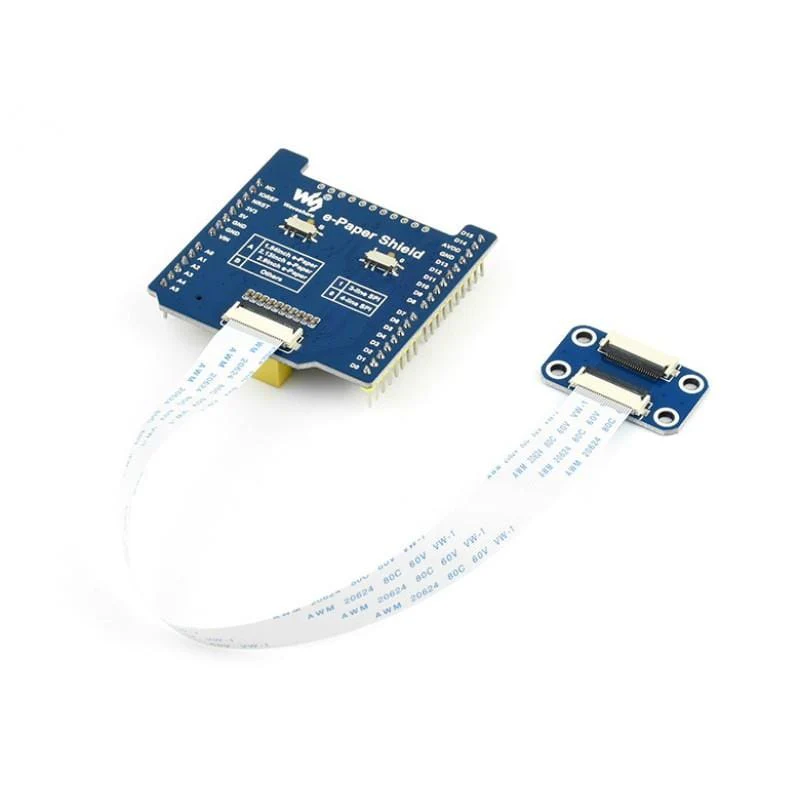

Package contents

• 1x e-Paper Shield
• 1x e-Paper Adapter
• 1x 24-pin FFC

Resources

• Product Wiki

Specifications

• Operating voltage: 3.3V/5V
• Interface: 3-wire SPI, 4-wire SPI (default)
• RAM size: 1M-bit / 128K-byte
• Outline dimension: 53.34mm × 53.34mm

Interface

PIN	ARDUINO/NUCLEO PIN	DESCRIPTION
VCC	5V	Power
GND	GND	Ground
SCK	SCK	SPI clock input
MOSI	MOSI	SPI data input
MISO	MISO	SPI data output
EPD_CS	D10	e-Paper chip selection
EPD_DC	D9	e-Paper data/command
EPD_RST	D8	e-Paper reset
EPD_BUSY	D7	e-Paper busy
SD_CS	D6	SD card chip selection
SPIRAM_CS	D5	SPI RAM chip selection
