Please note: this proto-board is designed with 2mm pitch, not the standard 2.54mm / 0.1" pitch you may be used to!

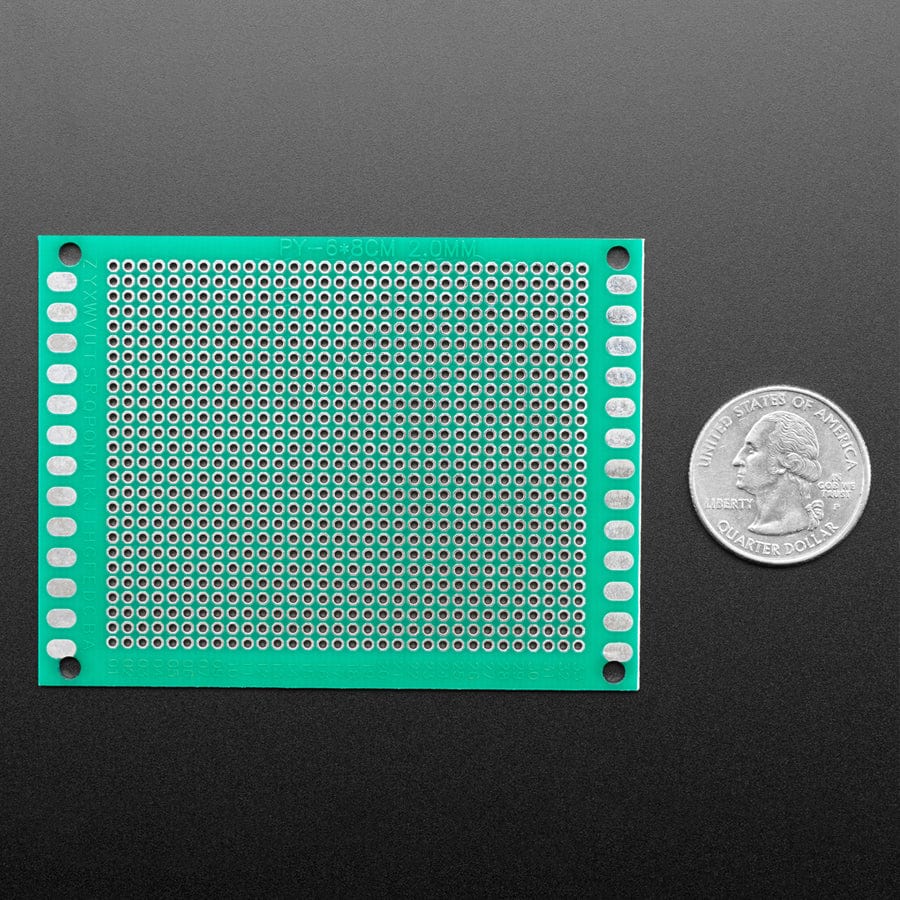

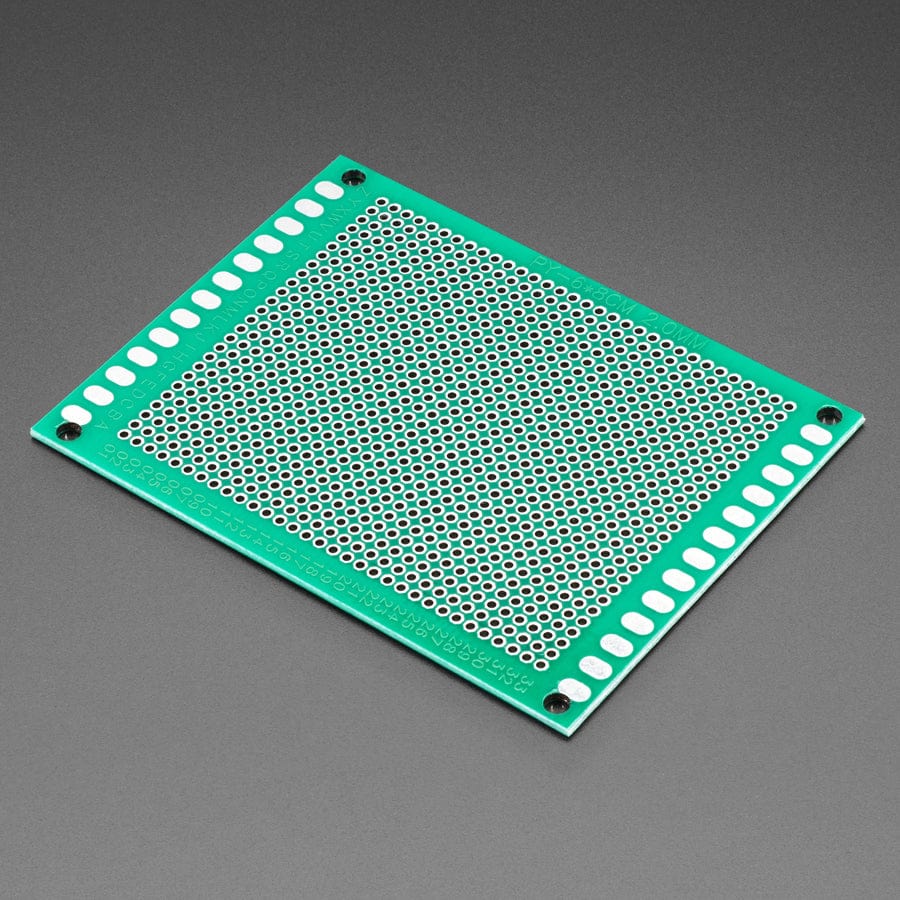

Here's a handy 6cm x 8cm Proto-board PCB that is meant for use with 2mm pitch parts - like maybe an XBee. Both sides have a green silkscreen with some row/column markings. Note that these don't have any traces between the PCB holes; you would normally bend over a thru-hole lead to create connections. They're also good for just plain mechanical work because they are made of strong FR4.
Contains 33 X lines by 26 Y lines totalling 858 holes. There are also four mounting holes so you can attach the PCB to your project box.
Specifications
- Mounting holes
- Diameter: 3mm
- Length mounting hole distance: 72.5mm
- Width mounting hole distance: 55mm
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Please note: this proto-board is designed with 2mm pitch, not the standard 2.54mm / 0.1" pitch you may be used to!
Here's a handy 6cm x 8cm Proto-board PCB that is meant for use with 2mm pitch parts - like maybe an XBee. Both sides have a green silkscreen with some row/column markings. Note that these don't have any traces between the PCB holes; you would normally bend over a thru-hole lead to create connections. They're also good for just plain mechanical work because they are made of strong FR4.
Contains 33 X lines by 26 Y lines totalling 858 holes. There are also four mounting holes so you can attach the PCB to your project box.
Specifications
- Mounting holes
- Diameter: 3mm
- Length mounting hole distance: 72.5mm
- Width mounting hole distance: 55mm
