UPS HAT for Raspberry Pi Zero [Discontinued]
HomeStore

UPS HAT for Raspberry Pi Zero [Discontinued]

UPS HAT for Raspberry Pi Zero [Discontinued]

$7.80

Original: $26.01

-70%
UPS HAT for Raspberry Pi Zero [Discontinued]—

$26.01

$7.80

The Story

The DFRobot UPS HAT is an uninterruptable power supply pHAT designed for the Raspberry Pi Zero.

With the addition of your own 3.7V Lithium battery, the UPS HAT can continue providing power to the Raspberry Pi for a certain period of time when the system is powered off, to avoid system damage and assure a safe shut down.

In addition, the pHAT can be used to supply power for applications requiring mobility such as a Raspberry Pi camera.

Note: 3.7V lithium battery NOT included

Features

  • Standard Raspberry Pi extension ports for connecting other expansion boards
  • 2A maximum current output for supporting more Raspberry Pi applications
  • Auto-switching of charge/recharge path, designed to be against power-down.
  • On-board 5 LEDs for showing the batteries’ status
  • On-board Maxim fuel gauge IC
  • Support reading battery information via I2C
  • Lithium battery charge/discharge protection and over-heating protection
  • Anti-backflow mainboard power source

Specification

  • Supply Voltage: 4.5~5.5V

  • Supply Current: (recommend using the adapter with the power of 2A and above)

  • Power Supply Interface: Micro-USB

  • Maximum Charge Current: 1.6A

  • Battery Port: PH2.0-2P or solderable contact

  • Battery: 3.7 Lithium Battery

  • Output Voltage: 5V

  • Maximum Output Current: 2A

  • Communication Interface: I2C

  • Dimension: 65x30mm/2.56x1.18”

  • Mounting Hole Size: 58x23mm/2.83x0.91”

  • Operating Temperature: -40℃~85℃

Documents

  • Product wiki

Shipping List

  • UPS HAT for Raspberry Pi Zero x1
  • Double-pass Copper Pillar M2.5*14 x4
  • Single Head Copper Pillar M2.5*4 x4
  • Screw M2.5*6 x4

Note: 3.7V lithium battery NOT included

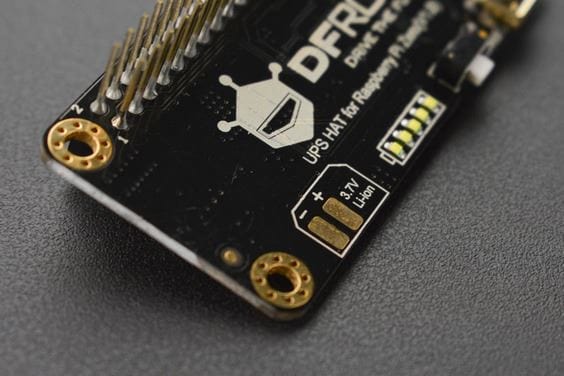

UPS HAT for Raspberry Pi Zero [Discontinued] - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

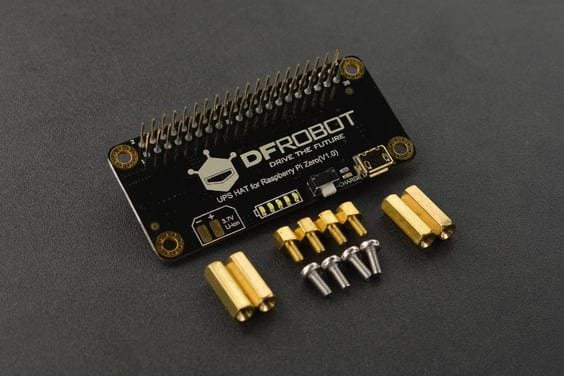

UPS HAT for Raspberry Pi Zero [Discontinued] - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

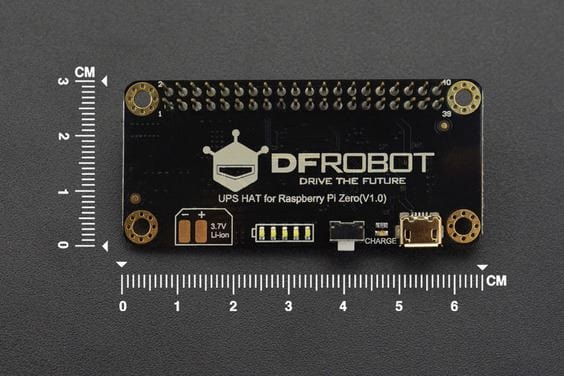

UPS HAT for Raspberry Pi Zero [Discontinued] - Image 4
