USB - RLY 16 16Amp, 8 Channel Relay Module [Discontinued]
HomeStore

USB - RLY 16 16Amp, 8 Channel Relay Module [Discontinued]

USB - RLY 16 16Amp, 8 Channel Relay Module [Discontinued]

$30.39

Original: $101.30

-70%
USB - RLY 16 16Amp, 8 Channel Relay Module [Discontinued]—

$101.30

$30.39

The Story

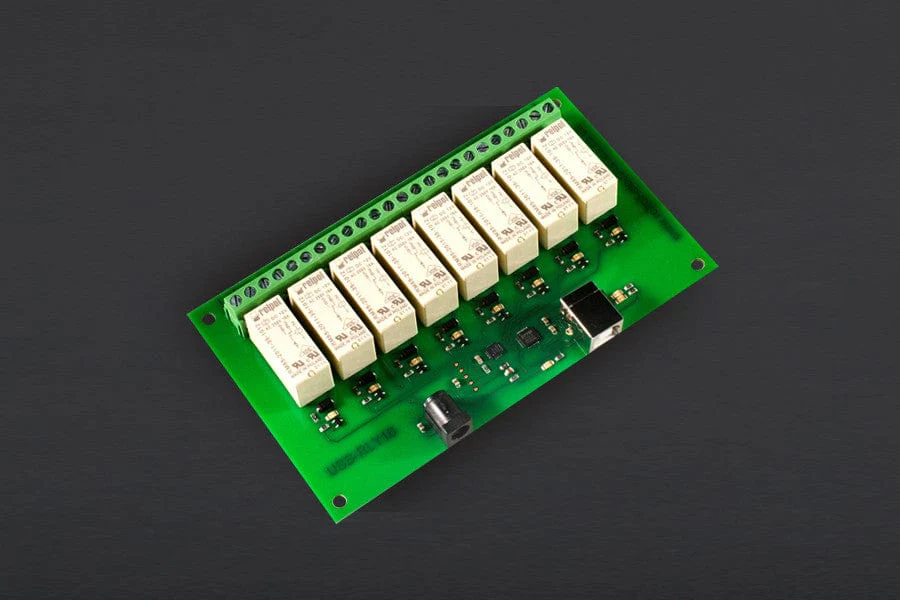

The USB-RLY16 provides eight volt free contact relay outputs with a current rating of up to 16Amp each. The processor is powered and instructed from any standard USB bus and the relay power is obtained by the DC power input adaptor. The DC input jack is 2.1mm with positive core polarity, DC supplies are required to supply at least 500mA at 12vdc. The relays are SPCO (Single Pole Change Over) types. The normally open, normally closed and common pins are all available on the screw terminals.

Specification
  • Number of Relay's - 8
  • Power - 12V DC adaptor, supplied separately.
  • Control interface - USB
  • Relay current - Up to 16Amp @24vdc or 250vac
  • Connections - Screw Terminals for N/O N/C and Common contacts.
  • Operating Temperature:-40C to +70C

Documents

  • Manual
  • Relay Datasheet

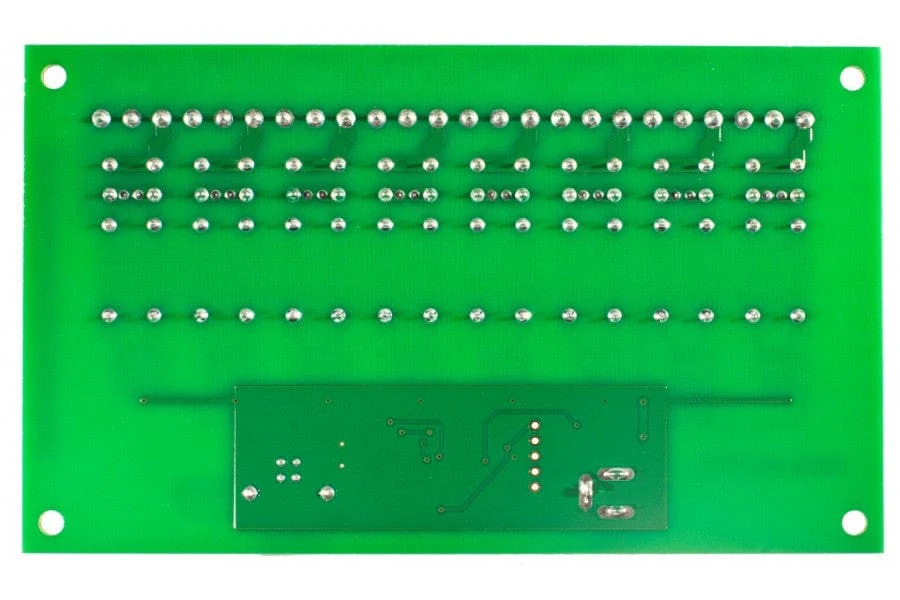

USB - RLY 16 16Amp, 8 Channel Relay Module [Discontinued] - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

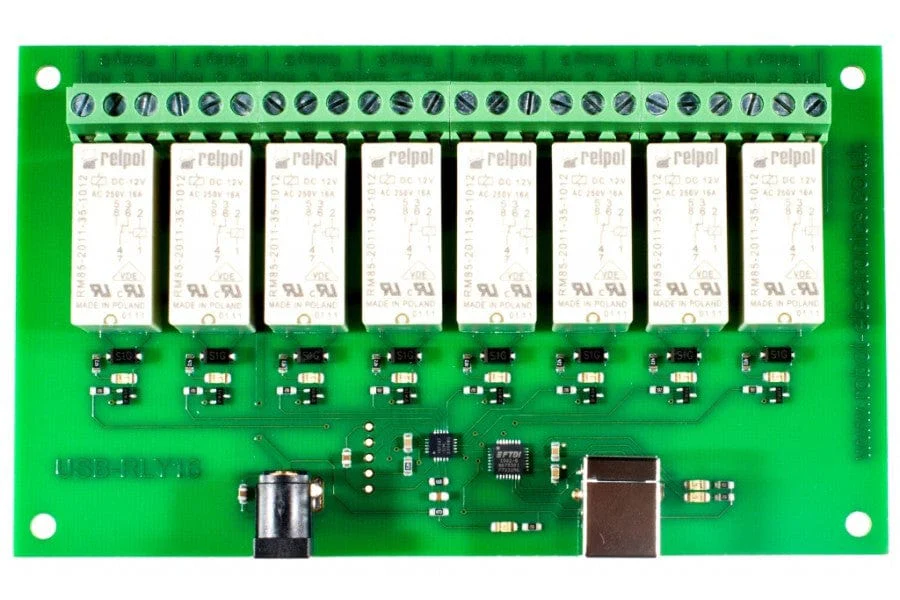

USB - RLY 16 16Amp, 8 Channel Relay Module [Discontinued] - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

The USB-RLY16 provides eight volt free contact relay outputs with a current rating of up to 16Amp each. The processor is powered and instructed from any standard USB bus and the relay power is obtained by the DC power input adaptor. The DC input jack is 2.1mm with positive core polarity, DC supplies are required to supply at least 500mA at 12vdc. The relays are SPCO (Single Pole Change Over) types. The normally open, normally closed and common pins are all available on the screw terminals.

Specification
  • Number of Relay's - 8
  • Power - 12V DC adaptor, supplied separately.
  • Control interface - USB
  • Relay current - Up to 16Amp @24vdc or 250vac
  • Connections - Screw Terminals for N/O N/C and Common contacts.
  • Operating Temperature:-40C to +70C

Documents

  • Manual
  • Relay Datasheet
