VH3.96 - 4Pin Transfer Module Unit

The M5Stack 3.96port Converter adapts HY2.0-4P cables to HT3.96 pluggable terminals, offering an easy, reliable way to connect and disconnect power and ground lines in switching and power-related applications.

---

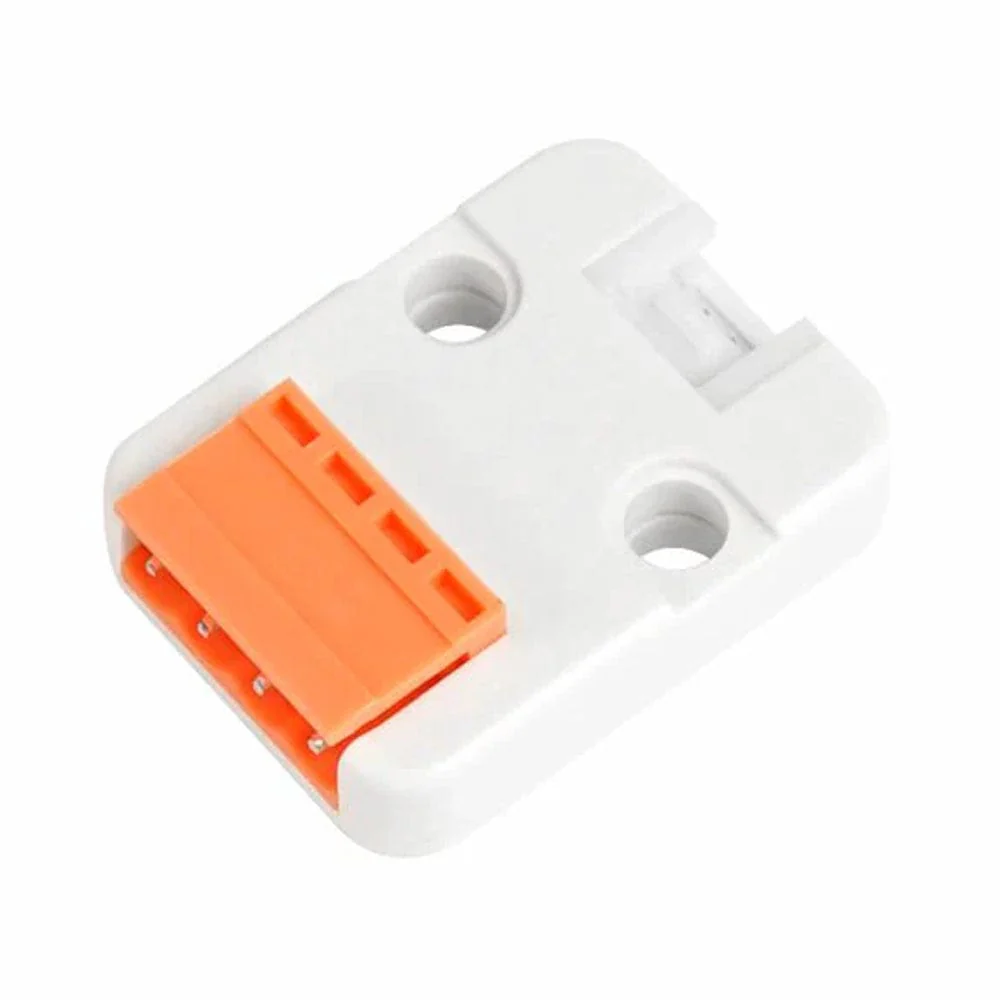

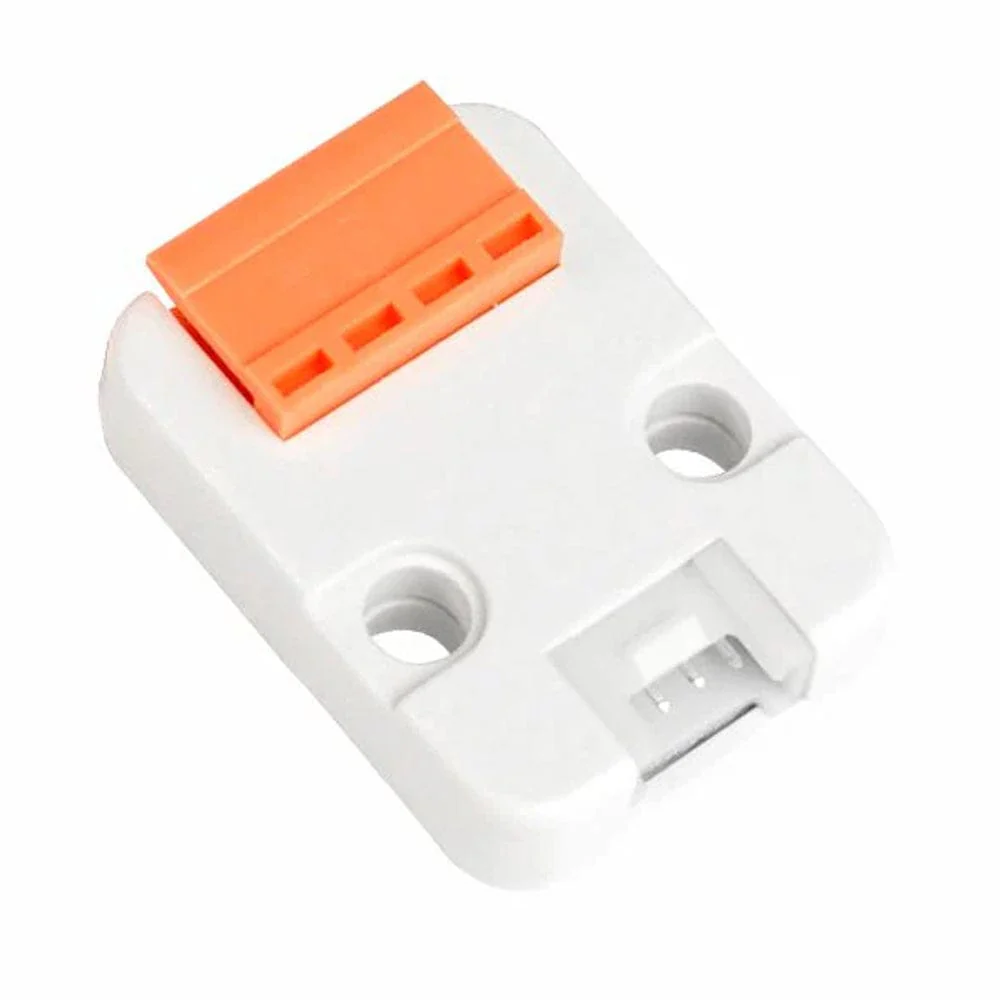

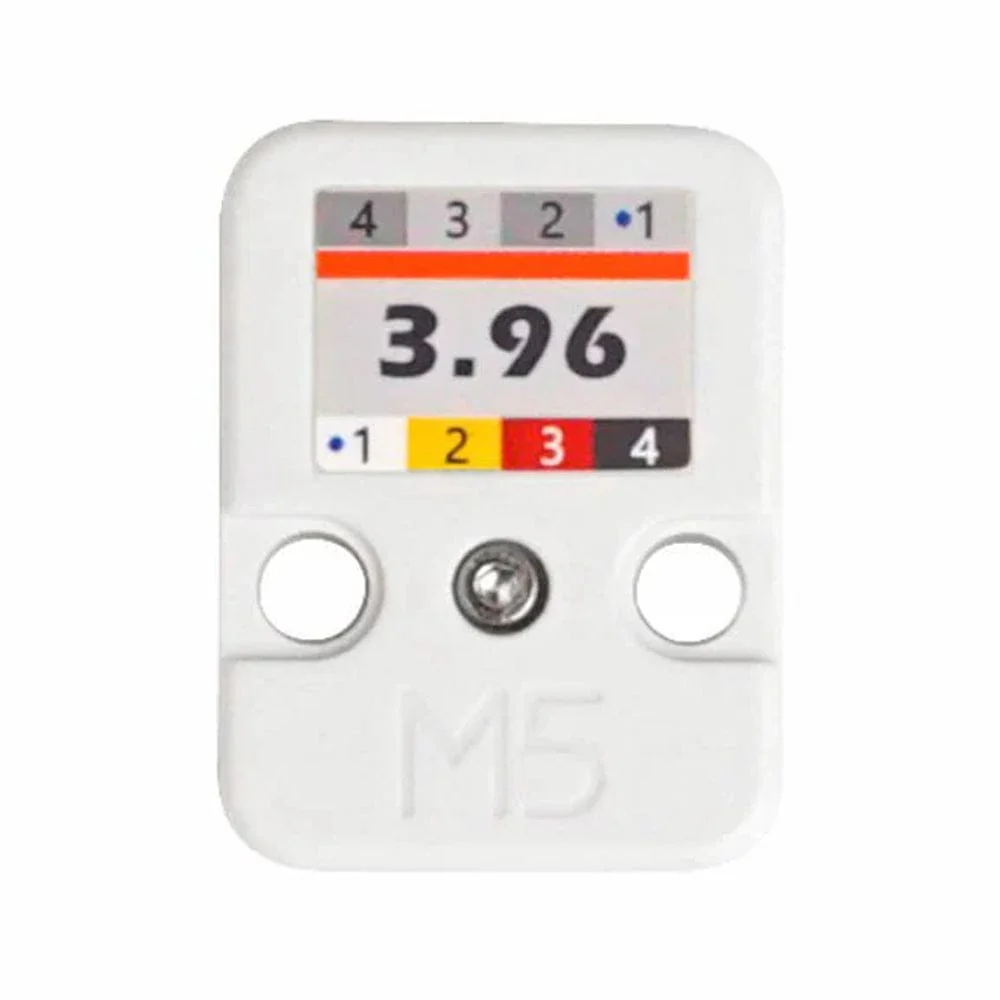

The M5Stack 3.96port is an interface converter that adapts an HY2.0-4P connector to an HT3.96 pluggable terminal. The converter provides four pins and uses the widely adopted HT3.96 standard, commonly found in pluggable terminal blocks.

With this adapter, an HY2.0-4P cable can be easily converted to a pluggable terminal connection, making it simple to attach or remove wires as needed. It’s often used in power switch socket applications, offering a convenient way to connect power and ground lines.

The 3.96port converter makes cable handling easier and provides a reliable, efficient interface solution for power-related projects.

Features

• 1x HT3.96 connector(4 pins)
• 2x LEGO compatible holes

Specifications

Resources	Parameter
Type	Pluggable terminal block (female)
PIN bit	4
Total	1 group
spacing	0.156" (3.96mm)
Pin specifications	180 ° horizontal
Installation type	Inline
Net weight	7g
Gross weight	19g

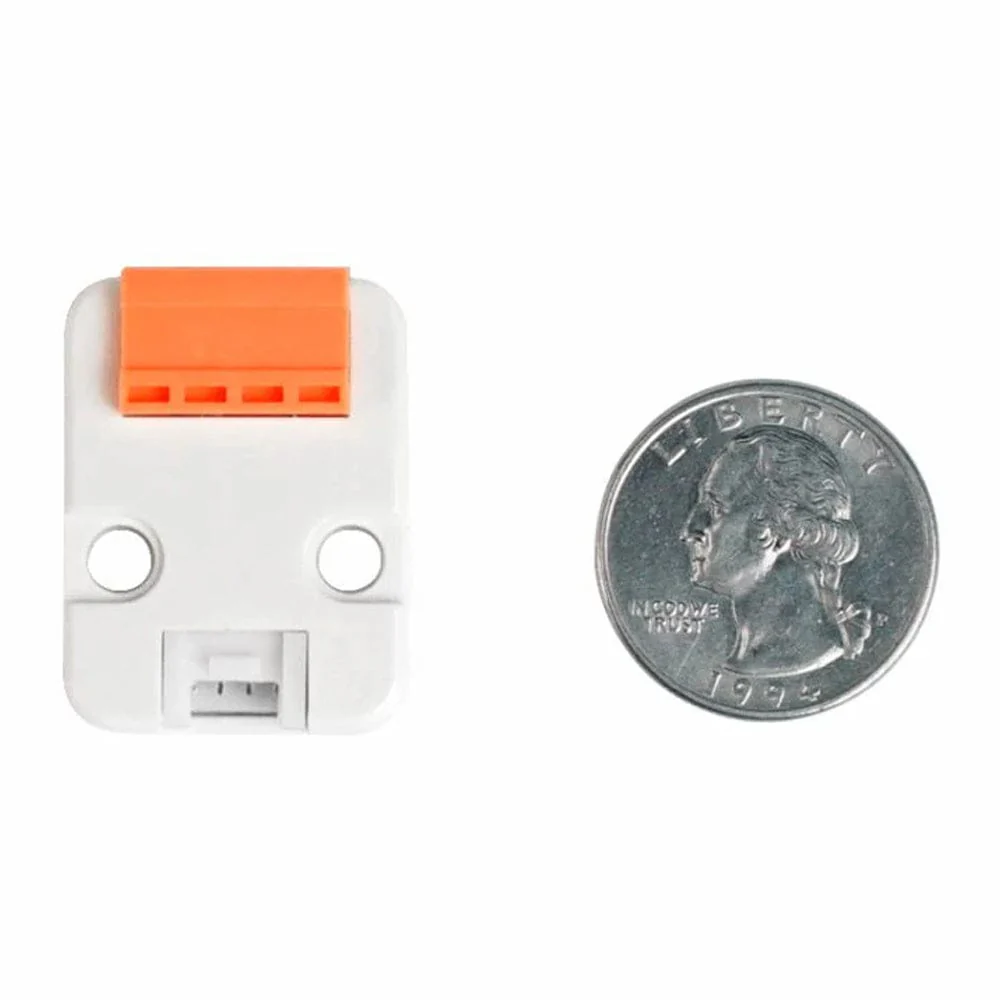

Product Size	40*24*10mm
Package Size	67*53*12mm

Resources

• Documents

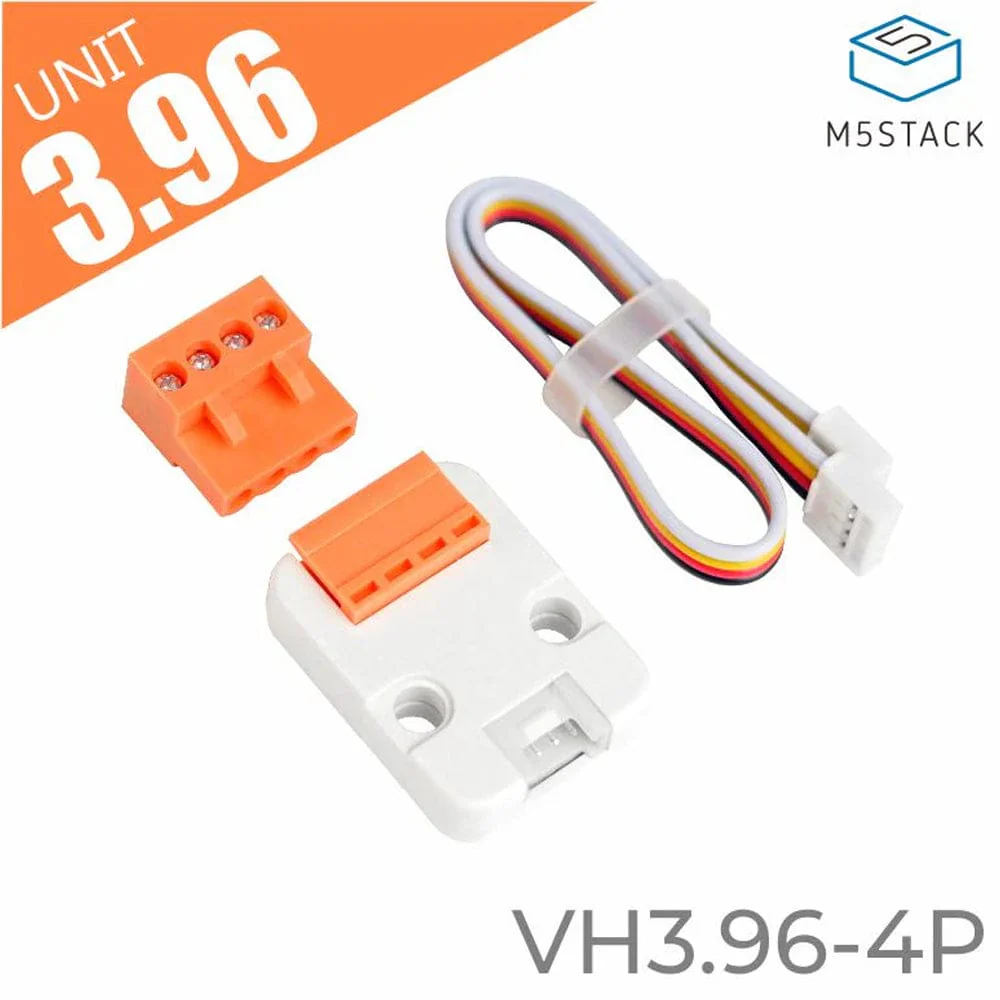

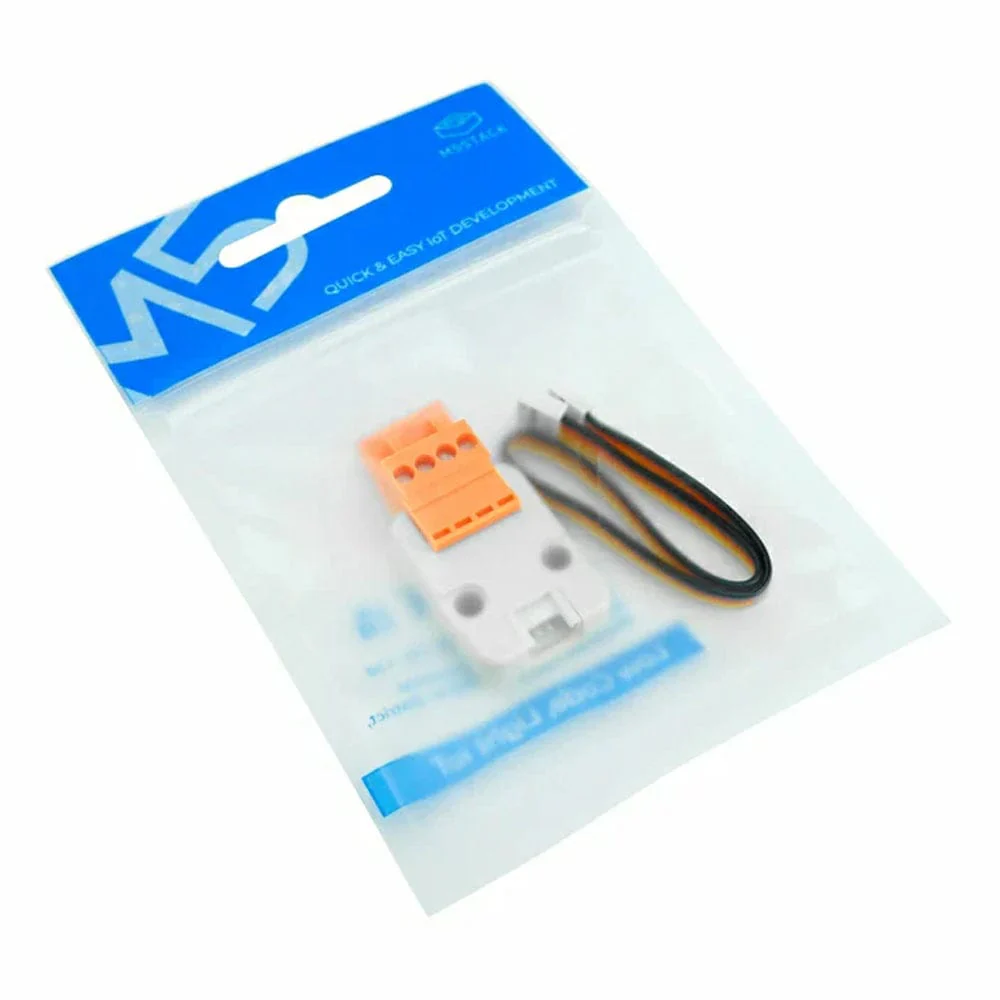

Package Contents

• 1x 396PORT Unit
• 1x Grove Cable
• 1x HT3.96 Male Socket
