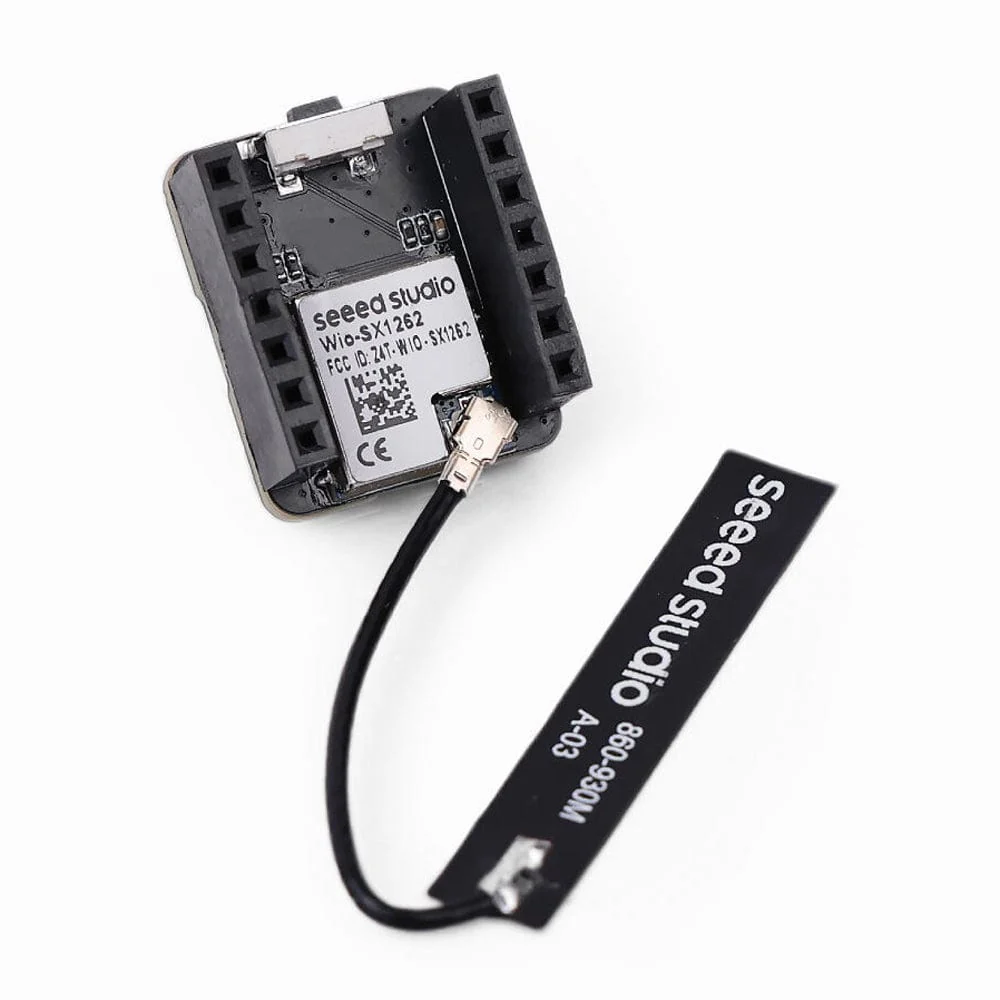

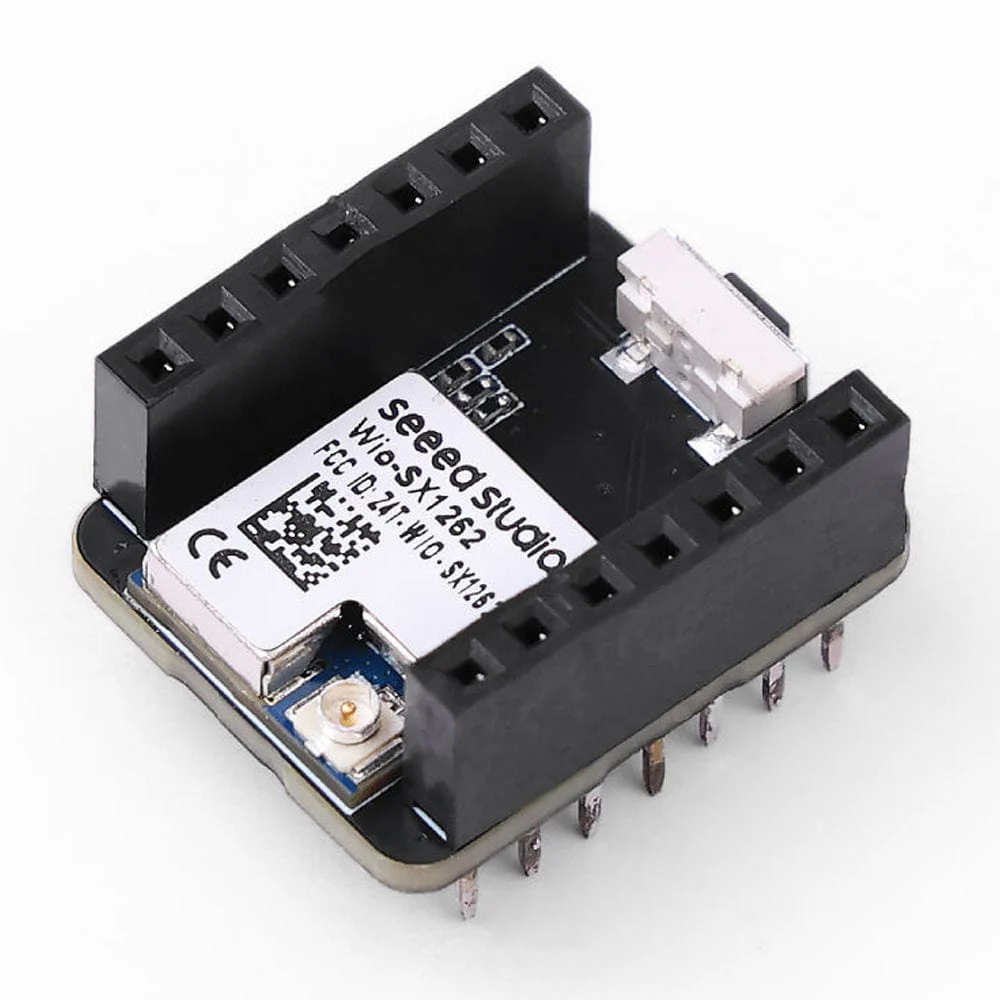

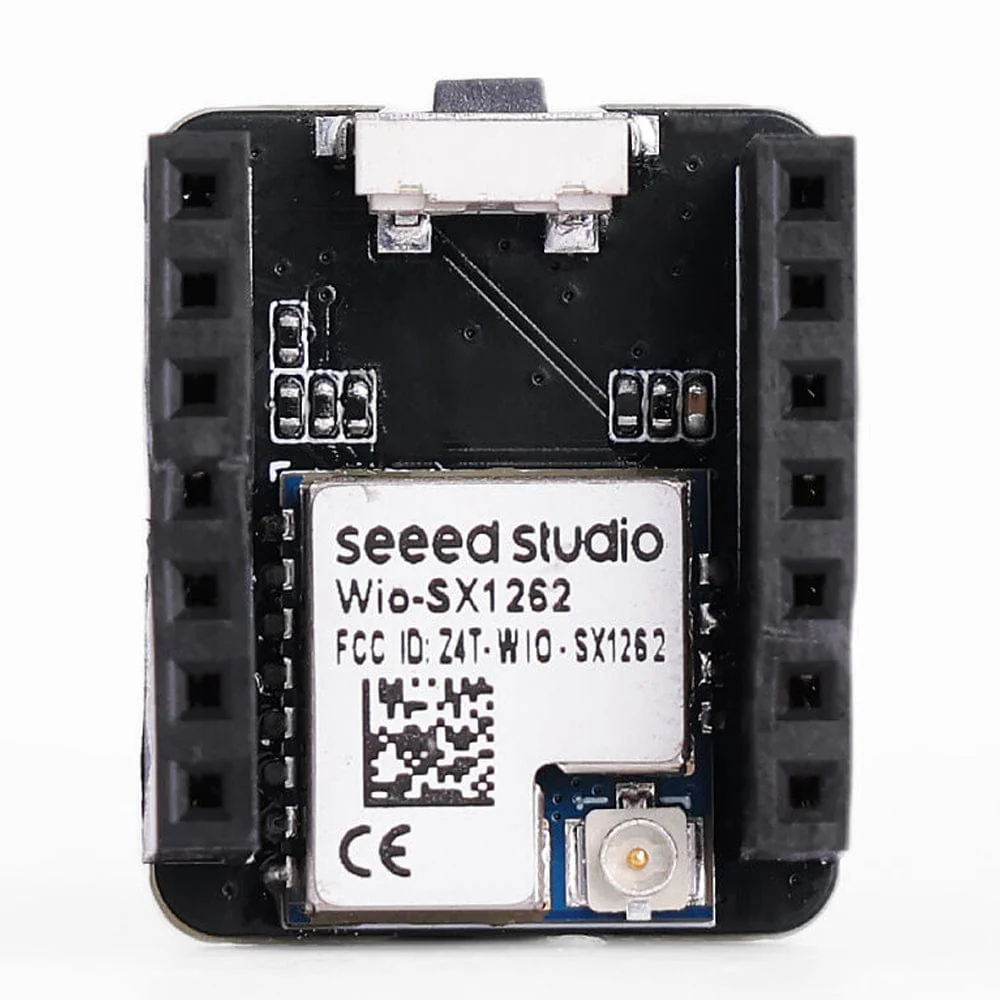

Wio-SX1262 for XIAO

The LoRa Module for XIAO is built around the Semtech SX1262 chip and supports global LoRa bands (862–930MHz). Designed for XIAO boards, it offers a compact and efficient communication solution for IoT, smart agriculture, and remote monitoring applications.

---

This is a high-performance LoRa module specifically designed for the XIAO series development boards. Based on the Semtech SX1262 chip, it supports global LoRa bands (862-930MHz).

Combined with the powerful computing capabilities of the XIAO series, it provides developers with a compact and efficient LoRa communication solution. It is suitable for applications on the Internet of Things, smart agriculture, and remote monitoring.

We also sell the XIAO nRF52840 & Wio-SX1262 Kit for Meshtastic which you can grab here.

Features

• Optimized for XIAO: Pin headers for plug-and-play compatibility with XIAO boards, no soldering needed.
• Powerful LoRa Performance: Long-range LoRa on Semtech SX1262, supports 868/915 MHz bands.
• Compact Size and Low Power Consumption: Compact, low-power design fits space-limited devices.
• Rich Development Support: Provides detailed development documentation, example code, and tutorials to help developers get started quickly.
• Versatile Applications: Delivers high-performance LoRa communication capabilities, suitable for IoT sensor networks and environmental monitoring.

Specifications

LoRa Chip	Semtech SX1262
Frequency	862-930MHz
Interface	Standard XIAO Pin Headers (compatible with XIAO series) 1xSPI (connect to XIAO) 1xUser button
Output Power	22dBm max @862-930MHz
Sleep Current	1.62 μA
Dimensions	Stacks with XIAO boards, total height 21 mm.
Supplier Code	113010003

Resources

• Schematic Diagram

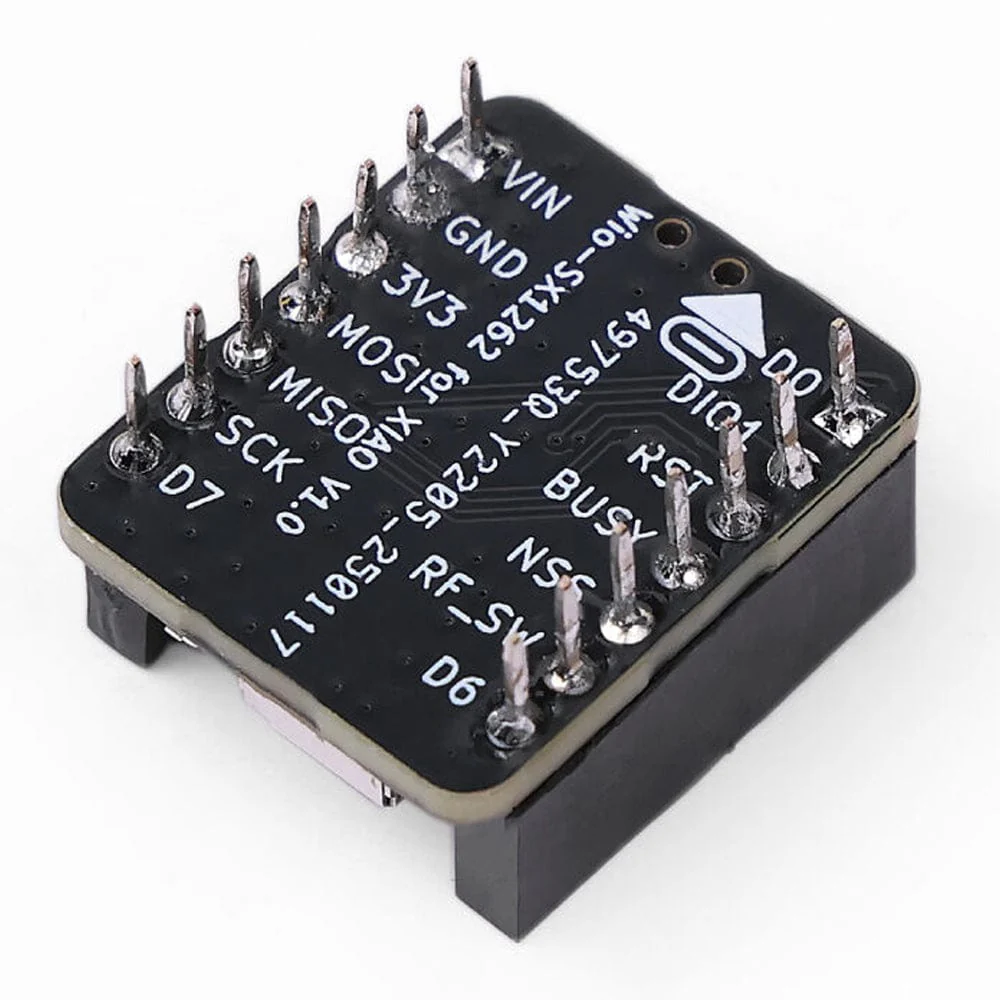

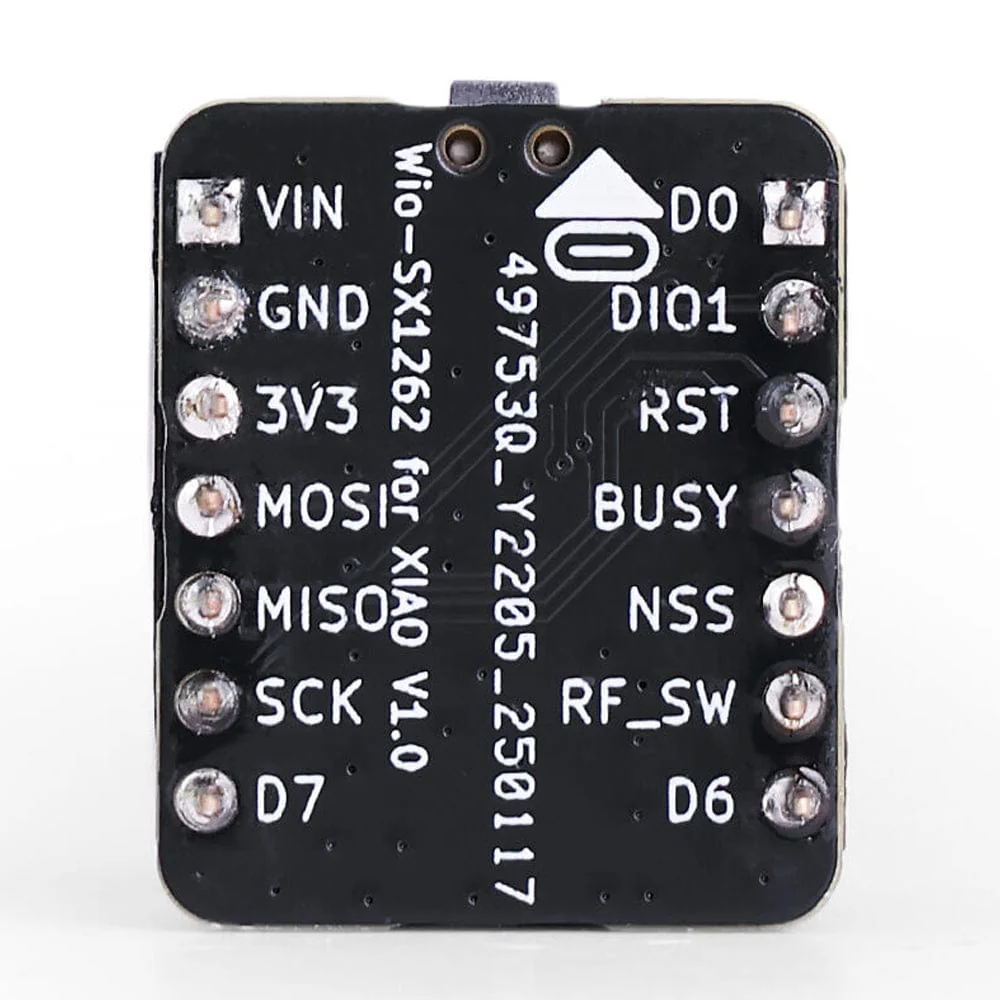

Pinout

Package Contents

• 1x Wio-SX1262 for XIAO
