Wio Tracker L1 Lite

The Seeed Wio Tracker L1 Lite is a compact, low-power Meshtastic node featuring LoRa (862–930 MHz), an nRF52840 processor, and an L76K GPS module for accurate positioning. Its minimalist design makes it ideal for embedded applications and custom development.

---

The Seeed Wio Tracker L1 Series is a low-power, scalable Meshtastic node featuring LoRa (862–930 MHz), an nRF52840 for efficient processing, and an L76K GPS for precise location tracking.

The L1 Lite version is a compact and minimalist development board — perfect for embedded integration and advanced customisation.

Features

• Pre-flashed with Meshtastic firmware
  Ready to use out of the box with pre-installed Meshtastic firmware.
• Triple power supply options
  Supports USB-C fast charging, solar input, and Li-ion battery power for flexible deployment in various environments.
• Flexible display support
  Optional 1.3" OLED and 2.13" E-Ink screens.
• High expandability
  Compatible with the Grove ecosystem, with PTH headers and an SWD debugging interface for custom hardware expansion.

Specifications

Processor	Nordic nRF52840 ARM® Cortex®-M4 with FPU, up to 64 MHz
On-chip memory	1 MB flash and 256 kB RAM
Wireless	LoRa: Based on Wio-SX1262, supports 862–930 MHz Bluetooth 5.0
GPS	L76K (GPS, BeiDou, GLONASS, QZSS)
Interface	Screen interfaces: • 1.3" OLED ×1 • 2.13" E-Ink ×1 Grove ×1: UART/I²C/GPIO Plated through hole (PTH): UART/I²C/GPIO/Analog Soldering pads reserved for SWD
Power	USB-C: 5 V / 1 A Solar interface: 5 V / 1 A Battery interface: 3.7 V / 1 A
Certification	FCC, CE, RoHS
Supplier code	114993653

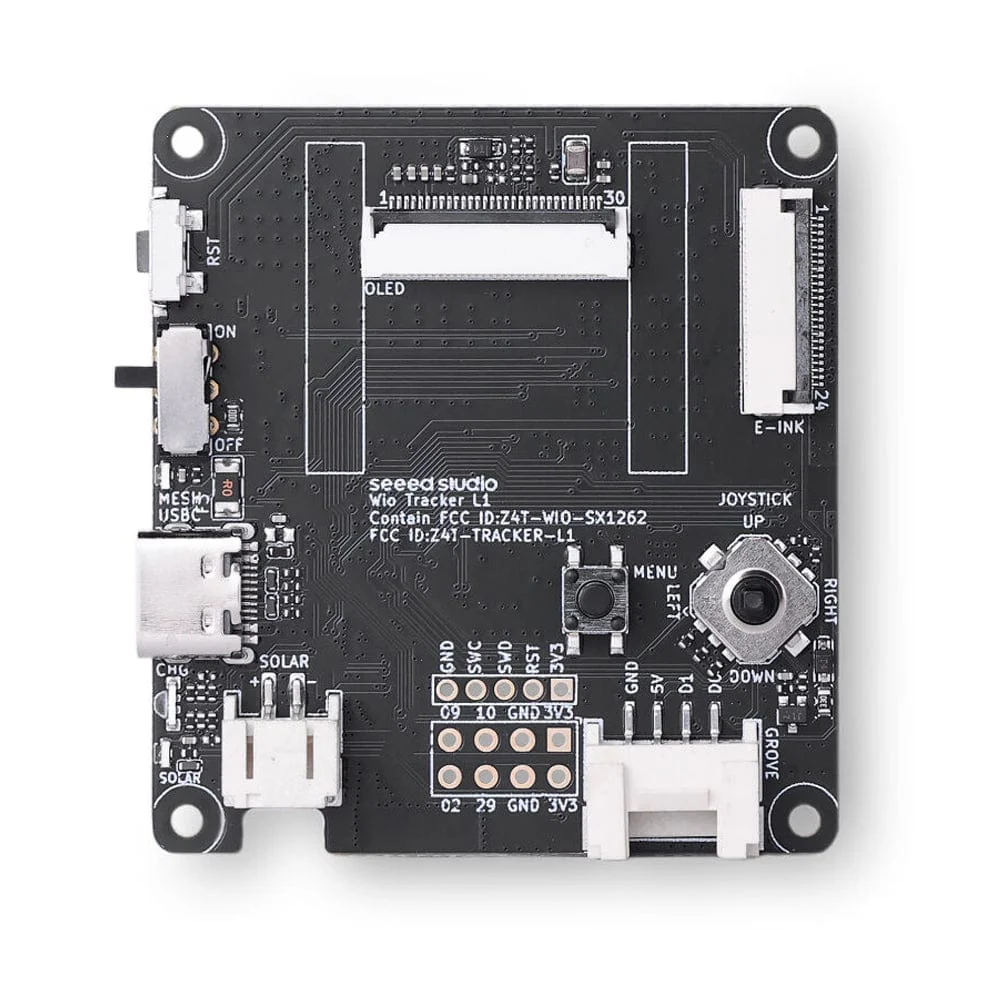

Hardware Overview

Resources

• 3D-printable shell file
• CE Certification
• FCC Certification
• Power Consumption Test and Battery Life Calculation

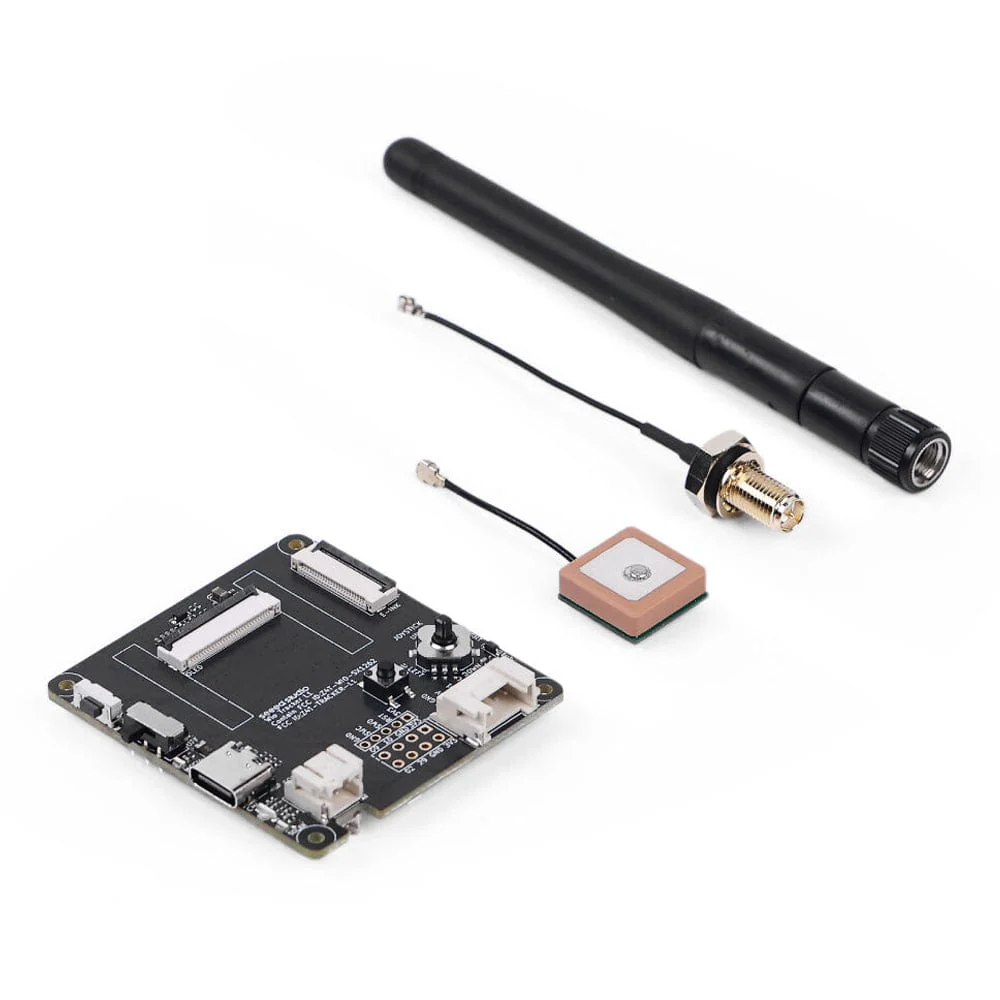

Package Contents

• 1x Wio Tracker L1 board
• 1x LoRa antenna
• 1x GPS antenna
• 1x 60 mm RF cable (RP-SMA female to IPEX)
