WIZnet W6300-EVB-Pico

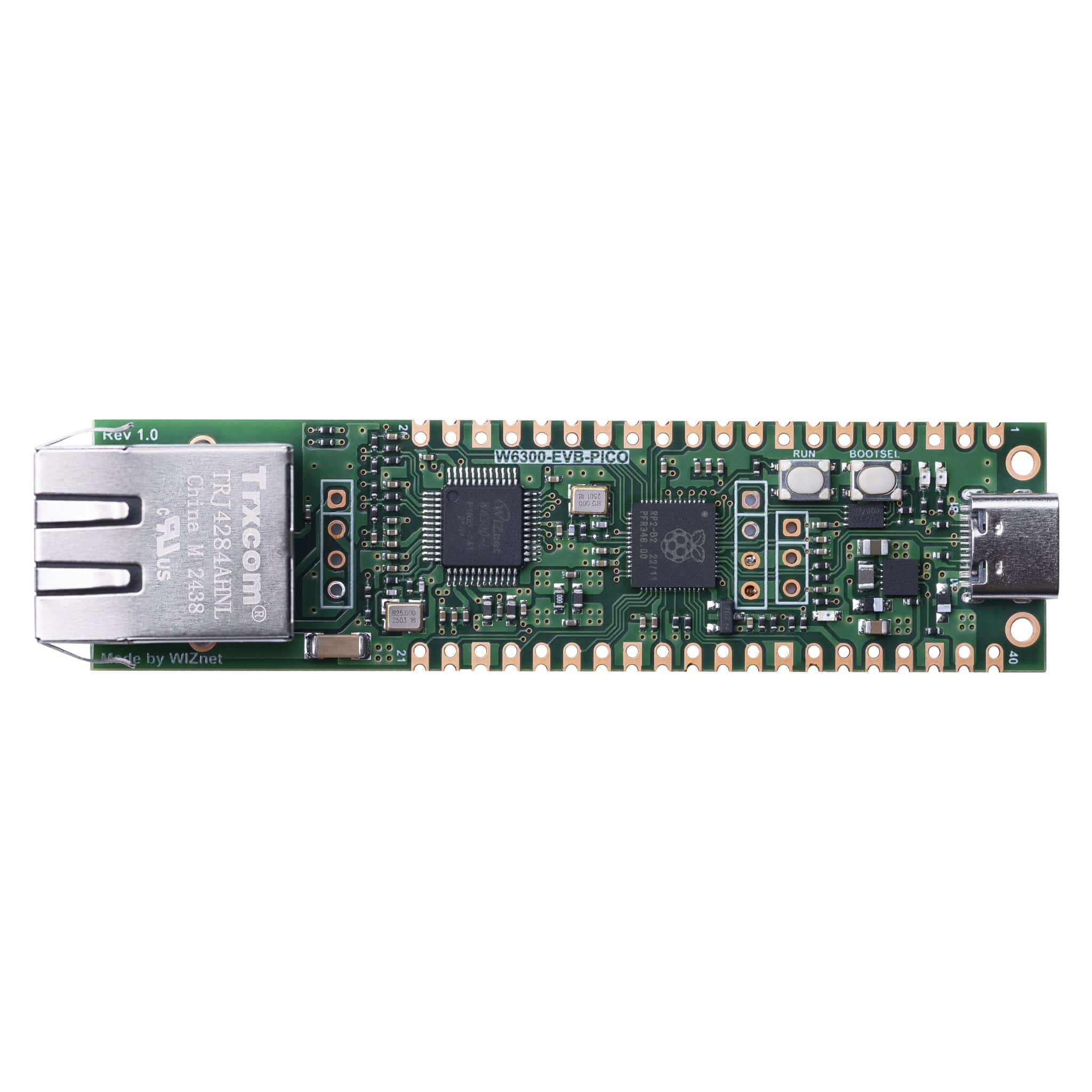

The WIZnet W6300‑EVB‑Pico is an RP2040-based, Pico–compatible development board featuring the WIZnet W6300 hardwired TCP/IP Ethernet controller - it essentially works the same as Raspberry Pi Pico board, but with USB-C and the addition of Ethernet via a W6300 chip and Ethernet port.

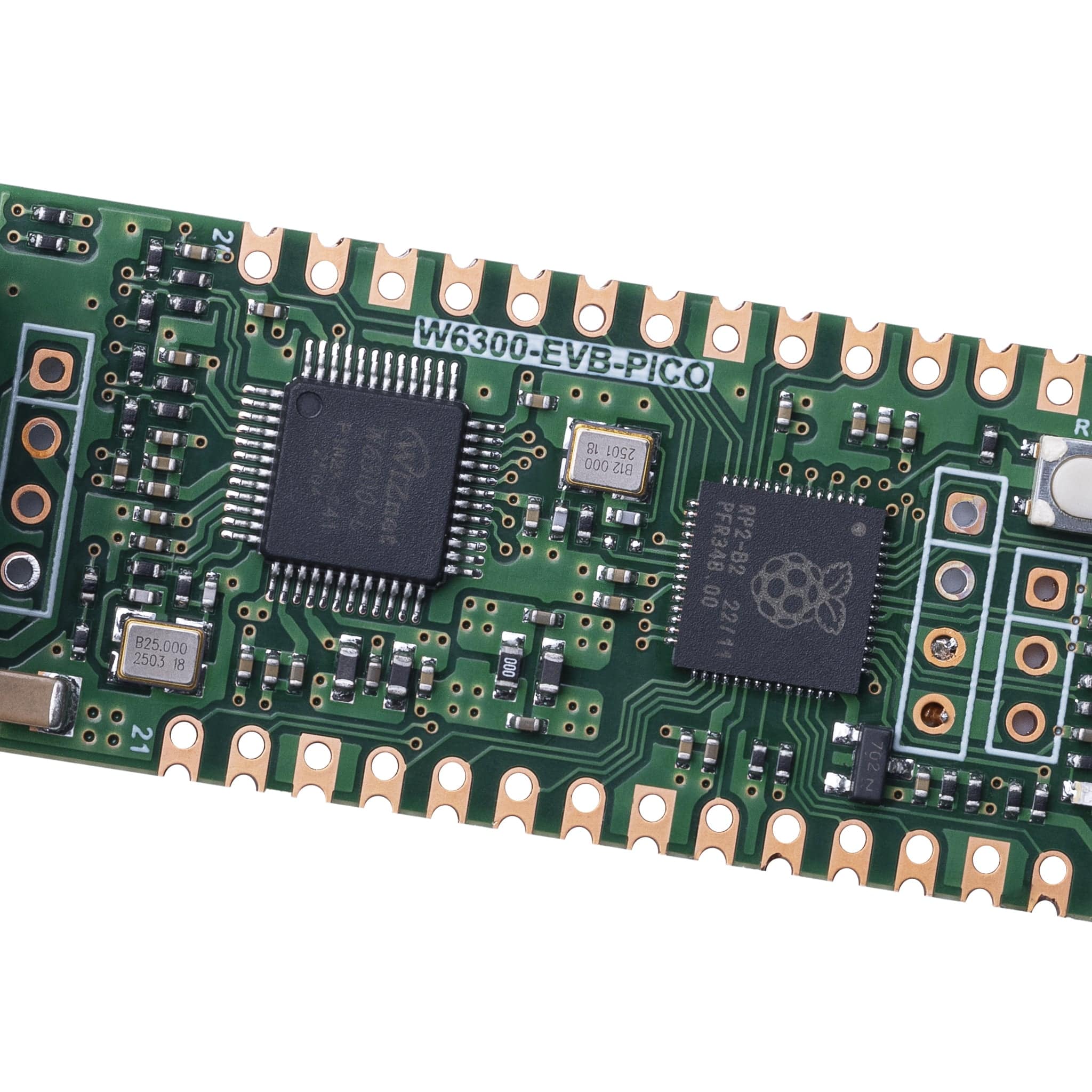

The W6300 supports hardwired Internet protocols such as TCP, UDP, IPv6/IPv4, ICMPv6/ICMPv4, IGMP, MLDv1, ARP and PPPoE, offering eight independent simultaneous sockets with 32KB memory, 16KB of internal TX/RX buffer memory, and an SPI interface.

We also offer an RP2350-based version in the store, along with the rest of the WIZnet range.

Features

• RP2040 microcontroller with 2MByte Flash
  • Dual-core cortex M0+ at up to 133MHz
  • 264kByte multi-bank high performance SRAM
  • External Quad-SPI Flash with eXecute In Place (XIP)
  • High performance full-crossbar bus fabric
  • 30 multi-function General Purpose IO (4 can be used for ADC)
    • 1.8-3.3V IO Voltage (NOTE. Pico IO voltage is fixed at 3.3V)
  • 12-bit 500ksps Analogue to Digital Converter (ADC)
  • Various digital peripherals
    • 2 × UART, 2 × I2C, 2 × SPI, 16 × PWM channels
    • 1 × Timer with 4 alarms, 1 × Real Time Counter
  • 2 × Programmable IO (PIO) blocks, 8 state machines total
  • Flexible, user-programmable high-speed IO
  • Can emulate interfaces such as SD Card and VGA
• Includes W6100
  • Supports Hardwired Internet Protocols: TCP, UDP, IPv6, IPv4, ICMPv6, ICMPv4, IGMP, MLDv1, ARP, PPPoE
  • Supports 8 independent sockets simultaneously with 32KB memory
  • Internal 16 Kbytes Memory for TX/ RX Buffers
  • SPI Interface

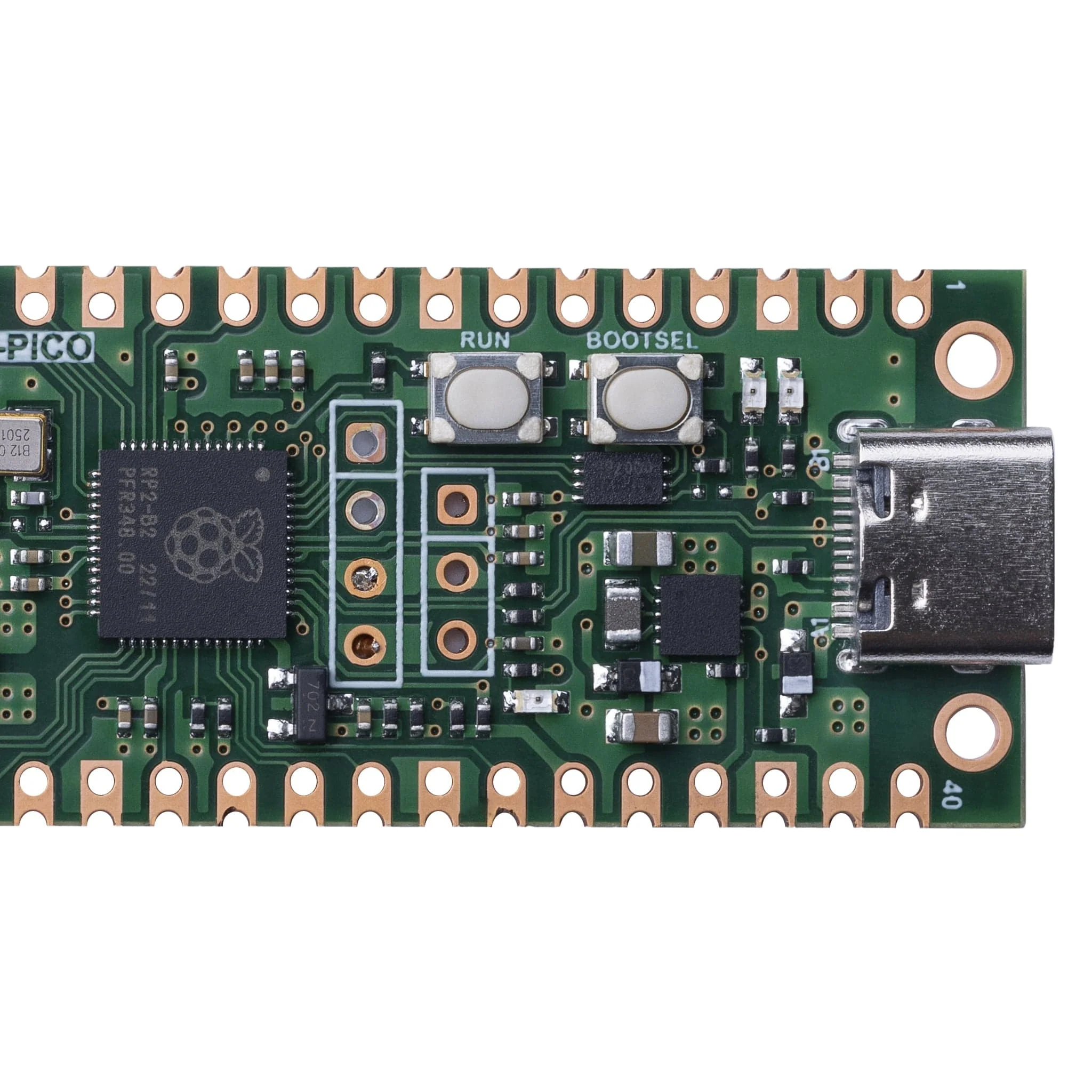

• USB-C port for power and data (and for reprogramming the Flash)
• 40 pin 21x51 'DIP' style 1mm thick PCB with 0.1" through-hole pins also with edge castellation
• 3-pin ARM Serial Wire Debug (SWD) port
• 10 / 100 Ethernet PHY embedded
• Supports Auto Negotiation
  • Full / Half Duplex
  • 10 / 100 Based

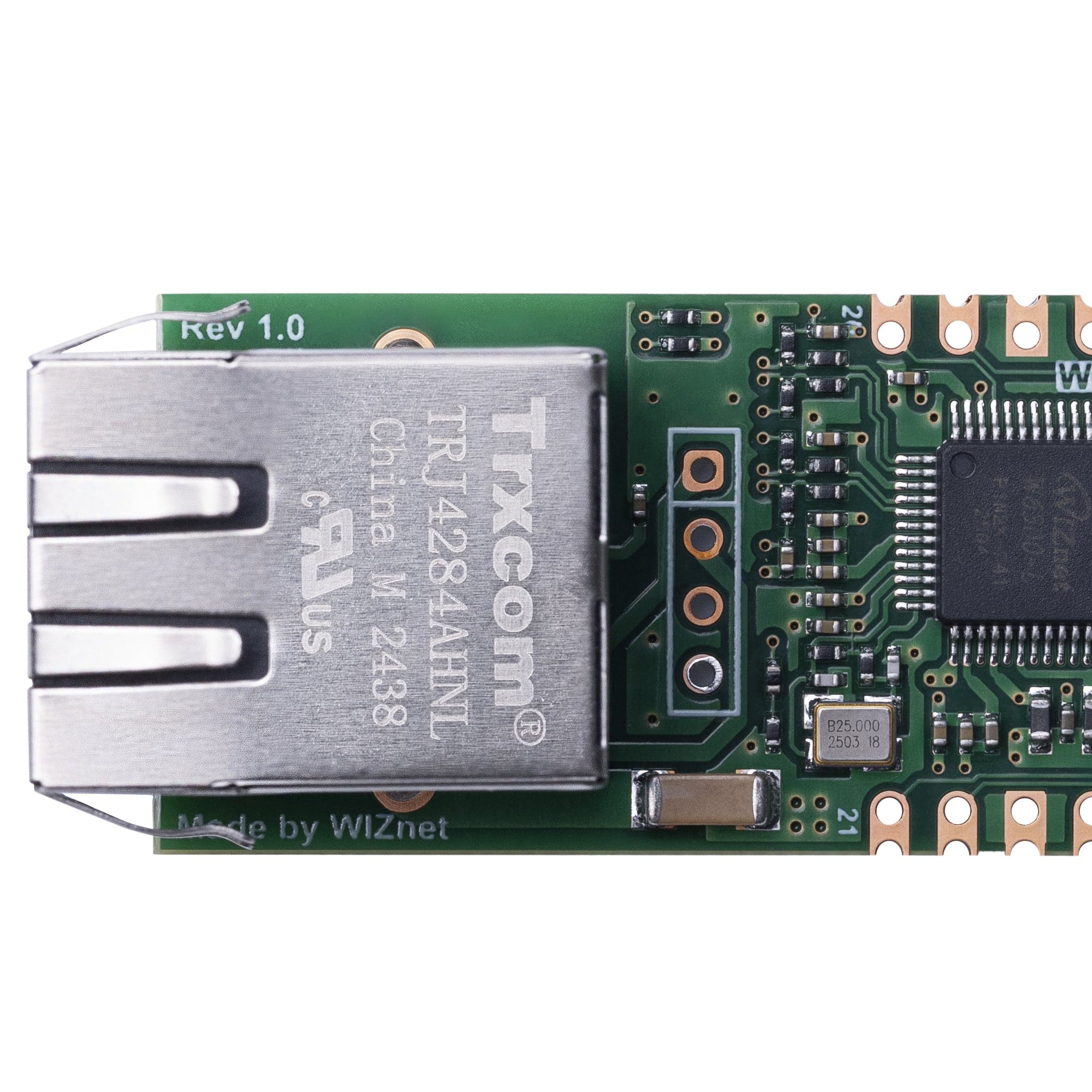

• Built-in RJ45(RB1-125BAG1A)
• Built-in LDO (LM8805SF5-33V)

Resources

• Documentation
• Pinout
• Schematic
• 3D File
• Dimensions
• W6300 Datasheet

Firmware examples

• Ethernet Examples
• FreeRTOS Examples
• AWS Examples
• Azure Examples
• Chip Performance(iperf3) Examples

Package Contents

• 1x WIZnet W6300-EVB-Pico
