Anavi Macro Pad 12

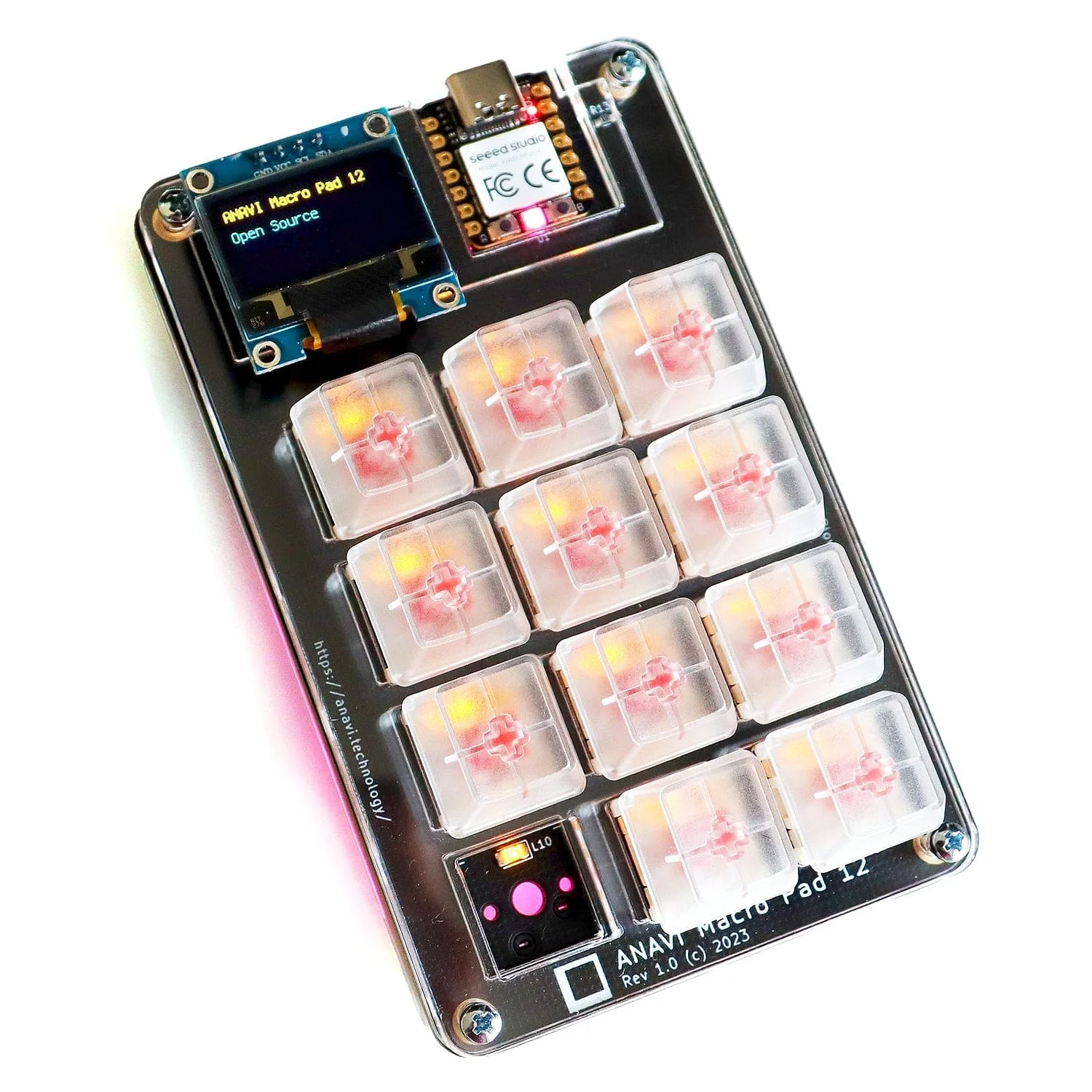

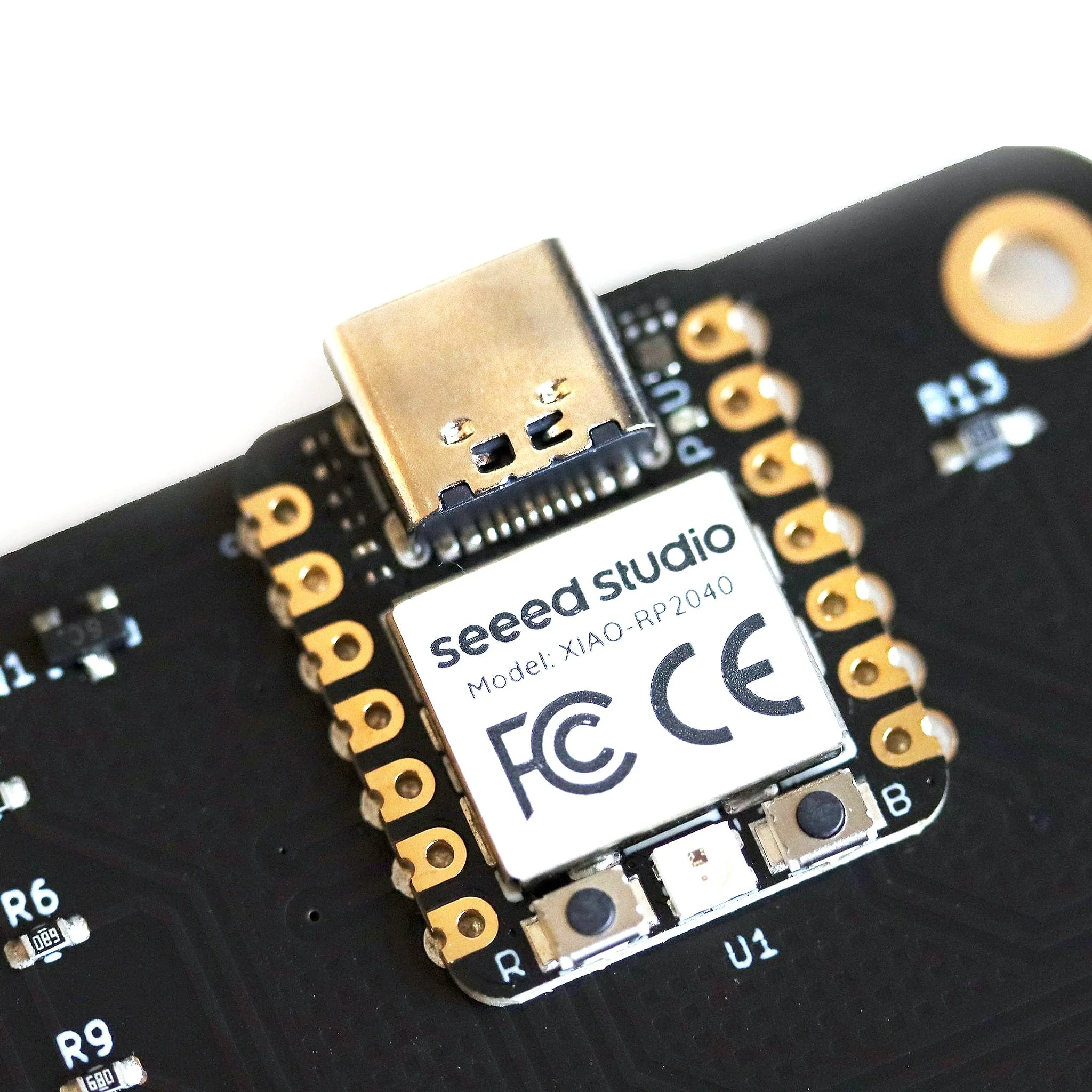

The Anavi Macro Pad 12 is an open source hardware mini programmable mechanical keypad (macropad) with a Seeed XIAO RP2040 onboard.

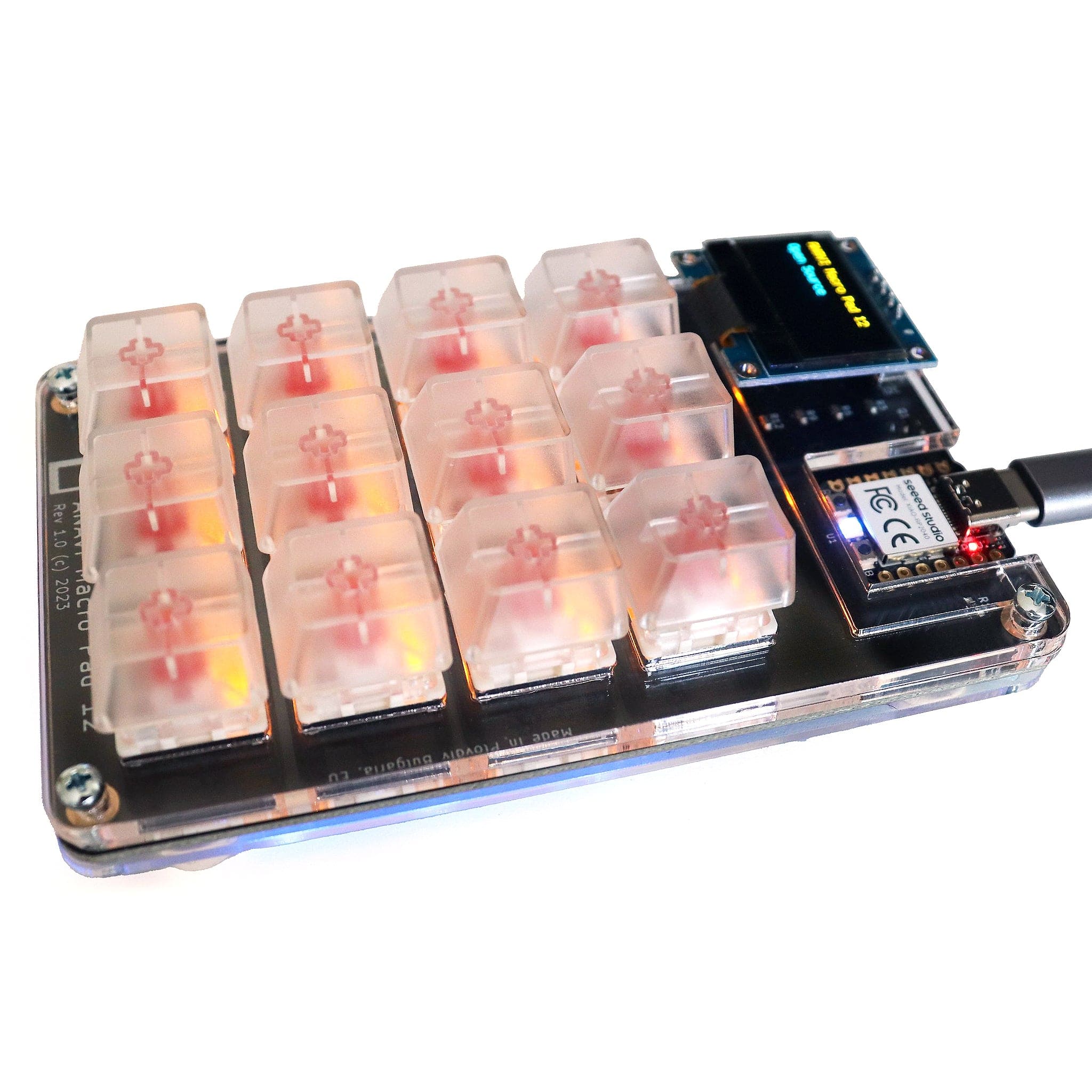

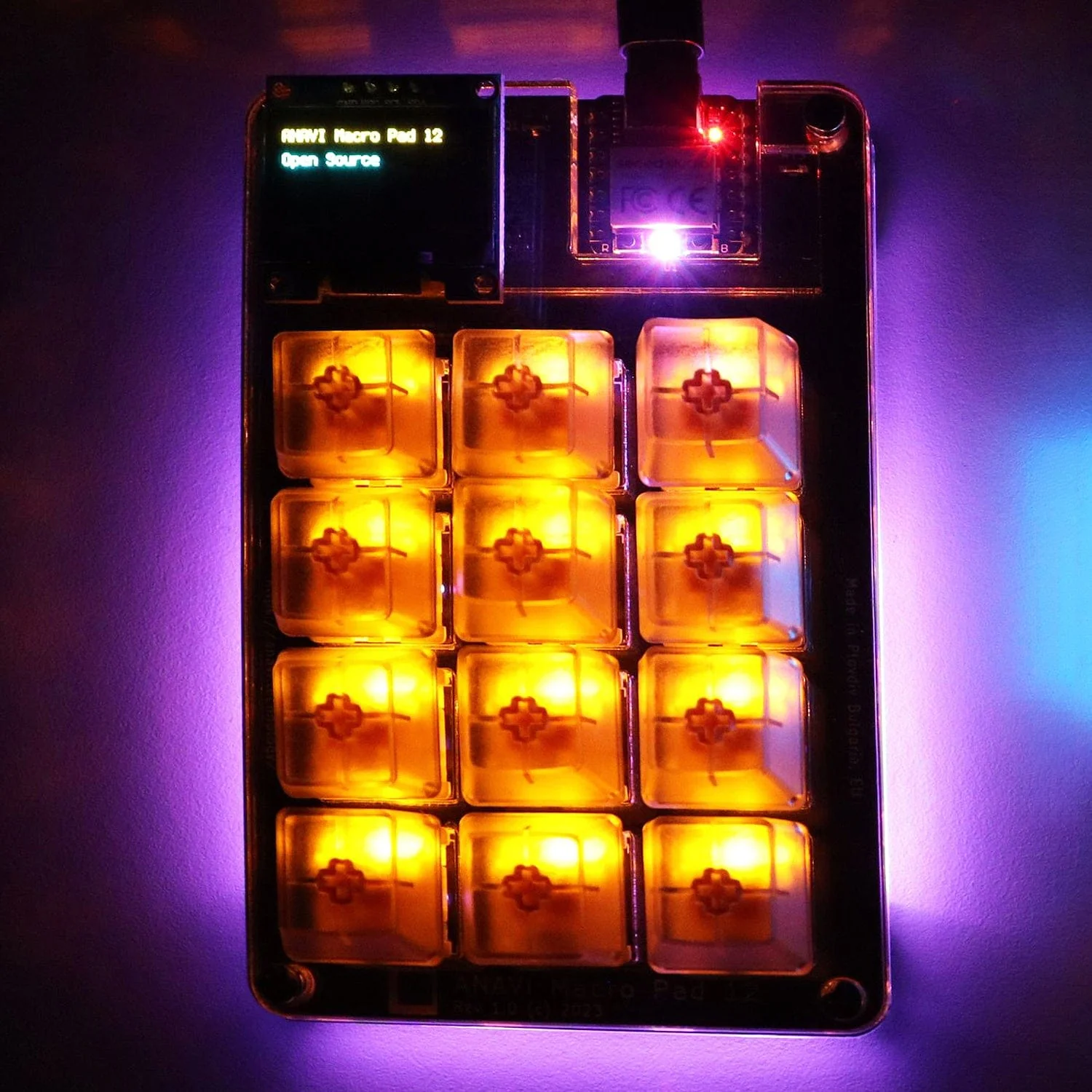

It offers twelve hot-swappable Gateron red mechanical switches with translucent keycaps, a mini yellow-blue OLED display, yellow backlighting under each key, an RGB LED on the front and six WS2812B LEDs for under-lighting.

The hot-swappable sockets allow you to change the mechanical switches easily, with no soldering/de-soldering required.

The Macro Pad 12 can be customised to fit multiple use cases across various industries: video or audio editing, video conferencing software, entertainment broadcasting, product and graphic design, gaming, engineering, programming, etc. It boosts your daily productivity by providing amazing level of control with gorgeous light effects on your fingertips!

You will need a USB-C cable (not included) to use this product (along with a PC for programming). We also stock the Anavi Macro Pad 10 and Macro Pad 8!

This is a kit and requires assembly. No soldering is required.

Features

• Keys: Twelve Gateron red, linear, non-clicky hot-swap mechanical switches and transparent keycaps with yellow LED backlighting
• Peripherals: RGB LED on top, six WS2812B addressable LED strip for bottom-lighting, I²C slot for mini OLED display or other peripherals
• MCU: Raspberry Pi RP2040
• Connectivity: USB-C
• Firmware: KMK firmware
• Compatibility: Windows, macOS, and Linux support
• Dimensions: 73mm x 116.7mm

Resources

• User Manual
• Open Source KMK Firmware
• Open Source QMK Firmware

Package Contents

This product is sold as a build-yourself kit, including the following parts:

• 1x Macro Pad 12 PCB (XIAO pre-soldered)
• 2x Acrylic Layers
• 12x Gateron red mechanical switches
• 12x Keycaps
• 1x Mini OLED display
• 8x Soft feet
• 1x Keycap sticker set
• 1x Fixings set
