The Story

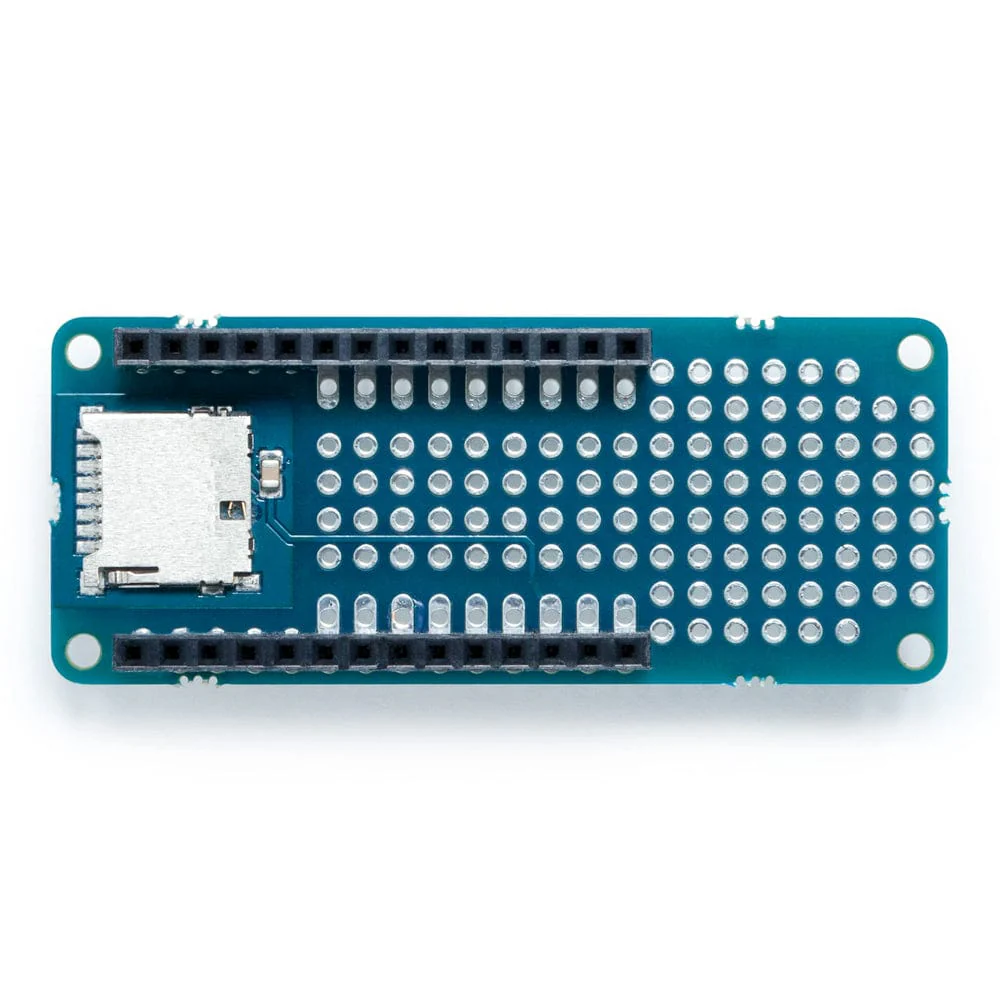

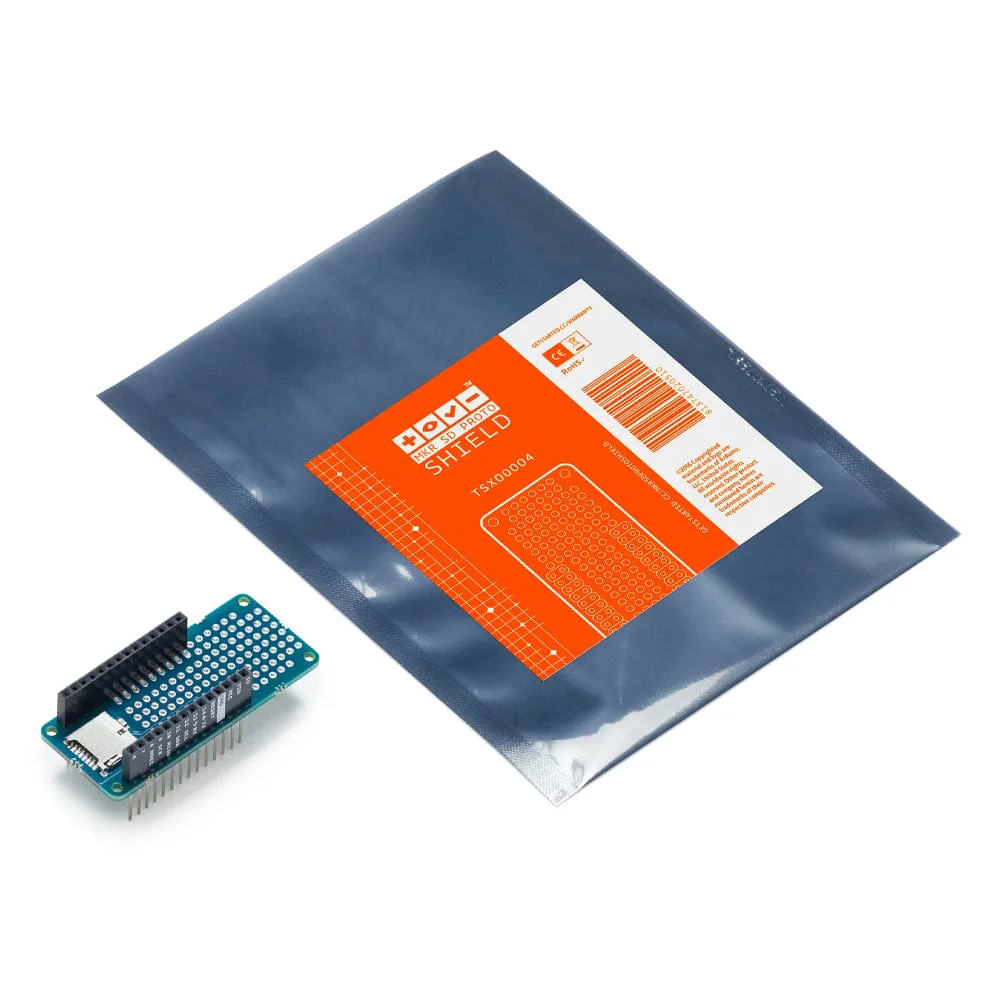

Add an SD slot and prototyping area in a single shield. The Arduino MKR SD Proto Shield allows you to easily connect a MicroSD card to your MKR form factor board.
Use it to enhance the IoT features of your MKR1000, as well as store data coming from the web or sensors read by your board! There's also a small prototyping area for soldering components.
Specifications
| Digital I/O Pins | 21 |
| PWM Digital I/O Pins | Depending on the board |
| Analog Input Pins | 7 |
| Analog Output Pins | Depending on the board |
| DC Current per I/O Pin | Depending on the board |
| DC Current for 3.3V Pin | Depending on the board |
| DC Current for 5V Pin | Depending on the board |
| Lenght | 61.5 mm |
| Width | 25 mm |
| Weight | 13 gr. |
Resources
- Getting Started
- Documents
- Schematics
- Eagle Files
