Gravity: Nano I/O Shield for Arduino Nano

The Arduino Nano I/O Sensor Shield acts as an expansion board for the Arduino Nano and DFRduino Nano microcontrollers. There are several different options for power input. The form factor of the Nano I/O Shield board is the same as the Arduino UNO/Arduino Leonardo. In addition, the sensor shield adopts the Gravity interface that each pinout includes 5V and GND pins for easy connection to Gravity sensors or servos.

For the best compatibility, the shield also supports jumper wires for rapid prototyping.

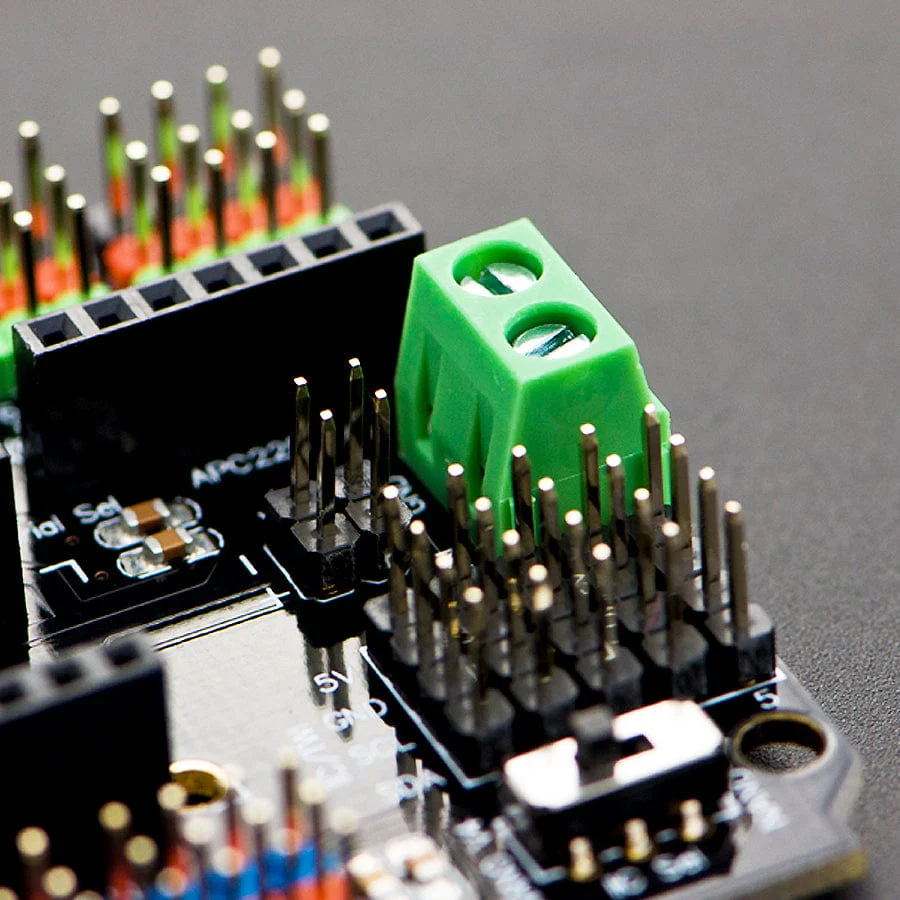

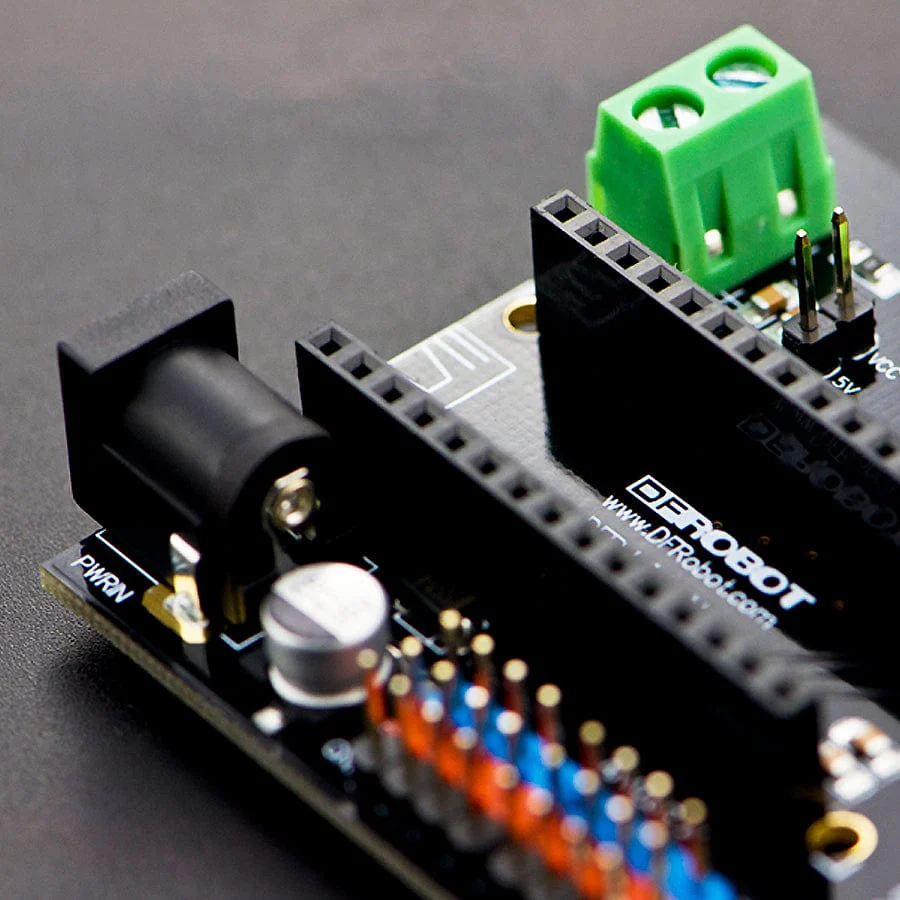

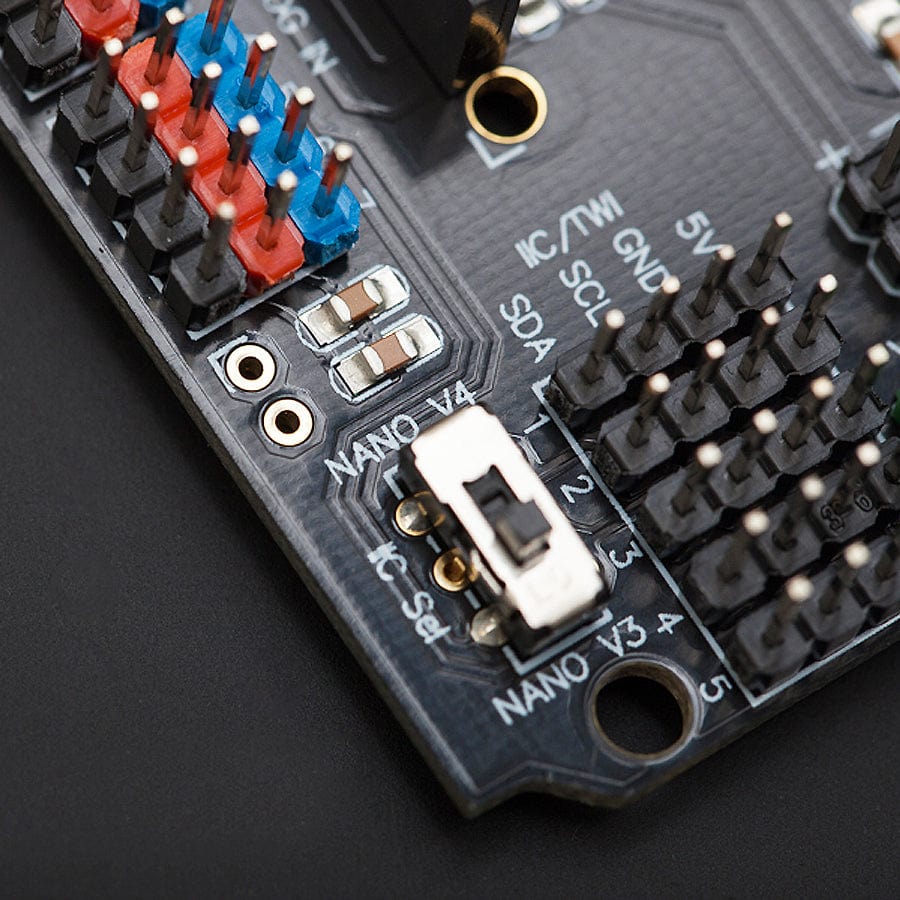

This unit comes fully assembled. The board also has a space specifically for the DFRobot Bluetooth module and ACP220. Several I2C pins are also expanded. The shield also has an independent power supply to provide extra power for servo and other sensors.

• Power supply: +5 V
• Size: 69 x 54mm

• Product Wiki
• Nano shield V1.1 Schematic

• 1x Nano I/O Shield for Arduino Nano
