$13.07

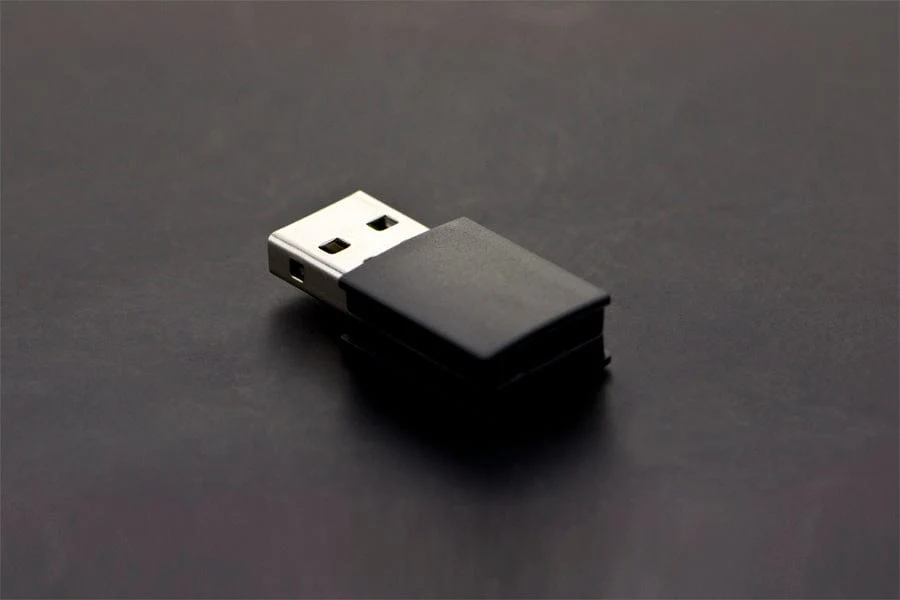

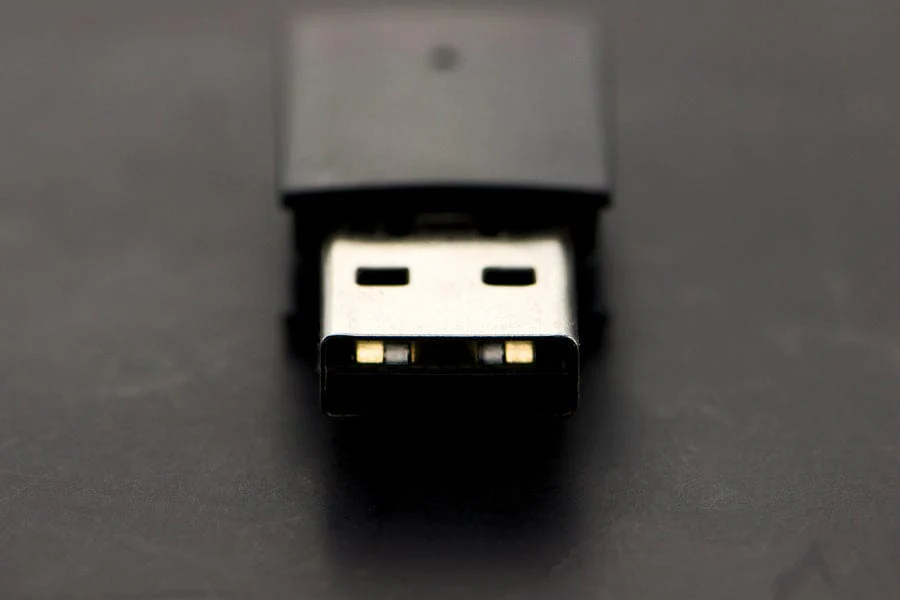

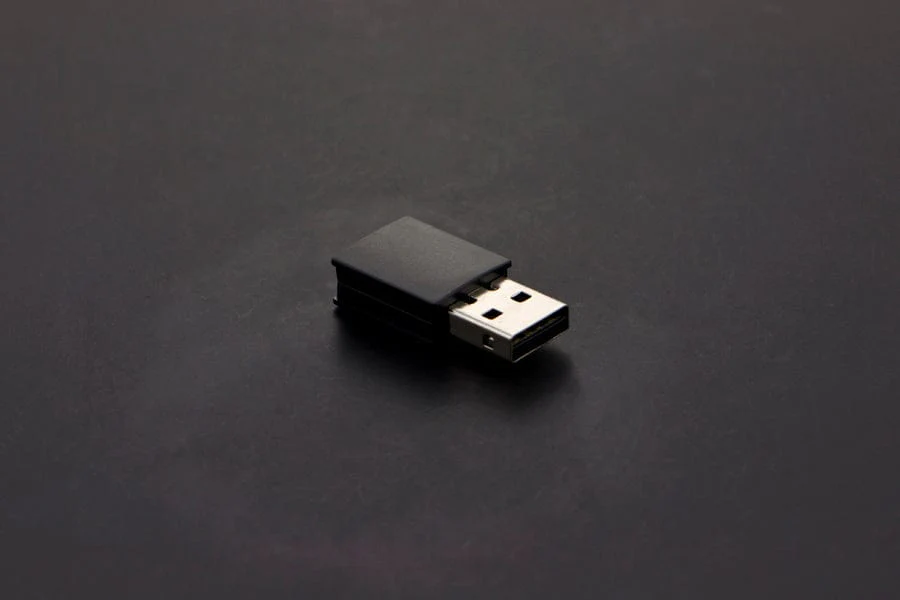

Bluno Link - USB Bluetooth 4.0 (BLE) Dongleโ
$13.07
The Story
Add Bluetooth 4.0 to your PC, Mac directly with this USB BLE-Link. It uses the USB package which is compact and compatible with v2.1 and earlier, and also supports the latest v4.0/Bluetooth Low Energy. Now you could use this adapter to receive/transmit data.
With two USB-BLE Link users can do point-to-point wireless transparent transmission, master-slave machine setting, and wireless programming. It can also work as a PC BLE wireless programming adapter.
With two USB-BLE Link users can do point-to-point wireless transparent transmission, master-slave machine setting, and wireless programming. It can also work as a PC BLE wireless programming adapter.
Compatible all DFRobot BLE series modules: i.e.ย Bluno - An Arduino Bluetooth 4.0 (BLE) Board, Romeo BLE (Arduino Robot Control Board with Bluetooth 4.0), etc
Specification
- Bluetooth chip: TI CC2540
- Frequency: 2.4GHz
- Pin Layout: Compatible with Xbee pinout
- Transfer rate: โค1Mbps
- Modulation: GFSK, Bluetooth low power, V4.0
- Sensitivity: -93dB
- Input Voltage: +3.3 DC
- Operating temperature๏ผ -10 โ ~ +85 โ
- Transmission distance: 5~15m in free space
- Size: 32mm * 16mm(1.26"*0.63")
- support AT command to debug the BLE
- support master-salve switch
- support transparent transmission serial port
- support Bluetooth remote update the Arduino program
Documents
- Wiki (Bluno Link - A USB Bluetooth 4.0 (BLE) Dongle)
Shipping List
- 1x USB BLE-LINK
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Add Bluetooth 4.0 to your PC, Mac directly with this USB BLE-Link. It uses the USB package which is compact and compatible with v2.1 and earlier, and also supports the latest v4.0/Bluetooth Low Energy. Now you could use this adapter to receive/transmit data.
With two USB-BLE Link users can do point-to-point wireless transparent transmission, master-slave machine setting, and wireless programming. It can also work as a PC BLE wireless programming adapter.
With two USB-BLE Link users can do point-to-point wireless transparent transmission, master-slave machine setting, and wireless programming. It can also work as a PC BLE wireless programming adapter.
Compatible all DFRobot BLE series modules: i.e.ย Bluno - An Arduino Bluetooth 4.0 (BLE) Board, Romeo BLE (Arduino Robot Control Board with Bluetooth 4.0), etc
Specification
- Bluetooth chip: TI CC2540
- Frequency: 2.4GHz
- Pin Layout: Compatible with Xbee pinout
- Transfer rate: โค1Mbps
- Modulation: GFSK, Bluetooth low power, V4.0
- Sensitivity: -93dB
- Input Voltage: +3.3 DC
- Operating temperature๏ผ -10 โ ~ +85 โ
- Transmission distance: 5~15m in free space
- Size: 32mm * 16mm(1.26"*0.63")
- support AT command to debug the BLE
- support master-salve switch
- support transparent transmission serial port
- support Bluetooth remote update the Arduino program
Documents
- Wiki (Bluno Link - A USB Bluetooth 4.0 (BLE) Dongle)
Shipping List
- 1x USB BLE-LINK
