General-Purpose Flanged Project Enclosure - 78x57x43mm

We now stock a new range of general-purpose project enclosures from Camdenboss, offering you a wide range of sizes and styles to fit your project.

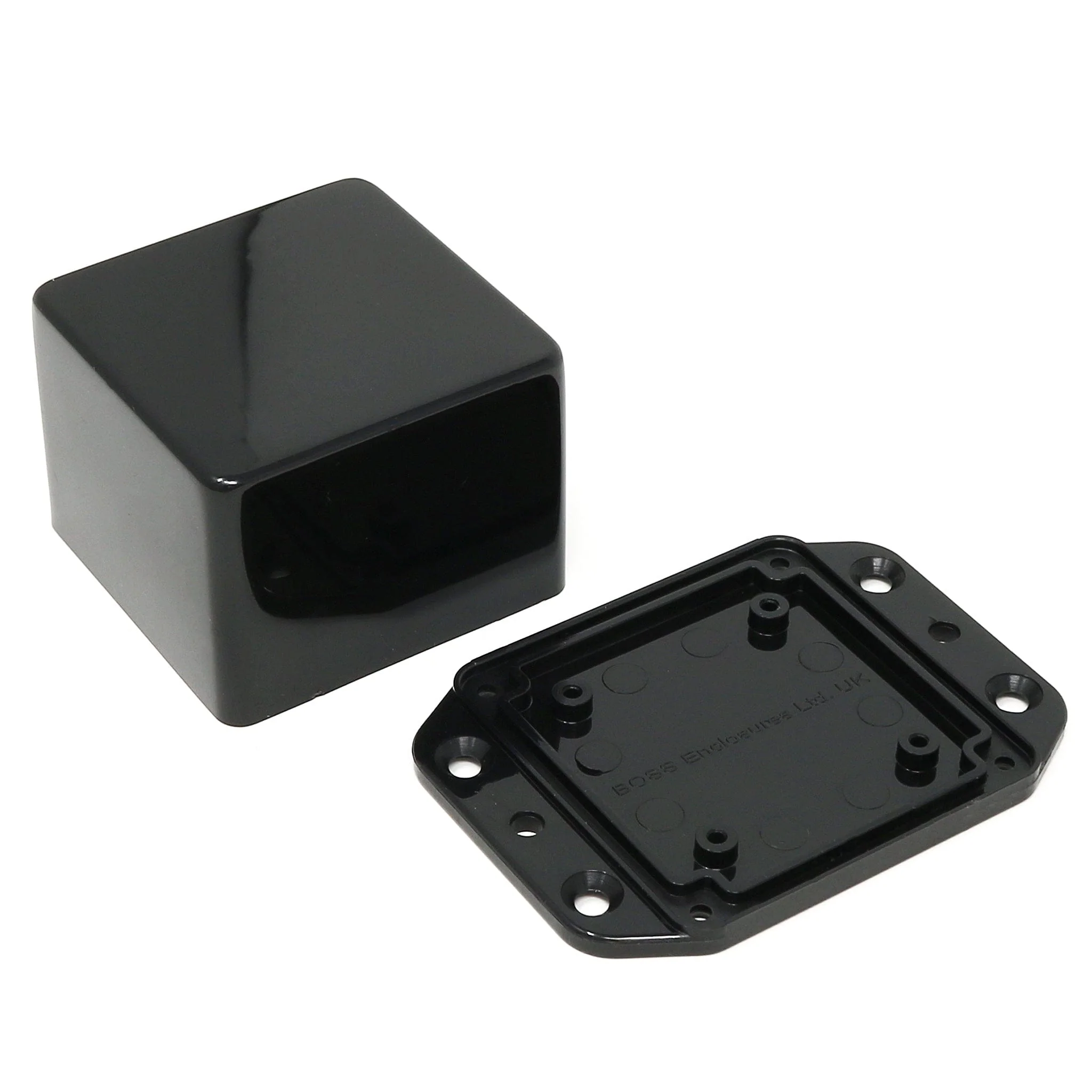

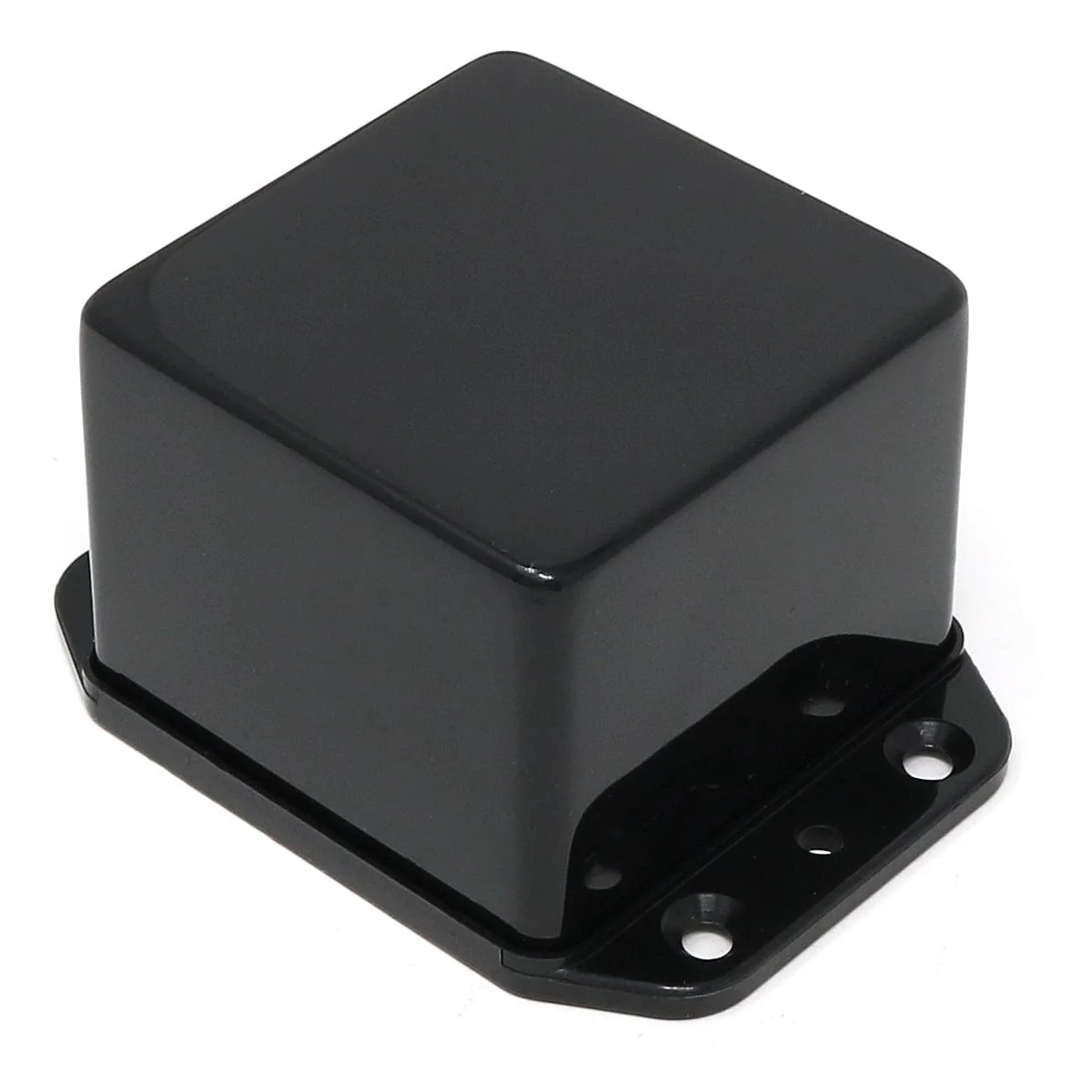

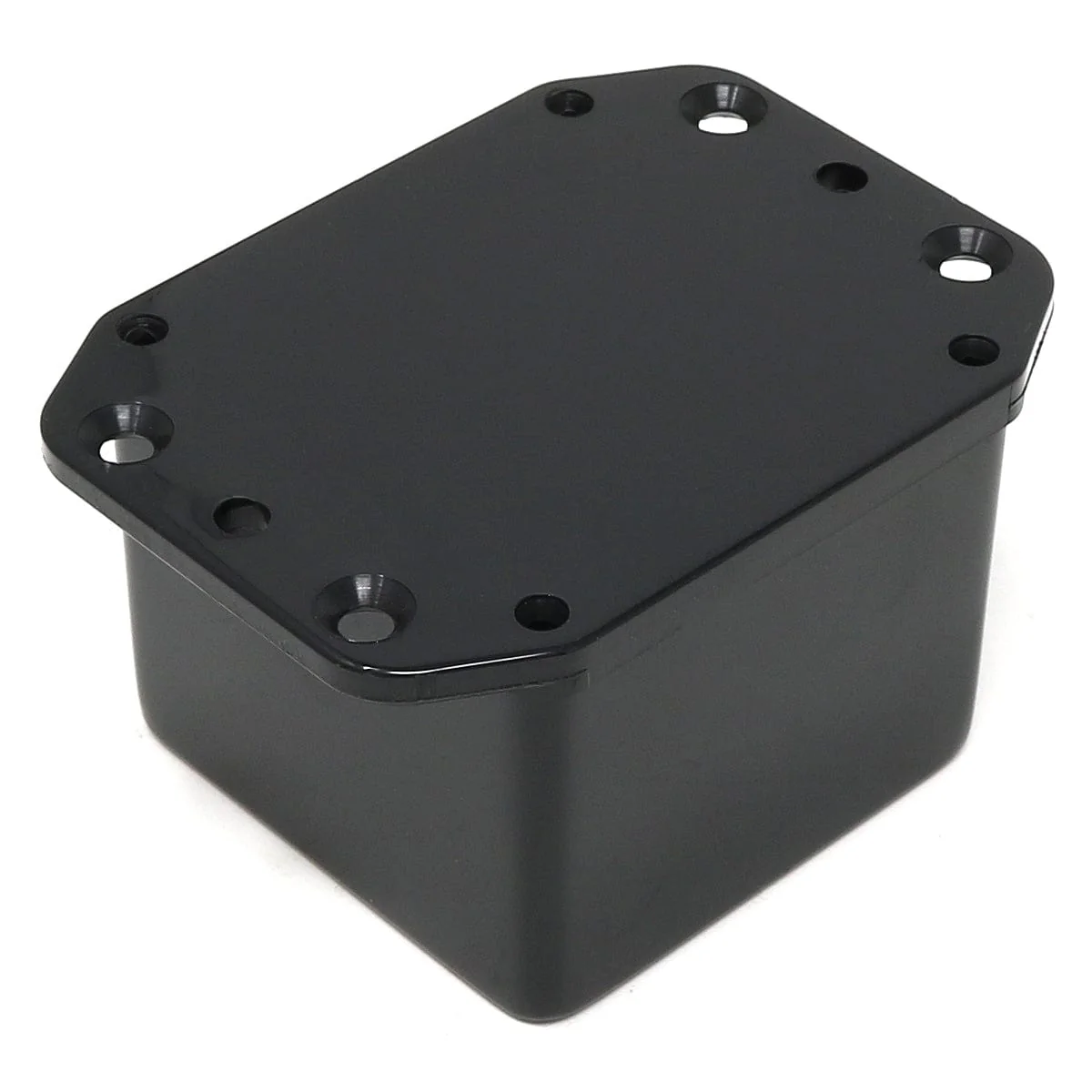

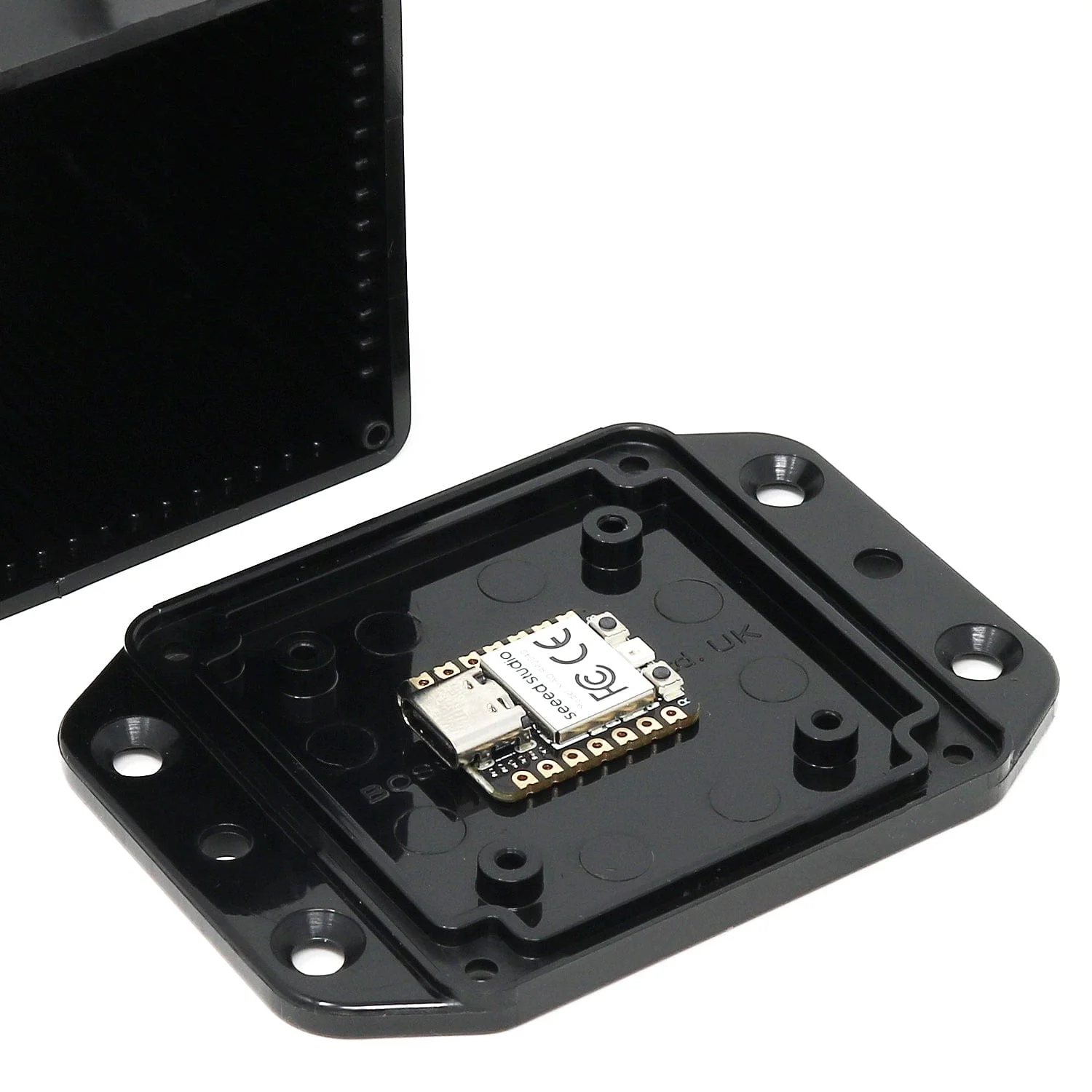

This enclosure is the Camdenboss BIM2008/IP which measures 78mm long, 57mm wide and 43mm high and comes with flanges. If you take a look at the product images, we've included a shot showing the Seeed XIAO RP2040 to give you a 'real' idea of the size of this project box.

The enclosure is made from high-gloss, high-impact ABS (UL94-HB) which is easy to cut, drill, machine and modify for your project. The enclosure is assembled using four included cross-head screws which drive into the plastic threaded lid, and has been designed to meet the requirements of IP54.

The lid section also includes several integral mounting guides to accept 1.6mm PCBs and the base features PCB standoff mounts - great for those of you making your own PCBs.

We also stock a standard version of this enclosure.

Features

• General project enclosure with flanges
• Dimensions (LxWxH): 78x57x43mm
• UL94-HB ABS - high-impact, high-gloss
• Easy to cut, drill and machine
• Colour: Black
• Flanges: Yes
• Plastic standoffs in base for PCB mounting
• Integral mounting guides for 1.6mm PCBs
• Screws included for securing the lid
• Designed to meet the requirements of IP54
• MPN: BIM2008/IP-BLK

Resources

• Camdenboss 2000-series datasheet
• Camdenboss BIM2008/IP Drawing (PDF)
• Camdenboss BIM2008/IP Drawing (DWG)

Package Contents

• 1x Camdenboss BIM2008/IP-BLK enclosure
• 4x Screws
