$11.57
Arduino MKR Proto Shield—
$11.57
The Story

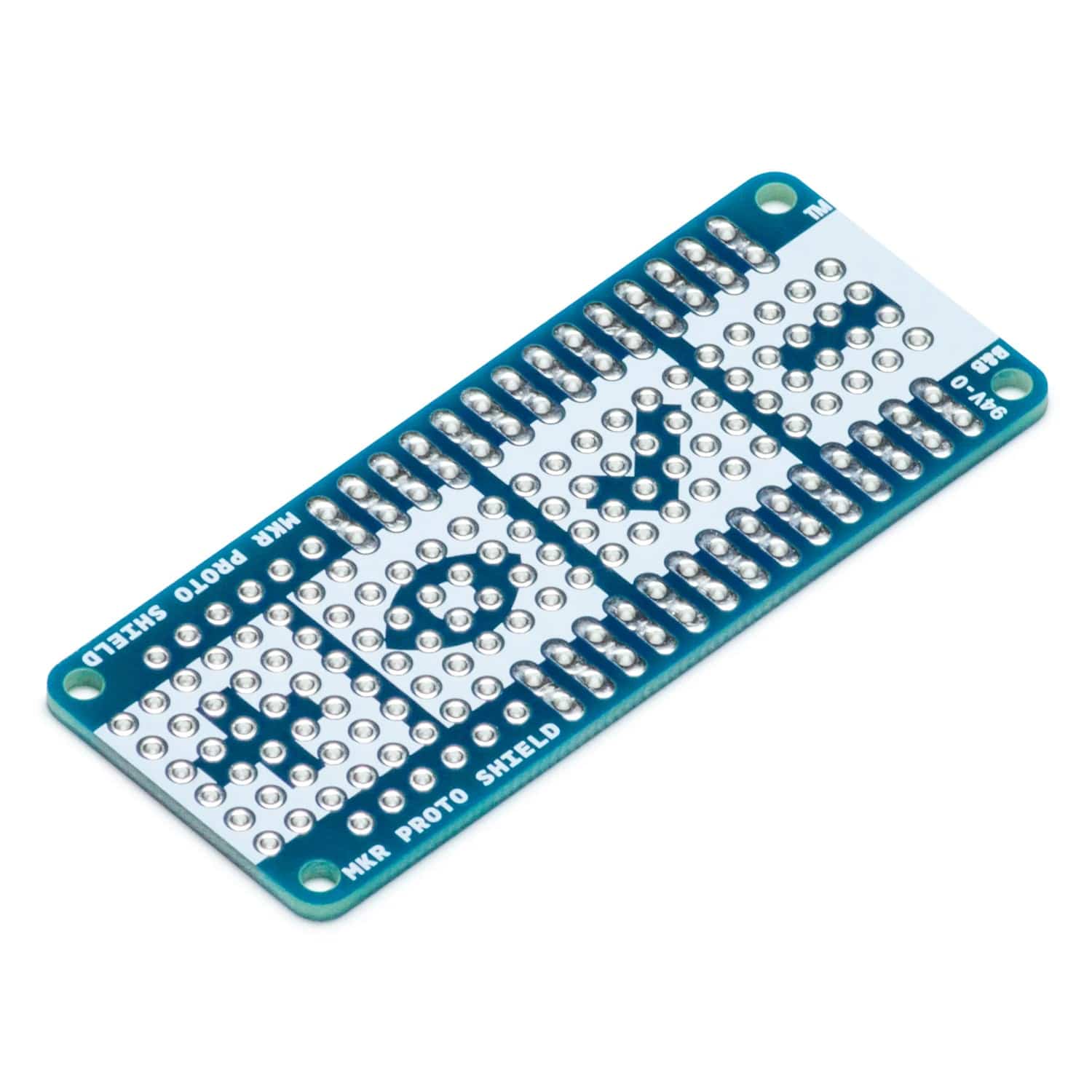

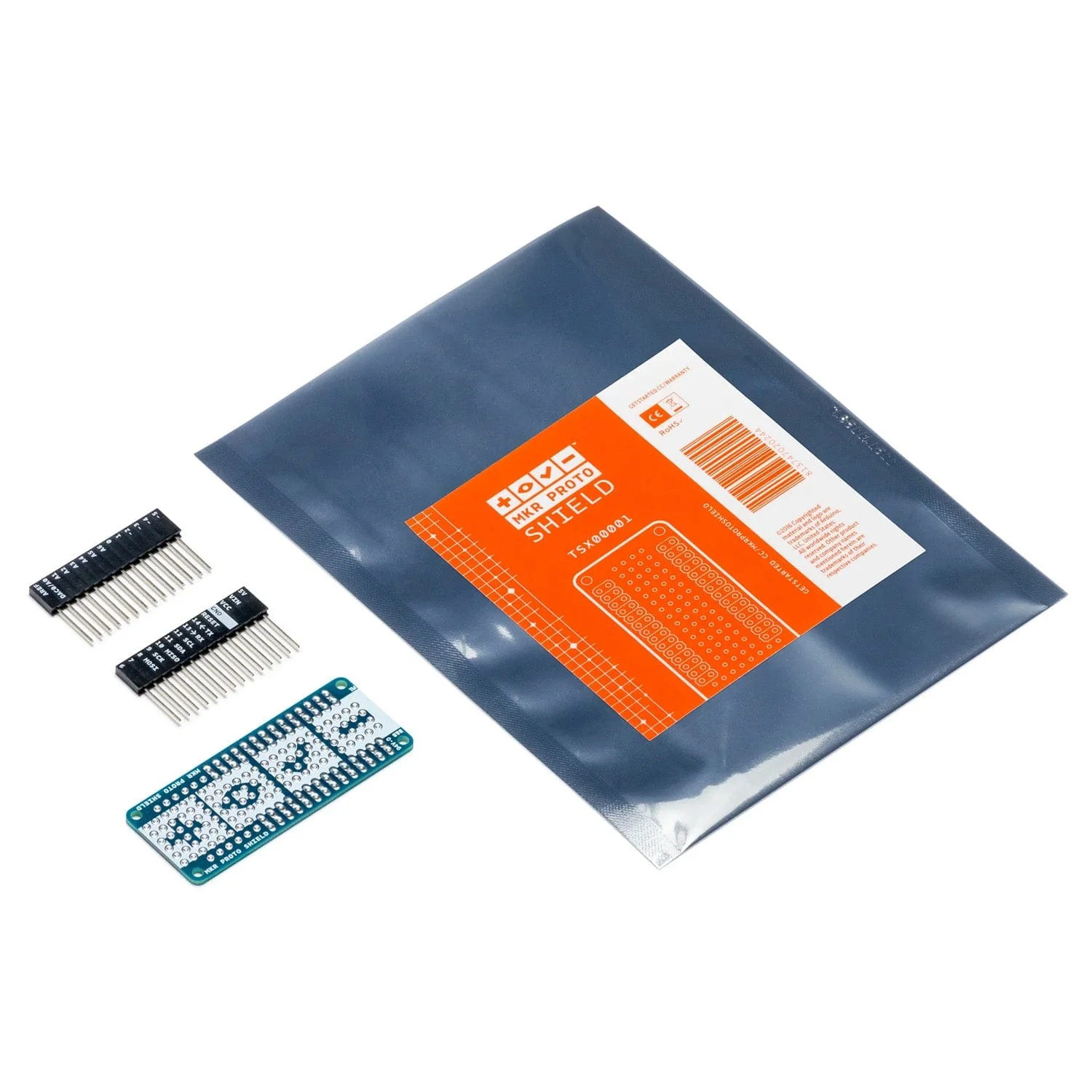

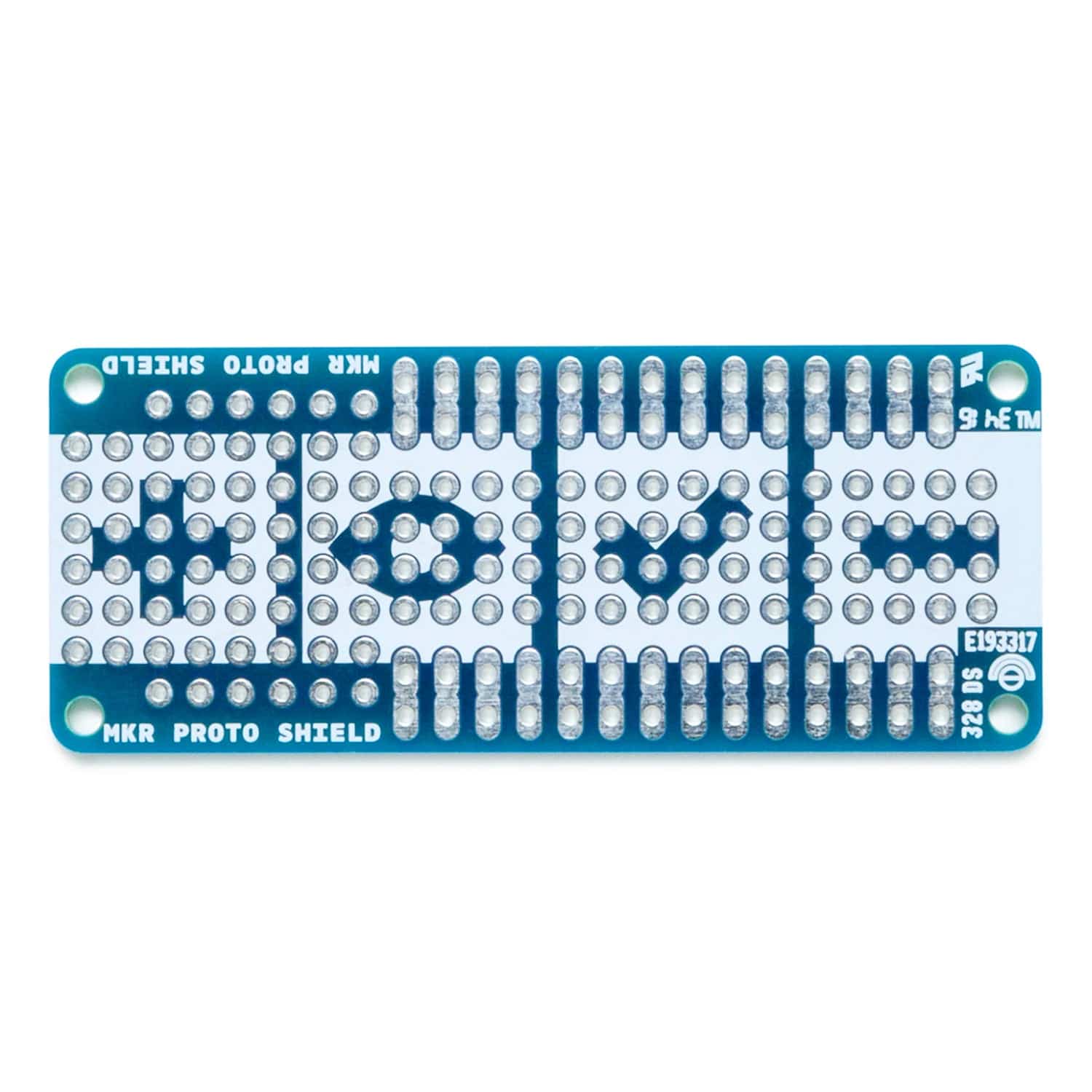

The MKR Proto Shield is a prototyping shield designed for your MKR board. This shield easily plugs onto your MKR using its provided female/male headers, and offers a duplicate breakout for each pin on the board along with many solderable through-holes on a standard 0.1” grid (2.54mm).
Specifications
| Digital I/O Pins | 21 |
| PWM Digital I/O Pins | Depending on the board |
| Analog Input Pins | 7 |
| Analog Output Pins | Depending on the board |
| DC Current per I/O Pin | Depending on the board |
| DC Current for 3.3V Pin | Depending on the board |
| DC Current for 5V Pin | Depending on the board |
| Length | 61.5 mm |
| Width | 25 mm |
| Weight | 13 |
Resources
- Schematics
- Eagle Files
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The MKR Proto Shield is a prototyping shield designed for your MKR board. This shield easily plugs onto your MKR using its provided female/male headers, and offers a duplicate breakout for each pin on the board along with many solderable through-holes on a standard 0.1” grid (2.54mm).
Specifications
| Digital I/O Pins | 21 |
| PWM Digital I/O Pins | Depending on the board |
| Analog Input Pins | 7 |
| Analog Output Pins | Depending on the board |
| DC Current per I/O Pin | Depending on the board |
| DC Current for 3.3V Pin | Depending on the board |
| DC Current for 5V Pin | Depending on the board |
| Length | 61.5 mm |
| Width | 25 mm |
| Weight | 13 |
Resources
- Schematics
- Eagle Files
